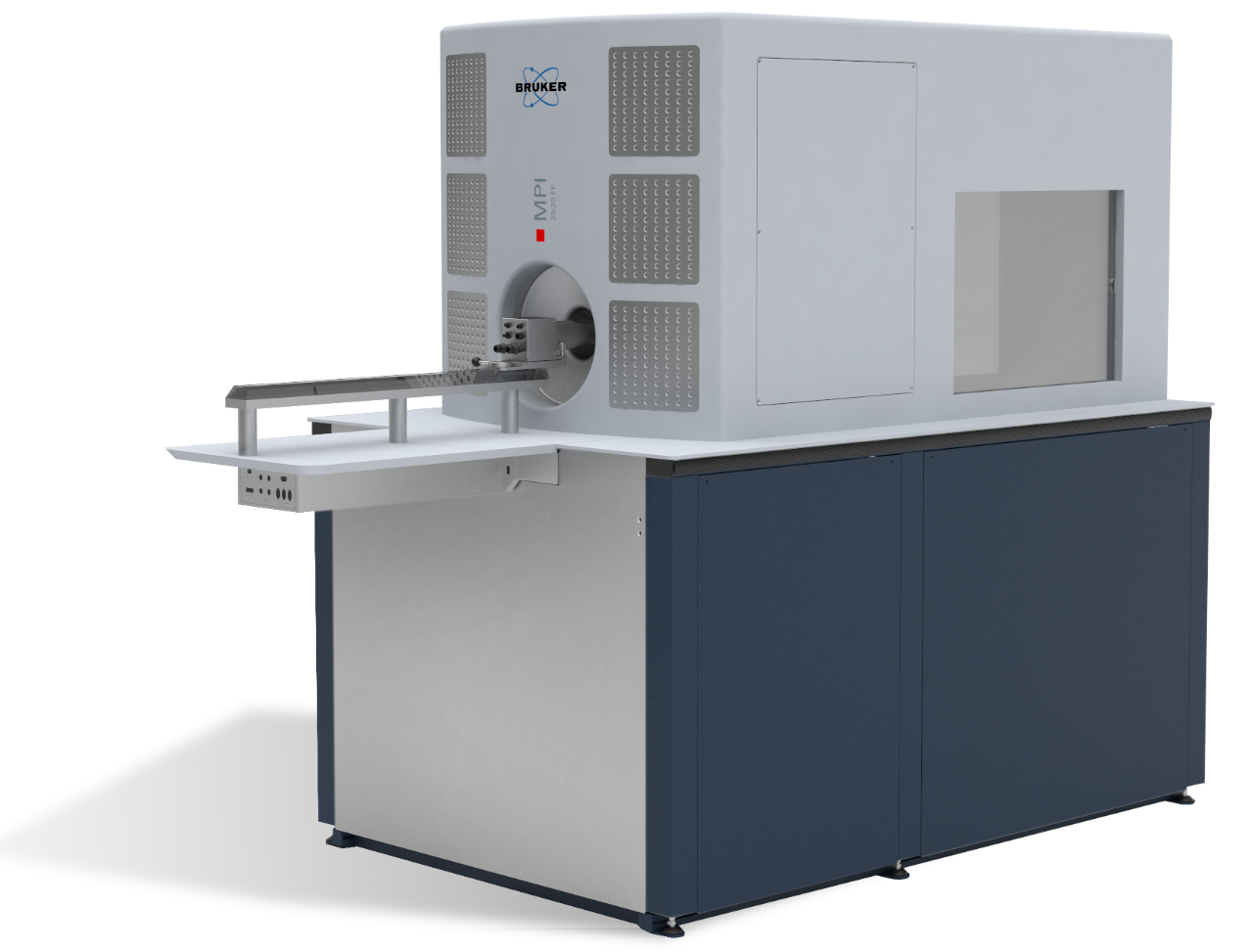

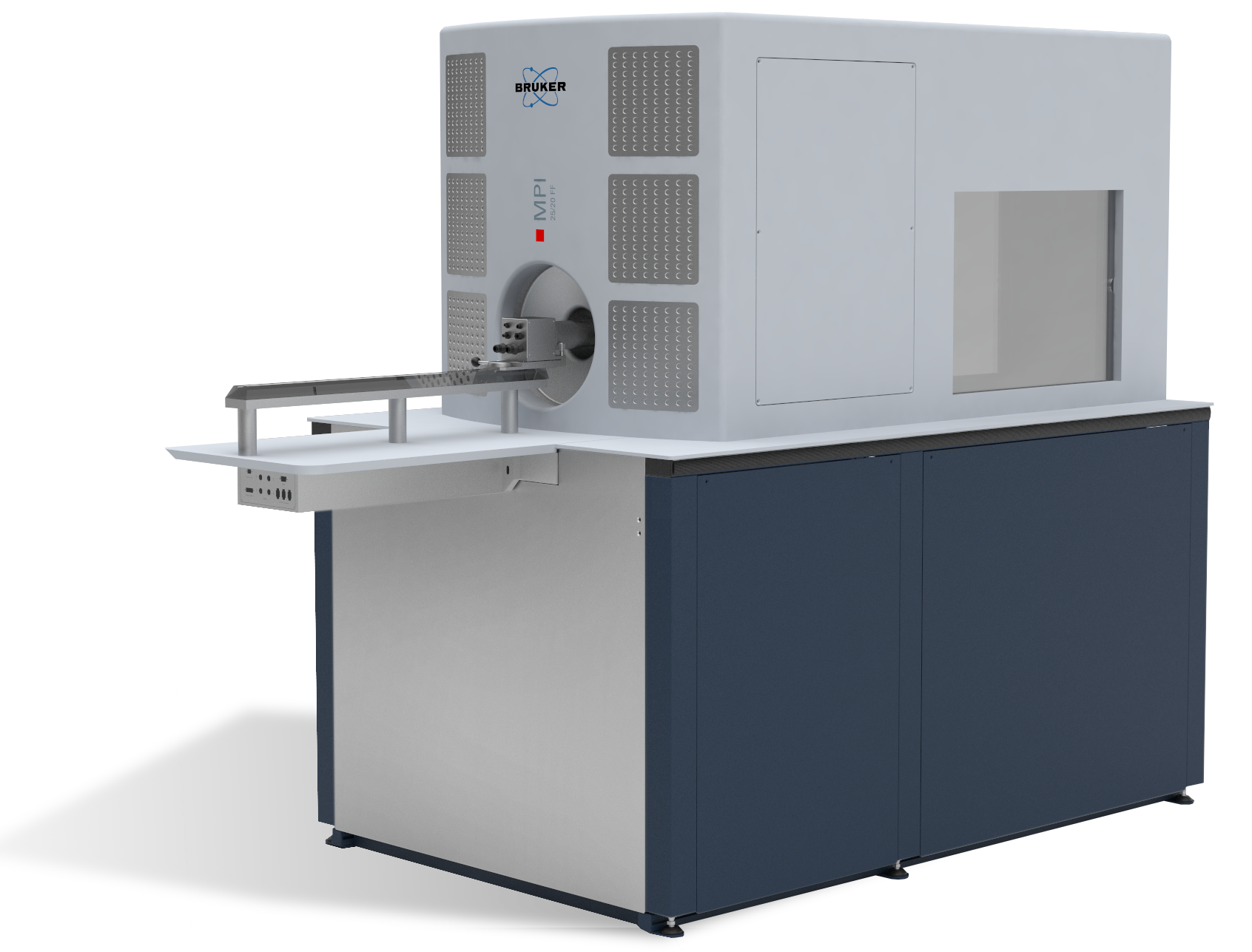

Preclinical Magnetic Particle Imaging (MPI) scanner

MPI PreClinical

Three-dimensional images at millisecond intervals, providing the potential for real-time 3D imaging in vivo
MPI

Highlights

Highlights

Revolution
Meet the world’s first commerical MPI system, now available to order for your own imaging lab
Innovation
Offering the largest range of preclinical imaging systems
MPI is a tomographic imaging technique that detects the magnetic properties of iron-oxide nanoparticles injected into the bloodstream to produce three-dimensional images.
Download now

Magnetic Particle Imaging – one fascinating pillar of Bruker’s multimodal life science portfolio

Preclinical imaging plays an important role in the understanding of biological processes in both healthy and diseased states and of responses to pharmacological, physiological or environmental challenges. The use of state-of-the-art analytical technologies can significantly advance clinical diagnosis and therapy routines.

Bruker is a renowned provider of state-of-the-art preclinical imaging technologies, ranging from Magnetic Resonance Imaging (MRI), Computed Tomography (CT), Positron Emission Tomography (PET), Single Photon Emission Computed Tomography (SPECT) to its youngest imaging technology, Magnetic Particle Imaging (MPI). With our mission to develop each imaging technology to its best, Bruker drives innovation in new methodologies and solutions for scientists enabling ground-braking discoveries.

Bruker constantly advances Magnetic Particle Imaging in the preclinical area, paving the translational way to clinical perspectives. The use of nanomaterials and their specific response to external magnetic fields is not only crucial for molecular imaging, but opens the door to the development of novel theranostic strategies, which in turn can improve patient outcomes and save lives.

Be inspired by the recent achievements of our outstanding MPI community in the life sciences and join us to take molecular imaging to the next level.


Partnering in Innovation

The result of an exclusive collaboration, the MPI system combines Bruker’s leading expertise in analytical magnetic resonance instruments and preclinical Magnetic Resonance Imaging (MRI) with Philips’ unique strengths in medical imaging.

MPI is a completely new preclinical imaging technique with enormous potential to deliver new strategies to understand disease processes at the organ, cellular and molecular level. With the new MPI system, Bruker further complements its extensive preclinical imaging product portfolio that includes MRI, PET, SPECT and micro-CT.

Features

Features

  • Powerful 7-channel magnet design comprising drive, selection, and focus field technologies
  • Up to 46 volumes/sec

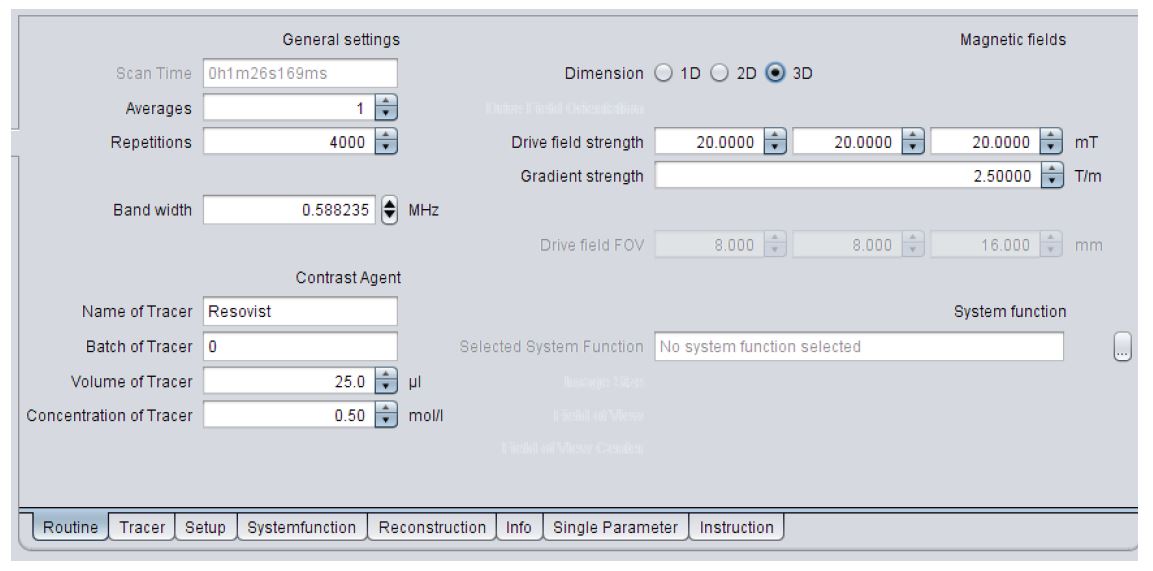

  • ParaVision® acquisition and processing platform with DICOM export and import
  • One-click data acquisition and reconstruction
  • Fully flexible sequence design
  • Access to all raw data
  • Bolus injection triggering via ParaVision®
  • Wide-bore imager with 12 cm free access for imaging of mice, rats, guinea pigs and rabbits
  • Bruker’s multi-modality animal handling system
  • 1D Rxonly coil inserts*
  • Spatially selectivity via FFP
  • In situ theranostic insert*

    *optional

Benefits

Benefits

Three-dimensional images at millisecond intervals, providing the potential for real-time 3D imaging in vivo

MPI is a tomographic imaging technique that detects the magnetic properties of iron-oxide nanoparticles injected into the bloodstream to produce threedimensional images. The new technology, invented by Philips, and first introduced in a 2005 Nature paper, gave rise to a high aspirations for a new era in biological imaging.

Now Bruker has combined its expertise in technological innovation with its passion for pushing the boundaries of understanding, and launched the previously only envisioned possibilities to the imaging community.

1,000 Times Faster Than PET
With MPI, imaging of up to 46 volumes per second can be performed, allowing real time imaging of biological processes at an equal or higher spatial resolution than with PET.

100% Animal Visualization
MPI measures the 3D distribution of injected iron oxide nanoparticles using a 25 kHz RF signal. This signal can easily be recorded from any depth within the animal allowing complete flexiblity in choosing areas of interest.

100% User-Friendly
Bruker’s MPI System incorporates ParaVision® 6 and accommodates Bruker‘s multi-modal bed, providing a seamless transition of your animal to and from your Bruker MRI system.

Unimagined Temporal Resolution
The ability to acquire high time-resolution images in a matter of milliseconds allows for novel applications in medical and industrial research and ultimately patient care in which temporal resolution is key.

Applications

Applications

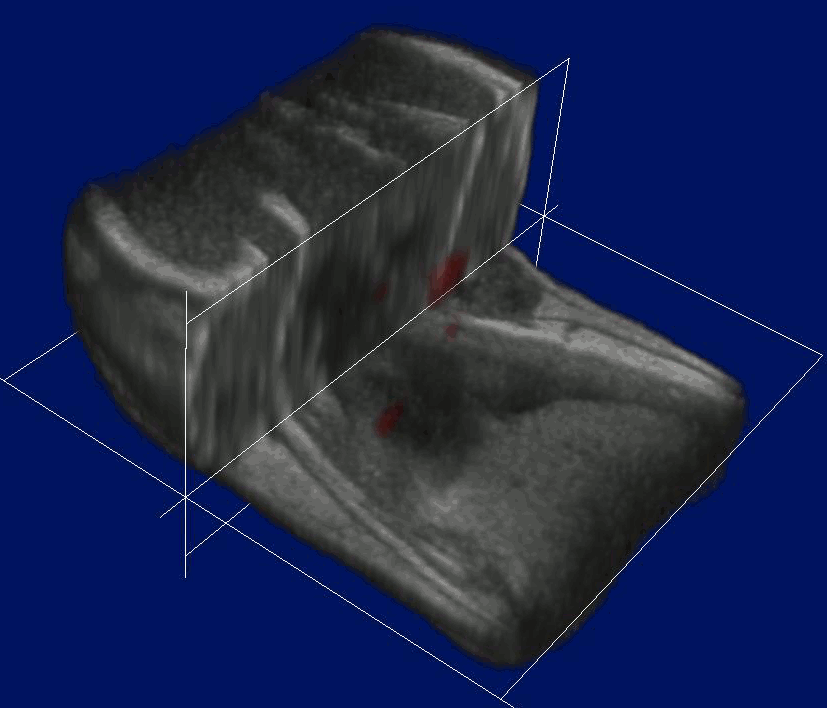

Cardio-vascular 3D+t MPI bolus tracking (redscale) superimposed with a static 3D MRI dataset (grayscale) for morphological guidance. DOI: 10.1109/TMI.2020.3017160

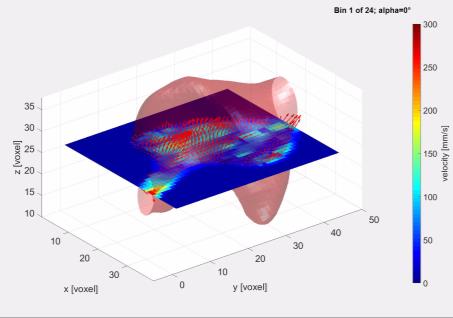

MPI-based 3D+t flow velocity estimation represented as color-coded streamlines superimposed with MR-based morphological information. DOI: 10.1109/TMI.2020.3017160

Oncology

  • Spatially selective tumor therapy
  • in situ hyperthermia therapy (MFH)
  • Temperature monitoring
  • Tumor therapy assessment
  • Cancer staging

Neurology

  • fMPI, Neurodegeneration

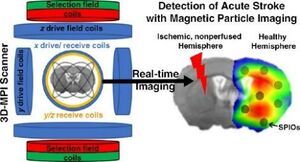

  • Acute stroke detection
  • Local and reversible Blood Brain Barrier opening
  • Direct brain cancer treatment
  • Drug delivery
  • Localized MFH

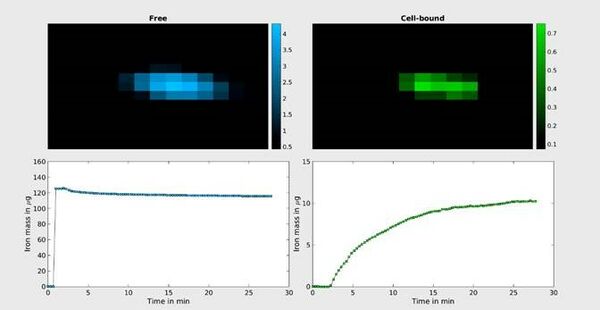

Molecular Imaging

  • Stem cell tracking
  • Cell quantification
  • Cell viability
  • Functionalized tracer
  • Specific targeting
  • Cell-labeling
  • Inflammation

Cardiovascular

  • Stenosis staging
  • Plaque detection
  • Plaque staging
  • Real-time bolus tracking
  • Velocity reconstruction
  • Output fraction
  • Functional parameter

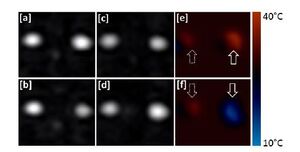

Theranostics

  • in situ diagnostic and therapy system
  • Morphology
  • Therapy planning and monitoring
  • Spatially selective therapy
  • Spatially selective hyperthermia (MFH)
  • Image-based thermometry

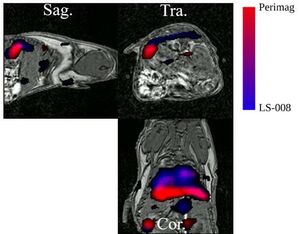

Personalized Medicine

  • Pharmacokinetics
  • Targeted drug delivery
  • Spatially selective drug activation

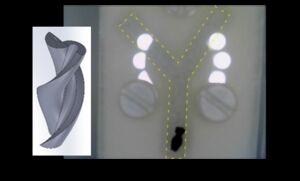

Interventions

  • Device actuation/steering
  • Spatially selective actuation
  • (Nano-)bot steering

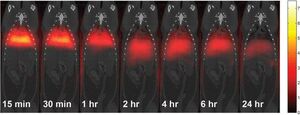

Lung Diagnosis

  • Perfusion
  • Ventilation

Testimonials

Testimonials

Dr. J. Schnorr, Charité, Berlin

„Our group is working in the field of iron oxide nanoparticles as tracer of MPI, hyperthermia molecular imaging and angiography."

Prof. T. Buzug, imt (Institut für Medizintechnik), Lübeck

“The possibility to collaborate closely with the development team of Bruker is a unique advantage."

Prof. T. Knopp, TUHH, Hamburg

„The Bruker MPI system allows us to develop new imaging sequences and to exploit the potential of MPI for medical applications."

Prof. T. Knopp, TUHH, Hamburg

„What I expect from Bruker in the future is, a second generation of the preclinical MPI system: Much more compact but still very flexible.“
