IVD PCR Cycler

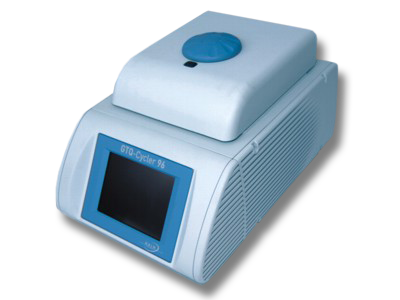

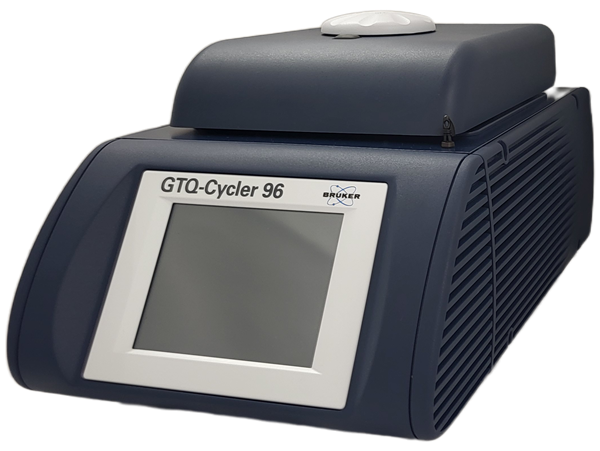

GTQ-Cycler 96

Automated amplification of nucleic acids for up to 96 samples

GTQ-Cycler 96 - The thermal cycler for your lab routine

The GTQ-Cycler 96 is a compact stand-alone instrument for molecular biological and biochemical diagnostics for up to 96 samples. Preset protocols, integrated software with touchscreen operation ensures efficient processing. A combination of rapid temperature changes, with a homogenous temperature profile provides precise and reproducible results.

Features

Amplification of up to 96 samples
Pre-installed PCR protocols for processing of GenoType tests
Color touchscreen
Detailed GLP report

Benefits

Compact instrument fits into many lab spaces
Preset protocols for efficient operation
Minimal training needed while securing consistent results

Specifications

Number of samples: 96
Sample volume: 5 - 100 μl
Heated lid: 112 - 120°C
Temperature range: 4 - 99.9°C in steps of 0.1°C
Heating rate: up to 5°C / s
Cooling rate: up to 3°C / s
Size: 34 × 42 × 26 cm (W × D × H)
Weight: approx. 12 kg
Power supply: 100 - 240 V, 50 / 60 Hz

More Information

Equipment Program Overview

Related Products

fc-400x300

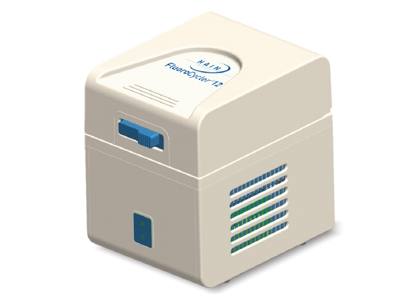

FluoroCycler^® 12

The FluoroCycler^® 12 is a small device, which runs FluoroSoftware^® IVD generating real-time PCR results at a glance – instantly for up to 12 samples. This low throughput detection and analysis instrument is ideal for small laboratories. To increase throughput no need to add extra PCs. Up to four FluoroCycler^® 12 devices can run simultaneously on one PC, with a simple USB connection, taking up the minimal amount of room possible.

hain-fluorocycler-xt-460x599

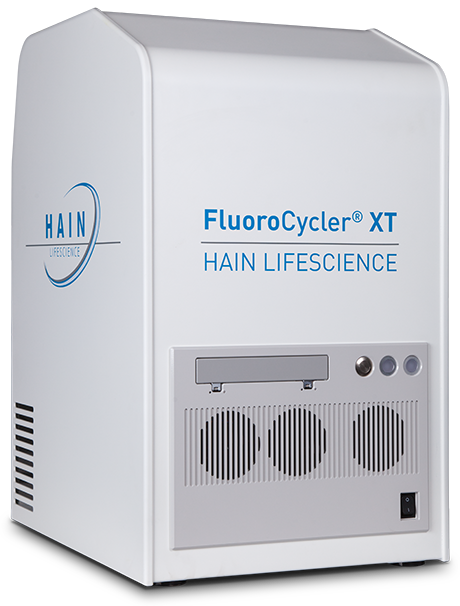

FluoroCycler^® XT

The FluoroCycler^® XT is best real-time PCR cycler we have ever experienced. It is no ordinary “cycler”. The FluoroCycler^® XT is highly accurate, with all 96 wells controlled to exactly the same temperature throughout the heating and cooling process. This enables generation and interpretation of real-time curves, melting curves as well as the LiquidArray^® multiplex signatures which, when using machine learning techniques, can analyse the shifts which are otherwise almost impossible to detect with the human eye. The FluoroCycler^® XT is the only device that supports this advanced LiquidArray^® Technology.

genoxtract-bruker-bmid-04-2023

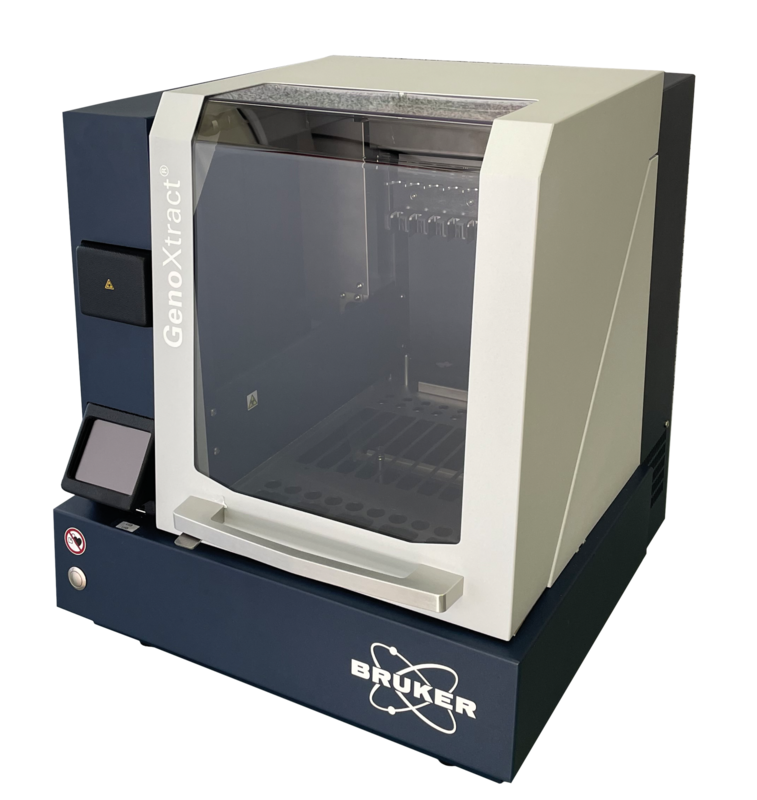

GenoXtract^®

The GenoXtract^® is a compact extraction device for up to 12 samples. Onboard processing keeps this device footprint low, while allowing gradual increase of units to suit the lab needs. Dedicated cartridges and protocols facilitate low throughput extraction needs on many samples types.

genoxtract-flext

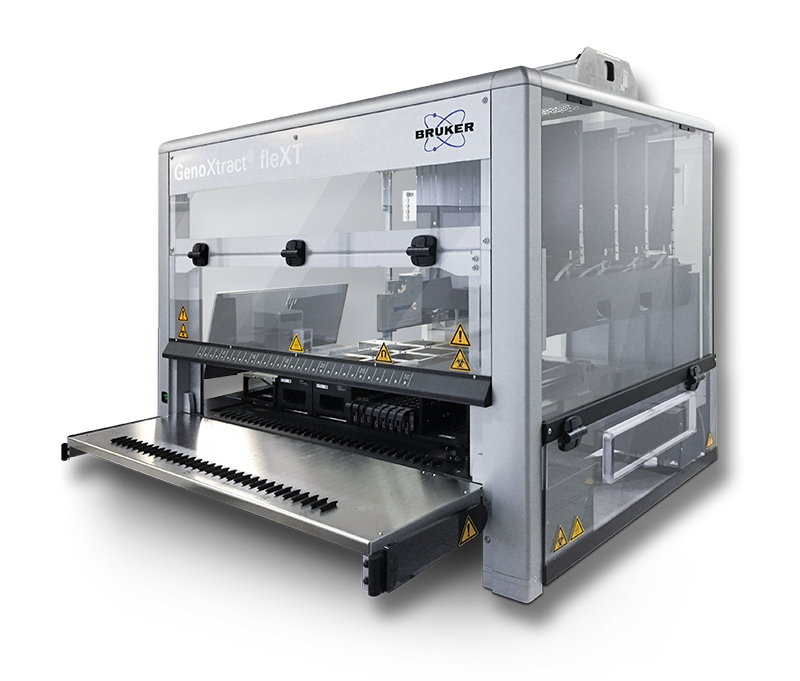

GenoXtract^® fleXT

The latest addition to the device portfolio is the GenoXtract^® fleXT, a device for automated extraction and PCR setup for 12-96 samples. With minimal hands-on and maximum walk away time, the GenoXtract^® fleXT loads your plasticware and samples from outside the device arranging them in place inside. with no need for reaching and stretching inside. Barcode scanning enables digital tracking of everything that goes on minimizing human error and maximizing the time you can spend doing other important tasks.

gt-blot48

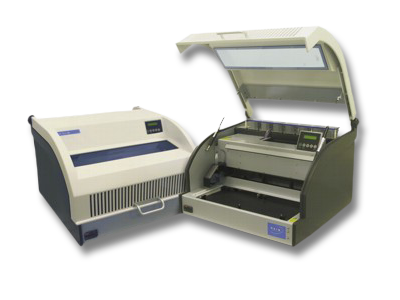

GT-Blot 48

With automated heating and shaking of solutions, the GT-Blot 48 is an instrument used for hybridization of nucleic acids as well as subsequent detection. The GT-Blot 48 is designed for use with reverse line blot strip assays and provides automation for washing and hybridization for 2 to 48 samples.

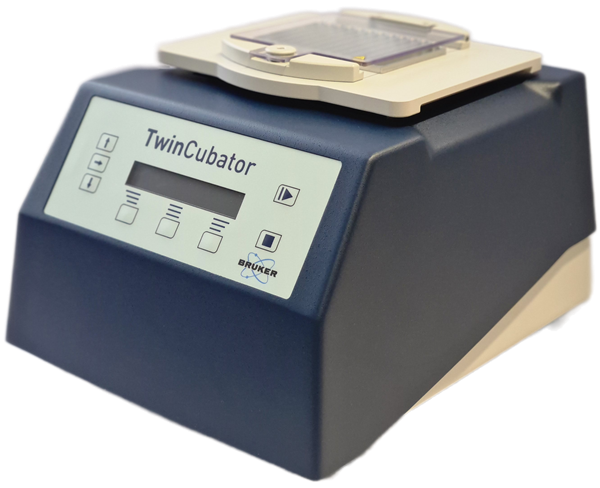

TwinCubator

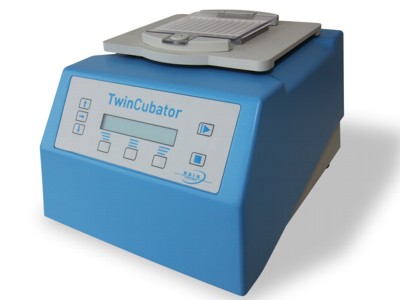

TwinCubator
