LiquidArray® Gastrointestinal
LiquidArray® powered syndromic panel for gastrointestinal infections
Next generation multiplexing for gastroenteritis
LiquidArray® Gastrointestinal is a syndromic panel for gastrointestinal infections, providing comprehensive coverage of up to 28 pathogens in a single workflow.
Harnessing the power of LiquidArray® technology, the next generation multiplexing approach includes the detection of bacteria, toxins, viruses and parasites. Processing a single stool sample, across two wells, can streamline and simplify gastrointestinal testing.
The LiquidArray® Gastrointestinal workflow is presented in a familiar, user-friendly format and provides a high throughput, automated solution for integration in the routine laboratory.
Well 1
Bacteria and toxins
- Campylobacter spp.
- C. difficile toxin A
- C. difficile toxin B
- E. coli O157
- Enterohemorrhagic E. coli (EHEC)
- Enteroinvasive E. coli (EIEC)/Shigella spp.
- Enteropathogenic E. coli (EPEC)
- Salmonella spp.
- Shiga toxin-producing E. coli (STEC) Stx1
- Shiga toxin-producing E. coli (STEC) Stx2
- Yersinia enterocolitica (differentiation based on ail and ystB gene targets)
Viruses
- Norovirus GI
- Norovirus GII
- Rotavirus
Parasites
- Cryptosporidium spp.
- Entamoeba histolytica
- Giardia lamblia
Well 2
Bacteria
- Aeromonas spp
- Enteroaggregative E. coli (EAEC)
- Enterotoxigenic E. coli (ETEC)
- Plesiomonas shigelloides
- Vibrio cholerae
- Vibrio spp.
Viruses
- Adenovirus 40/41
- Astrovirus
- Sapovirus
Parasites
- Ascaris spp.
- Cyclospora cayetanensis
Powered by LiquidArray®

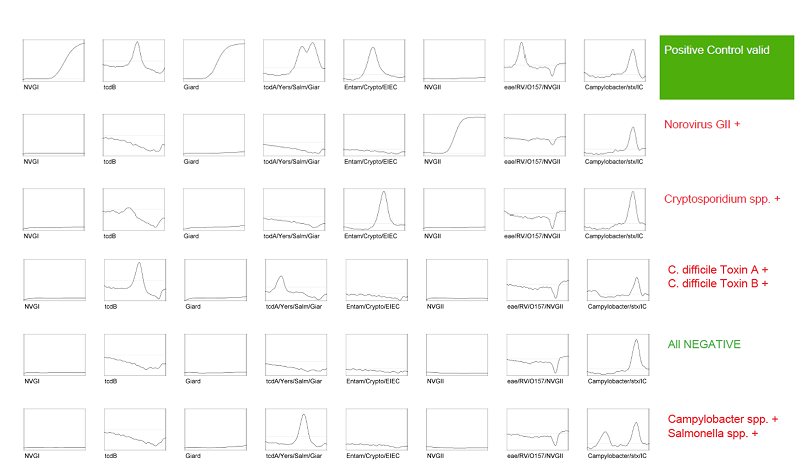

LiquidArray® from Bruker is a next generation multiplexing PCR-based technology. It is underpinned by the unique features of the FluoroCycler® XT – Bruker’s high performance thermocycler. With precise temperature control and no optical cross-talk or colour compensation, assays are designed with a high number of targets per optical channel. LiquidArray® assays are automatically interpreted and reported providing advanced multiplex results at a glance in a familiar, easy to use format.
LiquidArray® brings next generation multiplexing for infectious disease diagnostics to the routine clinical microbiology laboratory.

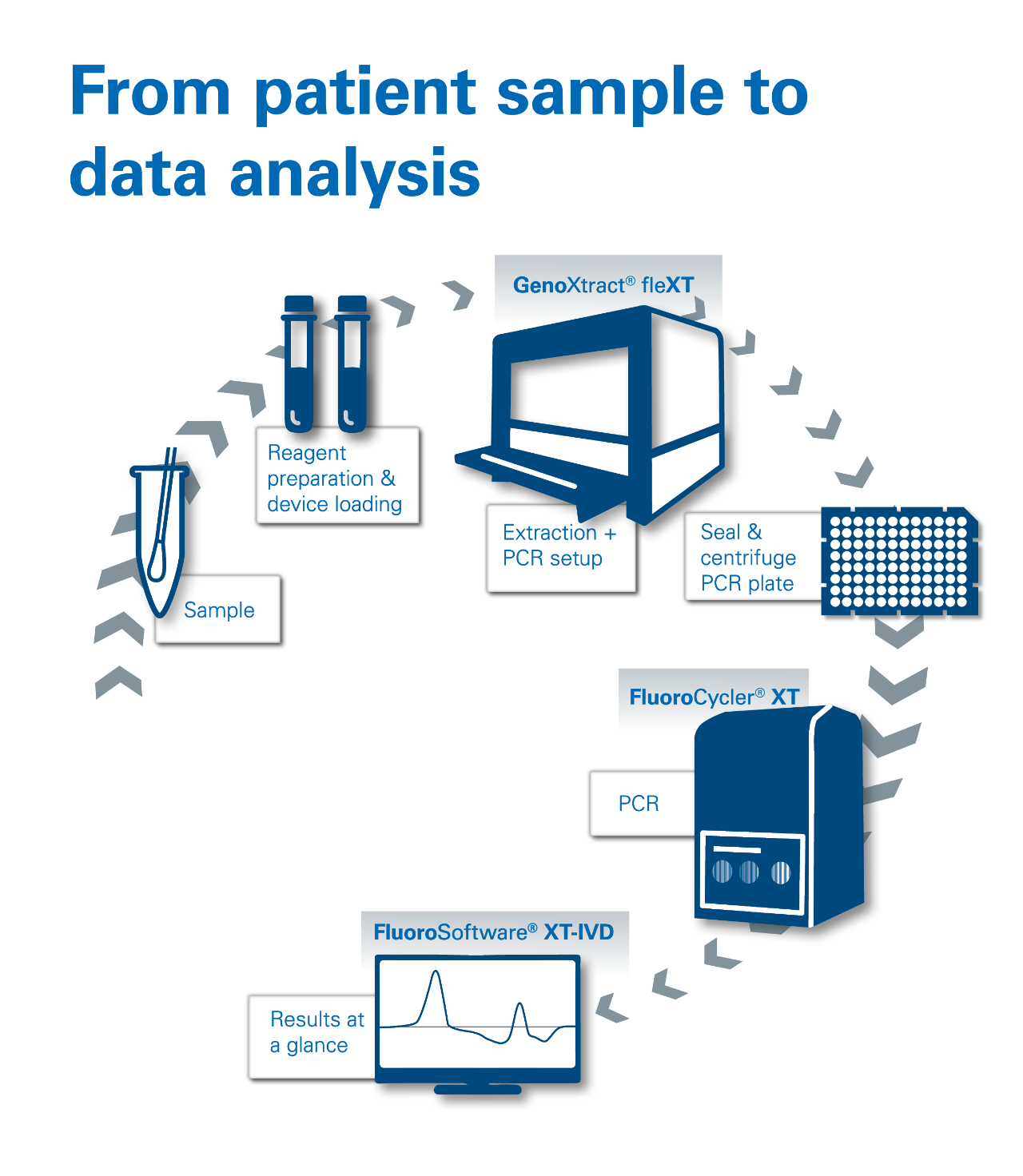

Automated workflow for high throughput processing
LiquidArray® Gastrointestinal is validated for use with the GenoXtract® fleXT, which enables sample extraction and automated PCR setup. The assay is developed in a two-well format, supporting high throughput gastrointestinal testing from a single extraction. The automated extraction system provides barcode sorting to cut manual intervention and reduce the potential for human error.
Simultaneous detection of 28 pathogens causing gastrointestinal infections
LiquidArray® Gastrointestinal provides next generation multiplexing of 28 pathogens in a two-well format. It simplifies the workflow of gastrointestinal testing with comprehensive coverage and by supporting the throughput needs of the routine laboratory.
