Preclinical MRI

BioSpec

The BioSpec® series is designed for the emerging market of preclinical and molecular MR imaging and MRI research.

Limitless

imaging applications

BioSpec UHF

Punti salienti

Highlights

Magnet Technology
Helium zero-boil-off and Nitrogen free magnet technology for reduced maintenance costs and longer service intervals
Bore Sizes
A wide range of bore sizes between 11 and 40 cm for investigations on all animals of relevance in preclinical imaging
USR
UltraShield Refrigerated USR magnet technology at field strengths from 4.7 up to 15.2 Tesla for unsurpassed sensitivity in small animal MRI
BioSpec® opens up a whole new world of applications
download now

Related Products

UHF_teaser

Ultra-High Field BioSpec

Ultra-High Field BioSpec instruments are the pinnacle of today's MRI technology and provide maximum sensitivity and resolution, opening the opportunity for new discoveries.

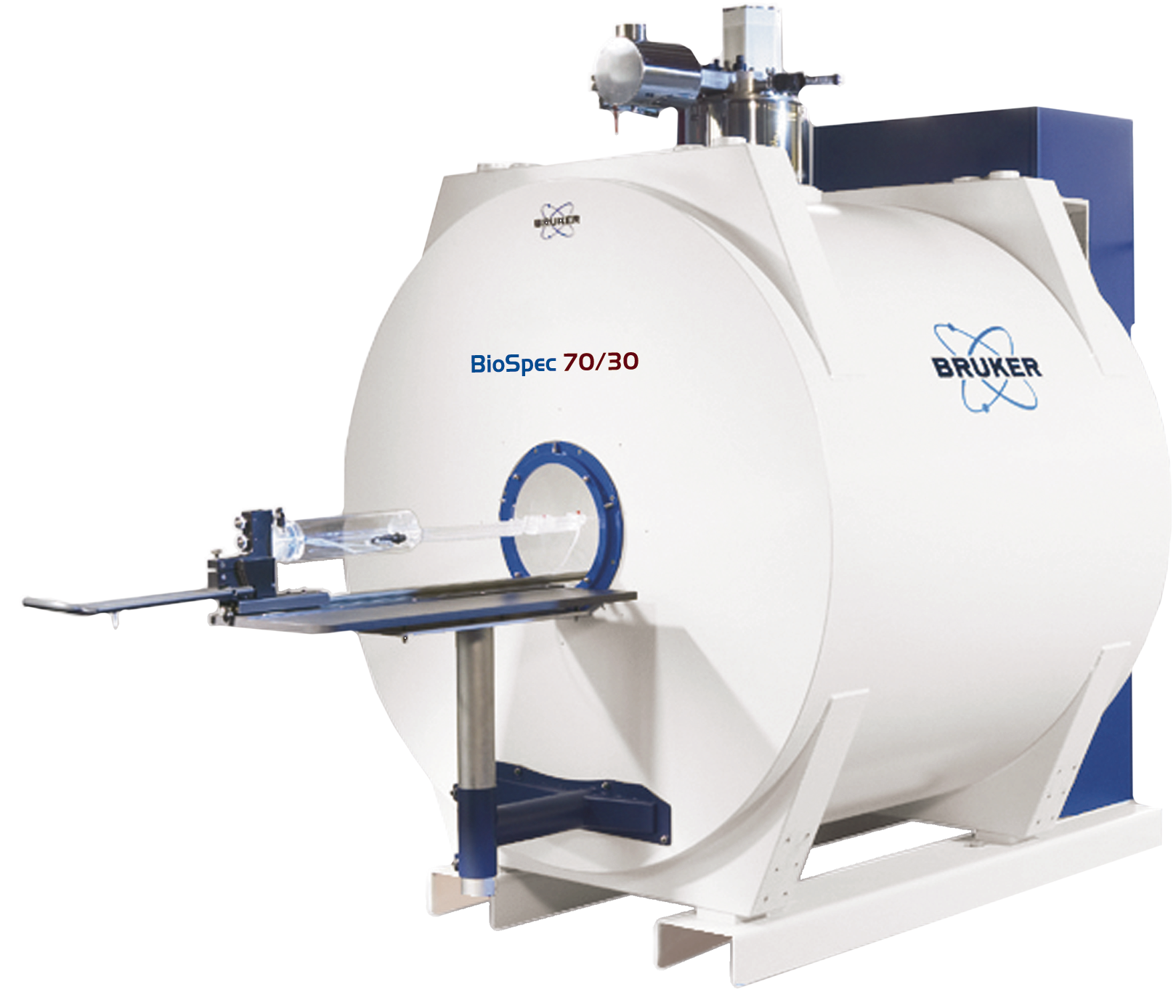

BioSpec 70/30

BioSpec High-Field MRI

Offering the greatest versatility of any preclinical MRI instrument, the 4.7 T, 7 T, and 9.4 T BioSpec instruments with various bore sizes of 20 cm to 40 cm make even the most challenging applications possible.
Biospec 152_11_teaser

BioSpec 152/11

The BioSpec 152/11 with its 1000 mT/m and full second and third shim order capabilities makes it the ultimate in ultra-high-field MRI. Its unparalleled sensitivity and resolution enable ground breaking discoveries.
biospec_117_16_USR_teaser

BioSpec 117/16

The BioSpec 117/16 combines the advantages of ultra-high-field with the largest range of coils to enable extreme versatility at ultra-high field for studies on mice and rats.
Biospec 117_11_teaser

BioSpec 117/11

The 117/11 BioSpec opens the door to ultra-high-field MRI. With its streamlined operation and gradient strength up to 1000 mT/m, it makes even the most challenging murine studies possible.

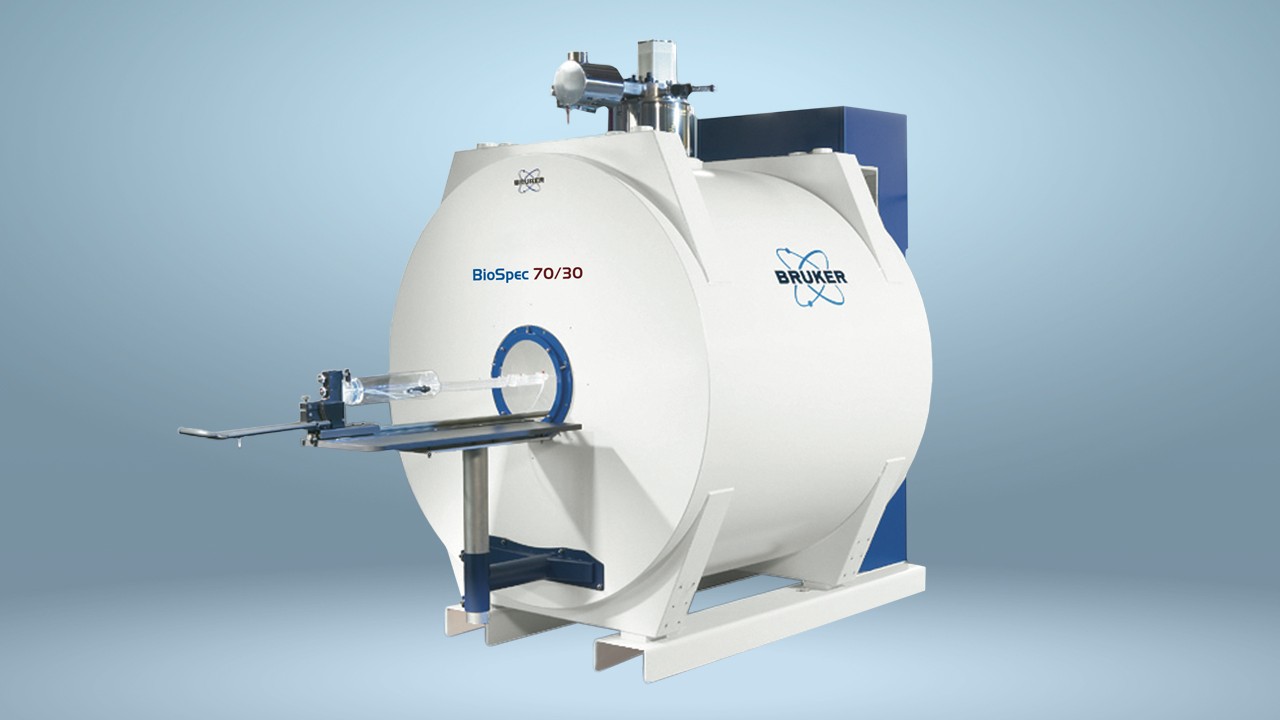

BioSpec 70/30

BioSpecs 70/30 and 94/30

The BioSpecs 70/30 and 94/30 are among the most versatile members of the BioSpec family. With an inner gradient diameter of 30 cm and an innovative modular concept for gradient and PET inserts, they are optimally suited for research on animals ranging from mice to rabbits.

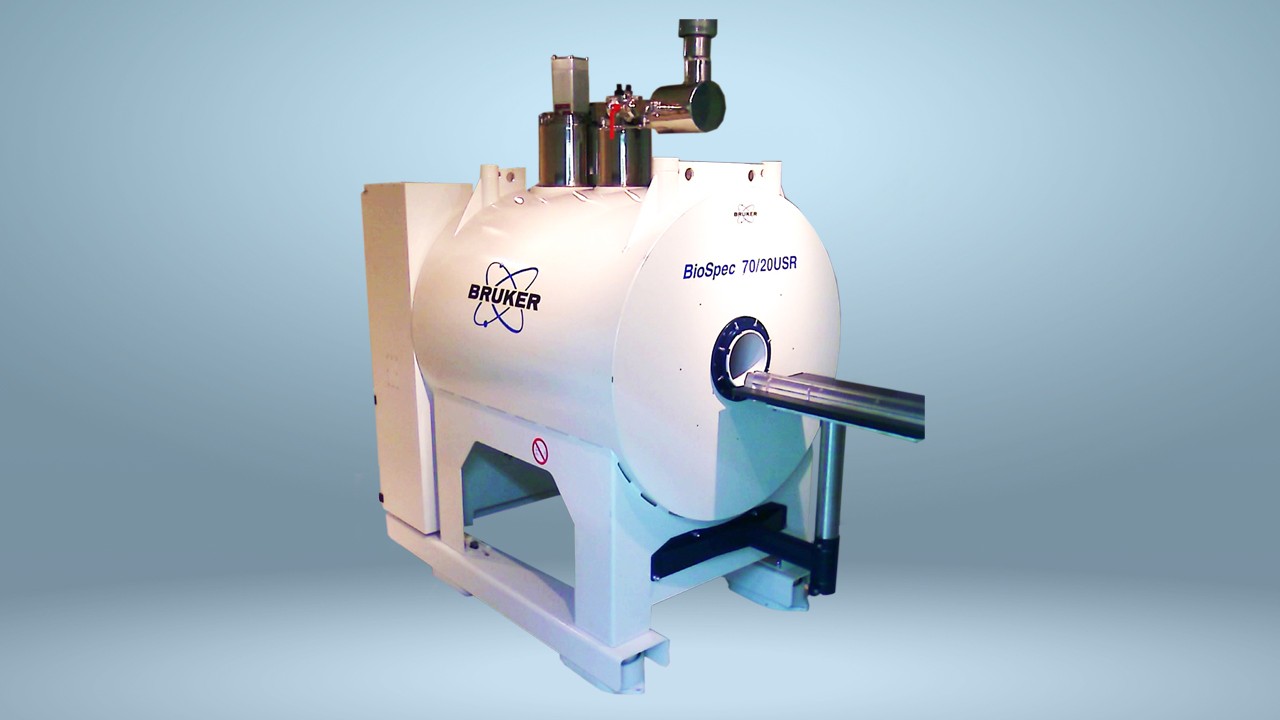

Biospec 70_20_teaser

BioSpecs 70/20 and 94/20

The BioSpecs 70/20 and 94/20 deliver high spatial resolution in-vivo, enabling researchers to come closer to the molecular and cellular level they desire. With their full range of MRI CryoProbes, optogenetic and ASL coils, and multi-channel array coils with up to 16 channels, these multi-purpose MRI instruments allow conduction of a widest range of applications.
BioSpec 47/40

BioSpec 47/40

The BioSpec 47/40 with its extremely large 40 cm bore size allows conduction studies with intricate set-ups or on animals up to the size of small non-human primates.
UHF_teaser

MRI Magnets

Ultra Shield Refrigerated Magnet Technology

BioSpec series Bruker offers multi-purpose high field MRI/MRS research systems, designed for the emerging market of preclinical veterinary imaging and molecular MRI

The BioSpec® series is designed for the emerging market of preclinical and molecular MR imaging and MRI research. State-of-the-art MRI CryoProbe™ technology combined with ultra high field USR magnets deliver high spatial resolution in-vivo, thus enabling customers to come closer to the molecular and cellular level research they desire. Thanks to its innovative modular concept, virtually any small animal MR imaging application in life science, biomedical and preclinical research can be conducted. Whatever your application is, the BioSpec series will deliver the optimum solution and equip you perfectly for the most demanding tasks and challenges.

Caratteristiche

Features

  • UltraShield Refrigerated USR magnet technology at field strengths from 4.7 up to 15.2 Tesla for unsurpassed sensitivity in small animal MRI
  • A wide range of bore sizes between 11 and 40 cm for investigations on all animals of relevance in preclinical imaging
  • Helium zero-boil-off and Nitrogen free magnet technology for reduced maintenance costs and longer service intervals
  • Scalable AVANCE MRI RF architecture incorporating up to 16 receiver, 4 independent and 8 parallel transmitter channels

Benefici

Benefits

BioSpec benefits from the excellence of Bruker BioSpin, which is the global market and technology leader in analytical magnetic resonance instruments including NMR, preclinical MRI and EPR. The company delivers the world‘s most comprehensive range of magnetic resonance research tools enabling life science, materials science, analytical chemistry, process control and preclinical research. With an install base of over 500 MRI systems worldwide and more than 40 local Bruker offices on all continents, you can rely on our long term expertise as well as on our dedicated aftersales support.

  • Parallel imaging (GRAPPA) for almost all applications including EPI Multiple transmit imaging applications
  • High performance BGA-S gradients with highest amplitudes and slew rates, shim strengths and duty cycles optimized for high field MRI

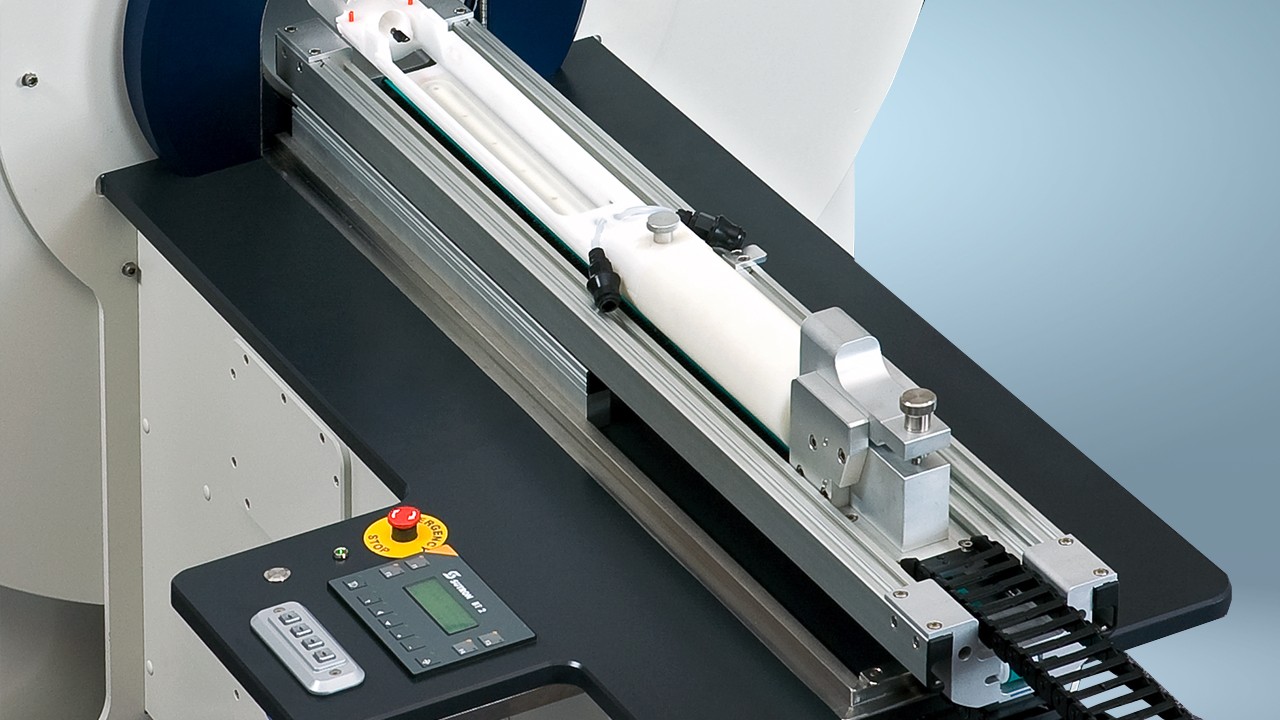

  • AutoPac: motorized and software controlled animal positioning system for routine handling and increased throughput
  • IntraGate™: self gated, steady-state cardiac imaging (no external sensor hardware and triggering devices required)
  • Phased-array RF coil technology for maximum sensitivity and minimum scan times
  • MRI CryoProbe™ delivering an exceptional increase in sensitivity to in-vivo proven factors of 2.5 to 5.3

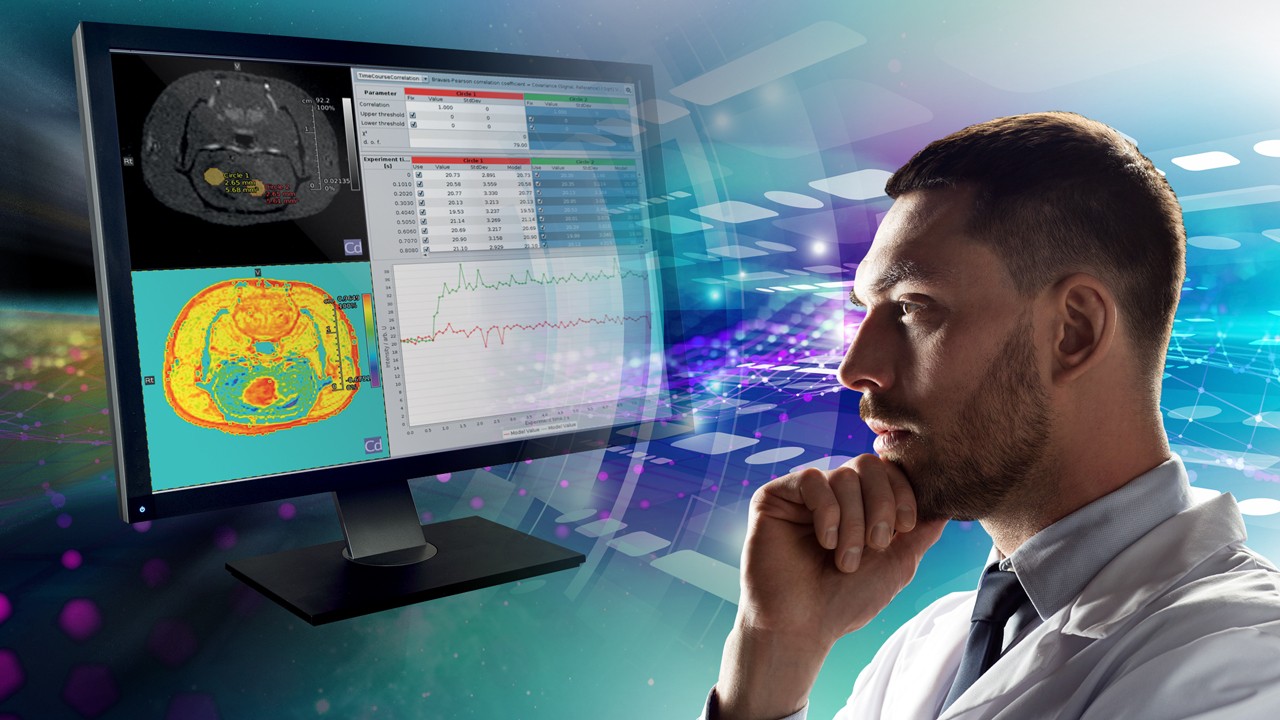

  • ParaVision®: intuitive software package, for multi-dimensional MRI/MRS data acquisition, reconstruction, analysis and visualization

Applicazioni

Specifiche

General Specifications

  • Actively-shielded superconducting wide-bore magnet
  • Nitrogen free (no cryogenic maintenance by customer)
  • Cryo-refrigerator (Minimal helium consumption, long hold-times, long maintenance intervals)
  • Reduced stray field
  • Screening against external field perturbations
  • Table attached to the magnet front side with integrated rail for animal handling system
  • Passive RT shim system
  • Vibration damping (absorber)
Electronics
  • Bruker Avance digital radio frequency system
  • The digital signal processing system operates at 1H resonance frequency of 500 MHz and utilizes digital filtering, digital quadrature demodulation as well as digital controls for RF amplitude stabilization for superior resolution and image quality
  • Receiver bandwidth: 5 MHz
  • Digital receive channels: up to 16 (optional)
  • 1H RF amplifier: 4000 W pulse power
  • HP workstation
  • High resolution flat screen monito
