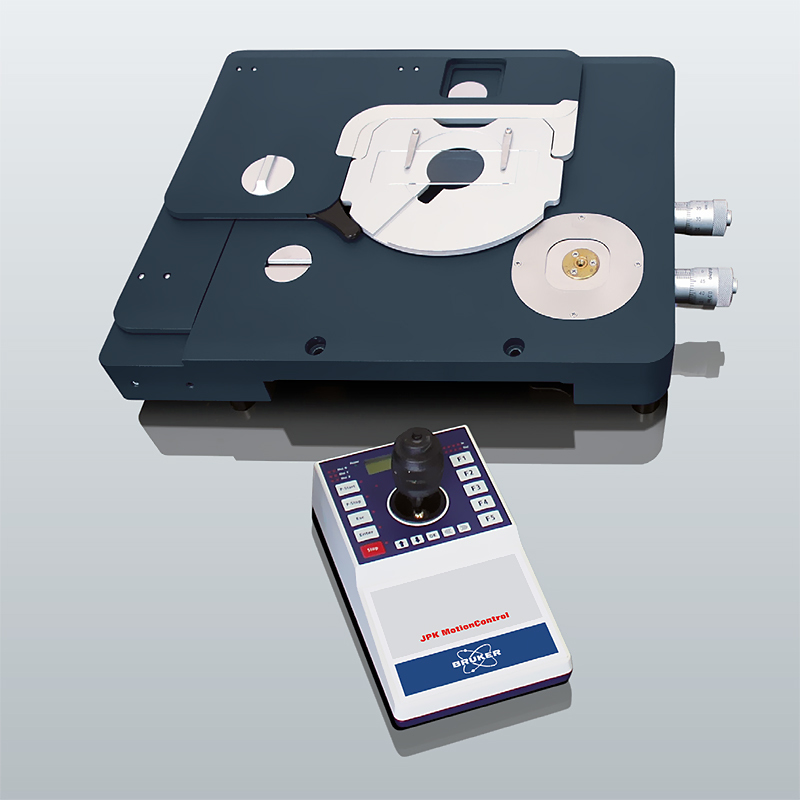

Motorized Precision Stage
Offers automatic motion control for precise positioning of the sample relative to optical axis and AFM probe.
- Transmission illumination capability for inverted optical microscopes like
- Olympus IX line
- Zeiss Axio Observer/Axiovert 100/135/200
- Nikon TE 2000 or Ti series
- Leica DMi lines
- Please specify model upon order
- Travel range of the sample 20×20mm 2
- Step size (Resolution): ≤1µm
- Repeatability (unidirectional): ≤2µm
- Maximum velocity: 1mm/s
- With joystick or software control
- For automated tiling or mapping applications
- Manual precision positioning of the AFM tip
- Stand alone use or for inverted optical microscopes
- Compatible with all JPK add-ons, glass slides, Petri dishes etc.
- Compatible with NanoWizard, ForceRobot 300 and CellHesion 200 heads
