Teste e Medição

Instrumentos nanomecânicos para SEM/TEM

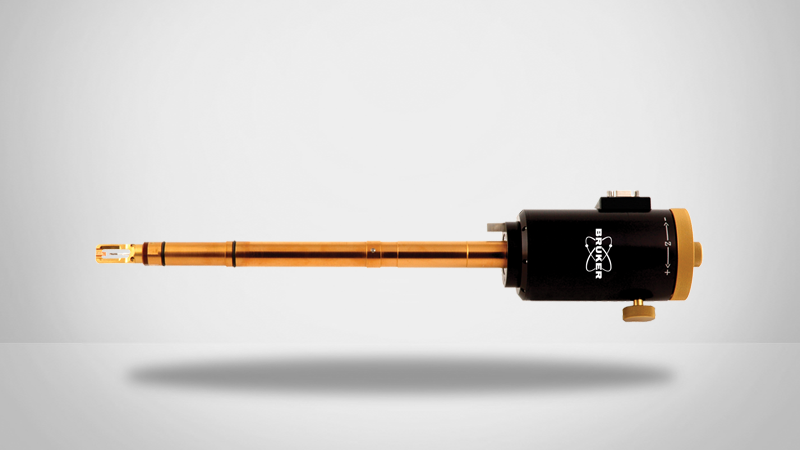

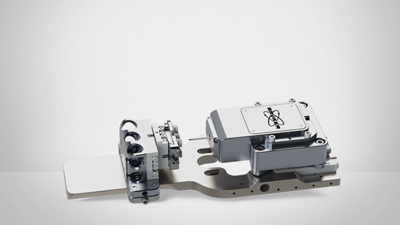

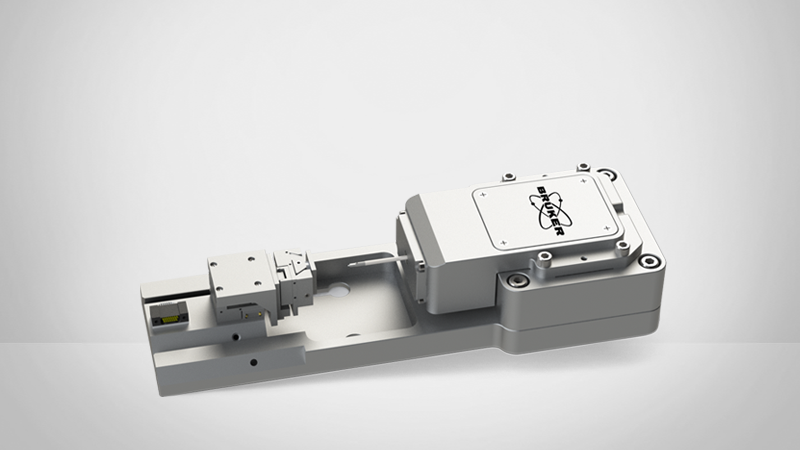

Picosindentadores Hysitron para experimentos mecânicos in situ em microscópios eletrônicos de varredura e de transmissão eletrônica

Nanomecânica quantitativa in-situ dentro do seu SEM ou TEM

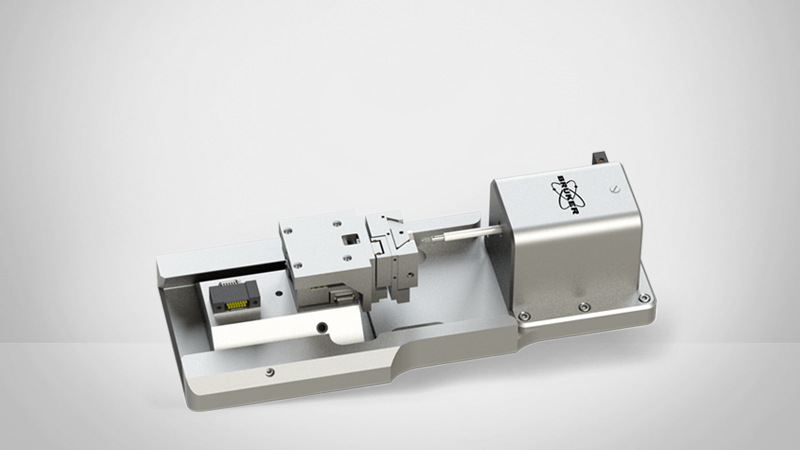

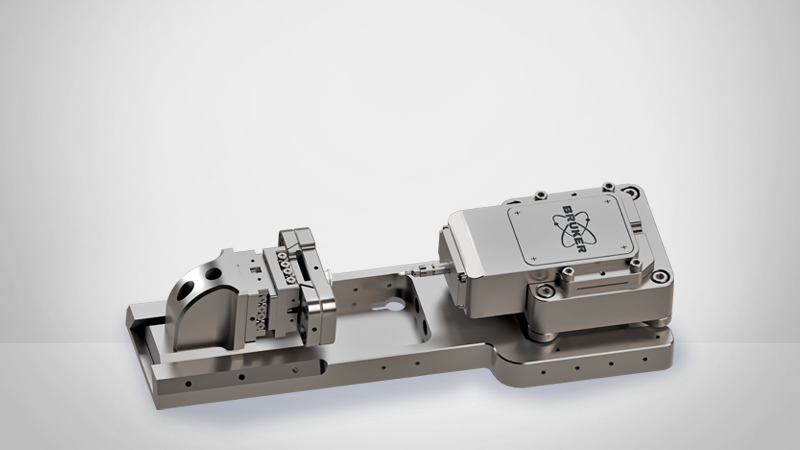

Como líder mundial em sistemas de testes nanomecânicos, a Bruker facilita a realização de experimentos mecânicos in situ em seu microscópio com os PicoIndenters Hysitron PI Series. Nosso design exclusivo de transdutor oferece estabilidade incomparável em todos os seus experimentos, resultando em dados precisos, mesmo em nanoescala. A captura de vídeo do microscópio permite o monitoramento em tempo real e a correlação direta dos dados mecânicos com as imagens do microscópio. Com soluções projetadas para atender a muitas das marcas de microscópio em uso, você certamente encontrará uma que seja ideal para sua pesquisa.

Modos de Teste

Probe it. Bend it. Stress it. Measure it.

Nanoindentation

Precise lateral positioning and nanoscale load and depth control allow for the quantitative determination of fundamental mechanical properties such as hardness and elastic modulus for a wide variety of materials.

Tensile

Direct-pull and Push-to-Pull (PTP) testing of dog-bone specimens, thin films, or nanowires allows for the in-situ measurement of stress-strain behavior in low dimensional materials not easily tested by traditional means.

Bending

Accurate loading alignment and specimen size measurement using SEM imaging enables straightforward bending stiffness and fracture toughness measurements for single-phase, composite, or layered materials.

Compression

Pillars, particles, and other small scale structures can be compressed to measure stress-strain behavior and yield properties while observing deformation mechanisms in real time. Proper tip alignment is verified using SEM imaging.

Recursos

Assista aos nossos webinars de testes nanomecânicos

Nossos webinars abrangem as melhores práticas, apresentam novos produtos, fornecem soluções rápidas para perguntas complicadas e oferecem ideias para novos aplicativos, modos ou técnicas.

Publicações

Veja as principais publicações com SEM PicoIndenters

2020
2019
2018
Archive

2017

2016

2015

2014

2013

2012

2011

2008 - 2010

Publicações

Veja as principais publicações com TEM PicoIndenters

2020
2019
2018
Archive

2017

2016

2015

2014

2013

2012

2011

2007 - 2010

Patentes

Veja nossas patentes de tecnologia de teste nanomecânico
