BioAFM Accessories and Add-Ons

Conductive AFM (CAFM) Module

For high-performance conductivity experiments.

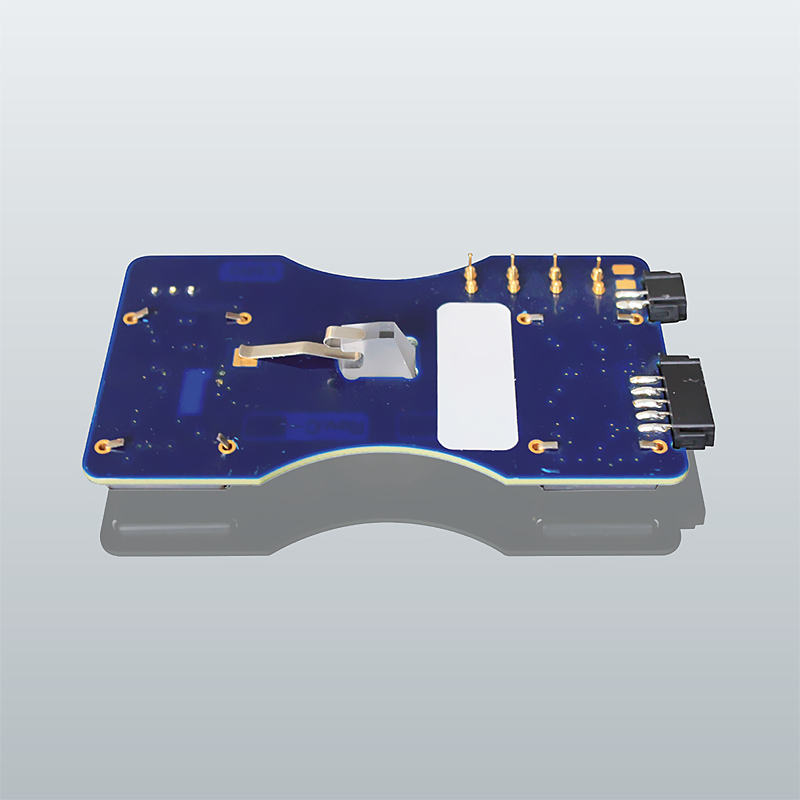

  • Tip-bias cantilever holder with integrated current amplifier circuit and automatic sample grounding
  • Sample holder for conductive samples (optional transparent sample holder)
  • Bias Voltage +/-10 V
  • Current Range: +/-100 nA
  • Gain: 100 V/µA
  • Optimized cantilever exchange tool
  • Software interface
  • 10× Bruker SCM-PIT-V2 cantilever
  • Compatible with all stages except Cryo- and StretchingStage
