AFM Modes

PeakForce Tapping

Quantitative, highest resolution imaging and property mapping

PeakForce Tapping — How AFM Should Be, 10 Years and Counting

Bruker’s exclusive PeakForce Tapping® has been the most significant scientific breakthrough in atomic force microscope (AFM) technology since the introduction of TappingMode™. It provides unprecedented high-resolution imaging, extends AFM measurements into a range of samples not previously accessed and uniquely enables simultaneous nanoscale property mapping.

Highest Resolution Imaging

PeakForce Tapping enables the researcher to precisely control probe-to-sample interaction enabling the lowest available imaging forces. This superior force control results in the most consistent, highest resolution AFM imaging for the widest range of sample types, from the softest biological samples to very hard materials.

Unique, Quantitative Results, Whatever You Measure

PeakForce Tapping’s piconewton (pN) force sensitivity simultaneously and uniquely combines the highest resolution AFM imaging with quantitative, nanoscale electrical, mechanical, biological, and chemical property mapping, enabling researchers of all experience levels to make new discoveries.

Easy to Use, Making Every User an AFM Expert

PeakForce Tapping’s direct and linear force control provides the user with unmatched AFM ease of use with ScanAsyst® image optimization software, and the low forces preserve the probe shape for longer life and more consistent imaging.

How It Works

In PeakForce Tapping, the probe periodically taps the sample and the pN-level interaction force is measured directly by the deflection of the cantilever. A real feedback loop (not force trigger) keeps the peak force down to 10 pN at actuation rates up to 8 kHz, in air and fluid.

PeakForce Tapping is ideal for both materials research and biological samples due to its unprecedented low imaging forces and ease of use. No cantilever tuning is necessary. The superior force control maintains tip and sample integrity, leading to consistently accurate and high-resolution measurements of even the smallest structures, from atomic defects to double helix DNA.

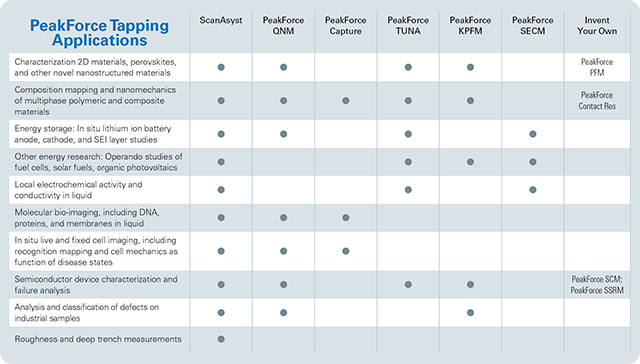

PeakForce Tapping Enabled AFM Modes

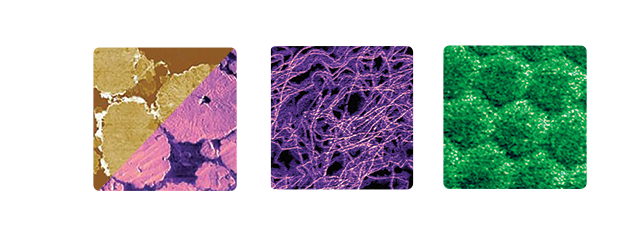

Three examples of data only available with PeakForce Tapping: (A) correlated electrical and mechanical mapping reveals inactive metal oxide grains in battery cathode; (B) measuring conductivity of individual P3HT nanowires not amenable to contact mode; and (C) nanoscale strain distribution in graphene on boron nitride. Image (C) courtesy of C. Woods, University of Manchester.

The greatest power of PeakForce Tapping technology comes from its ability to simultaneously enable and enhance other correlative and quantitative mapping techniques, delivering new possibilities in an ever-expanding set of topographical, mechanical, biological, electrical and chemical applications at the nanoscale:

Greatest Adoption Rate of Any AFM Mode

The adoption rate of PeakForce Tapping has surpassed even that of TappingMode, with over 4,000 publications in the ten years since its release. This includes over 2000 publications using PeakForce QNM and more than 400 using PeakForce electrical modes. That is more than one PeakForce Tapping article every day, for 10 years!

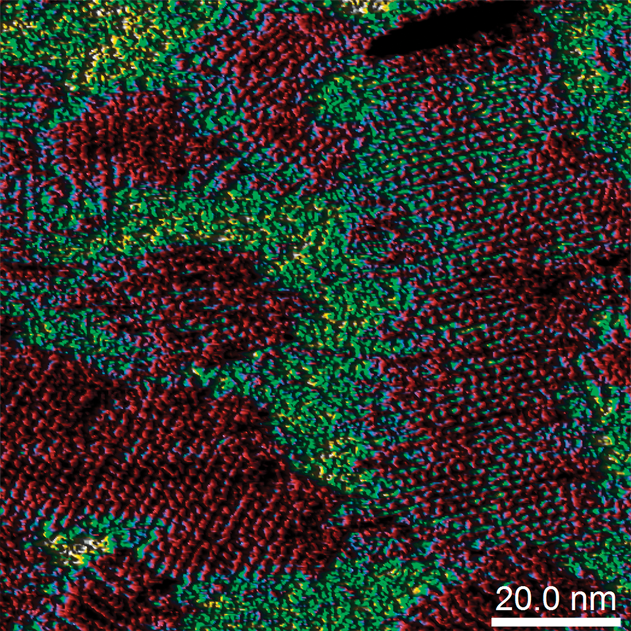

PeakForce Tapping submolecular-resolution adhesion on iPMMA. 100 nm image. (Sample courtesy of T. Thurn-Albrecht, Martin-Luther-Universitaet Halle-Wittenberg.)

PeakForce Tapping provided my lab with the force control and resolution necessary to produce ground-breaking ligand-receptor interaction maps using functionalized probes on live cells in a very time efficient and controlled way.

Dr. Daniel Müller, ETH Zürich, Switzerland
