Considering Confocal Microscopy - Why Compromise?

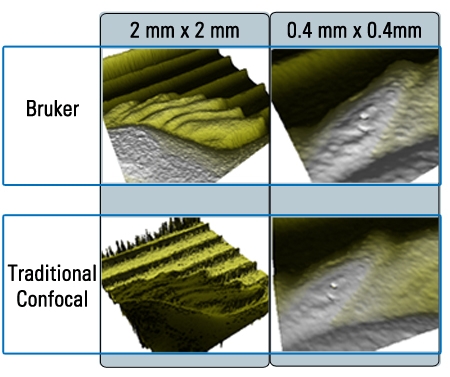

Best Vertical Resolution at Any Magnification
Bruker 3D optical microscopes utilize closed-loop scanning in the Z-axis to provide subnanometer vertical resolution and 0.01 nanometer RMS repeatability. This gives you reliable, repeatable data within the field of view most applicable to your specific application. Bruker 3D optical microscopes maintain this high resolution regardless of the magnification or field of view. Confocal microscopes do not provide comparable resolution unless running at 50x magnification and higher which limits your field of view.

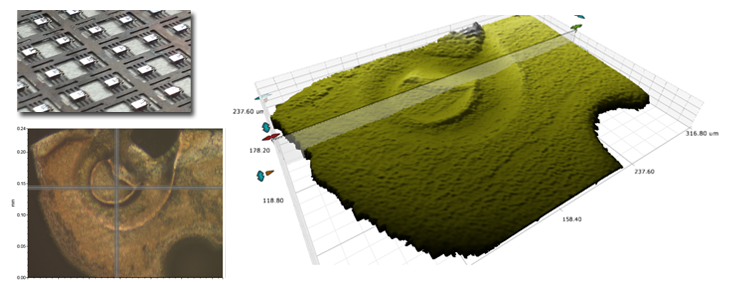

Largest Field of View
3D optical microscopes capture complete datasets with fields of view dependent upon the objective selected, allowing for lower magnification and larger fields of view. With Bruker's proprietary AcuityXR™ technology you can even achieve high lateral resolution (breaking diffraction limits) at these lower magnifications. Moreover, Bruker's automated stage options enable much larger areas of interest to be imaged and stitched into a single, high-resolution dataset.

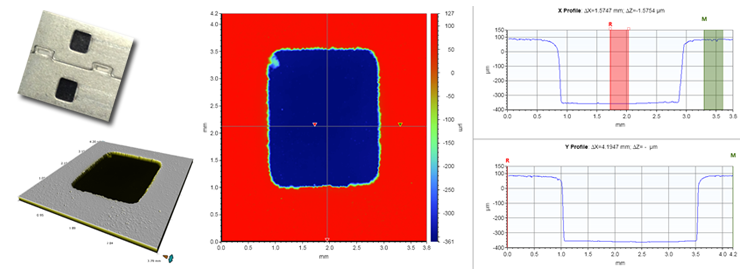

Uncompromising Metrology for Challenging Surfaces
Bruker's 3D optical microscopes deliver the low noise, high speed, accuracy, and precision required for the most demanding metrology over the broadest range of surfaces. Whether you need to measure smooth, rough, non-reflective, reflective, flat or steep slopes, Bruker technology excels at the job. Contact our applications team to learn how 3D optical microscopes can help solve your surface characterization needs.
Excellent Imaging
Bruker's Vision64™ software translates the high-resolution data into meaningful images that help engineers make sound decisions. With thousands of customized analyses and an intuitive user interface, Bruker's 3D optical microscope solutions make it easy to optimize productivity in the lab and on the factory floor.

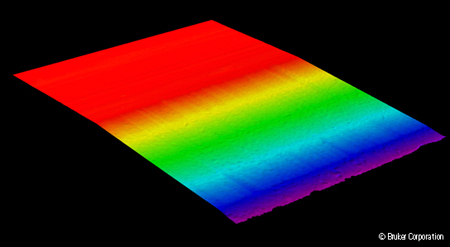

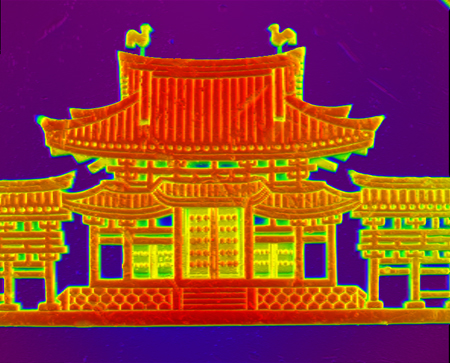

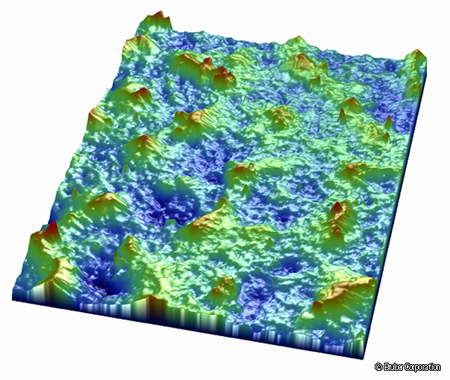

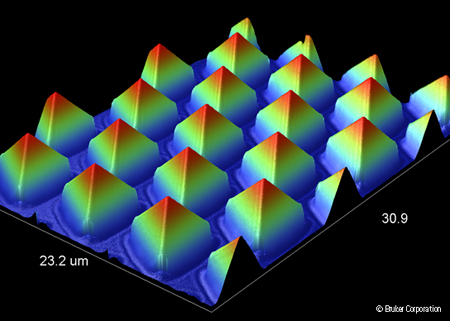

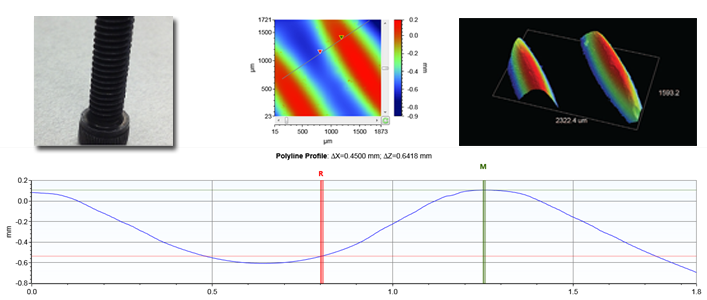

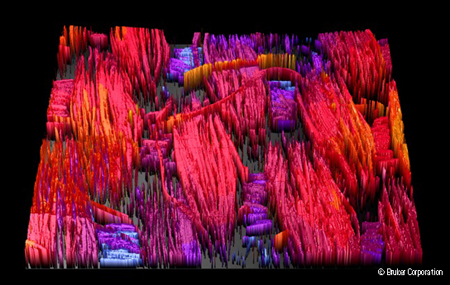

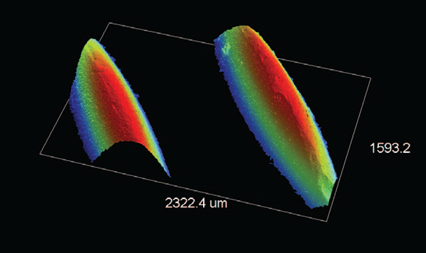

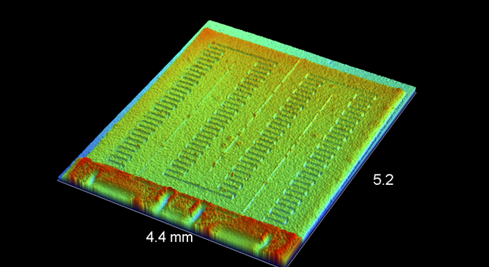

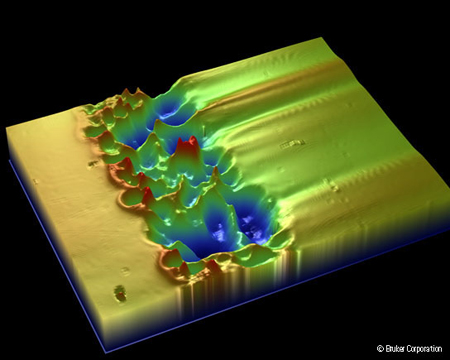

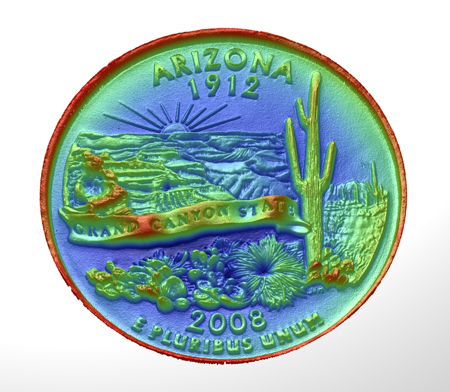

Application Gallery
