Optical Emission Spectrometry (OES)


Compact multi-chip Spark Spectrometer

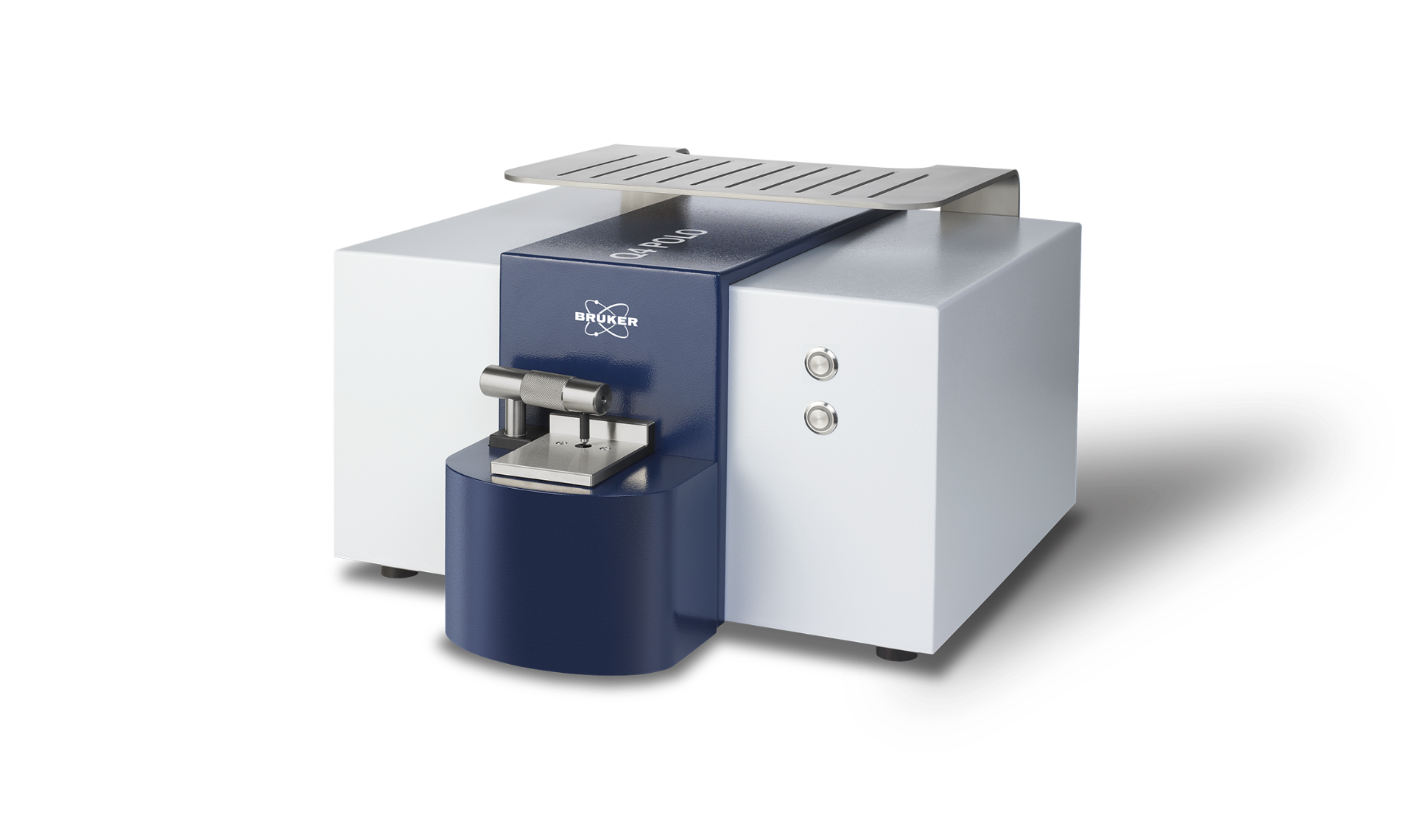

The Little Giant in Spark-OES

Complete Elemental Coverage, Wide Calibration Ranges

High Precision Metal Analysis with low cost of ownership and small footprint

Autofocus Included
Bruker's patented concept for self-focusing under temperature variations eliminates thermal drifts. The new ArgonShield™ prevents contamination of the optical window during measurements.
Intuitive Productivity
The insulated SafetyTip on the new sample clamp prevents incorrect sample positioning, and ensures safe operation for a wide variety of samples. Combined with ELEMENTAL.SUITE, our next generation OES-software, this leads to functionality with ease-of-use.
130 - 785 nm
Wavelength coverage for comprehensive access to all relevant elements

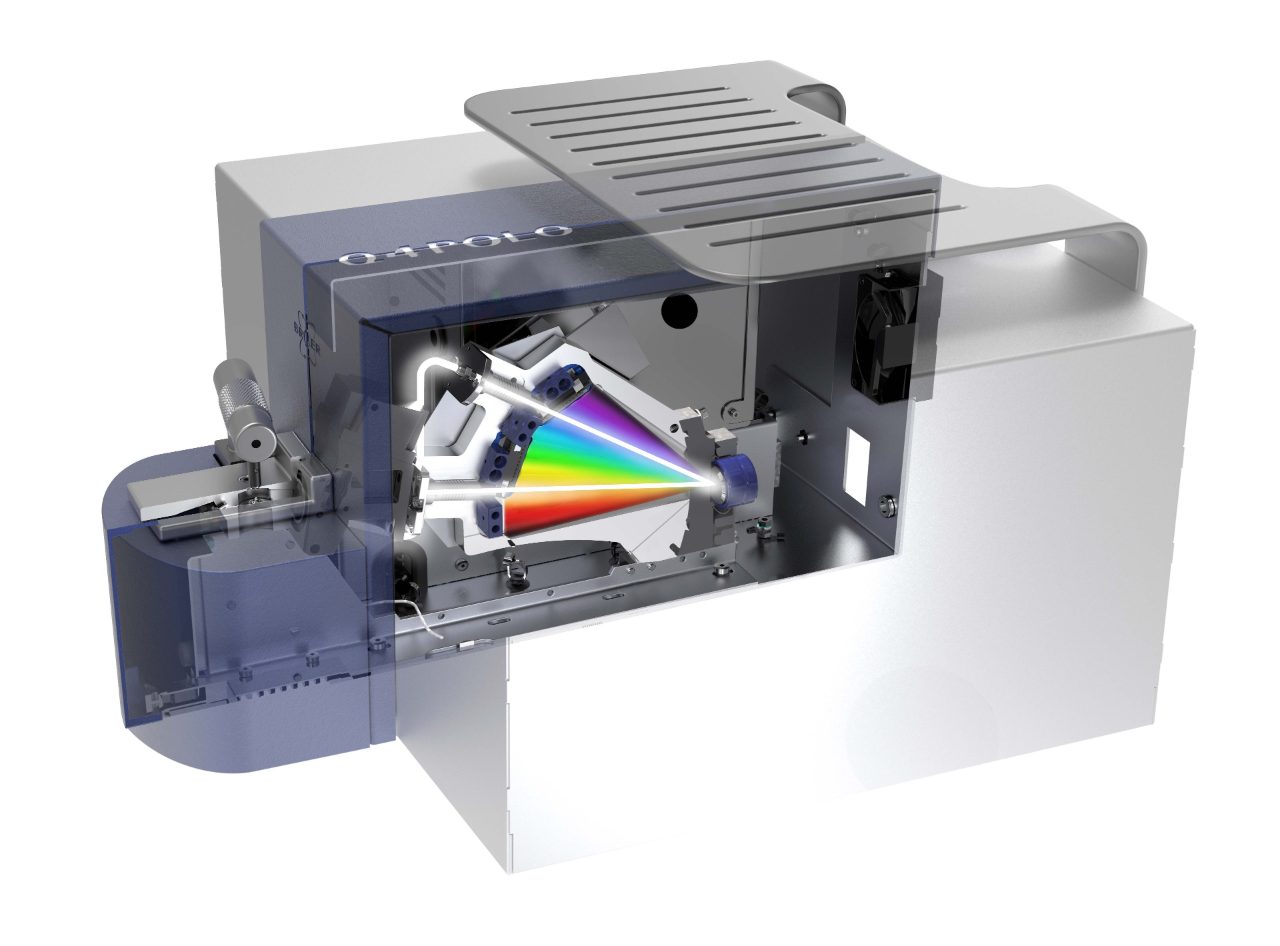

The innovative MultiVision™ optics is equipped with a electromagnetic light junction to use the full elemental range with best performance and compactness.
Join us and watch a short introduction & video demo of our new product
Watch our Launch Event
Reliable, high precision analysis for every foundry and production floor

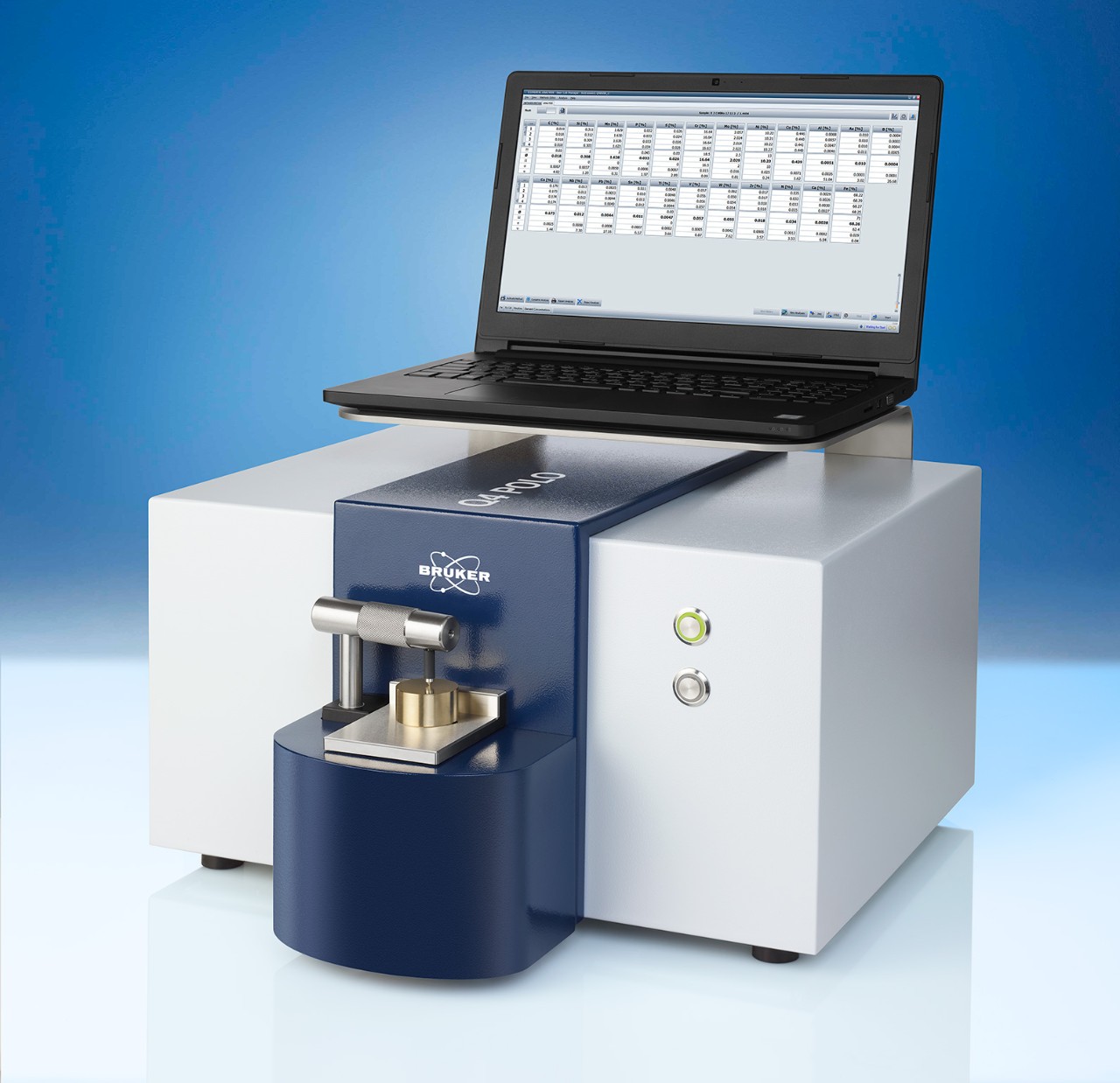

Q4 POLO - Little Space, Mighty Performance

Numerous innovations have been introduced in the Q4 POLO to create a spark spectrometer that is second to none. In addition to superior analytical performance for a full range of elements, the Q4 POLO enables applications previously not addressable by such compact instruments:

  • Outstanding precision, particularly on light elements
  • Excellent results in the challenging analysis of cast iron
  • Reliable analysis of nitrogen at low ppm levels in low alloyed steels
  • Analysis of oxygen in copper

Just as impressive as the results achieved by the Q4 POLO is its incredible long-term stability. The absence of thermal- and contamination-based drifts reduces the need for cleaning and recalibrations, leading to stable results around the clock.

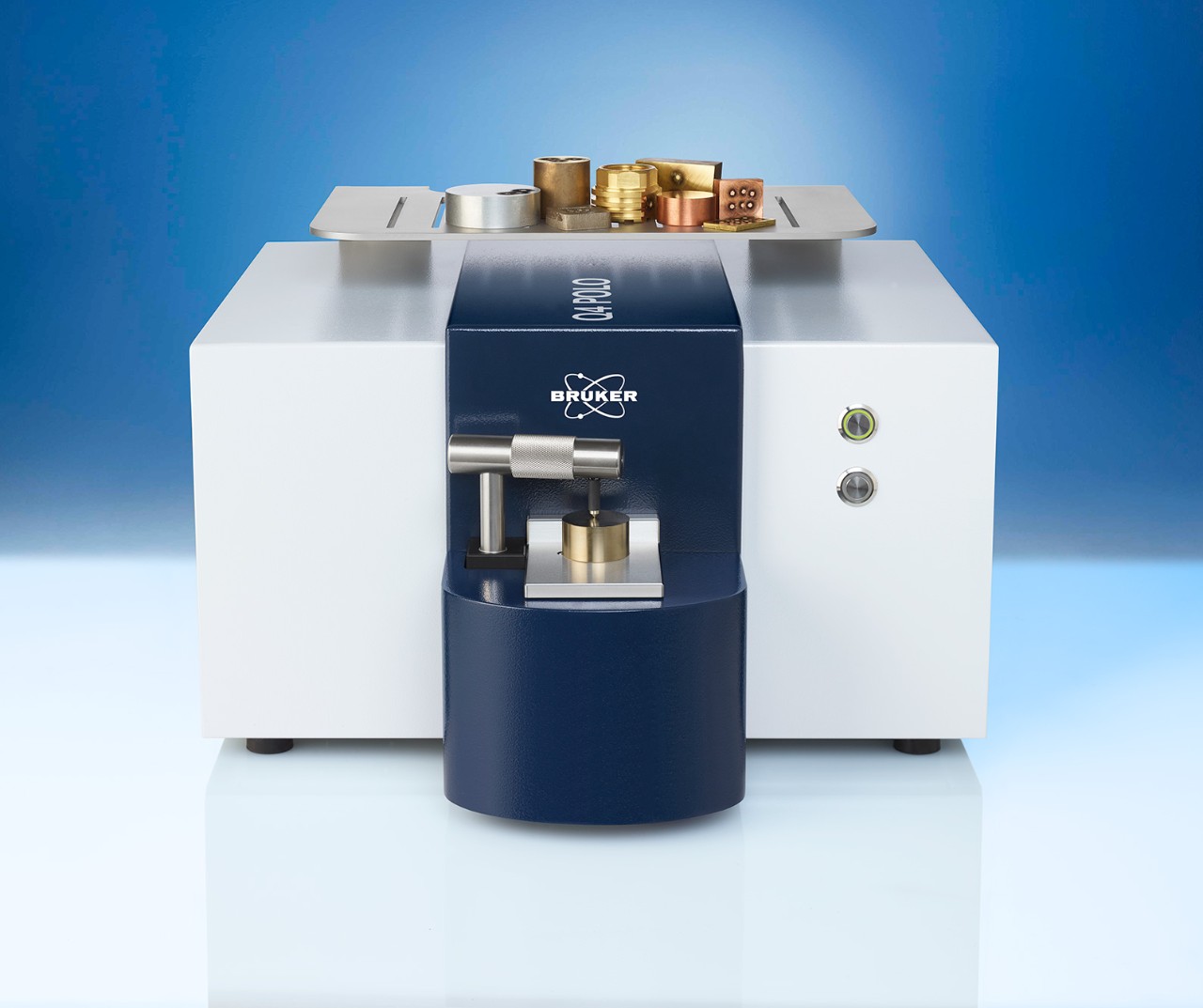

The new Q4 POLO is the ready-to-analyze solution from day one, covering all relevant elements and wide concentration ranges. Each base metal package includes all dedicated alloy groups, calibrations, and standardization samples. At the same time, the Q4 POLO provides high uptime, low maintenance, and hassle-free operation.

Key Benefits

  • MultiVision™ optics with electromagnetic light junction covering the full elemental range with superior performance and small footprint
  • AAC™ and ArgonShield™ result in incredible long-term stability without increasing argon gas consumption
  • The new active sensing SmartSpark™ source is fully digital and equipped with detection of non-energetic discharges for increased precision and long-term stability

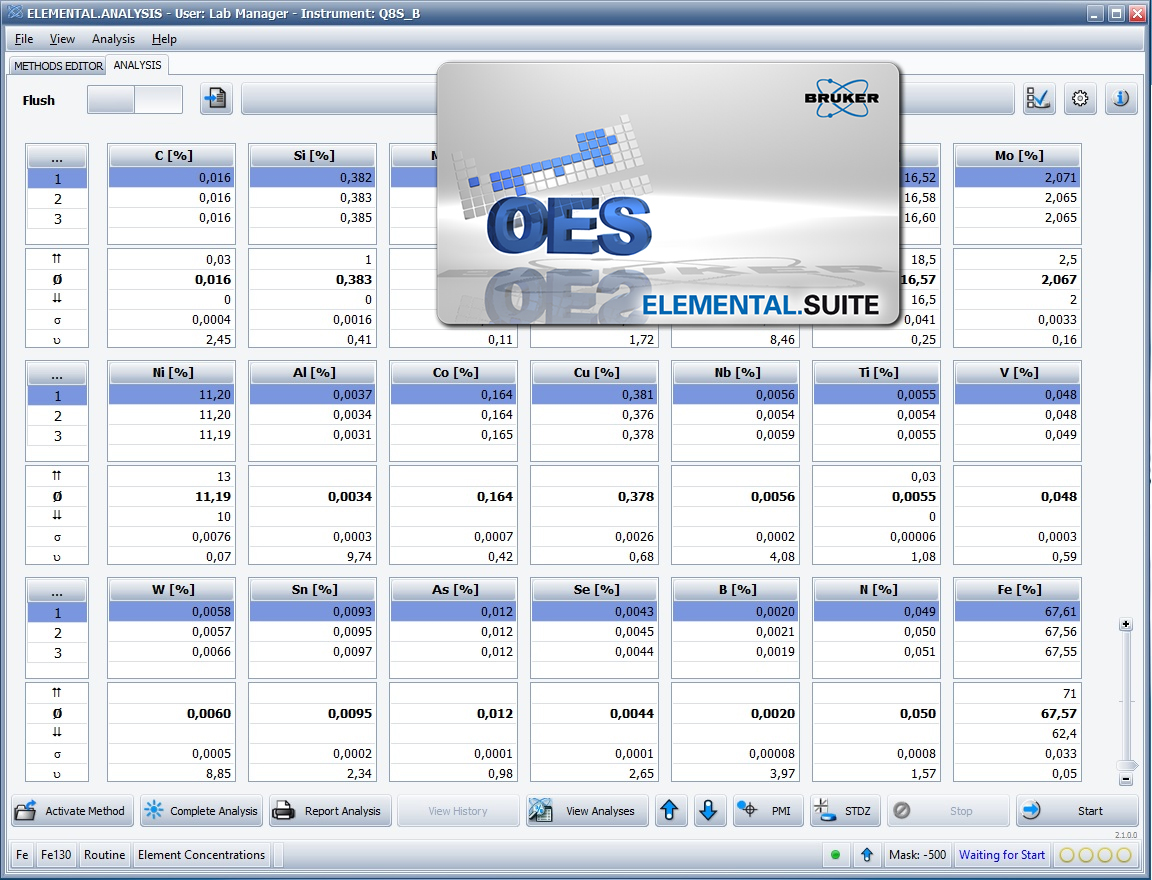

  • ELEMENTAL.SUITE delivers highest functionality combined with ease-of-use for information @ your fingertips.

Why do I need spark-OES?

OES gives you an ultrafast analysis of your solid metal sample without complications. All relevant elements are simultaniously determined.

What is your analytical challenge?

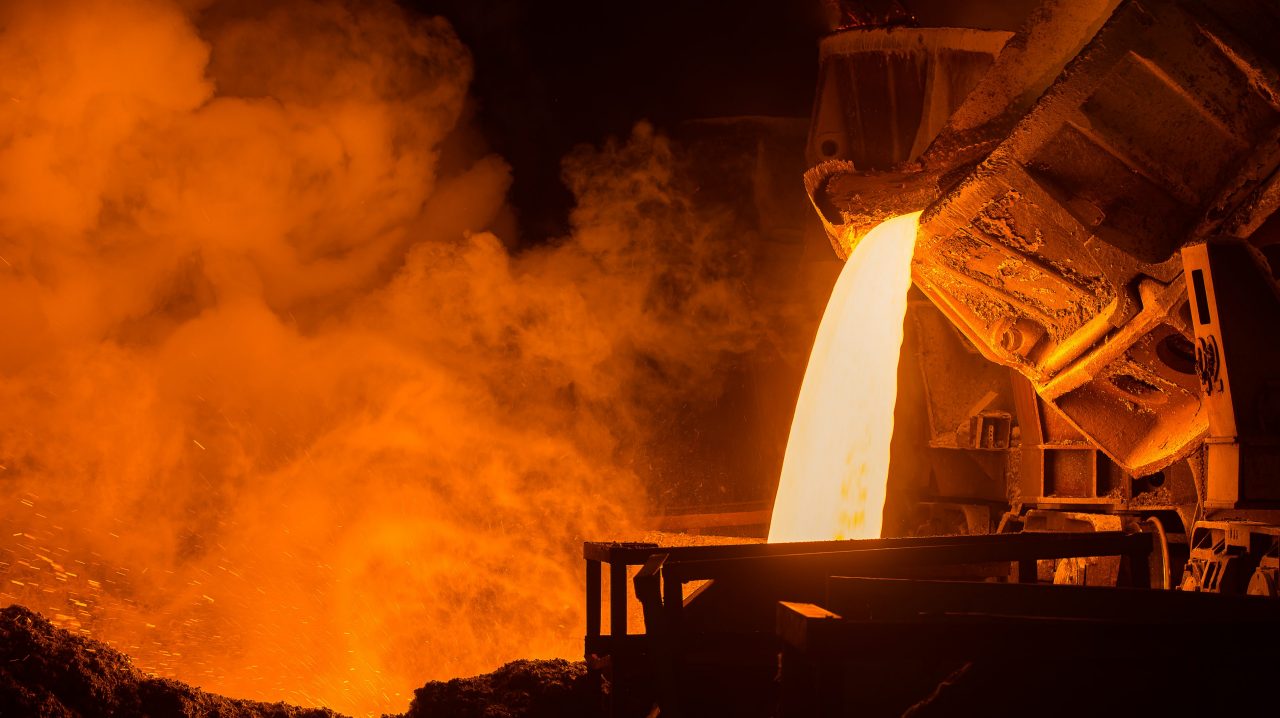

Iron & Steel

Processing steel requires precise and accurate results on incoming and outgoing materials over a wide variety of alloys, incl. N at trace level.

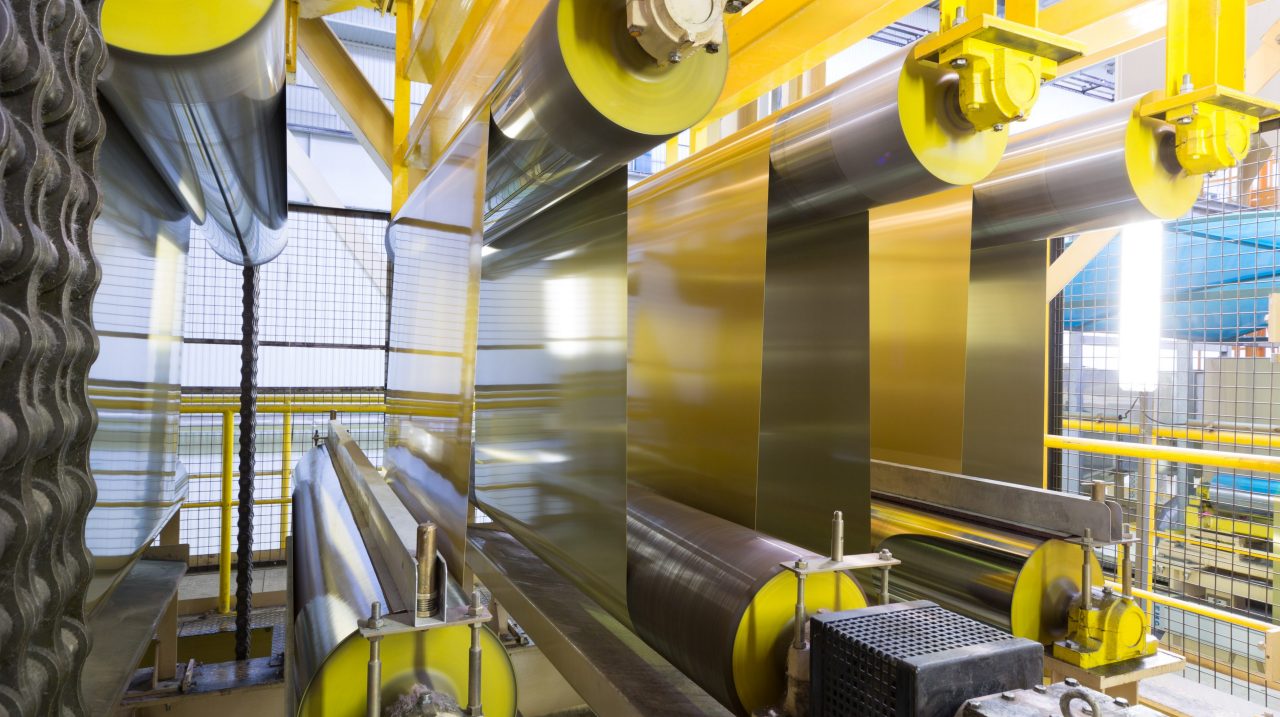

Mastering the phosophorous and alkali content in aluminum.

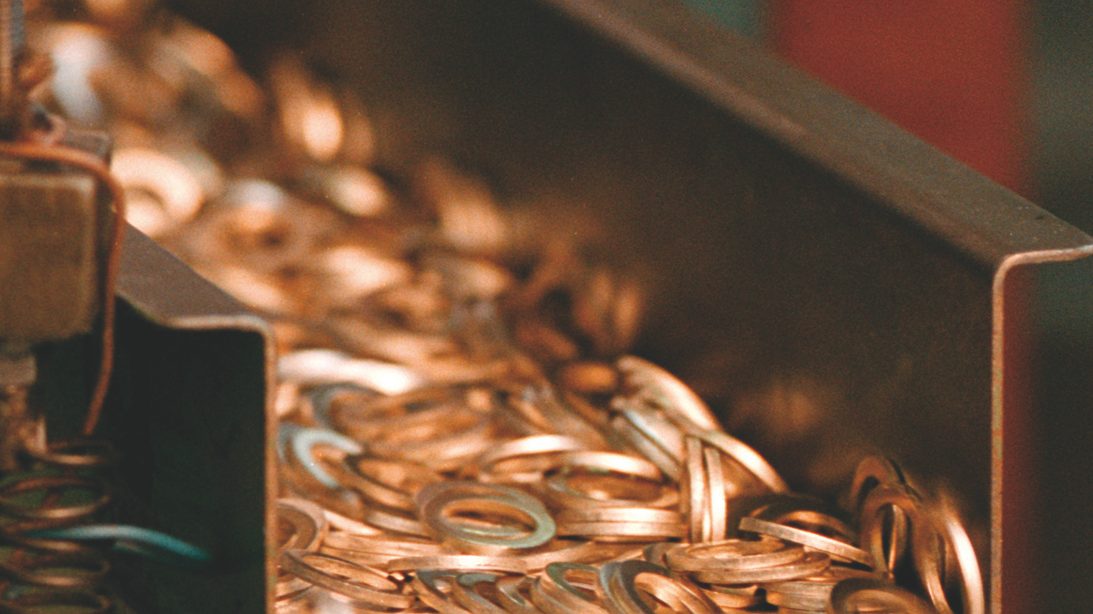

Copper is the building block of many alloy types. The Q4 POLO covers them all including oxygen determination.

Q4 POLO Specification

  Specification Benefit

Spark Stand

Sample Clamp

Low maintenance spark stand with co-axial argon flow,
accessible from 3 sides

80 mm sample height with exchangeable SafetyTip™

Minimized argon consumption, easy analysis of wires
and small pieces, also accepting bulky samples

Ensures correct sample positioning and safe
operation for a wide sample variety

Smart Spark Digital spark source for stable spark generation up to
1,000 Hz; active sensing of non-energetic discharges
Improved precision and long-term stability with
highest operational safety


Optical Concept


AAC™(Bruker Patent1))

Argon Shield™

λ: 130 - 785 nm, argon purged, multiple un-coated linear array detectors with lowest dark current

Optimized in Paschen-Runge configuration, with high UV-C transparency and dual light paths

Electromagnetic light junction, switching between two light
paths and three alternative plasma views

Automatic Ambient Compensation keeps the optic
focussed, eliminating thermal drifts

Prevents window contamination during measurements

Access to all elements, low operational costs

Field-proven robustness and precision with excelled light element performance

Compactness with superior optical resolution

Incredible analytical stability, reduced maintenance or recalibration without need for air condition

Permanent transparency with minimized

Gas Supply with Argon-Saver Mode
Argon ≥ 99.998%purity2) (Ar 4.8)
3 bar (± 10%) supply pressure
Copper tubing (6 mm o.d.) with Swagelok® fitting
Good performance with standard argon purity, dedicated argon saver mode for lowest operational costs
Noise Emission < 55 dB(A) during measurement3) Enjoy the silence
Software ELEMENTAL.SUITE V3.2 or higher Future save, intuitive productivity, optional material
database with > 350 k alloys integrated
Electrical Data 100 - 240 VAC (±10%), 50 - 60 Hz
10 - 16 A (240 V), slow blow fuse
200 VA (max), 20 VA standby, typically: 95W(@ 230 VAC)
during measurement
Compatible with all worldwide power and current configurations
Dimensions & Weights 49 x 57 x 28.4 cm (W x D x H), ~36 kg
1) US8891082B2, EP2537011B1
2) Argon 5.0 or purifier recommended for trace nitrogen analysis
3) Sample covering hole in sample stage completely
