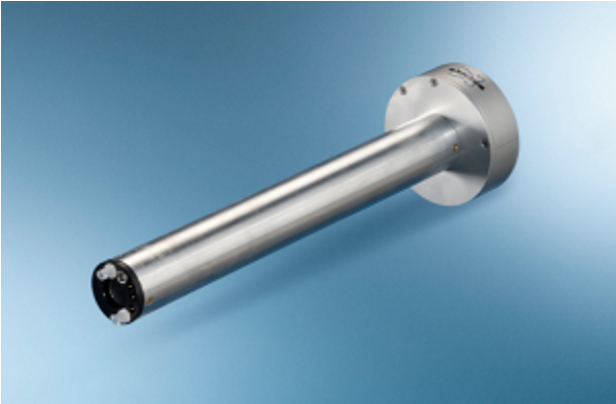

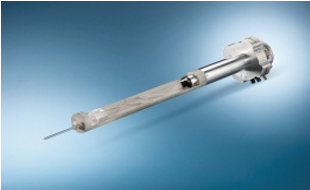

The MiniWB57R rf probe offers the max. available sample space in a WB magnet - a perfect compromise between space and gradient strength. Its main application field is in in-vivo studies of rodents, such as, large mice or small rats. Combined with it‘s exchangable rf coils it can be adapted to perfeclty match your application.
If required it can be equipped with the animal monitoring system to supervise physiological parameters of the animals (ECG, respiration, body temperature) and provide connections and masks for breathing gas anesthesia. Different type of animal beds and positioning systems are supported for the individual coil types.
|MiniWB57R / Mini0.75|
|Bore||WB / SWB|
|1H frequency range||300 – 800 MHz|
|rf channels||Two independent|
|Gradient strength per direction||475 mT/m|
|Rise Time (5-95%), 0-60A,120V||< 120 µs|
|Maximum current tested||60 A|
|Exchangable rf coils|
|Detection||single tuned, double tuned, or quadrature|
|Typical Nuclei||1H, 2H, 19F, 13C, 31P, 7Li,…|
|Standard sample temperature range||5 – 40°C|
|Sample diameter||20-40 mm|
