BioAFM Accessories and Add-Ons

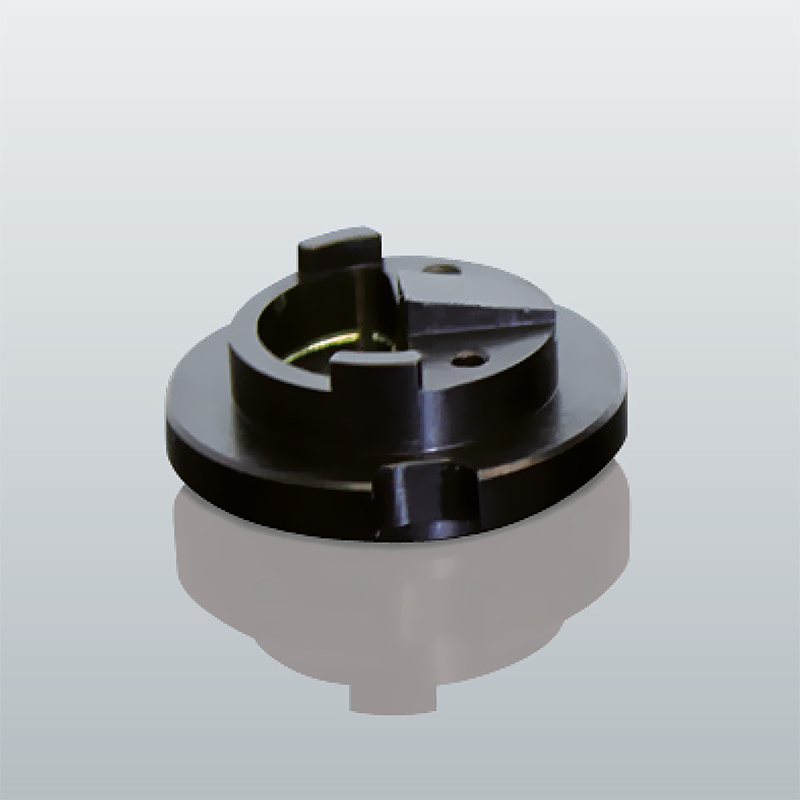

Raman Reflector Kit

Optical system for Tip-Enhanced Raman Scattering (upright-TERS) on opaque samples.
  • Cantilever holder with integrated reflector for Raman excitation @ 532nm
  • Optical transmission for shorter wavelengths and infrared
  • Raised sample holder and objective extension ring
  • Compatible with NanoSensors Advanced TEC, AppNano Access-NC or similar AFM cantilevers
  • Suitable for samples up to 4 mm in diameter
  • Requires long working distance objective lens with a working distance of minimum 10.6 mm
