Nanomechanical Testing

Nanoscratch Testing

Quantitative force and displacement data for tribology, coating thickness, and friction studies


Nanoscratch testing is a versatile tool for analysis of both thin films and bulk materials. Nanoscratch provides the capability to investigate modes of deformation and fracture that are not possible using standard indentation techniques. A nanoscratch test is accomplished by applying a normal load in a controlled fashion while measuring the force required moving the tip laterally across the sample. By selecting the appropriate normal loading profile and lateral displacement pattern, many different types of tests can be performed. The damage incurred from the scratch test is then typically observed using optical or scanning probe microscopy (SPM) imaging. Bruker's Hysitron nanoindenters provide in-situ SPM imaging of the sample with nanometer resolution for immediate feedback of the test results.

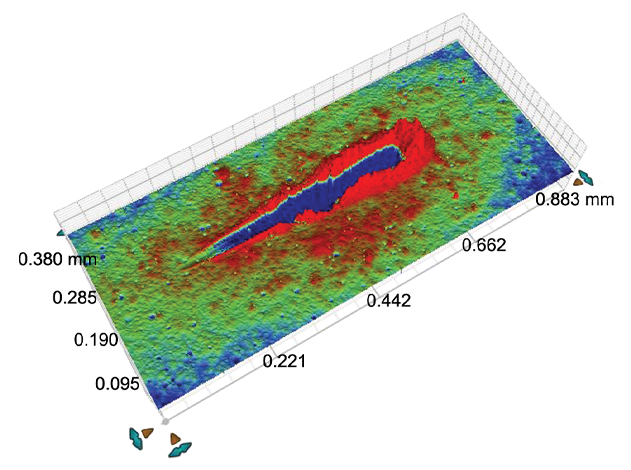

3D image of a ramped load scratch test on a paint sample showing pile-up in the corners of material ejected from the scratch track.

Easily Acquire Quantitative Results

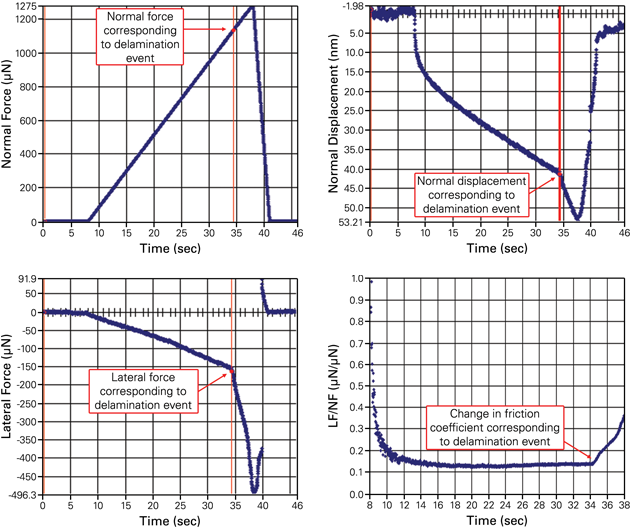

Nanoscratch data from a ramping force scratch test on protective glass coating showing point of delamination (red arrow) and the associated friction measurement. Plots were generated automatically using TriboScan software.

Nanoscratch can be used for a wide range of different tests and comes with a versatile load function editor for simple test design. Bruker has created an easy-to-use software product that was designed by experimentalists for experimentalists.

This software allows the user to define the applied normal load and the lateral displacement across the surface of the sample. A single scratch with a ramped normal load is shown below. From this data, useful information, such as critical load, film adhesion, and delamination force, can be measured. The software can also be used to generate a load function that repeatedly scratches over the surface of the sample with a defined normal load, thus enabling reciprocating wear testing. Nanoscratch data, in conjunction with in-situ SPM images, provides a wealth of information concerning a materials behavior under simultaneous normal and lateral stresses.

Advanced Nanoscratch Analysis Software

In addition to TriboScan software for test setup and analysis, Bruker's Hysitron nanoscratch systems come standard with TriboView, an offline analysis package that enables users to gain additional information from images generated using in-situ SPM imaging. Users can also use the TriboView software to quickly generate images and plots for reporting purposes, including 3D images.

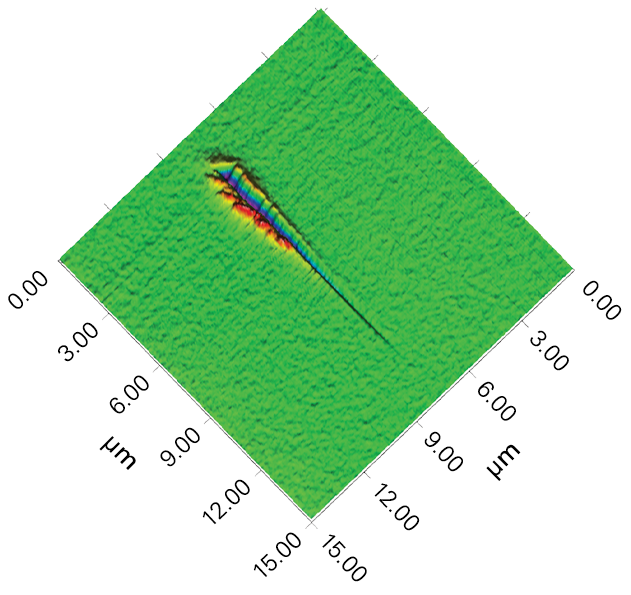

3D nanoscratch image of a low-k film, showing evidence of film failure.
