SEM PicoIndenter Series

Hysitron PI 80

Core budget-friendly in-situ nanomechanical instrument for SEM

Hysitron PI 80 SEM PicoIndenter

Bruker’s PI 80 SEM PicoIndenter is a depth-sensing nanomechanical test instrument specifically designed to augment the imaging capabilities of scanning electron microscopes (SEM, FIB/SEM, PFIB). With this base nanoindentation tool, it is possible to perform quantitative in-situ nanomechanical testing while simultaneously imaging with the SEM. Featuring Bruker’s industry-leading capacitive transducer, PI 80 provides exceptional performance and superior stability at the nanoscale. Its compact, low-profile design makes the instrument ideally suited for small-chamber SEMs, as well as standalone Raman and optical microscopes, beamlines, and more. With its combination of features, testing modes, and optional accessories, the PI 80 SEM PicoIndenter offers an excellent introduction to advanced nanomechanical property testing inside your SEM.

Core
in-situ nanomechanical testing platform
Supports standard mechanical testing modes, control modes, and interchangeable probes in a variety of geometries.
Simple
low-maintenance system
Enables user-friendly and reliable testing of nanomechanical properties.
Compact
low-profile design
Provides easy installation ideal for small-chamber SEMs, Raman and optical microscopes, beamlines, and more.
Features

In-Situ Mechanical Data Synchronized with SEM Imaging

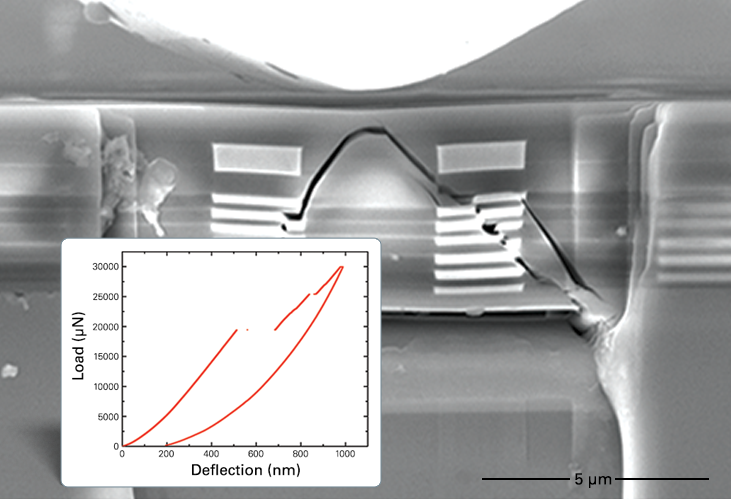

FIB-milled back-end-of-line (BEOL) microbeam sample after mechanical testing and the corresponding load vs. displacement curve. Interfacial delamination is observed between the Cu layers and the brittle dielectric.

In-situ mechanical data acquired with the Hysitron PI 80 is synchronized with SEM imaging and displayed in side-by-side video format. Simultaneous mechanical measurements and SEM data enables a more complete understanding of material deformation behavior. In the example at left, discontinuities in the load-displacement data are correlated to the onset of fracture observed in a FIB-milled beam containing copper interconnects and brittle dielectric material.

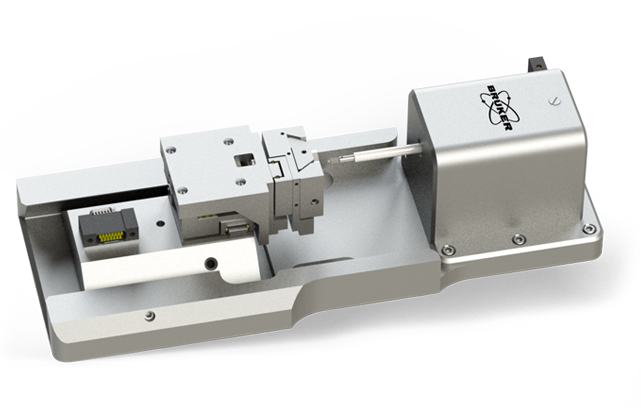

Designed to Augment Your SEM

With the compact form of Bruker’s capacitive transducer, Hysitron PI 80 can be mounted directly onto the SEM stage without being a permanent fixture in the microscope. The sample positioning stages accommodate samples up to 20 mm thick while providing precise sample positioning across more than 3 mm in all three directions (XYZ). In addition, the mechanical coupling of the sample stage and the transducer provides a stable, rigid platform for nanomechanical testing. Overall, this in-situ instrument enables stage tilt and working distance optimized for complementary SEM imaging and standard nanomechanical testing.

Upgrade Options and Add-Ons

Expand PI 80 SEM's Capabilities

LEARN MORE:

Contact us for more information about available upgrade options and how PI 80 SEM can be configured to meet your specific measurement needs now and grow with your research going forward.
