BioAFM Accessories and Add-Ons

HybridStage

The HybridStage is a modular, piezo-based sample scanner stage with a motorized unit for large sample movements, ideally suited for challenging biological samples.

Applications

  • Characterization of the topographical and mechanical properties of plant cells, cell layers, cartilage, parasites, scaffolds, bones or tissue with typically uneven surfaces
  • Single Cell Force Spectroscopy (SCFS)
  • Characterization of cell-cell interactions and extracellular matrix proteins
  • Membrane tether experiments
  • Cell/cell or cell/substrate adhesion in 3D

Key features

  • Equipped with three scanner units that can move either the tip or the sample
  • Choice of sample scanner best suited to sample (100 x 100 x 100 µm3, 200 x 200 x 200 µm3 or 300 x 300 x 300 µm3)
  • Combined piezo and motorized stages for automated mapping or scanning of large areas (20 x 20 mm 2)
  • SlimFocus feature for improved optical focus control
  • Optical Tiling and Multi-Region Imaging
  • Multi-Scan Tissue Mapping
  • Batch processing option using the JPK data processing (DP) software
  • Maps large objects such as cell scaffolds, printed 3D structures, microspheres or capsules and micro/nano-structured surfaces over millimeter distances
  • Automated and streamlined workflow with the motorized HybridStage

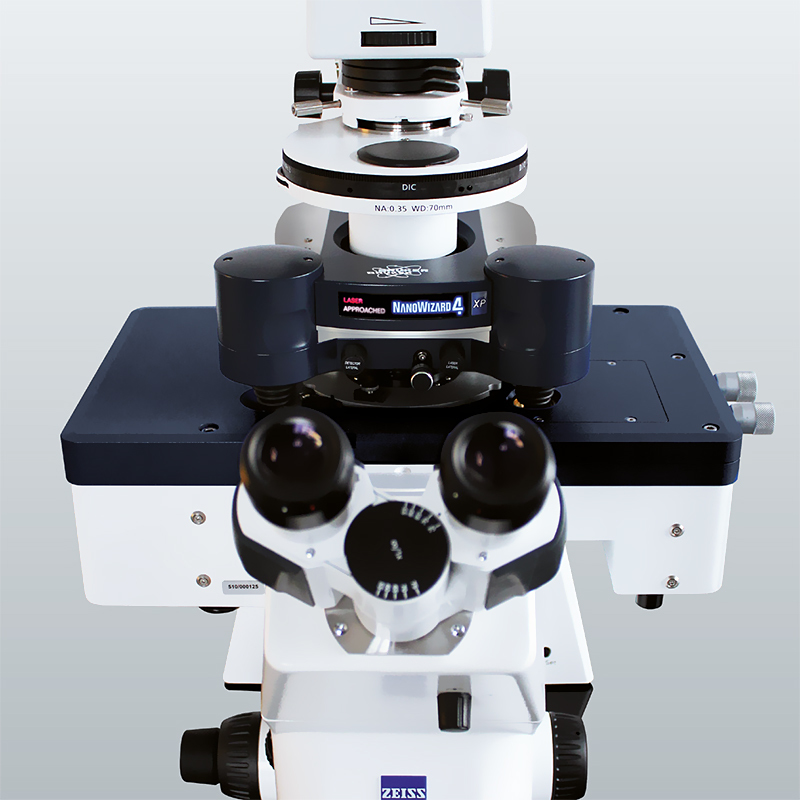

JPK BioAFM HybridStage
