BioAFM Accessories and Add-Ons

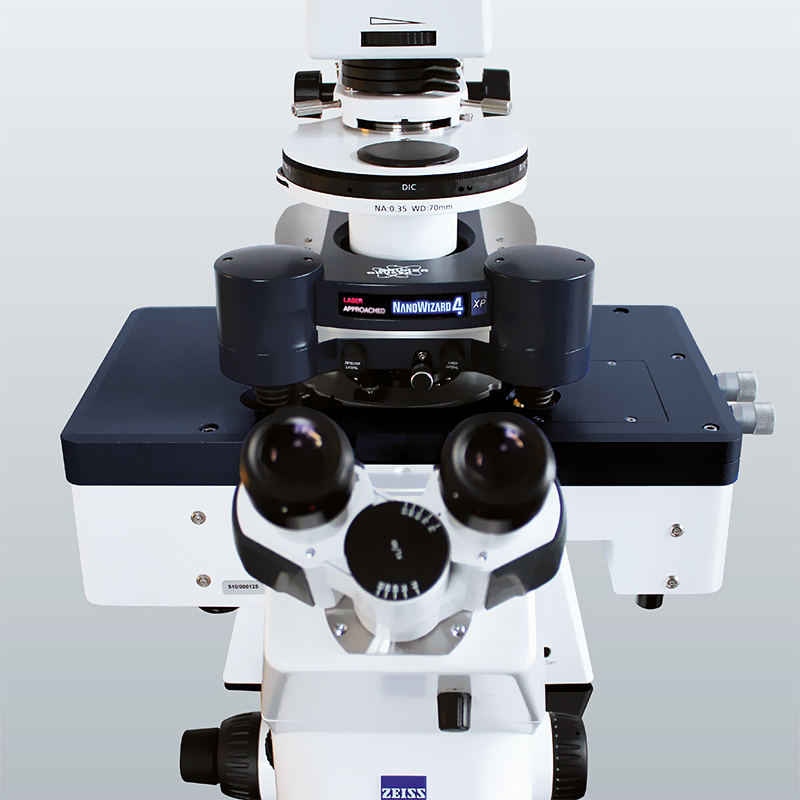

The HybridStage is a modular, piezo-based sample scanner stage with a motorized unit for large sample movements, ideally suited for challenging biological samples.
Characterization of the topographical and mechanical properties of plant cells, cell layers, cartilage, parasites, scaffolds, bones or tissue with typically uneven surfaces
Single Cell Force Spectroscopy (SCFS)
Characterization of cell-cell interactions and extracellular matrix proteins
Membrane tether experiments
Cell/cell or cell/substrate adhesion in 3D
Equipped with three scanner units that can move either the tip or the sample
Choice of sample scanner best suited to sample (100 x 100 x 100 µm
, 200 x 200 x 200 µm
or 300 x 300 x 300 µm
Combined piezo and motorized stages for automated mapping or scanning of large areas (20 x 20 mm
SlimFocus feature for improved optical focus control
Optical Tiling and Multi-Region Imaging
Multi-Scan Tissue Mapping
Batch processing option using the JPK data processing (DP) software
Maps large objects such as cell scaffolds, printed 3D structures, microspheres or capsules and micro/nano-structured surfaces over millimeter distances
Automated and streamlined workflow with the motorized HybridStage
Download Application Note
JPK BioAFM HybridStage
Compatible Imaging Systems
NanoWizard 4 XP BioScience
Extreme performance and ease of use for applications in Life Science and Soft Matter research ranging from single molecules to living cells and tissues.
NanoWizard 4 XP NanoScience
Extreme performance meets utmost flexibility
NanoWizard ULTRA Speed 2
High-speed imaging and super-resolution AFM on inverted microscopes, paired with unparalleled flexibility.
AFM optimized for seamless integration with optical techniques enables wide range of nanoscale optical imaging applications
For single molecule applications. Automated force spectroscope with optional temperature control and fluidics system.
NanoWizard V BioScience
Automated quantitative nano-mechanical imaging for long-term, self-regulating experiment series.
