BioAFM Accessories and Add-Ons

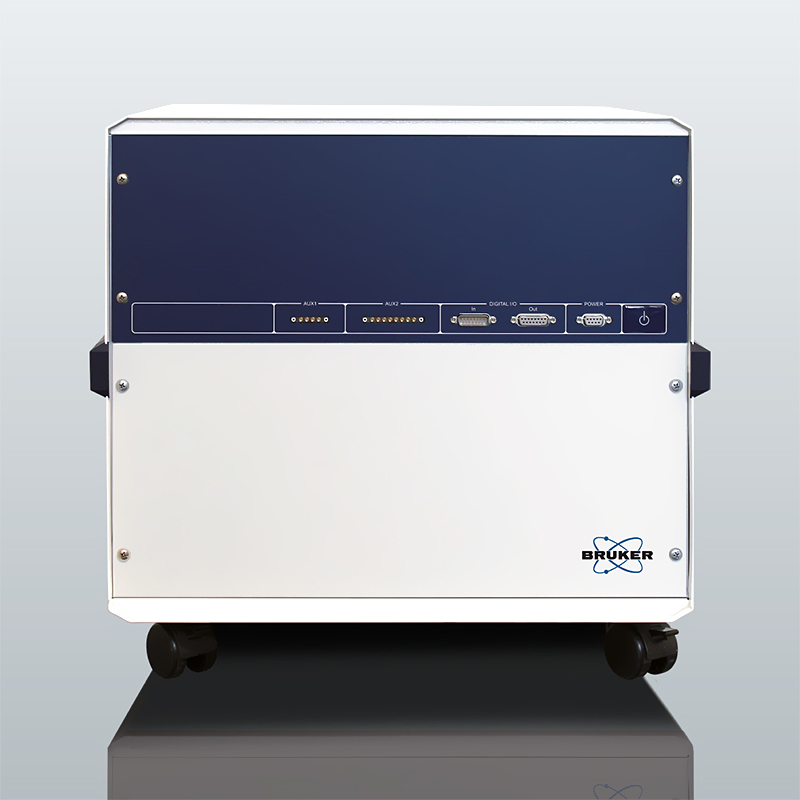

Vortis 2 SPMControl station
Full featured, low-noise, high-performance, digital SPM controller.
High-speed data capture with a maximum data pixel rate of up to 800.000 pixels/sec
Modular, hybrid analog/digital design with latest FPGA/PPC technology (dual core PowerPC @ 1,4 GHz). Overcomes limitations of conventional DSP designs
2×high-speed 16 bit ADC channels with 60 MHz sample rate
6×18 bit ADC channels with 800 kHz sample rate
1×high-speed 14 bit DAC channel with 120 MHz sample rate
4×20 bit DAC channels with 800 kHz sample rate
1×high-speed lock-in amplifier for precise amplitude and phase detection
3 channel, low noise, capacitive distance sensor interface
Thermal noise cantilever calibration up to 7.5MHz
Low voltage output for electronic modules and pre-amplifiers with +/-15 V and +/-5 V
Digital input: 6 channels (Sub-D) Digital output: 10 channels (Sub-D) e.g. for pixel and line clock
Easy connection of accessories at the front panel
Compatible Imaging Systems
NanoWizard 4 XP BioScience
Extreme performance and ease of use for applications in Life Science and Soft Matter research ranging from single molecules to living cells and tissues.
NanoWizard 4 XP NanoScience
Extreme performance and highest flexibility for applications in materials and polymer science ranging from nanomechanics and electrochemistry to electrical and magnetic measurements.
NanoWizard ULTRA Speed 2
High-speed imaging and super-resolution AFM on inverted microscopes, paired with unparalleled flexibility.
Optimized for a broad range of applications ranging from nanoscale optical imaging by aperture and scattering-type SNOM to experiments involving interactions of light with the sample such as absorption, excitation, nonlinear effects and quenching.
NanoWizard V BioScience
Automated quantitative nano-mechanical imaging for long-term, self-regulating experiment series.
