BioAFM Accessories and Add-Ons

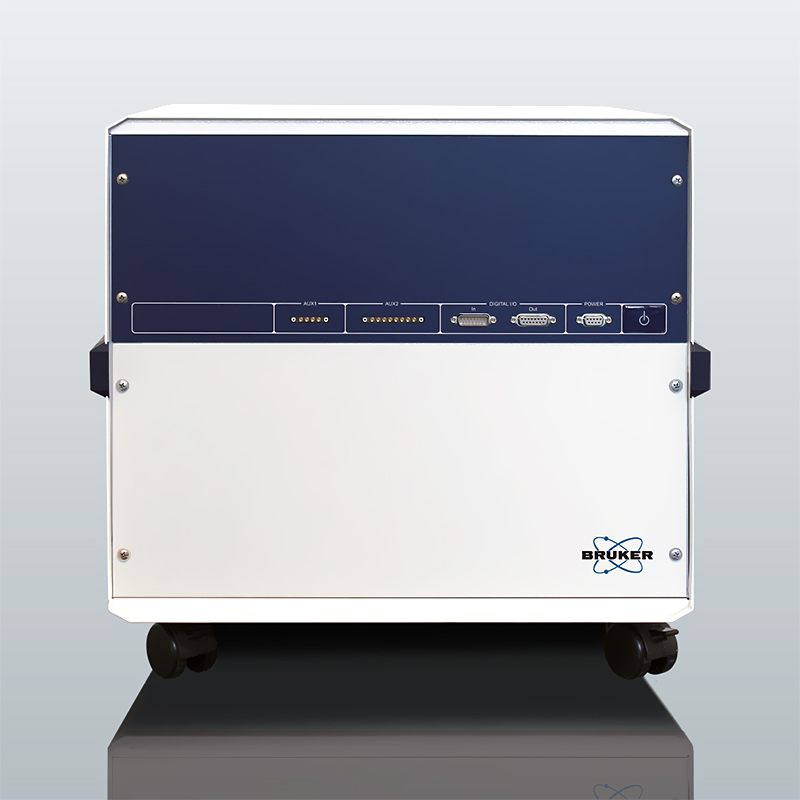

Vortis 2 SPMControl station
Full featured, low-noise, high-performance, digital SPM controller.
High-speed data capture with a maximum data pixel rate of up to 800.000 pixels/sec
Modular, hybrid analog/digital design with latest FPGA/PPC technology (dual core PowerPC @ 1,4 GHz). Overcomes limitations of conventional DSP designs
2×high-speed 16 bit ADC channels with 60 MHz sample rate
6×18 bit ADC channels with 800 kHz sample rate
1×high-speed 14 bit DAC channel with 120 MHz sample rate
4×20 bit DAC channels with 800 kHz sample rate
1×high-speed lock-in amplifier for precise amplitude and phase detection
3 channel, low noise, capacitive distance sensor interface
Thermal noise cantilever calibration up to 7.5MHz
Low voltage output for electronic modules and pre-amplifiers with +/-15 V and +/-5 V
Digital input: 6 channels (Sub-D) Digital output: 10 channels (Sub-D) e.g. for pixel and line clock
Easy connection of accessories at the front panel
Compatible Imaging Systems
NanoWizard 4 XP BioScience
Extreme performance and ease of use for applications in Life Science and Soft Matter research ranging from single molecules to living cells and tissues.
En savoir plus
DOWNLOAD BROCHURE
NanoWizard 4 XP NanoScience
Extreme performance and highest flexibility for applications in materials and polymer science ranging from nanomechanics and electrochemistry to electrical and magnetic measurements.
En savoir plus
DOWNLOAD BROCHURE
NanoWizard ULTRA Speed 2
High-speed imaging and super-resolution AFM on inverted microscopes, paired with unparalleled flexibility.
En savoir plus
DOWNLOAD BROCHURE
NanoWizard NanoOptics
Optimized for a broad range of applications ranging from nanoscale optical imaging by aperture and scattering-type SNOM to experiments involving interactions of light with the sample such as absorption, excitation, nonlinear effects and quenching.
En savoir plus
DOWNLOAD BROCHURE
NanoWizard V BioScience
Automated quantitative nano-mechanical imaging for long-term, self-regulating experiment series.
En savoir plus
DOWNLOAD BROCHURE
Return to Accessories Page
