SampleCase
One Automation Platform. Thousands of NMR Applications.
Get the best results from your NMR spectrometer with Bruker Consumables
SampleCase Flyer

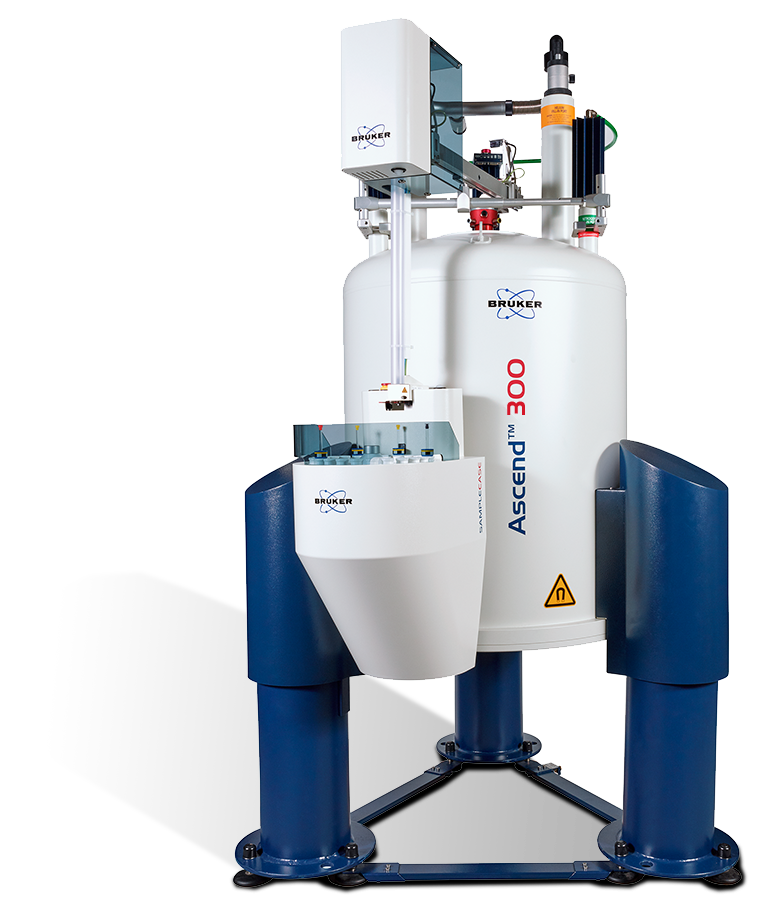

SampleCase™ makes NMR automation simple.
Its ergonomic, user-height design provides safe, convenient random-access operation, including push-button manual sample insertion and ejection. Compatible with the full range of shielded Bruker standard-bore magnets from 200 MHz to 1.2 GHz, SampleCase offers scalable 24- or 60-position storage, with room-temperature or temperature-controlled options to meet the needs of busy open-access laboratories. Seamlessly integrated with TopSpin™ and SpinPilot™, SampleCase can be added to any modern NMR system equipped with a Bruker’s latest AVANCE Neo consoles. When combined with the Bruker MAS Shuttle, it extends random-access automation to solid-state NMR while maintaining easy BST access for specialized manual experiments.

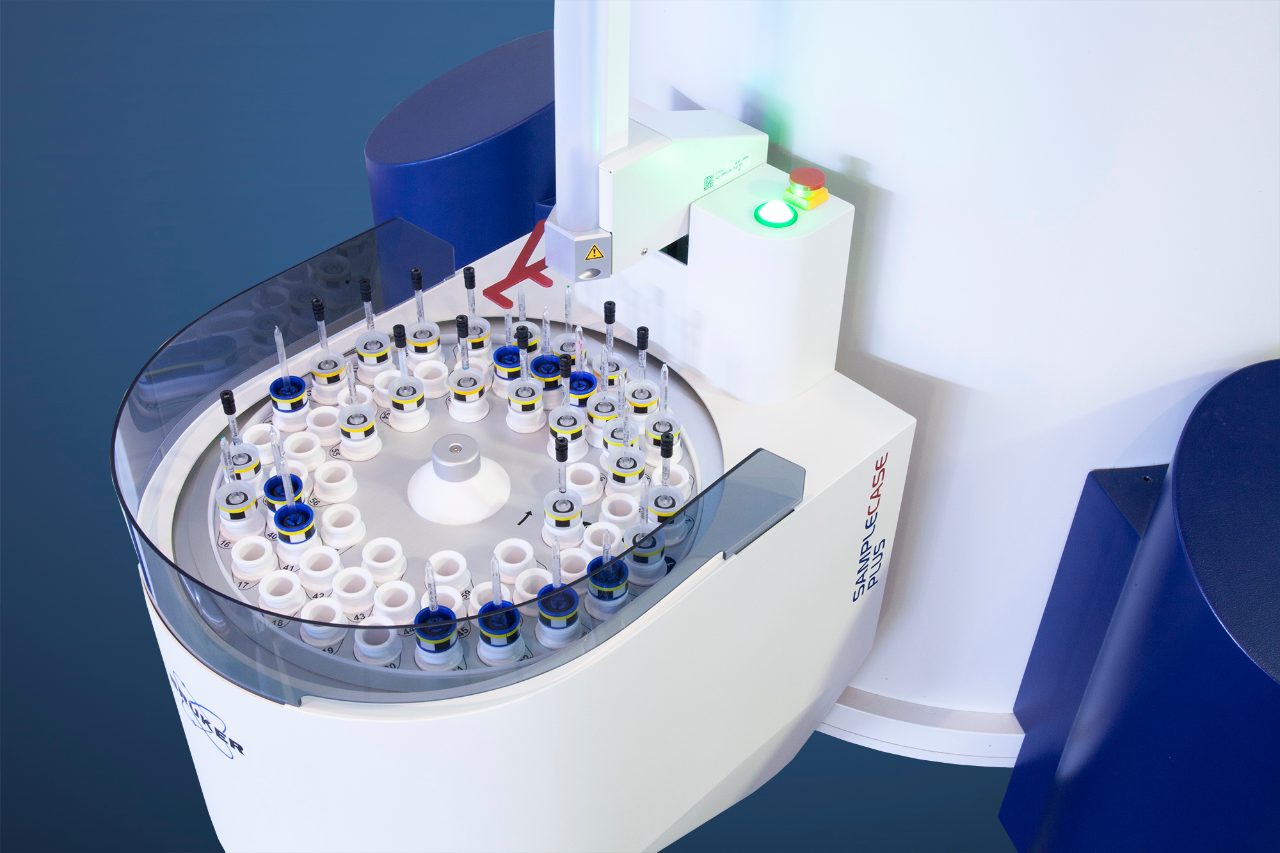

SampleCase Plus
Easy, efficient automation that can now accommodate 60 samples for higher throughput labs.

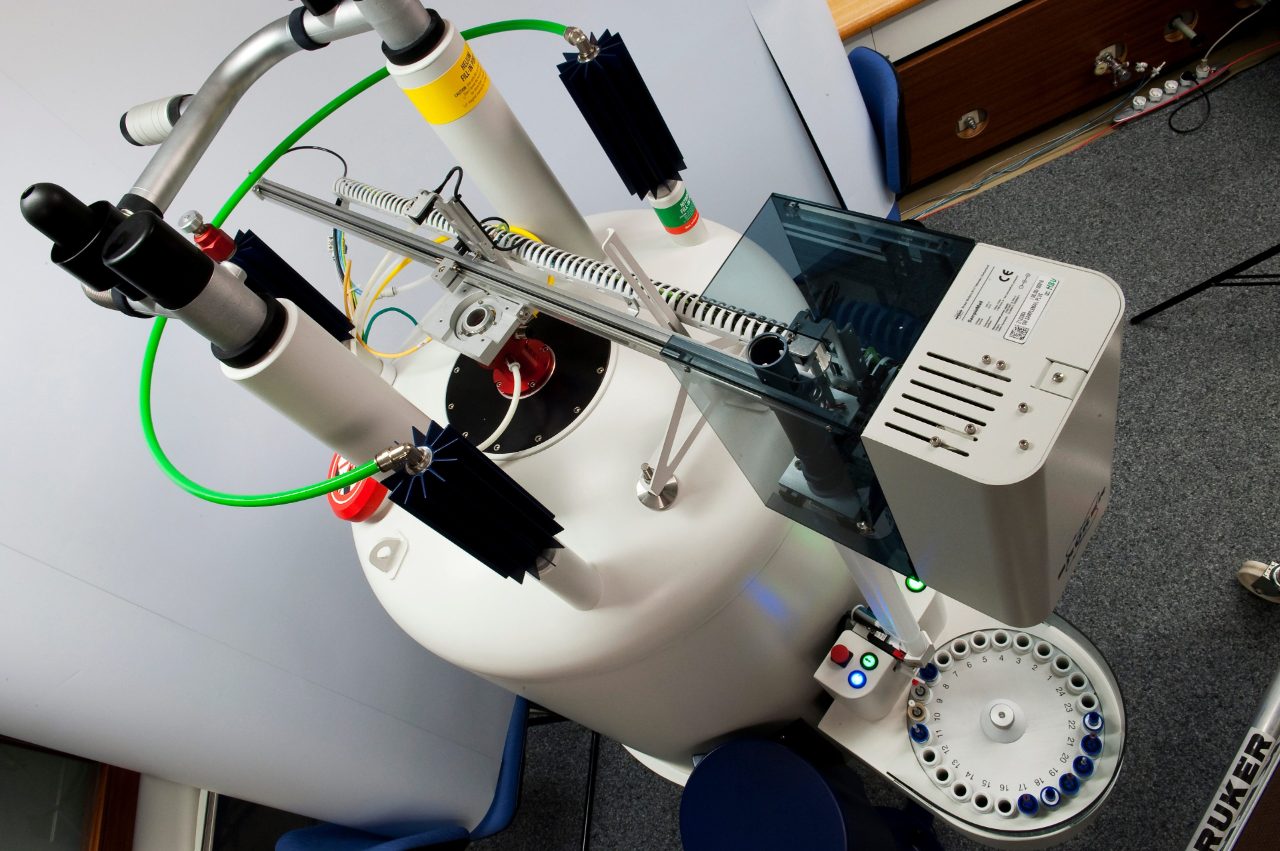

SampleCase Heated
SampleCase is now offered in a heated version, specially designed for work in polymer research. The SampleCase heated is capable of keeping up to 24 samples in the queue at temperatures of up to 125° C, thereby keeping polymers liquid and ready for measurement.

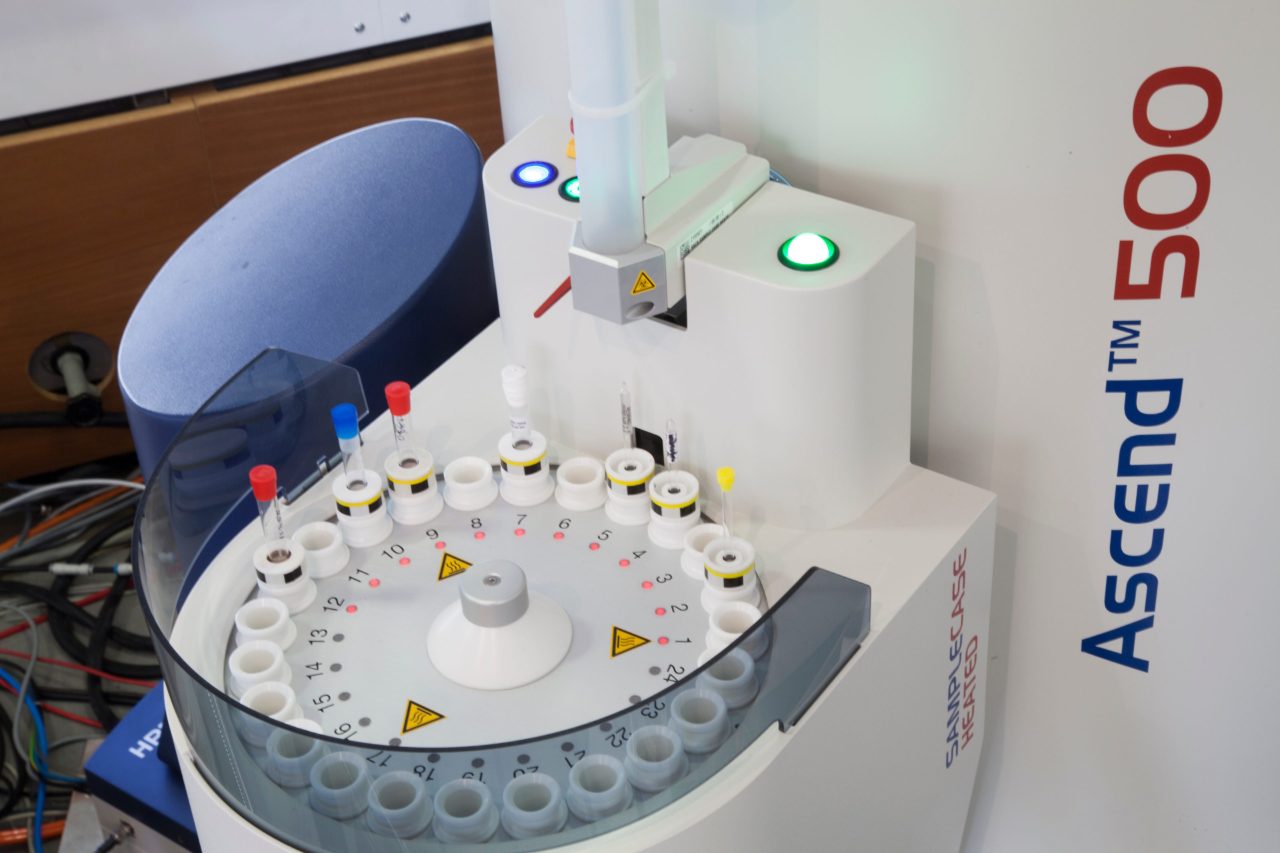

SampleCase Cooled
SampleCase Cooled™ extends the convenience of user-height NMR automation to temperature-sensitive samples. Refrigerated storage enables automated analysis of proteins, RNA, biofluids, and other sensitive samples, while maintaining sample integrity throughout the workflow.
Specifications
- Fits on shielded standard bore Bruker magnets from 300 - 1200 MHz
- Operational status visible across the lab with blue, green and red LED status lights
- Push-button operation for manual sample insertion and ejection directly at the instrument.
- Vibration-free acquisition without RF interference
- Operates with all liquid-state sample diameters from 1-10 mm and solid-state rotor diameters from 1.3 to 4mm
- Designed for use with Bruker POM, Kel-F, and ceramic spinners for reliable tube transfer, stable sample rotation, and precise positioning across a wide temperature range.
- Automates solid state NMR with the MAS Shuttle accessory for 1.3 to 4 mm CPMAS rotors.
- Supports magnetically compensated spinners for operation with ultra-high field NMR systems
- Works with all sample NMR tube lengths (including specialty valved, Shigemi and shaped tubes)
- Native integration to TopSpin™ and SpinPilot ™ spectrometer software
- Compatible with modern AvanceNeo consoles, as well as legacy AVANCE generations
- Compatible with Bruker liquid-state room temperature probes, CryoProbes, and solid-state iProbes
- Optional bar-code reader ensures sample traceability for a new systemor retrofitted to existing system
- Compressed air or nitrogen pressure requirement: 5 bar and 100 normliter/min
- Quick installation by Bruker service personnel
