G4 ICARUS Series 2

Outstanding Performance with Industry-proven Usability

Clean, Fast & Efficient Combustion: ZoneProtect™

HighSense™: High Performance UV-Absorption for SO₂

Carbon and sulfur by Combustion - Redefined by unique Innovations

3 µm
Pore size
of the high-efficiency dust filter ensures improved stability and a clean workplace
< 60 s
Cycle time including cleaning cycle
ZoneProtect™ ensures a clean, fast & efficient combustion while any dust is disposed into the crucible by the integrated automatic cleaning system
times better signal to noise ratio

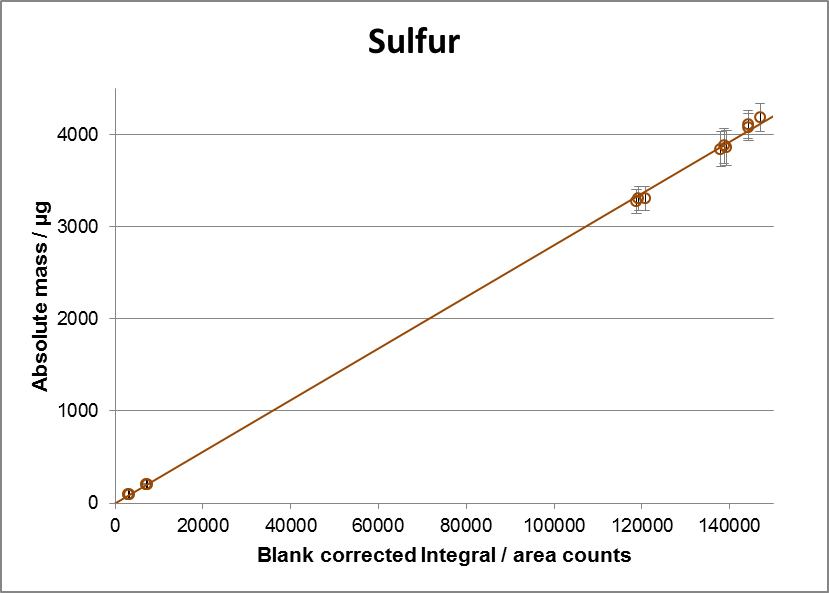

As UV-absorption is much more efficient than IR absorption, HighSense SO₂ detection delivers 10 times better S/N ratio, 5 decades of linear dynamic range with umost stability not affected by temperature variations.

Versatility for research combined with industry proven reliability

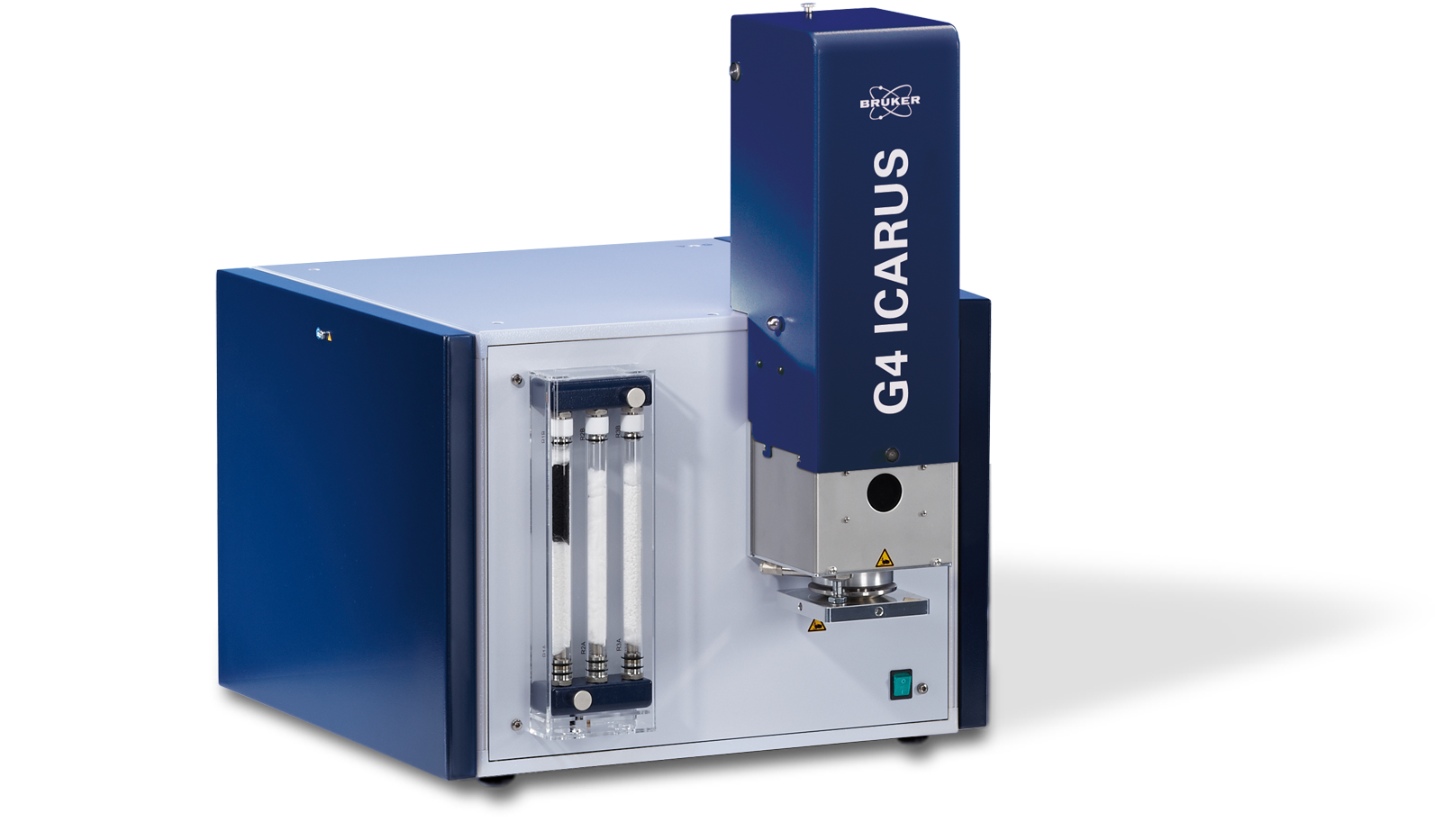

The combustion analyzer G4 ICARUS Series 2 with high frequency (HF) induction furnace and HighSense™ detection sets new standards in for a rapid and precise carbon (C) and sulfur (S) analysis in inorganic solids.

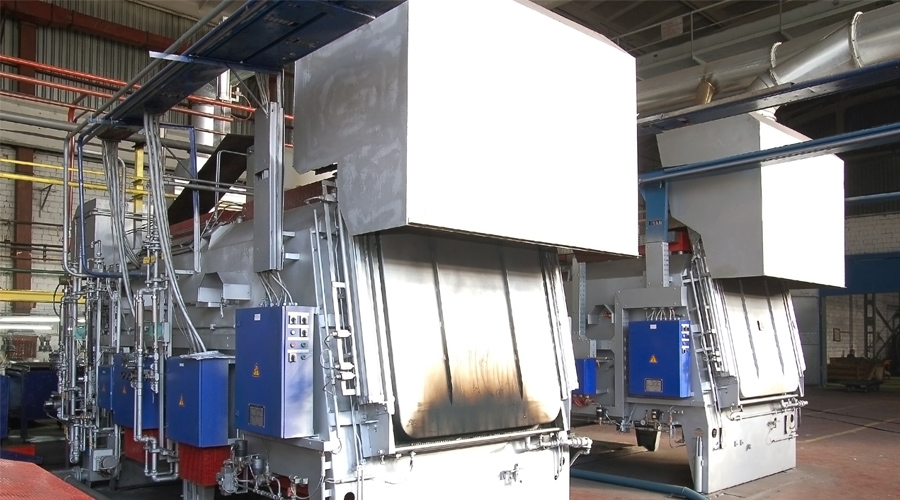

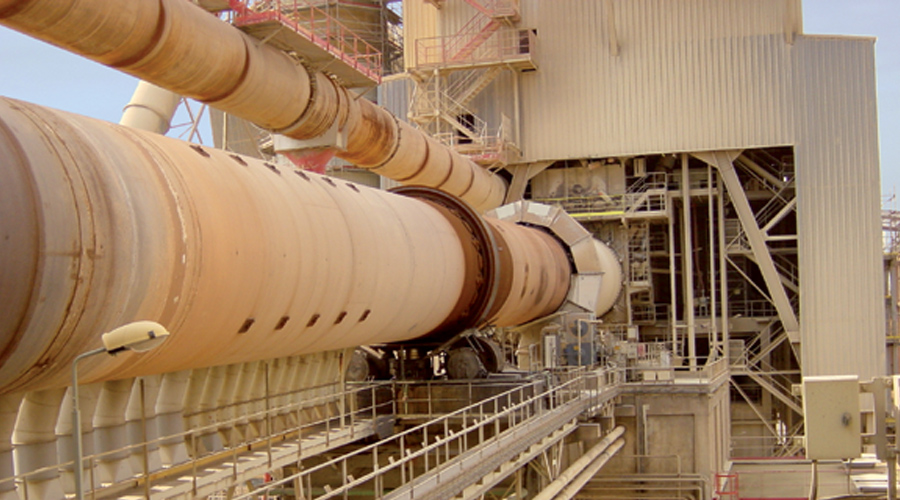

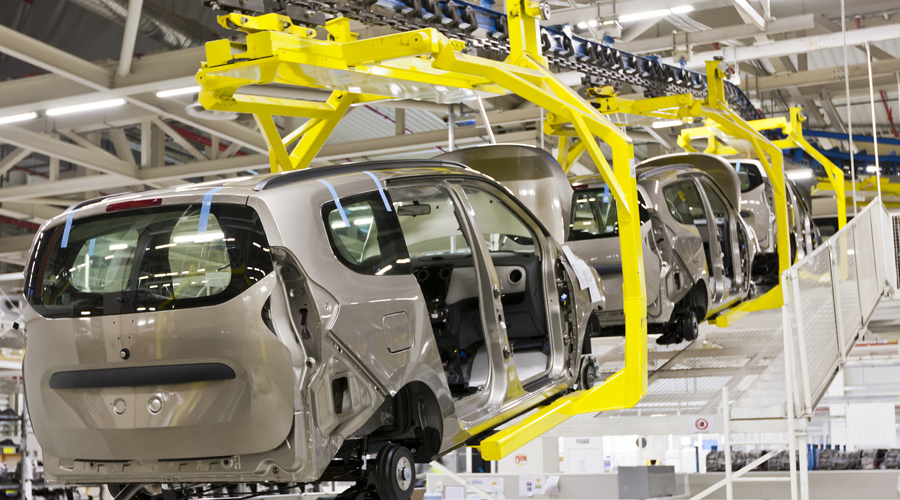

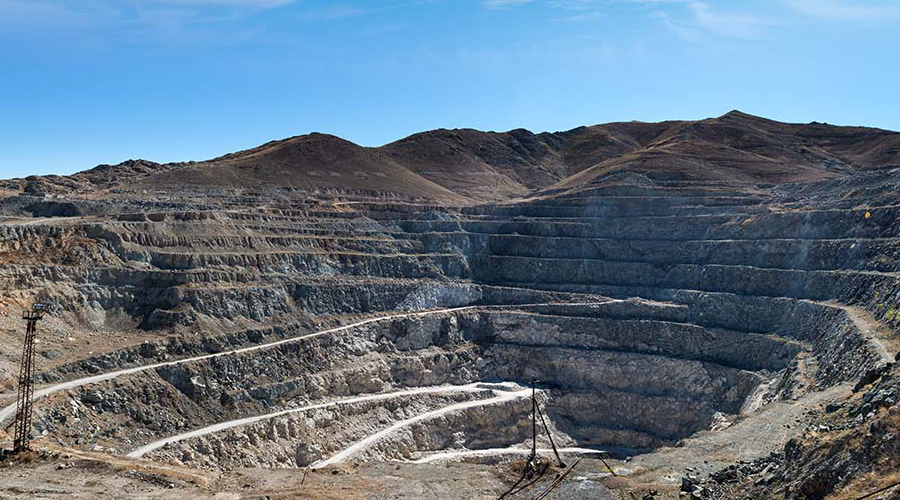

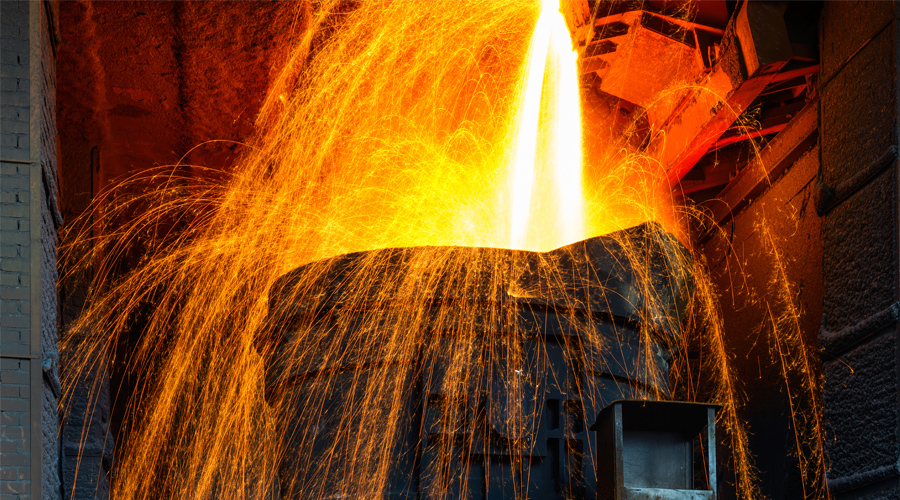

Due to their impact on the material properties, the need for fast and reliable CS analysis is not limited to iron and steel but also applies to ferrous and non-ferrous metals, their alloys, ceramics, ores, cement, limestone and numerous other inorganic solids.

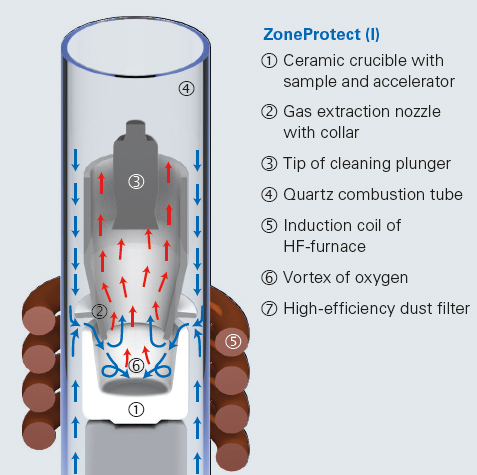

  • ZoneProtect™: The patented combustion zone design utilizes a gas extraction nozzle, ensuring an optimal supply of oxygen to the sample, while liberated gases and dust particles are instantly purged through the nozzle.
  • The unique, fully automatic cleaning system with brush-free dust removal ensures simultaneous cleaning of the inline high efficiency dust filter and the gas extraction nozzle while transferring accumulated dust into the crucible for disposal.
  • HighSense™ Detection: The latest innovations in the field of high-performance light-emitting diodes (UV-LED), enabled the development of a SO₂ detector with outstanding performance: Lowest detection limits and an ultra-wide linear dynamic range are specific benefits of this technique. All Bruker detectors work without any moving parts and are equipped with integrated reference beam channels to eliminate drifts and provide utmost baseline and calibration stability.

Why do I need combustion analysis?

When time to result matters, while accuracy must be granted in the first shot, with minimum sample preparation, combustion analysis is irreplaceable for the analysis of light elements. These are difficult or impossible to measure by direct spectroscopic methods, especially when embedded in difficult matrices. E.g. the G4 ICARUS Series 2 delivers accurate results even in grey cast iron, where carbon is unevenly distributed in form of graphite clusters, because it applies a volumetric method - analyzing the entire sample.

Watch the new video on carbon & sulfur

G4 ICARUS Series 2 Specifications

  Specification Benefit


Sample Types

Inorganic, dry, any form or shape

Typical Samples
Ferrous and nonferrous metals and their alloys, ores, cement, limestone, glass, ceramics, soils Wide variety of sample materials
Sample carrier

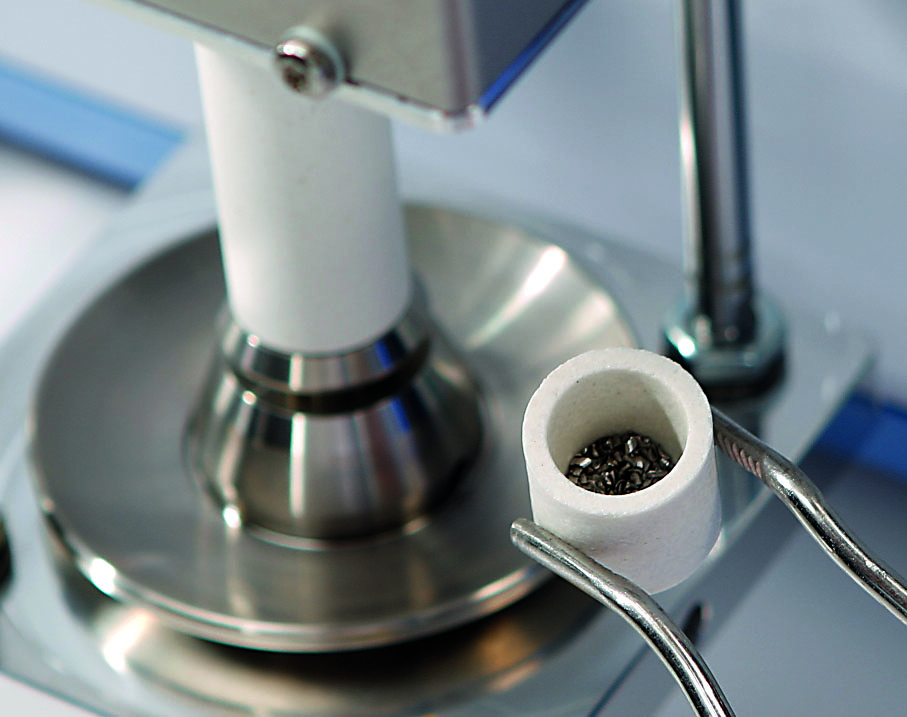

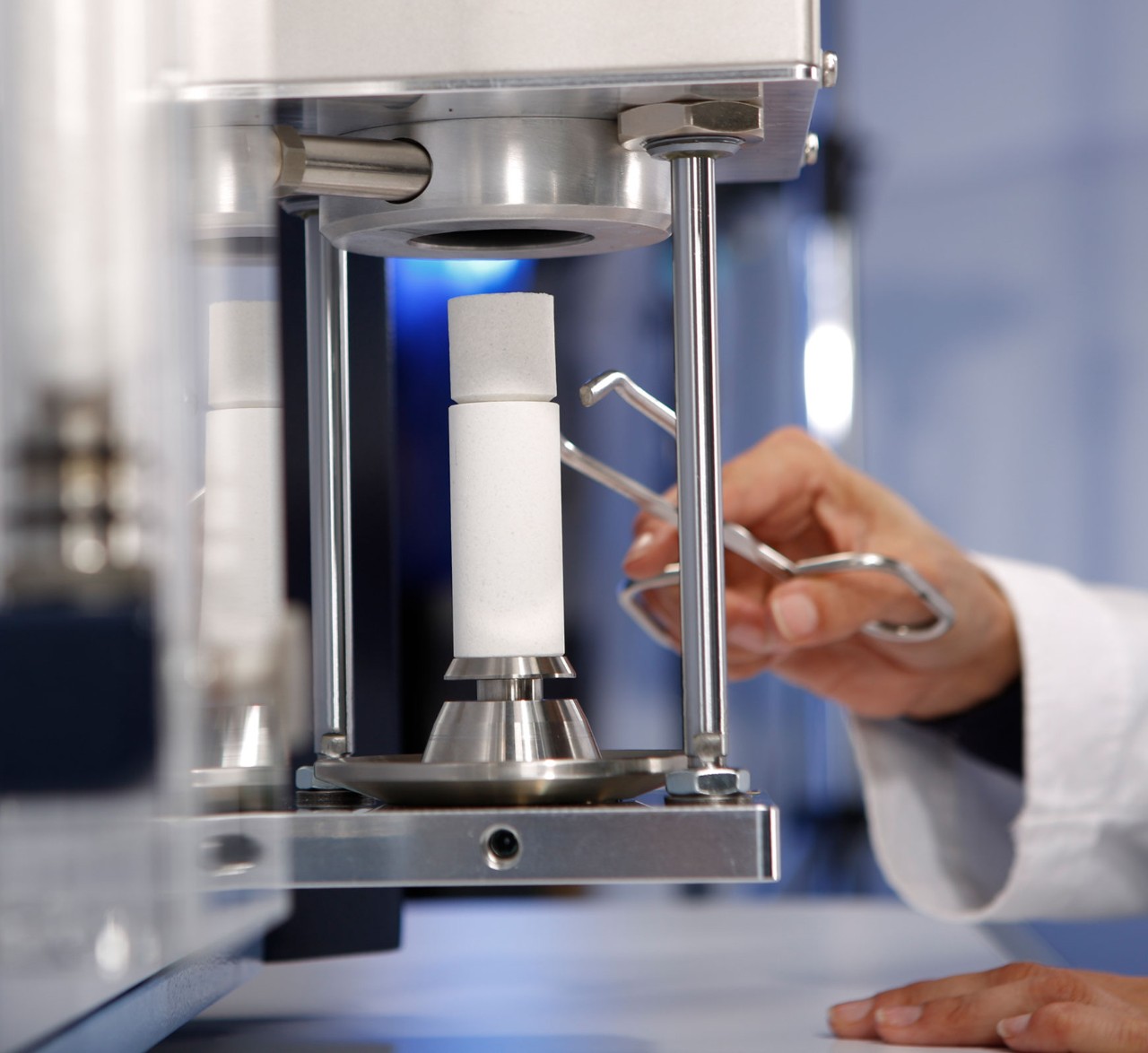

Ceramic crucibles (standard form) Usage of industry standard consumables, lower cost, security of supply
Sample weight
0.1 – 1 g (typical 0.5 g)
Furnace High frequency induction furnace, power adjustable with ZoneProtect™ More efficient, faster combustion with maximum productivity





Dual-range NDIR detector with reference beam path

HighSense™ NDUV²) detector with reference beam path


Reliable, maintenace-free performance without drift

Unique wide range performance with unrivaled signal/noise without drift
Carrier Gas Oxygen 99.95% purity
(99.995% required for trace carbon)
3.5 bar (50 psi) min. pressure
Standard gas purity sufficient
Compressed air 5 bar (72.5 psi) min. pressure, oil-, water- and particle-free


Analysis Time
40 s (nominal)
Fast, simultaneous analysis
Complete Cycle Time
< 1 min (typical) High productivity and throughput with waste disposal into crucible
Noise Emission < 50 db Enjoy the silence
Calibration Single and multipoint calibration with solid standards
  • Magnesium perchlorate
  • Sodium hydroxide on support
  • Platinized silica
Power Supply

230 VAC (± 10 %); L1 N; 50-60 Hz; 16 A; 2.7 kVA

208 VAC (± 10 %); L1 L2; 50-60 Hz; 16 A; 2.7 kVA
Industry standard power and current configurations
  *) NDIR-based detector available on request
