Unique speed and specificity offered by label-free MALDI-TOF mass spectrometry

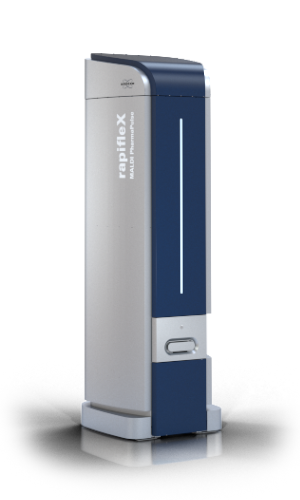

The all new rapifleX® MALDI Time-of-Flight mass spectrometer is the heart of the MALDI PharmaPulse®, it incorporates Brukers latest 10 kHz scanning laser technology and can read multiple samples per second. All components of the system work in concert for fully automatic HTS operation. The newly designed screening software suite supports HTS workflows and works in combination with a proprietary assay development module which empowers assay developer to accelerate label-free assay development for MALDI mass spectrometry. The latest ‚Synthesis Screening‘ software module of the rapifleX® MPP opens a new application space for e.g. monitoring of chemical reactions at high pace or analysis of binding assays at incomparable high throughput and specificity.
The use of mass spectrometry allows the measurement of unmodified substrates in primary screens to avoid false positives or false negatives, making confirmation screens redundant. The system is designed for fully automatic handling of 384 and 1536 sample plates to screen more than a million compounds in a week in support of drug discovery.
New standard for ultra-High-Throughput Screening Label-Free ‘Hit’ Identification
By combining the speed of Bruker’s patented smartbeam 3D laser technology with the direct-detection capability of mass spectrometry, the rapifleX® MPP delivers unprecedented screening capability for ultra high-throughput screening of biochemical and cellular assays. It allows you to screen through large and diverse compound libraries at a pace of over a million compounds a week, epitomizing the perfect balance of automation and miniaturization.

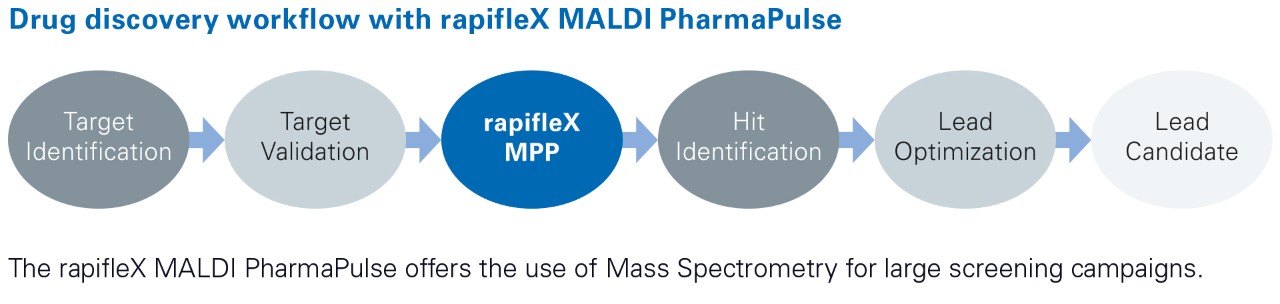

We are very proud to be the first CRO having integrated Bruker’s rapifleX mass spectrometer as read-out technology into our uHTS system. Mass spectrometry allows the direct measurement of label-free assays and reduces the number of false positives and false negatives in our screen, which makes the hit to lead phase of our drug discovery program more time and cost effective.

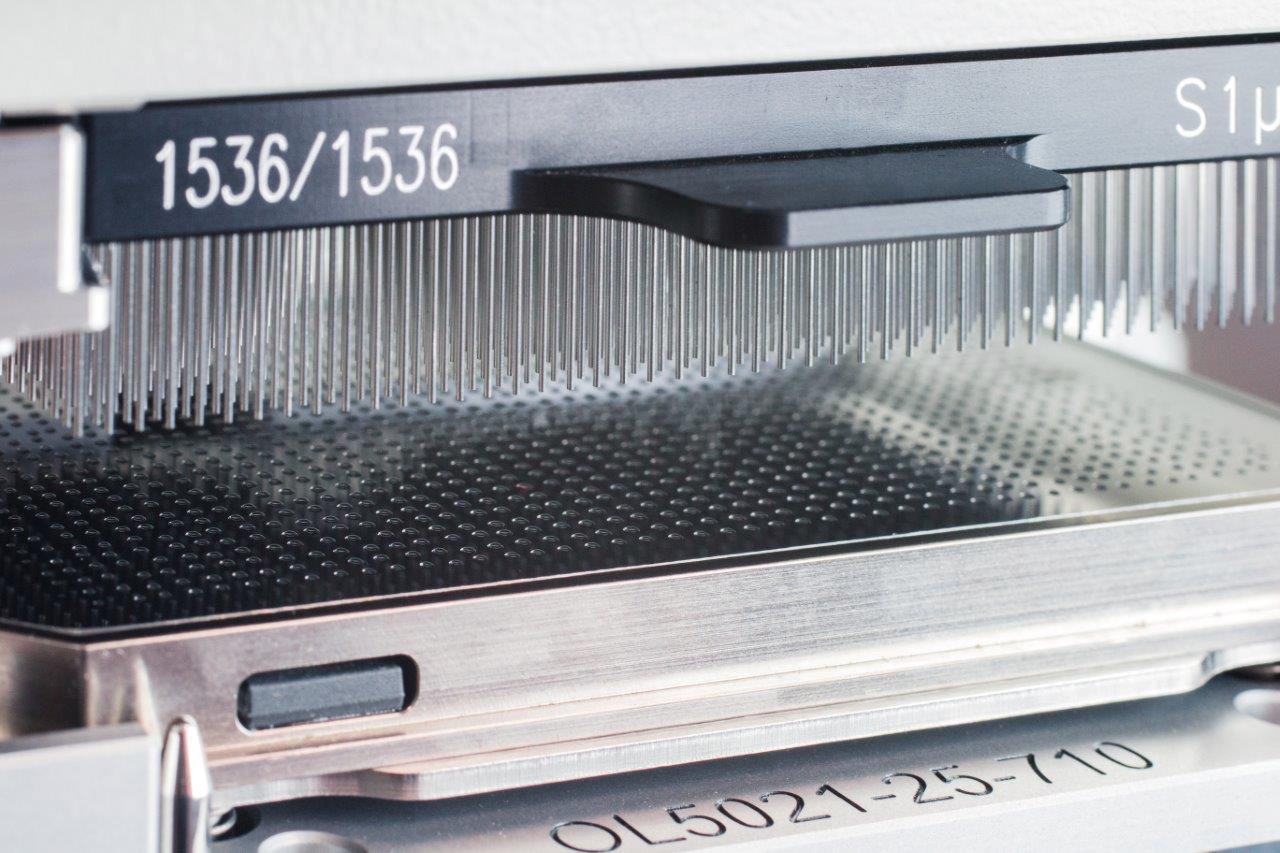

Compatible with CyBio®-Well vario with 384 or 1536 channel simultaneous pipettor for high precision and ultra-fast sample plate preparation.
Single digit cost per sample
Fully automatic 1536 sample plate change
New disposable MALDI HTS sample plates
The MPP system allows for the measurement of unmodified substrates in primary biochemical screens, and offers several advantages:

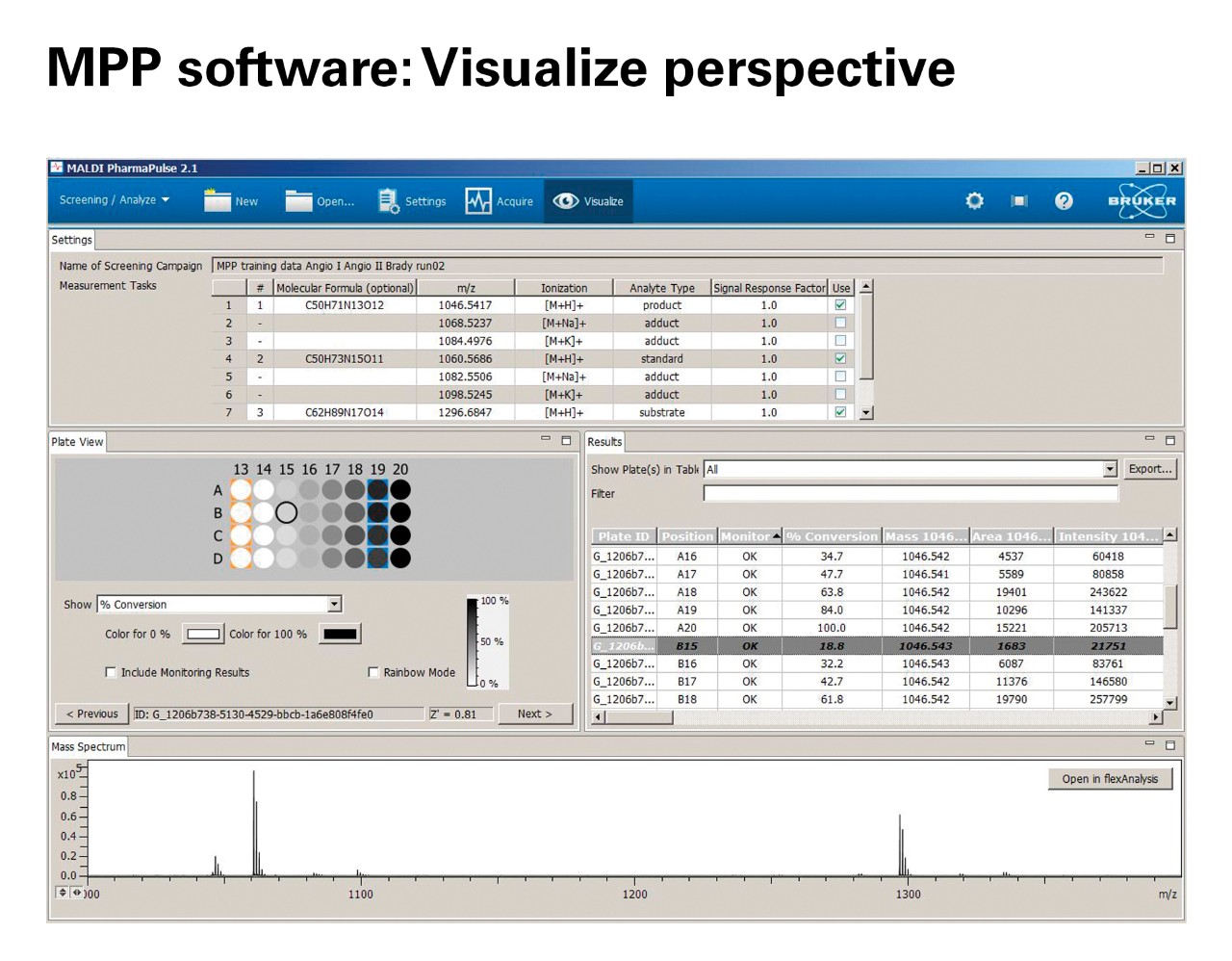

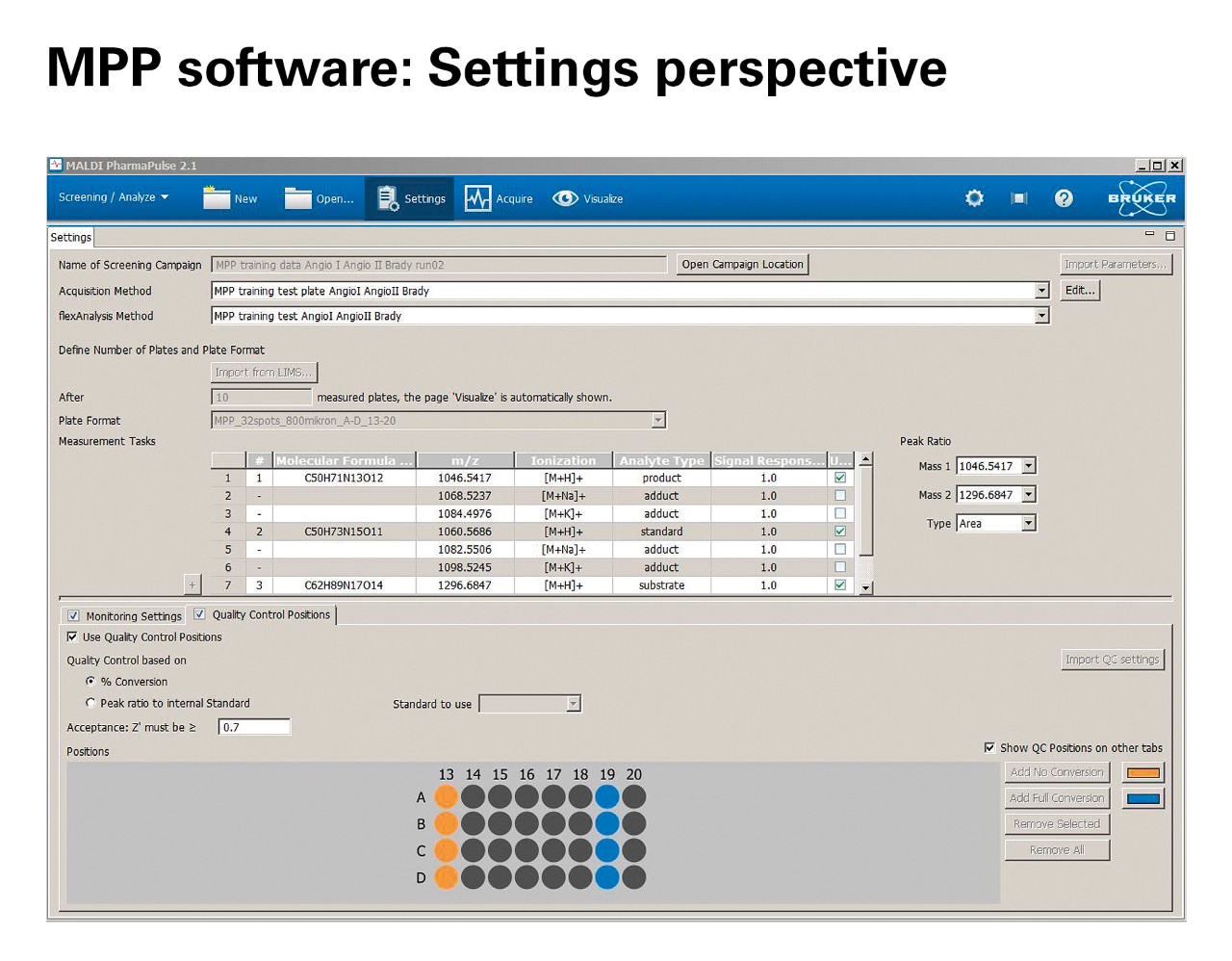

The PharmaPulse Solution is based on Bruker´s advanced MALDI-TOF technology and on a dedicated software package. Ease of use and time to result were key drivers during the development resulting in an intuitive but yet powerful software solution to measure and analyze millions of samples in full automation. Two workflows guide the user from adapting an assay to MALDI mass spectrometry to readily exported results for further analysis in LIMS systems.

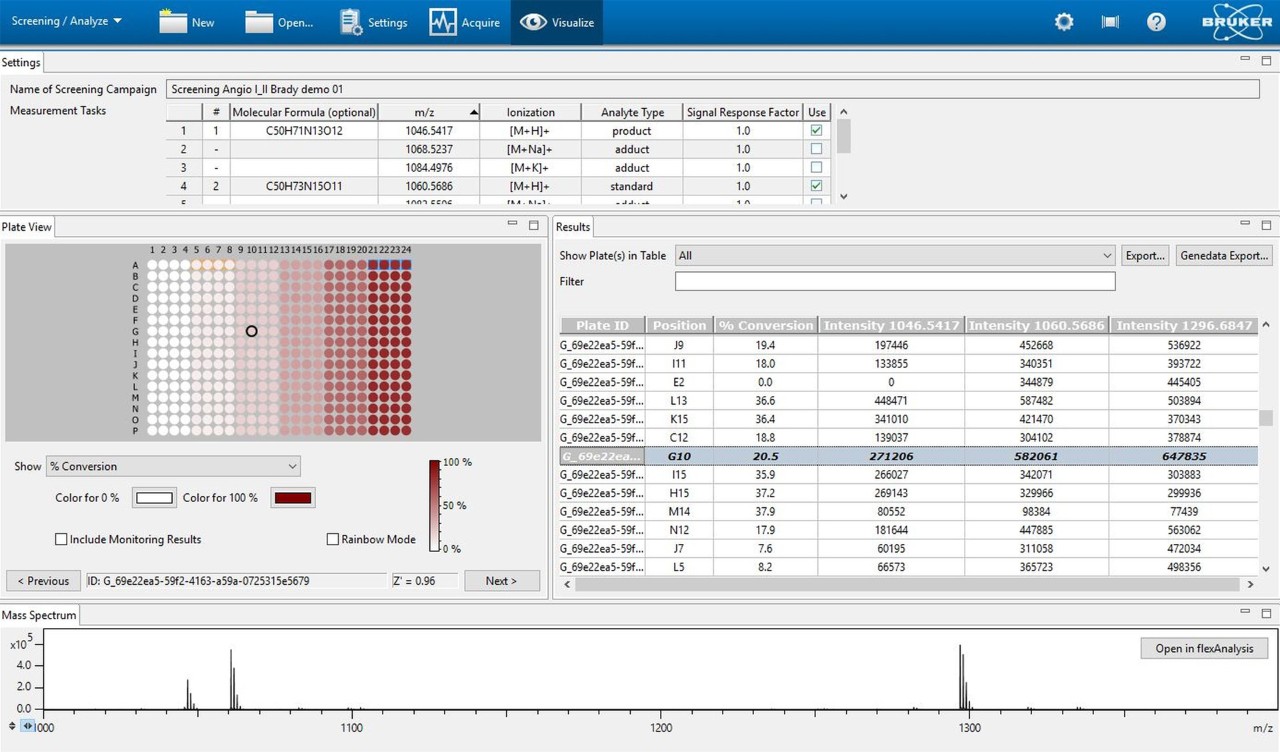

In biochemical screening experiments, the rapifleX® MPP determines the rate of conversion in a biochemical assay when performed in the presence of potential inhibitors. In such a screen, a distinct MS peak ratio comparing product and substrate intensities is monitored throughout large numbers of sample spots, where each spot represents the same biochemical conversion reaction, but measures the effectiveness of a different inhibitor molecule.

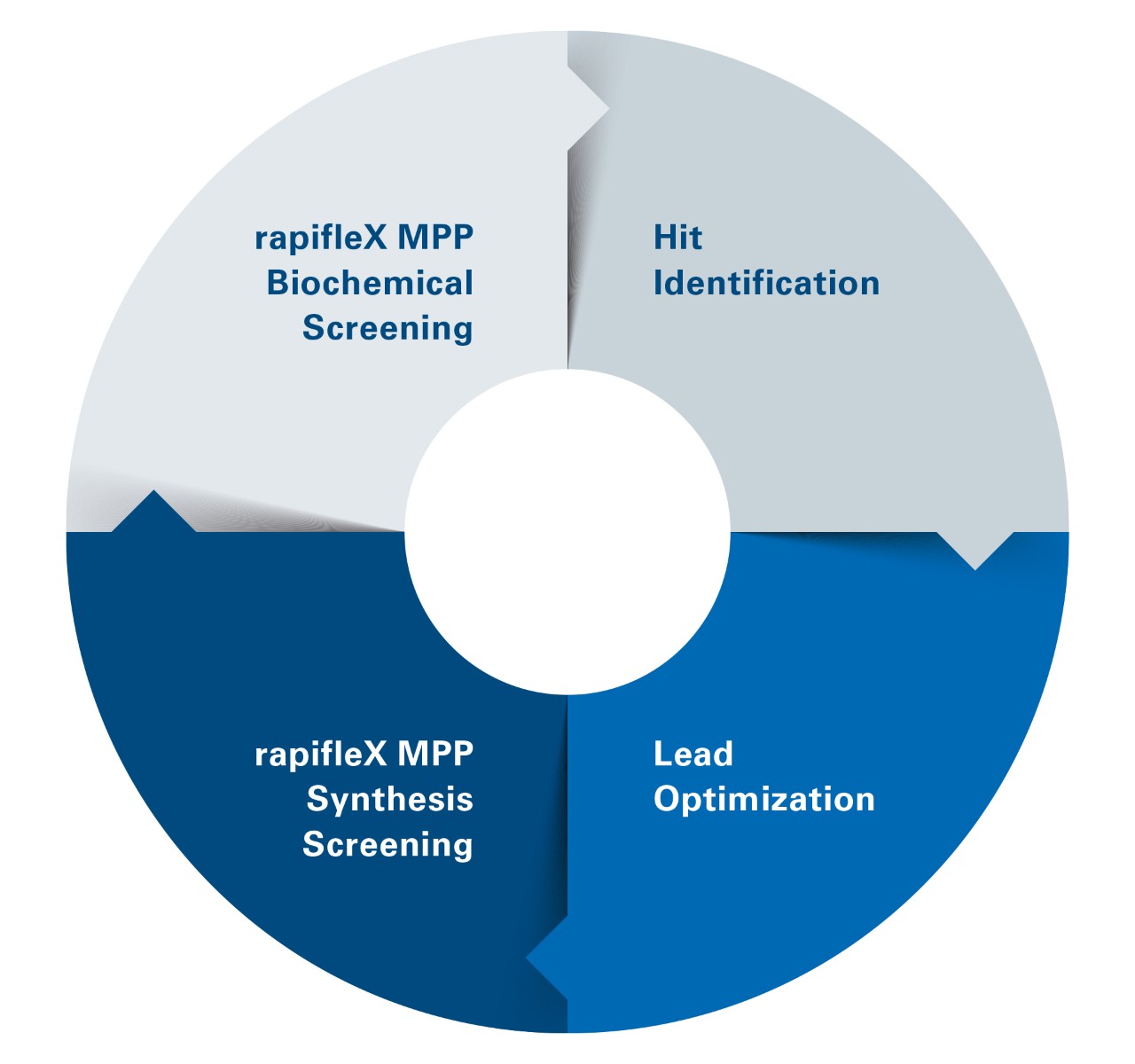

In addition to this screening functionality, the new MPP software module supports “Synthesis Screening”, a methodology that requires more flexibility with regard to m/z values to be targeted by MALDI-TOF MS. Here, m/z values of interest may vary from spot to spot as each sample may represent a different chemical reaction. Accordingly, the new MPP “Synthesis Screening” software module allows scientists to screen for a large number of compounds per individual sample spot. This new MALDI-TOF based high-throughput analysis workflow could, therefore, enable highly time-efficient surveying of chemical reactivity landscapes at previously unseen mapping depth.

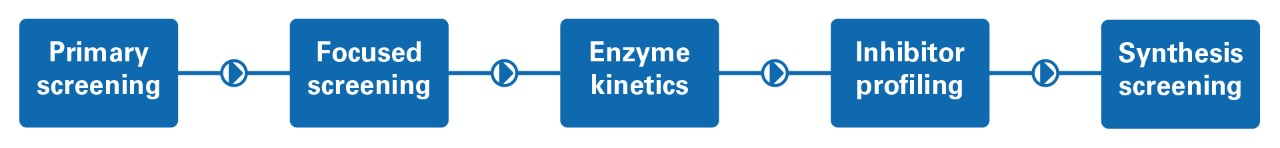

Full library screens
The rapifleX® MPP is the only mass spectrometer for large primary screens of millions of compounds with high diversity. Full automation supports screening of more than one million compounds per week, avoiding time-consuming confirmatory screens.
Focused library screens
The quality of data obtained with rapifleX® MPP meets the requirements of secondary and confirmatory screens and makes it the ideal detector for focused library screens, such as the identification of kinase inhibitors of a target protein from a smaller subset of the library.
The mass range and resolution accessible by MALDI-TOF mass spectrometry enables screening of fragments and other low molecular weight compounds.
 Winter, M.; Ries, R.; Kleiner, C.; Bischoff, D.; Luippold, A. H.; Bretschneider, T.; Buettner, F. H.; Automated MALDI Target Preparation Concept: Providing Ultra-High-Throughput Mass Spectrometry–Based Screening for Drug Discovery. SLAS Technology 2018, https://doi.org/10.1177/2472630318791981
 Beeman, K.; Baumgartner, J.; Laubenheimer, M.; Hergesell, K.; Hoffmann, M.; Pehl, U.; Fischer, F.; Pieck, J.C.; Integration of an In Situ MALDI-Based High-Throughput Screening Process: A Case Study with Receptor Tyrosine Kinase c-MET. SLAS Disc. 2017, 22, 1203–1210.
 VanderPorten, E.; Scholle, M.; Sherrill, J.; et al. Identification of Small-Molecule Noncovalent Binders Utilizing SAMDI Technology. SLAS Discov. 2017, 22(10):1211-1217.

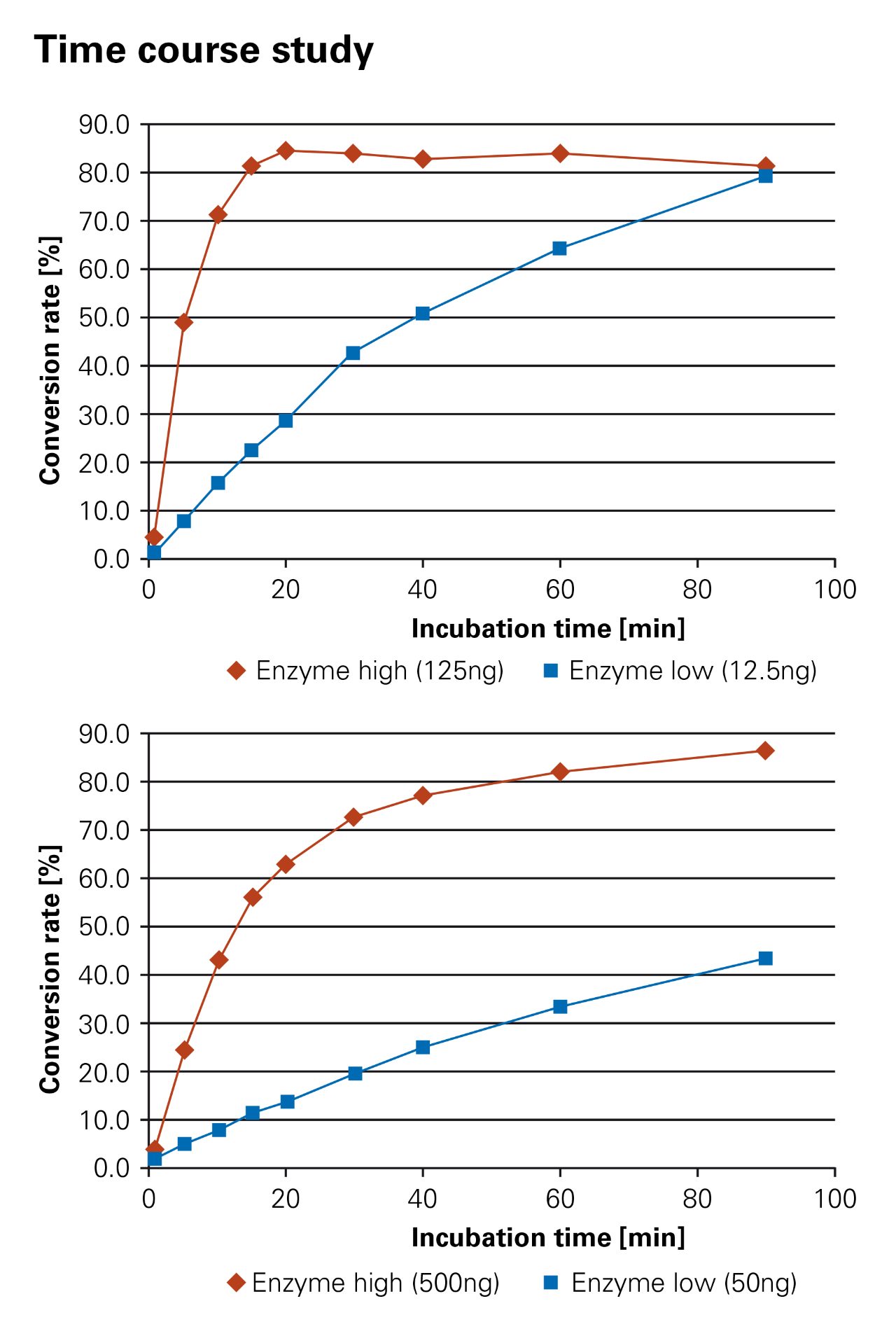

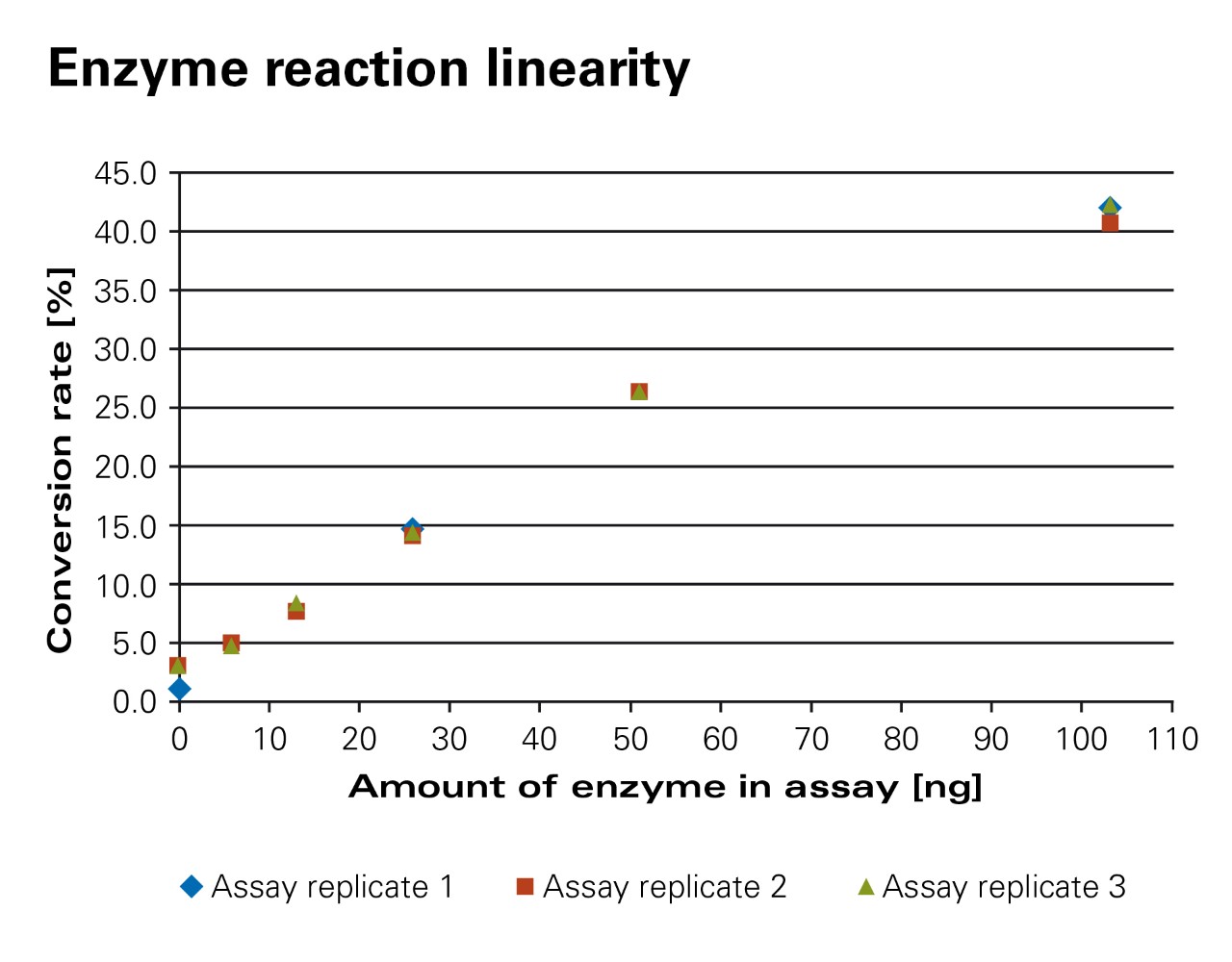

Thorough understanding of enzyme biochemistry and kinetics is essential to develop and validate robust HTS assays. rapiflex® MPP assists assay development and hit confirmation with linearity tests, substrate selection, Ki measurements and IC50 determination.

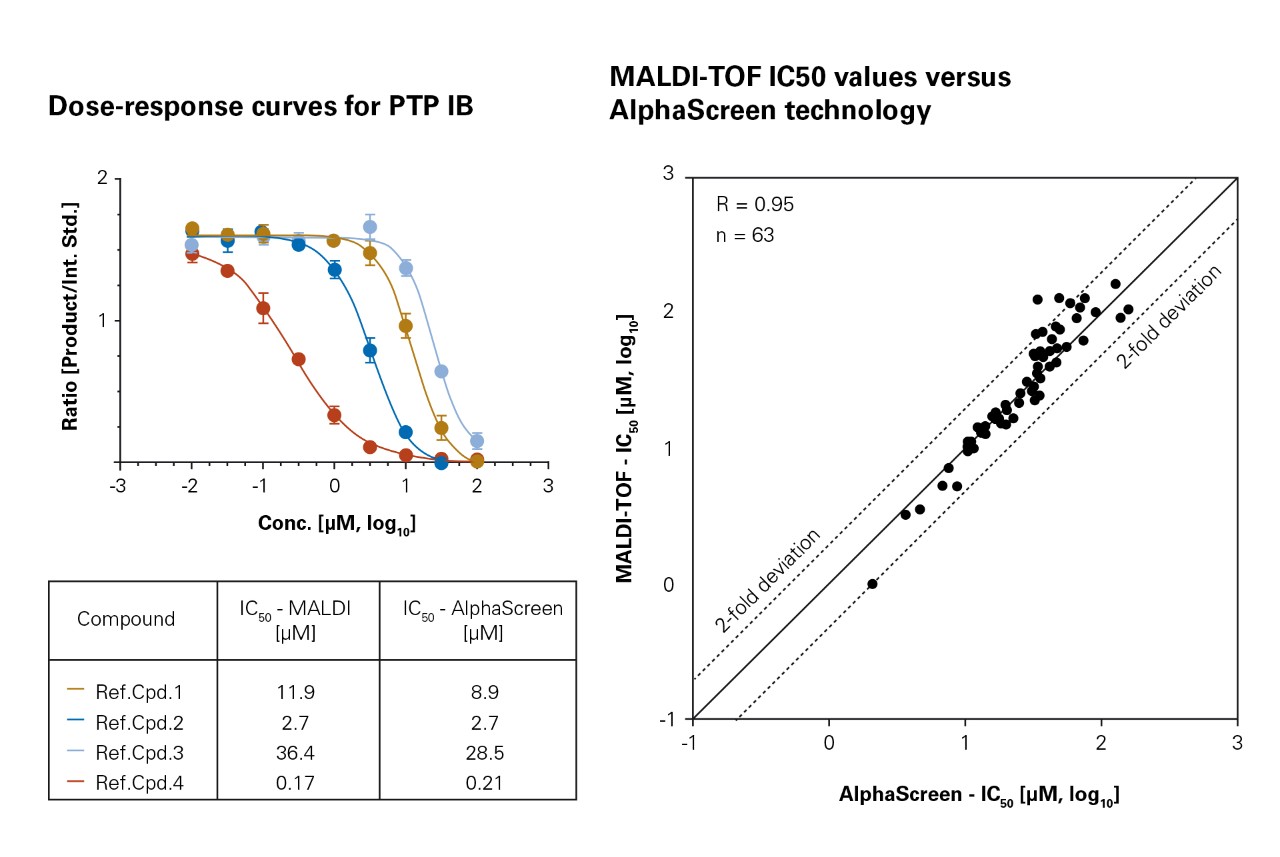

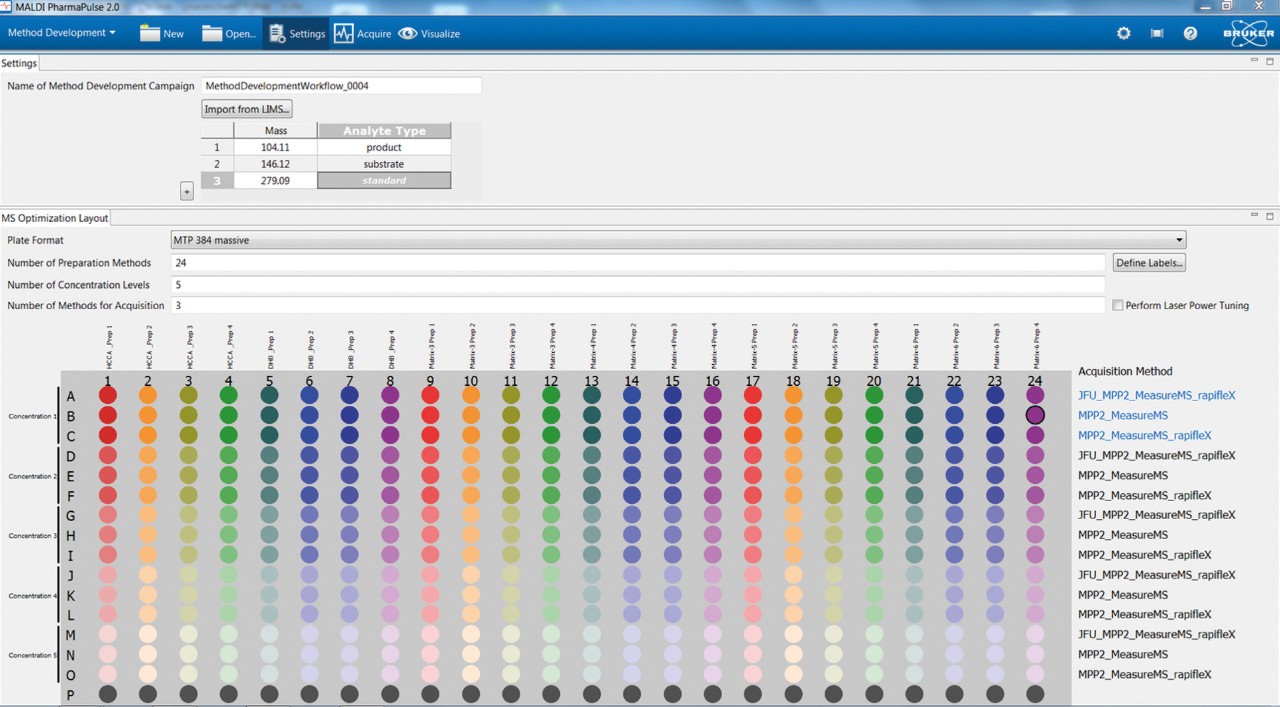

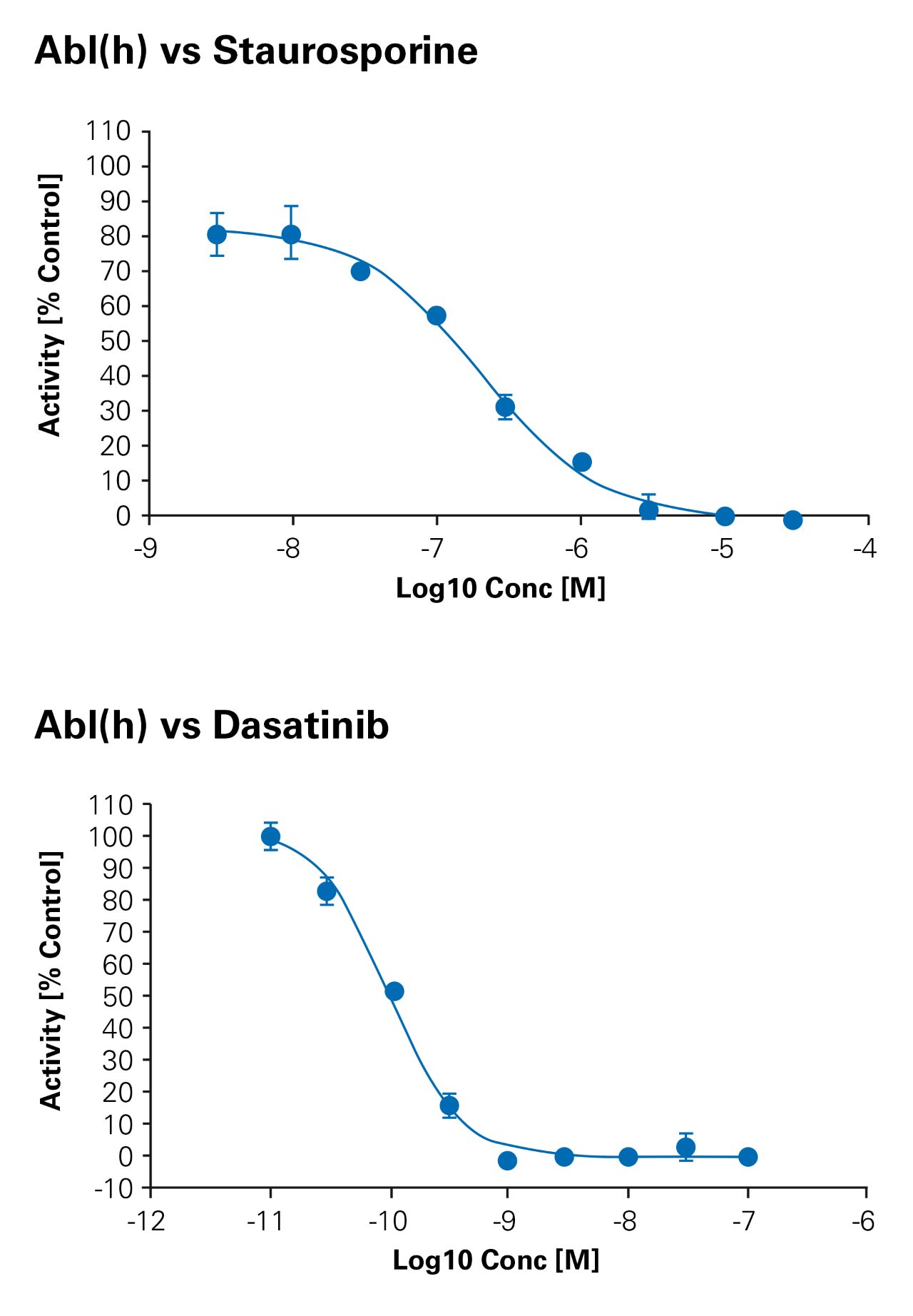

Half-maximal inhibitor concentration (IC50) is a key parameter in the drug discovery process. MALDI PharmaPulse® software supports assay development by featuring a dedicated method development module. Optimal assay conditions obtained using the method development module are applied during MALDI-TOF screening, for example aiming for IC50 determination, which is set up and executed in the software´s dedicated screening module.
A million samples per week with rapifleX® MALDI PharmaPulse®

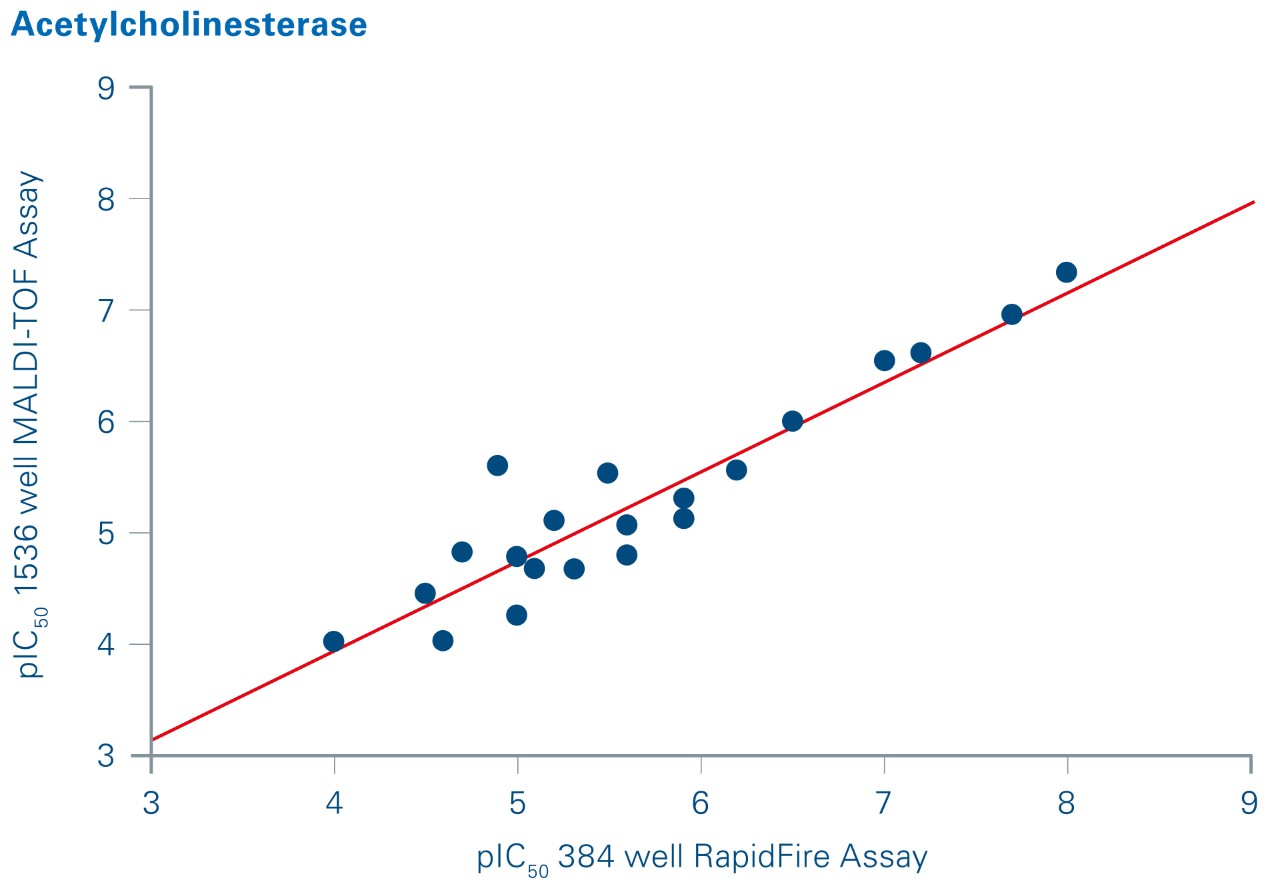

The new rapifleX® MPP is the result of Bruker’s innovative development of MALDI mass spectrometers. It reflects our passion for and knowledge about this technology and its unique applications. The time-of-flight mass spectrometer (TOF MS) of the rapifleX® MALDI PharmaPulse® monitors up to 30 masses in HTS mode: from small molecules to large proteins. The improved resolution and sensitivity of the rapifleX® TOF MS allows e.g. the monitoring of acetylcholine (ACh) and choline to identify acetylcholinesterase (AChE) inhibitors out of millions of substances. An ingenious detector design delivers significantly improved signal to noise ratios for enhanced sensitivity across the mass range. A completely new HTS software suite supports easy set-up of HTS screens, and the proprietary assay development module ensures fast adaption of label-free assays for MALDI mass spectrometry.
Automation of rapifleX® MALDI PharmaPulse®

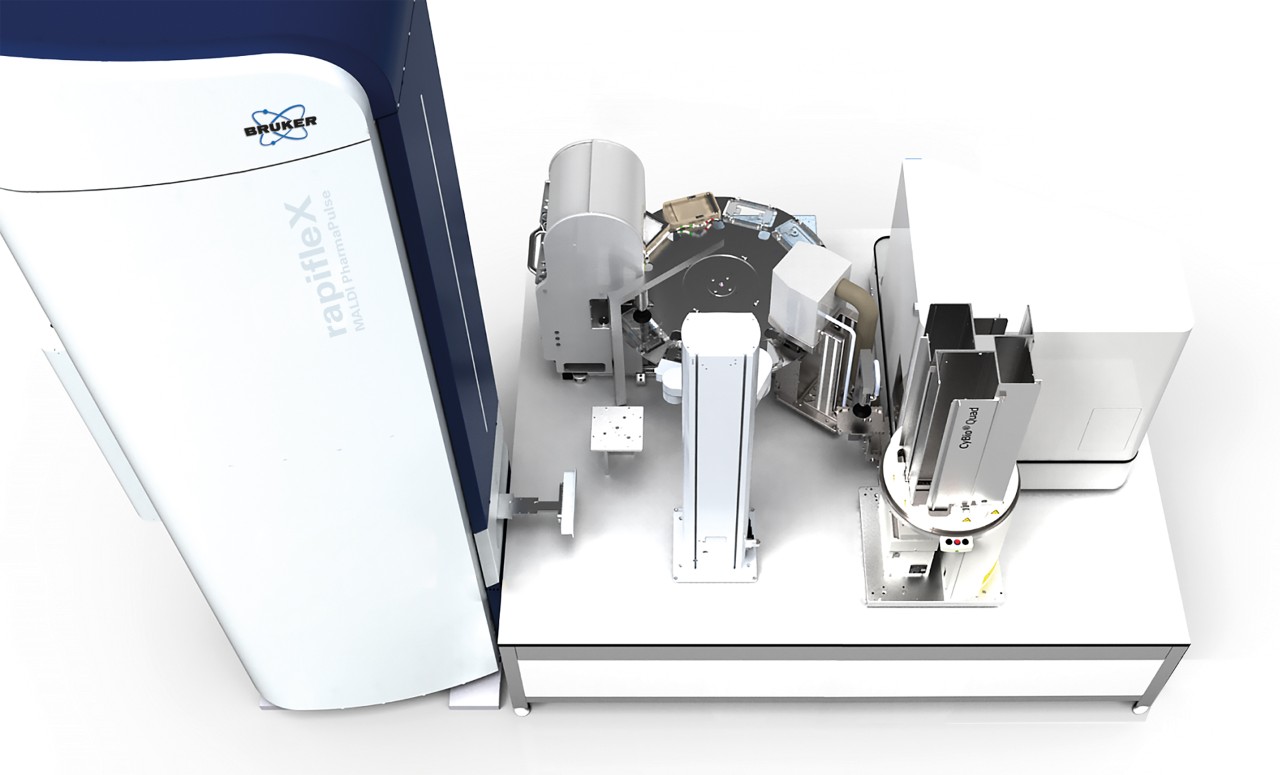

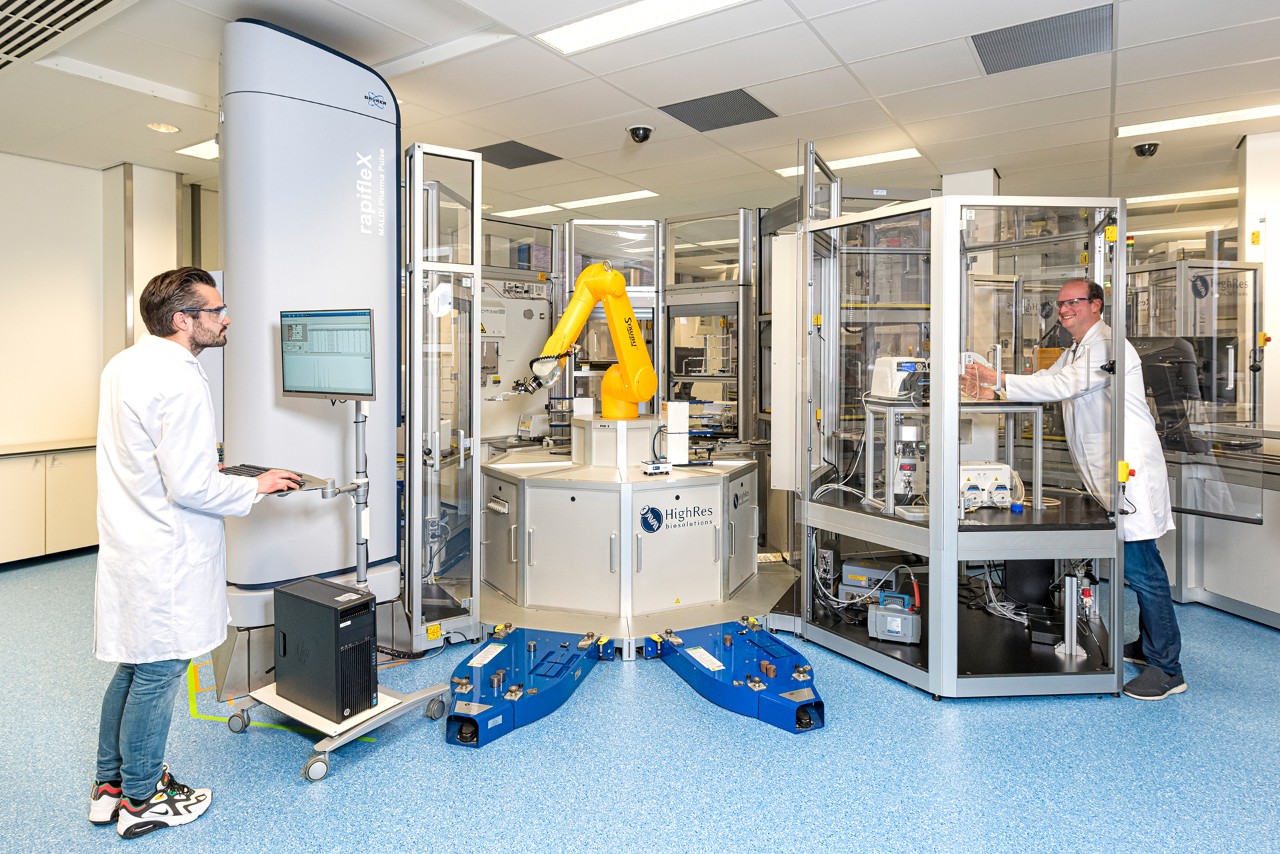

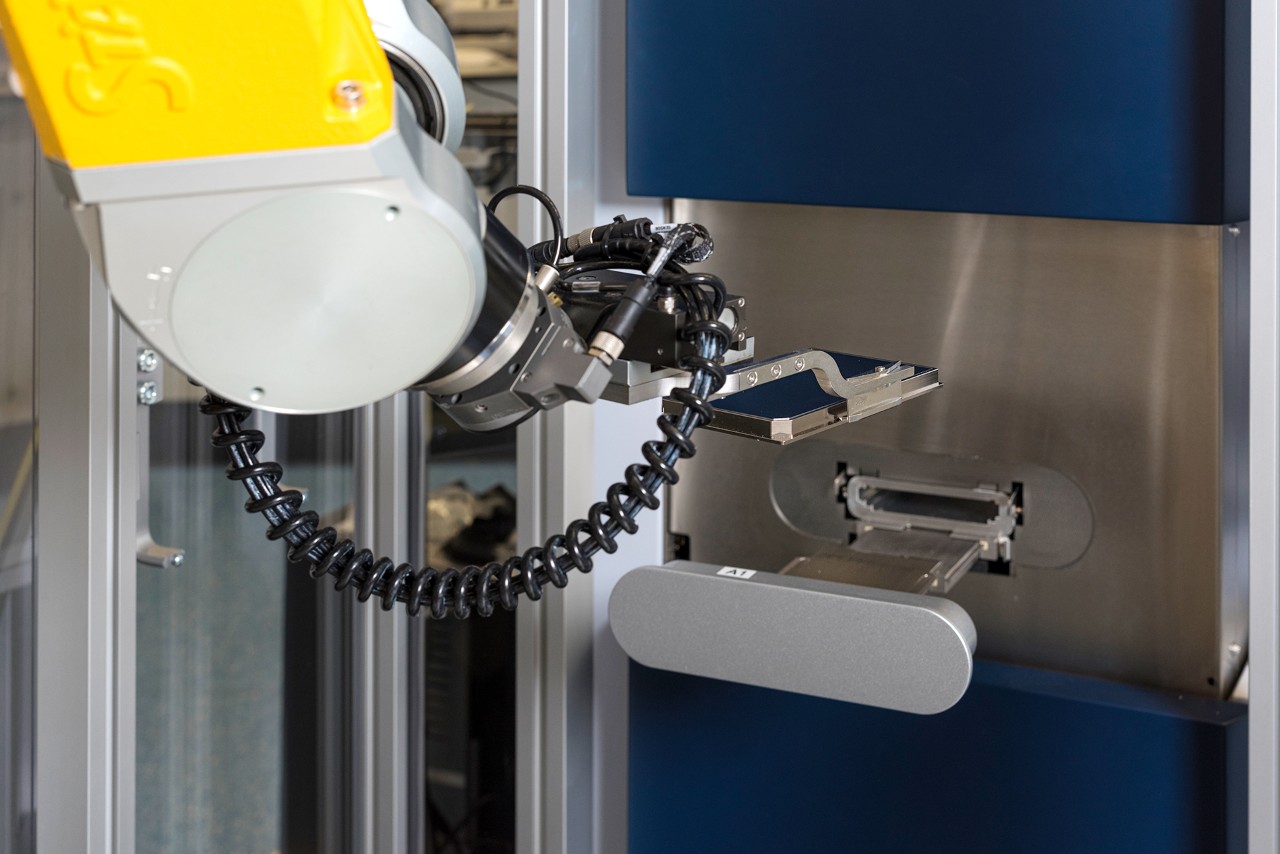

The rapifleX® MALDI PharmaPulse® is designed to seamlessly integrate with laboratory automation systems to perform fully automatic screening campaigns. The MALDI PharmaPulse® software solution offers an open interface to control parts of its operation from external scheduling software (e.g. Analytik Jena lab automation, HighRes Biosolutions, Beckman Coulter, Thermo Scientific automation). The new high-speed autoloader of the rapifleX® MPP works hand in hand with robot systems for quick loading and unloading of sample plates.
For Research Use Only. Not for use in clinical diagnostic procedures.
