Preclinical MRI

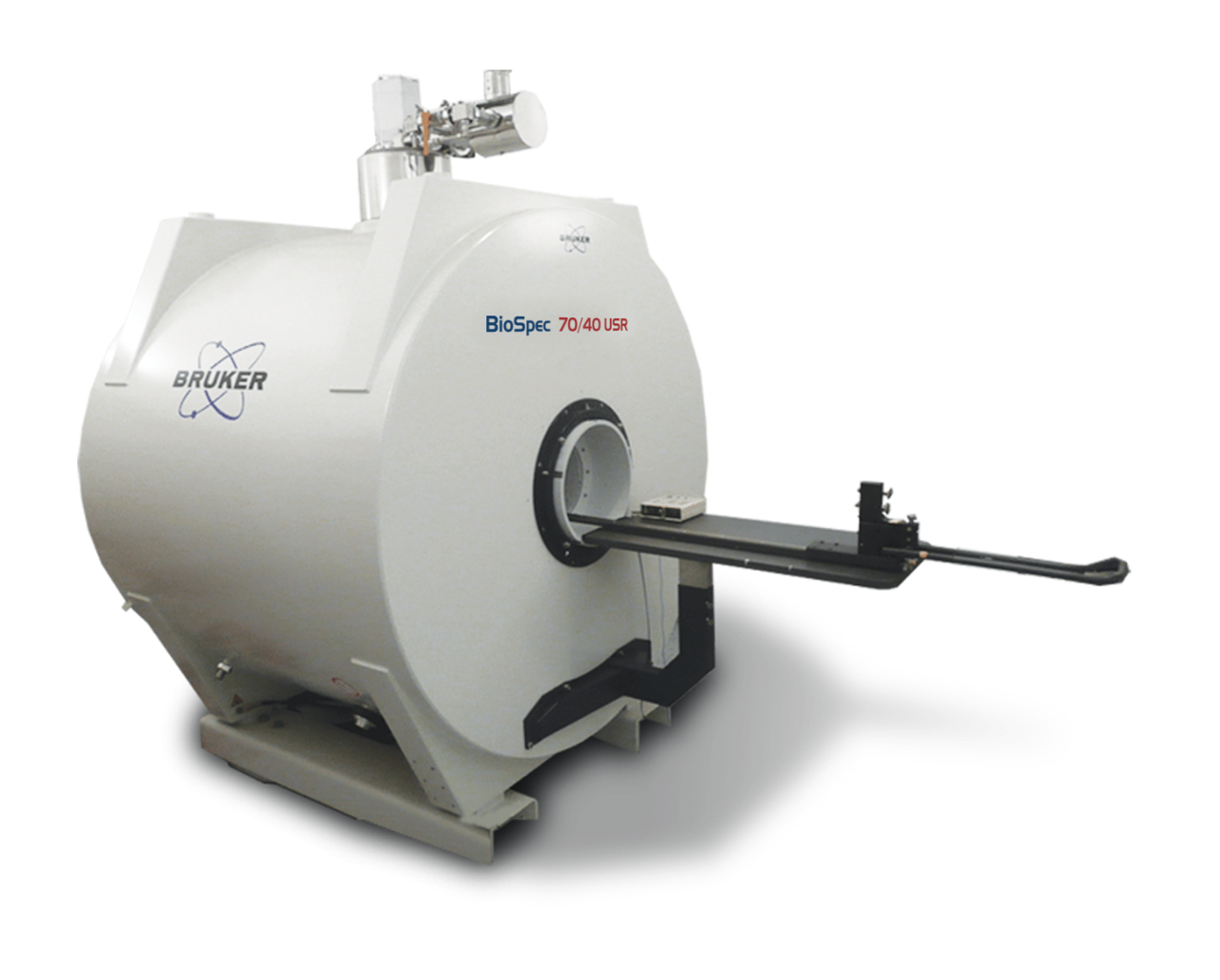

BioSpec 47/40 and 70/40

Studies with intricate set-ups or on larger preclinical species can be easily be conducted within the BioSpec 47/40 and BioSpec 70/40 due to their extremely large 40 cm bore size

Widest

Possibilities

BioSpec 47/40

Lo más destacado

Full Flexibility
40 cm bore size combined with unrestricted software for boundary pushing research on smaller and larger species
Best Performance
No compromise on small rodents with gradient insert selection to perfectly match the full range of common preclinical studies
Smooth Workflows
Specially designed coils, cradles, and carts for optimal handling and preparation

Características

  • Zero helium boil-off technology, nitrogen-free, Ultra Shielded and Refrigerated (USR) magnet technology for reduced maintenance costs and longer service intervals
  • Full second order and z3 high power shim channels guarantee optimal performance for spectroscopy and MRI
  • Scalable AVANCE NEO electronics enabling both MRI and MRS applications and incorporating up to 16 receiver channels
  • Real-time spectrometer control for optimization of acquisition parameters during scan
  • High performance BGA-S-HP gradients with highest amplitudes and slew rates, shim strengths and duty cycles
  • Fast and easily mountable gradient/shim inserts for optimum gradient/shim performance for small samples available
  • Cold shipping for most cost and time effective installation
  • MRI CryoProbes with delivering an exceptional increase in sensitivity
  • Complete RF coil portfolio for mice and rats available, including coils for head, brain, cardiac, body, and x-nuclei link to https://www.bruker.com/en/products-and-solutions/preclinical-imaging/mri/mri-rf-coils.html
  • ParaVision® 360:  intuitive software package, for multi-dimensional MRI/MRS data acquisition, visualization, reconstruction, and analysis
  • MRI sequence portfolio of more than 1,000 sequence variations, including wireless cardiac imaging using navigator based IntraGate methods with cartesian or radial readout, as well as short echo time imaging, such as UTE and ZTE
  • Open sequence architecture for full freedom of study design
  • In-house development and production of all key components (software, magnet, gradient, spectrometer, RF-coils) ensures the best performance and short repair times

47/40 Special Features

  • Accurate animal positioning with the motorized animal handling system for increased throughput

70/40 Special Features

  • Smooth workflows for animals with dedicated handling solutions

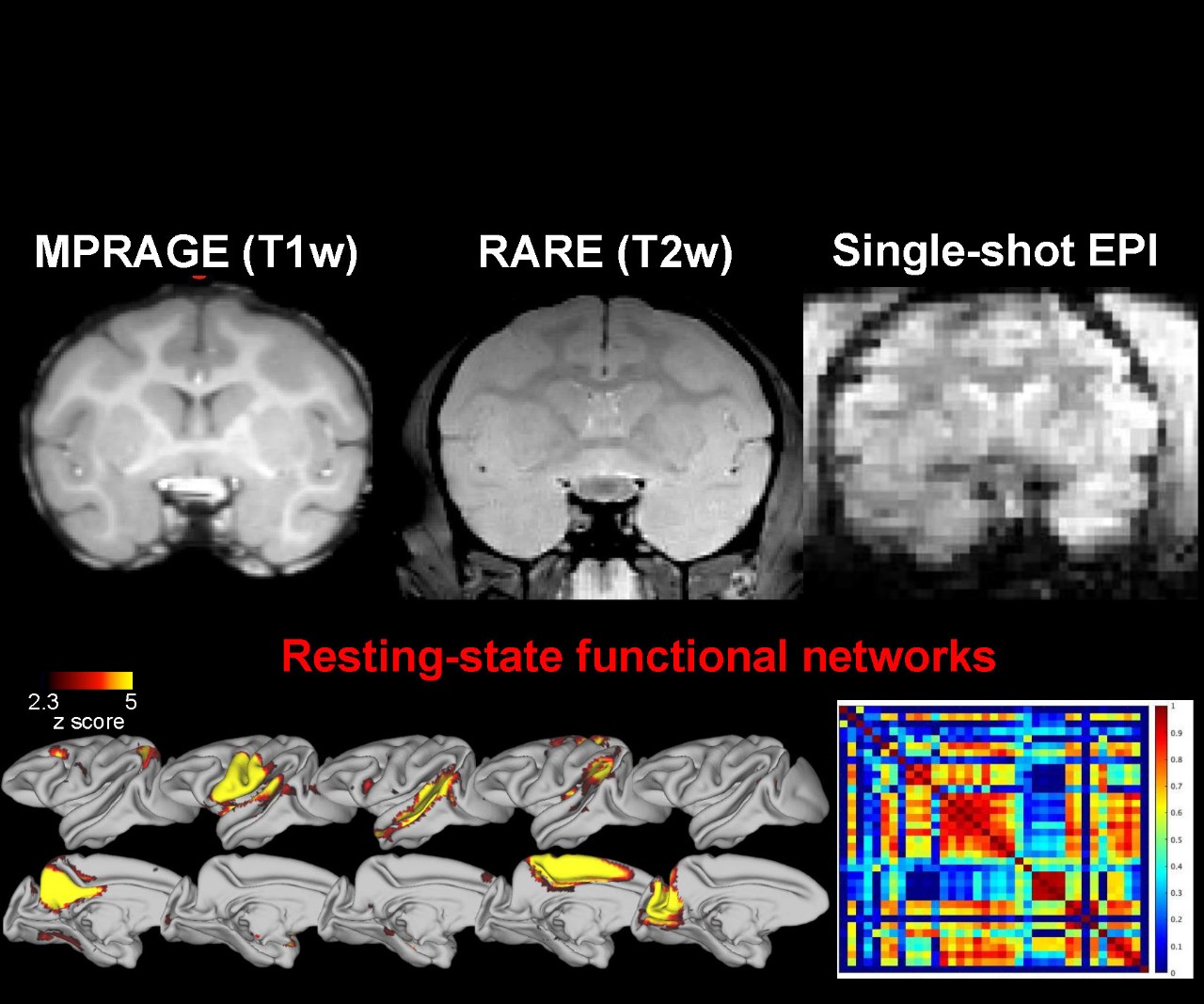

  • Dedicated non-human primate RF coils for body, head, and as surface arrays for marmosets and macaques
  • Easy animal handling of non-human primates with specially designed cart
  • Full range of labscape service and support maintenance agreements

Aplicaciones

Testimonios

Testimonials

Soporte

Labscape

Service & Life Cycle Support for Magnetic Resonance and Preclinical Imaging

Bruker’s commitment to provide customers with unparalleled help throughout the buying cycle, from initial inquiry to evaluation, installation, and the lifetime of the instrument is now characterized by the LabScape service concept.

LabScape Maintenance Agreements, On-Site On-Demand and Enhance Your Lab are designed to offer a new approach to maintenance and service for the modern laboratory
