X-ray diffraction imaging (XRDI) inspection system

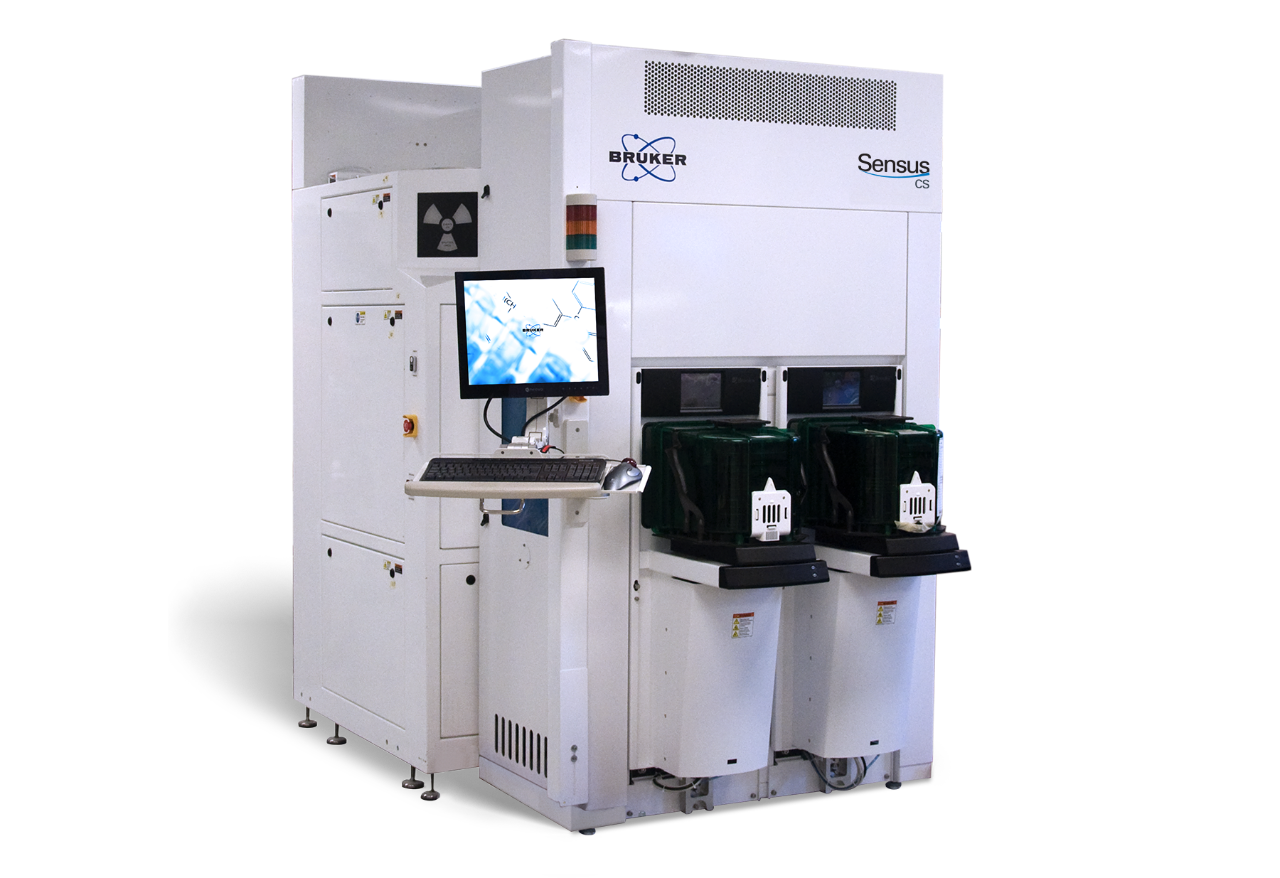

The Sensus-CS is a high resolution XRDI system specifically designed for production monitoring of SiC. It uses a high brightness rotating anode source with a 5µm resolution detector to collect high resolution images in <30 minutes for full 150mm wafers, more than 10x faster than previous systems. The system can be equipped with full robot loading, and an optional mini-environment for full production capability. SECS-GEM software can be installed to enable full automation from the factory host.

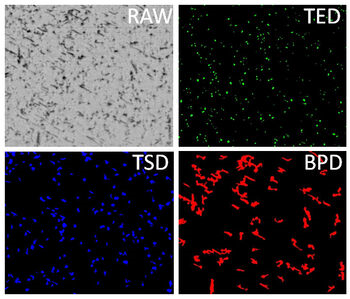

With fully automated operation it also provides a complete solution from material research to full production deployment. The system features fully automated sample alignment, measurement and analysis. The analysis enables the determination of TED, TSD and BPD densities separately with automatic defect recognition and standard KLARF output.
