InsightXpress

Fastest of the Insight product line and ideal for rapid reaction optimization and monitoring of fast reactions magnetic resonance

InsightXpress™ is the fastest of the Insight product line and ideal for rapid reaction optimization and monitoring of fast reactions MR.
InsightXpress’s new stop-flow delivery pumps enable reaction conditions to be screened by NMR at an unprecedented speed.


Features

  • Used when needed (compatible with Open Access System)
  • Rapid and easy set-up
  • Low sample volumes (<600 μL/shot)
  • Unlimited shots
  • Variable ratios of reagents to explore different reaction conditions
  • Accurate temperature control (detailed kinetics studies)
  • Pre-magnetization of reagents for quantitative information
  • Precise timing using a trigger pulse
  • Reproducible with stable measured volume
  • Dead time less than 150 ms, enabling the monitoring of fast reactions
  • Fast flow-rate injection (0.2 – 2 ml/s)
  • In-situ cleaning using dedicated solvent flush line
  • Compatible with all Bruker 5 mm probes
  • Easy automatic optimization of NMR parameters
  • Intuitive software for data acquisition and analysis.



NMR System requirements

  • Windows 10, 7 or Linux running TopSpin 3.5 and above
  • AVANCE III console and newer
  • 5 mm RT- or Cryo-Probe
  • Shielded Bruker Magnet.



InsightMR Software

InsightMR software is a platform designed for the analysis of chemical processes by NMR. Integrated acquisition control and data processing features enable on-the-fly acquisition parameter adjustment based on real-time kinetic data.

  • A single interface for automated acquisition control and interactive data analysis.
  • On-the-fly acquisition parameters adjustment based on real-time kinetic data.
  • Straightforward experiment set up. Default kinetics parameters provided for both deuterated and non-deuterated solvents
  • Rapid and effortless handling of hundreds of stacked spectra
  • Supports acquisition, processing, and analysis of series of 1Ds (different nuclei), interleaved experiments and multi samples in parallel
  • Integrates Dynamics Center, TopSpin and IconNMR into a single platform.

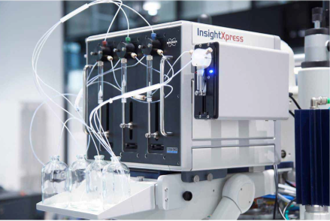

InsightXpress Unit

This system sits on top of the NMR system. The flow-tube, connected to its transfer line is inserted into the magnet until it reaches the probe. The pumps can be prepared for delivery prior acquisition with just a few mouse clicks. InsightMR™ software is now equipped with reparation experiments to automatically optimize NMR acquisition (e.g., - solvent suppression and shimming). The injection of reagents and start of the NMR acquisition is coordinated by a trigger pulse.
