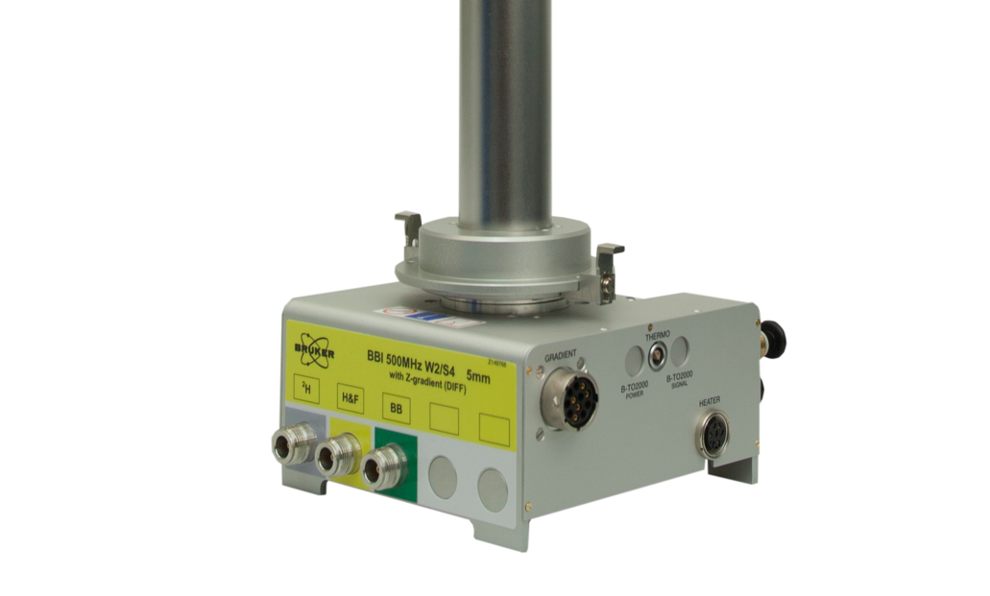

DiffBB

The DiffBB is a broadband gradient probe optimized for very strong gradient pulses and suitable for 5 mm sample tubes. The probe offers 1H-19F, X-broadband and a lock channel as well as a wide temperature range from -100 °C to 180 °C in a standard bore design.

Standard Bore Probe for 5 mm NMR sample tubes, a max. gradient strength of 17 T/m and a wide temperature range from -100 °C to 180 °C. The DiffBB is a broadband gradient probe with the Automatic Tuning Module (ATM) for NMR diffusion investigations of a wide range of diffusivities down to 1x10-14 m2/s (T1 > 1s  and T2 > 100 ms ). The DiffBB provides a high-performance water cooled single axis gradient. Variable temperature measurements are possible in the range of -100 °C to 180 °C. Together with the ATM this allows a series of fully automatic variable temperature experiments. The broadband channel configuration enables to observe a wide range of nuclei from 1H down to 15N.

Features

  • Standard Bore Probe, also compatible to WB and SWB magnets
  • Gradient strength of up to 17 T/m, water cooled
  • Switching time < 300 µs
  • 1H-19F / X-BroadBand (31P-15N) / Lock Channel
  • Automatic Tuning Module (ATM)
  • Sample transfer via SB-BST
  • Variable Temperature Control (compatible to BSVT, BCU,…)
  • BBI or BBO configuration

Specifications

DIFFBB
Bore     SB / WB / SWB
1H frequency range 300 – 800 MHz
rf channels 1H-19F, 31P-15N. 2H Lock
Requirements MR Diffusion / MR Microscopy accessory
ATMA     Yes
Gradient
Directions     z
Gradient strength per direction 17 T/m
OD 40 mm
Rise Time (5-95%), 0-60A,120V < 300 µs
Cooling     Water
Maximum current tested 60 A
rf coil BBO or BBI design, one coil tunable 1H-19F + 2H lock, second coil BB tunable 31P – 15N
Standard sample temperature range (5 mm) -100 °C - 180 °C
Sample diameter 5 mm

Accessories

  • Diff Software Application
  • Dynamic Center  for data processing
  • Compatible with IconNMR and Bruker Sample changers for automation
