3D X-ray Microscopy (XRM)


High Capacity 3D X-ray Microscopy

A benchtop that fits all


300 x 500 mm
Largest size that can be accommodated
A benchtop system with floor standing capabilities
140 x 230 mm
Detector area
Large format flat-panel detector for fast scanning
130 keV
High energy
Covering a wide range of sample types

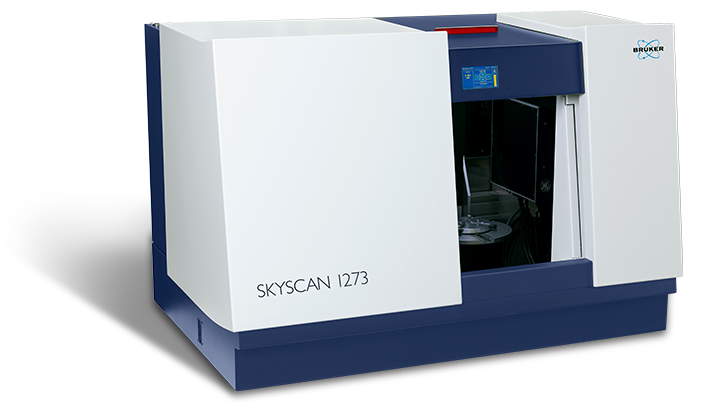

SKYSCAN 1273 – High-Capacity XRM

The SKYSCAN 1273 sets a new standard for non-destructive testing (NDT) with benchtop instruments, providing a performance previously only achieved by floor standing systems. Samples with up to 500 mm length, 300 mm diameter, and a maximum weight of 20 kg can be inspected.


The combination of a higher-energy X-ray source running at higher power and a large format flat-panel detector with ultimate sensitivity and readout speed provides excellent image quality in just a few seconds.


SKYSCAN 1273 is complemented by 3D.SUITE. This comprehensive software suite covers GPU-accelerated reconstruction, 2D/ 3D morphological analysis, as well as surface and volume rendering visualization.

Key Features

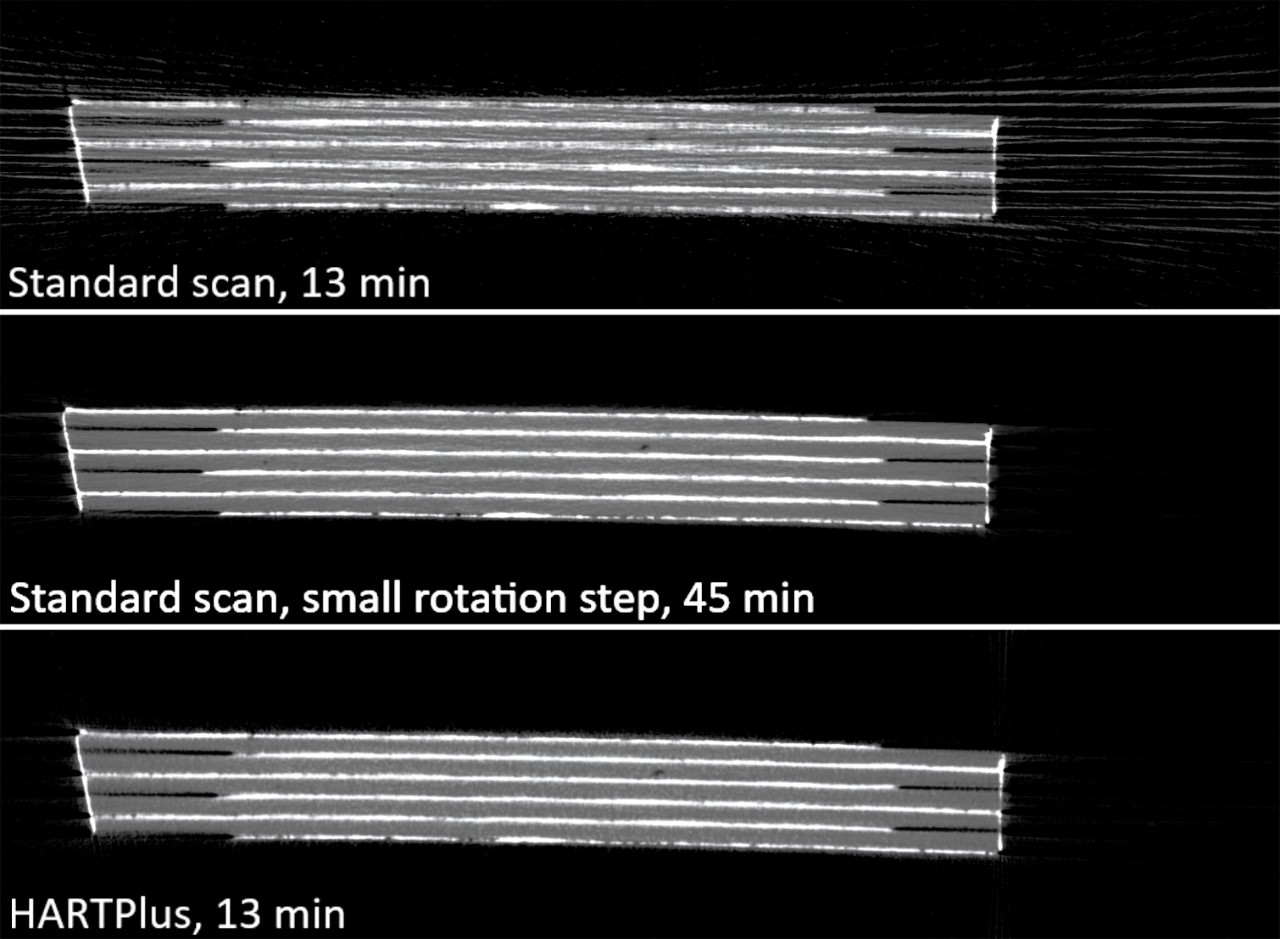

SKYSCAN 1273 Features

High-capacity benchtop

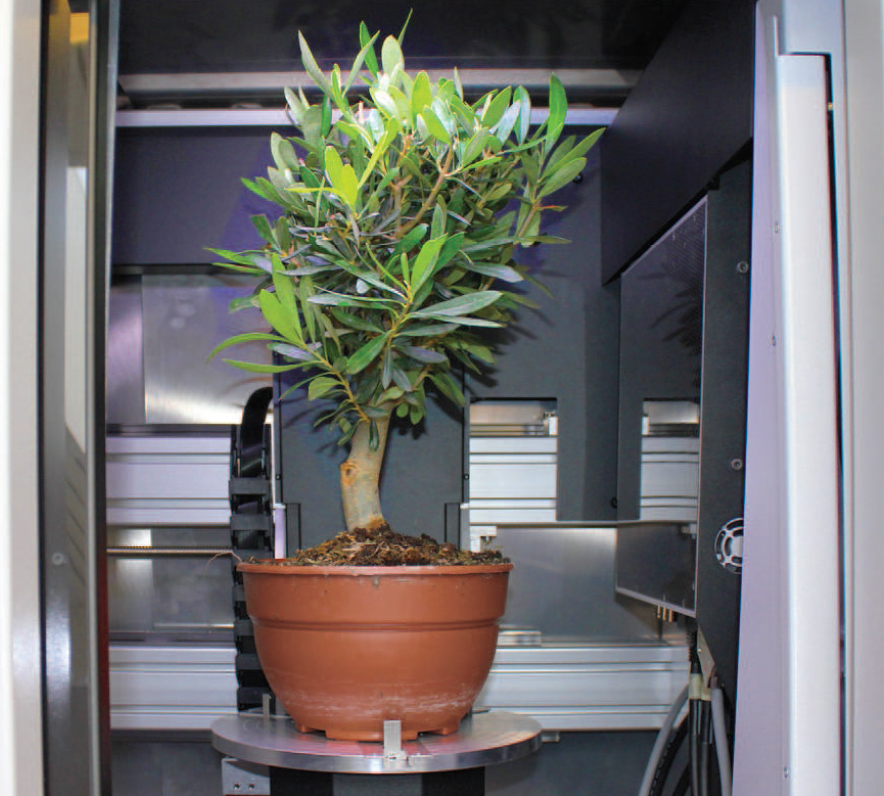

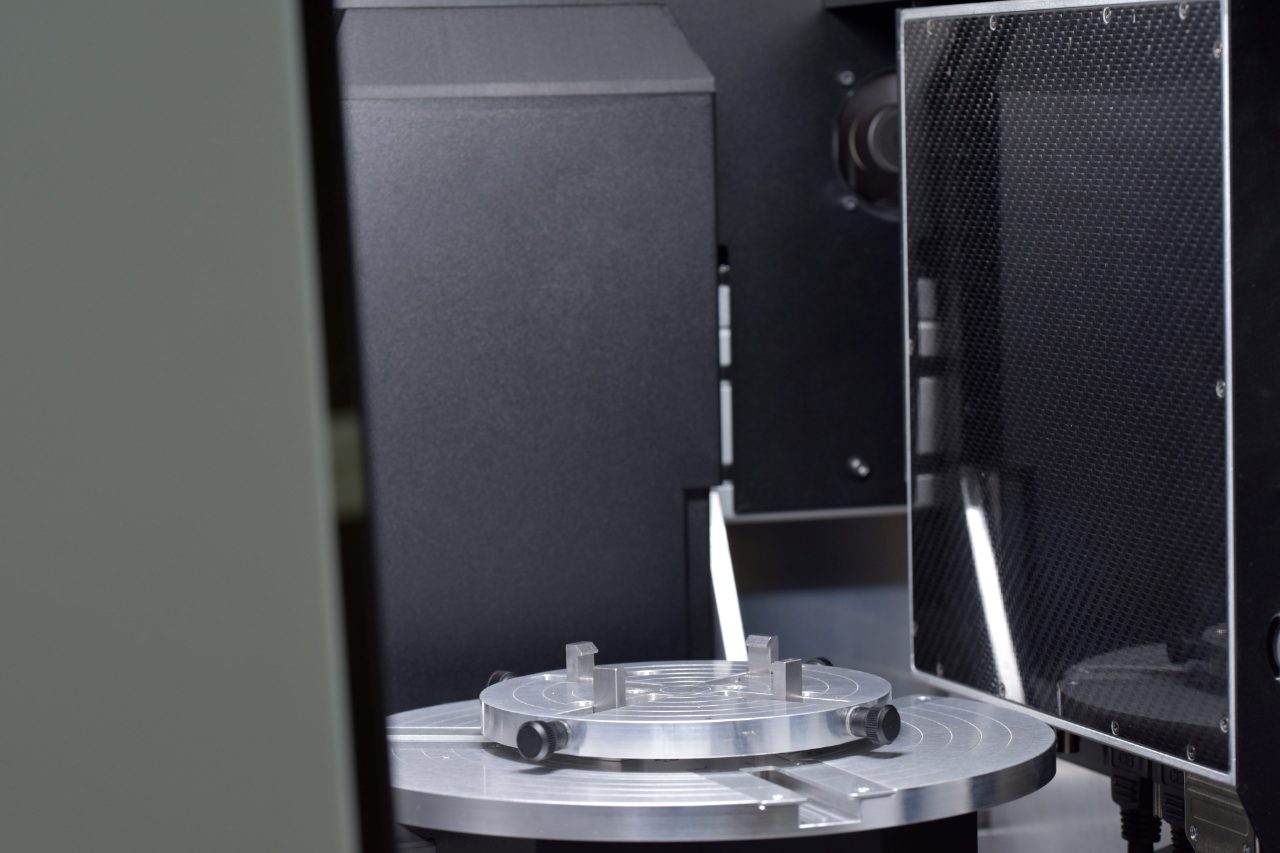

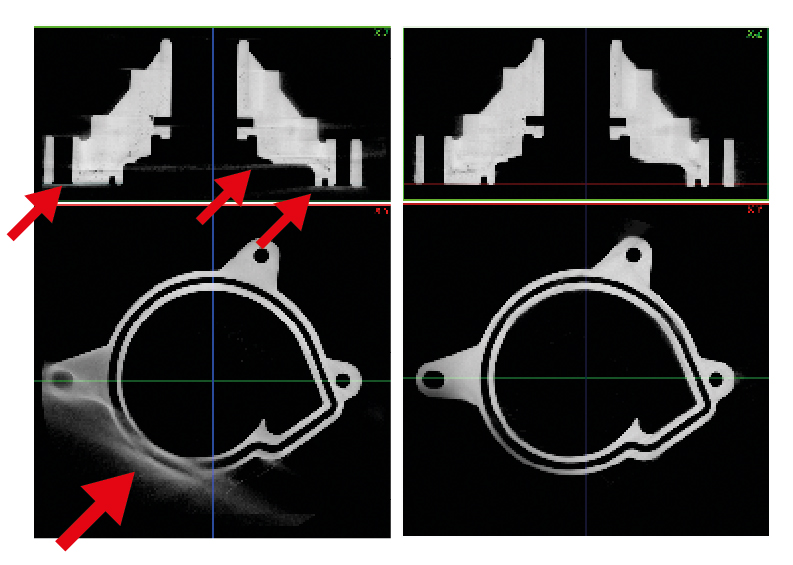

The SKYSCAN 1273’s large sample chamber accepts samples larger than what can be scanned with a single detector field-of-view. By offset scanning in sections and putting the large format flat-panel detector in offset positions, SKYSCAN 1273 scans large objects up to 250 mm in diameter and 250 mm in length. 3D.SUITE automatically and seamlessly stitches the oversized images together.

SKYSCAN 1273 Features

Latest detector technology

SKYSCAN 1273 comes equipped with a large-format 6 MP detector based on the latest flat-panel technology, achieving very high contrast in the accumulated images thanks to the large dynamic range. The fast frame rate in combination with an optimized scintillator enable excellent image quality in a stunningly short cycle of less than 15 seconds, which is ideal for time-resolved 3D X-ray microscopy.

SKYSCAN 1273 Features

In-situ stages

The Bruker material testing stages are designed to perform compression experiments up to 4400 N and tensile experiments up to 440 N. All stages automatically communicate through the system’s rotation stage, without the need of any cable connections. Using the supplied software, scheduled scanning experiments can be set up.

Bruker's heating and cooling stages can reach temperatures of up to 80ºC, or 30ºC below ambient temperature. Just like the other stages, no extra connections are needed, and there is an automatic recognition of the stage. Using the heating & cooling stages, samples can be examined under non-ambient conditions, to evaluate the effect of temperature on the sample’s microstructure.

Highlighted Applications


Additive Manufacturing

Additive manufacturing, also commonly called 3D printing, allows the creation of components with complex external and internal structure. Unlike classic techniques which require special molding or tooling, additive manufacturing allows the economical production of both one piece prototypes and large batch production parts. Once completed, confirmation of both the internal and exterior structure is important in ensuring that the component will perform as intended. XRM allows this inspection in a non-destructive manner, giving confidence that a component will meet or exceed specifications.

  • Inspection of internal voids for trapped powder
  • Validation of external and internal dimensions

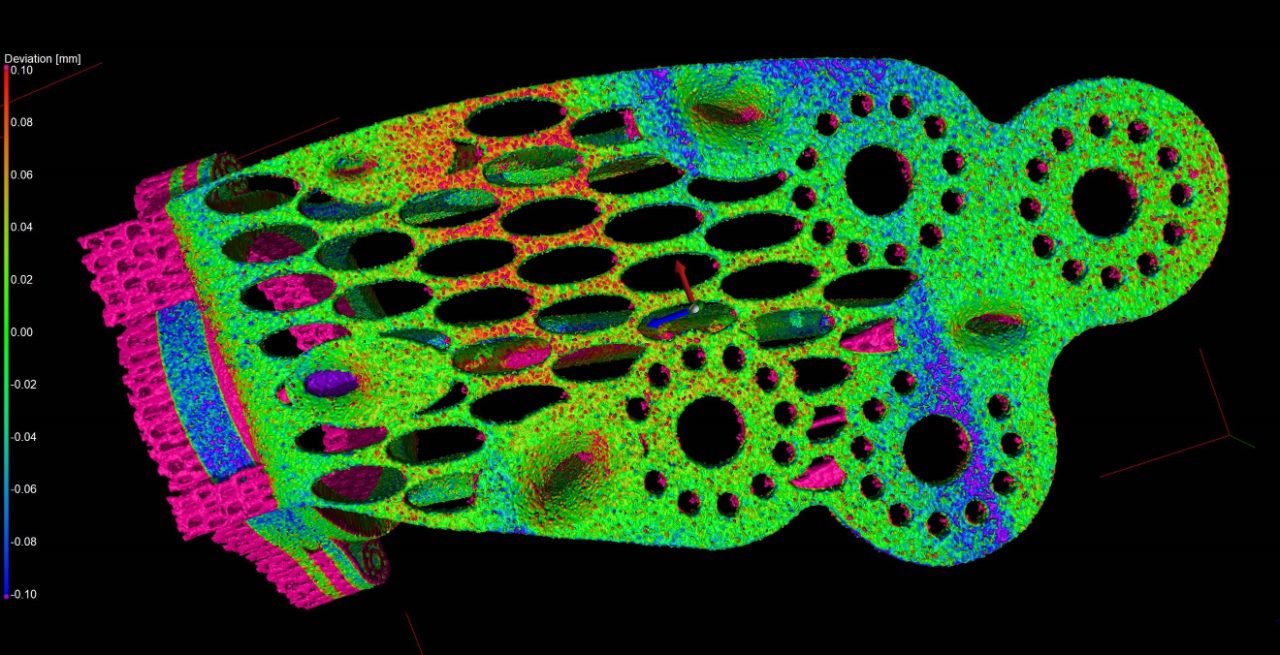

  • Direct comparison with CAD models
  • Analysis of single and multi-material components

Medical Devices and Pharmaceutical Packaging

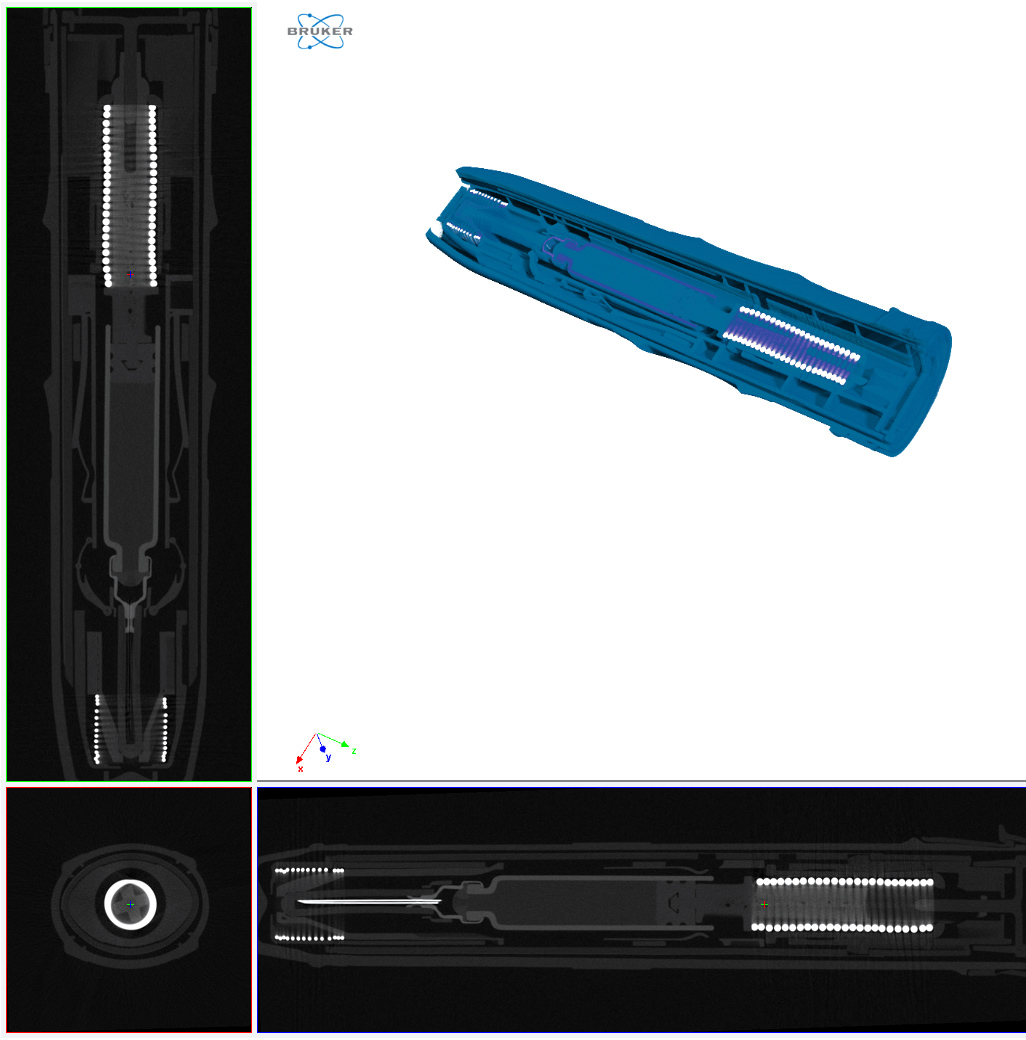

Designing and testing packaging assemblies is a critical task to ensure medicine can be delivered in a proper and safe way to the patient. XRM allows fast inspection for QC in a non-destructive way maintaining the sterile conditions, giving confidence in the production process and the resulting product’s performance.

  • High-throughput scanning of medical devices for QC
  • Investigate the integrity of pharmaceutical packaging up to a size of 20 cm x 20 cm x 20 cm
  • Monitor and control the quality and alignment of internal metal and plastic components
  • Measure external and internal dimensions, and detect defects

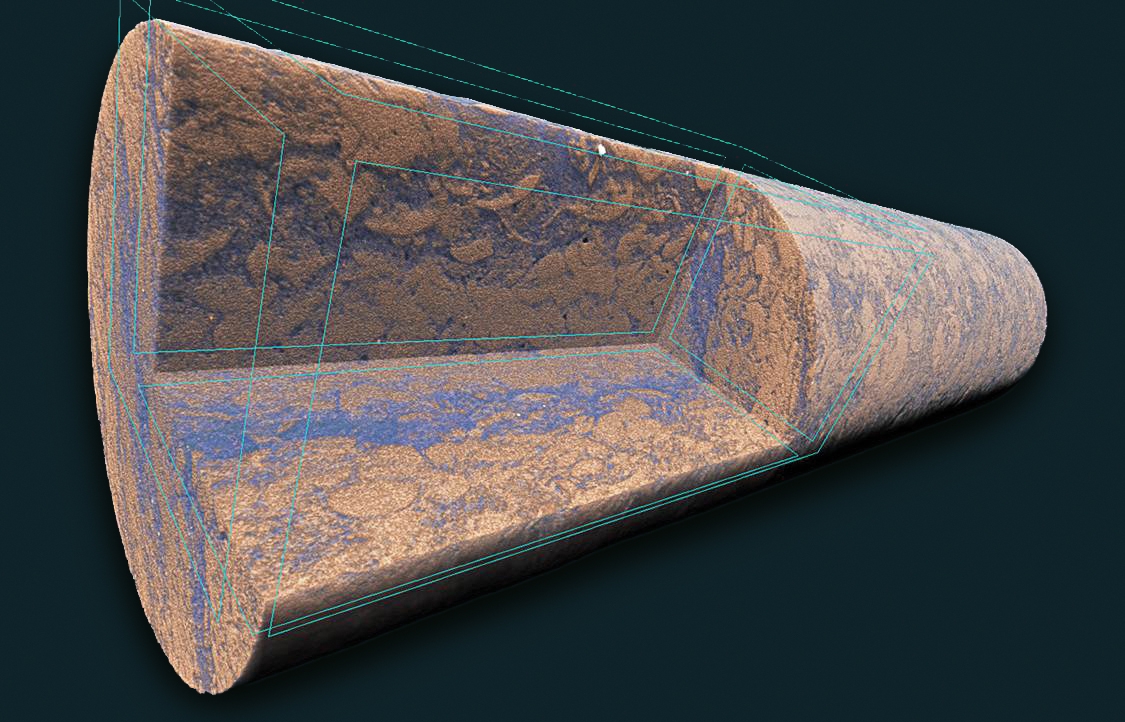

XRM enables non-destructive characterization of a wide variety of geomaterials, from small mineral samples up to large drill cores at full-core size.

  • Quantitative analysis of structural parameters, such as grain size, open/closed porosity and connectivity
  • Calculate the distribution of mineral phases in 3D
  • Correlate the sample structure with mechanical properties by apply in-situ mechanical tests
  • Visualize fluid flow, crystallization, dissolution and other processes in porous media

Applications Gallery

SKYSCAN 1273 Specifications

Specification Benefit
X-ray source

40-130 kV

39 W

Maintenenance-free sealed X-ray source,

Fast scans for QC, or 4D XRM
X-ray detector

Active pixel CMOS flat-panel,

6 MP (3072 x 1944)

Excellent signal-to-noise,

Huge field-of-view
Object size

250 mm diameter

250 mm height
Capability to scan huge samples in a benchtop instrument

W 1250 mm x D 815 mm x H 820 mm

Weight 450 kg
Space-saving benchtop system that fits in every lab
Power supply
100-240 VAC, 50-60 Hz, 3 A max.
Minimum installation requirements, a standard power supply suffices


Bruker XRM solutions include all software needed to collect and analyze data. An intuitive graphical user interface with user guided parameter optimization support both expert and novice users. By using the latest GPU powered algorithms, reconstruction time is substantially reduced. CTVOX, CTAN and CTVOL combine to form a powerful suite of software for both qualitative and quantitative analysis of models.

Measurement Software:
SKYSCAN 1273 – Instrument control, measurement planning and collection

Reconstruction Software:
NRECON – Transforms the 2D projection images into 3D volumes

Analysis Software:
DATAVIEWER – Slice-by-slice inspection of 3D volumes and 2D/3D image registration
CTVOX – Realistic visualization by volume rendering
CTAN – 2D/3D image analysis & processing
CTVOL – Visualization of surface models to export for CAD or 3D printing
