ESPRIT Automation Functions
Obtaining Maximum ROI in Analytical Tools
Mutiple points/objects analysis

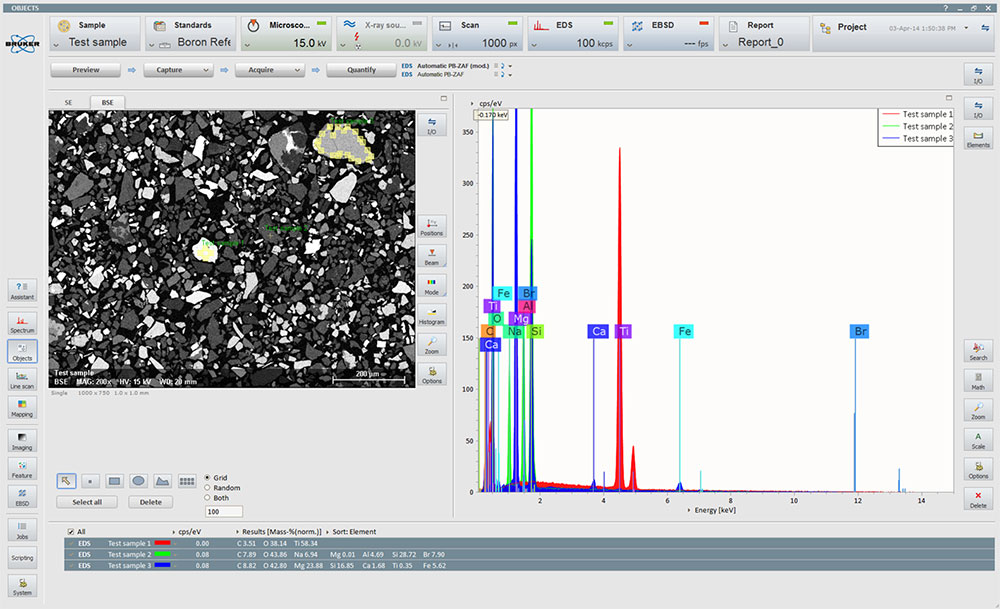

ESPRIT MultiPoint
Automatic multi-point and object analysis:
- Selection of points or definition of rectangles, ellipses or polygons as spectra measurement locations
- Automatic selection of a predefined number of measurement points in a field of view, either as an evenly spaced grid or as random distribution, or a combination of both
- Easy results presentation using editable graphic overlays and linked object names
- Simultaneous or successive acquisition of spectra for selected objects
- Automatic evaluation of spectra using selectable and custom methods
- Generation and display of single results or complete result lists
- Spectra of individual objects can be renamed, saved, processed, or evaluated
ESPRIT StageControl
Control of the motorized stage in SEM, EPMA and STEM:
- Support most common SEM, STEM, and EPMA motor stages
- Setting of sample points and acquisition areas over the whole stage range

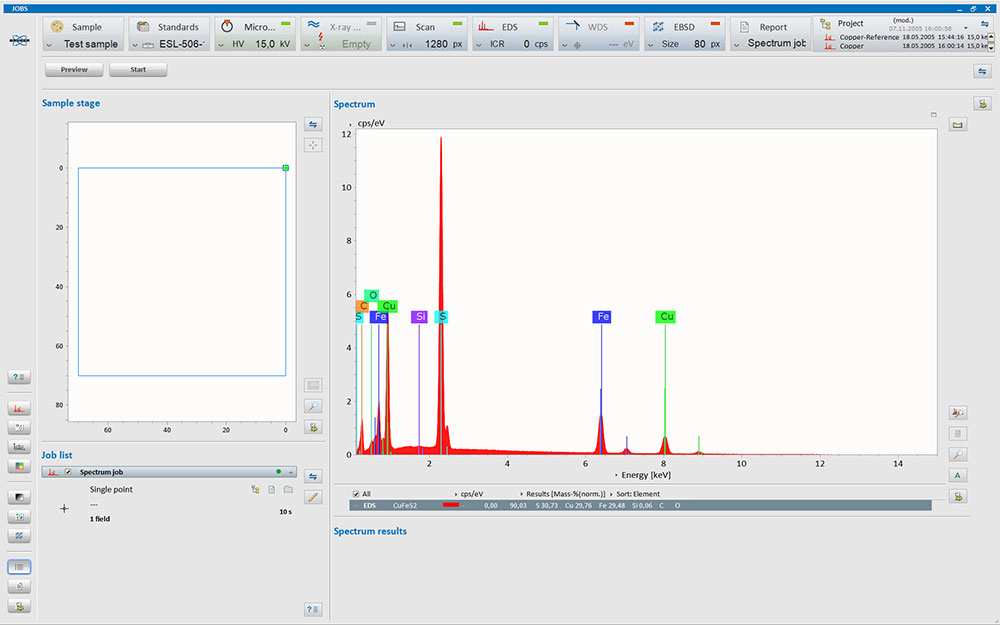

ESPRIT Jobs
Jobs can automate virtually any analysis on your QUANTAX and electron microscope.
- Interactive setup of measurement points
- All measurement options provided by ESPRIT can be used (point spectra, line scans, maps, HyperMaps, image acquisition)
- Includes data processing (spectra evaluation, image processing, feature analysis)
- Direct monitoring of progress and current results
- Measurement results are automatically stored
- Optional automatic report generation
- Import and export of job lists and results
- Full integration with StageControl
