MATRIX-MF FT-IR Process Reaction Monitoring


MATRIX-MF is a rugged and a compact spectrometer that can be fiber optically coupled to measure chemical reactions in laboratory and/or process environments.

Bruker's MATRIX-MF FTIR spectrometer expands the proven MATRIX series product line utilizing the information rich mid-IR region for use in both laboratory and process environments. The MATRIX-MF is a process ready FTIR spectrometer that is ideal for real-time monitoring and analysis of chemical and biological reactions.

Robust Design

The MATRIX series' award winning design protects the optics in a dedicated sealed compartment. The permanently aligned RockSolid™ interferometer and Digitect™ detector electronics ensure high quality spectra, even in the harshest environments. Although the instrument is designed for a process environment, its small footprint can also make it an ideal instrument for laboratory-based applications.

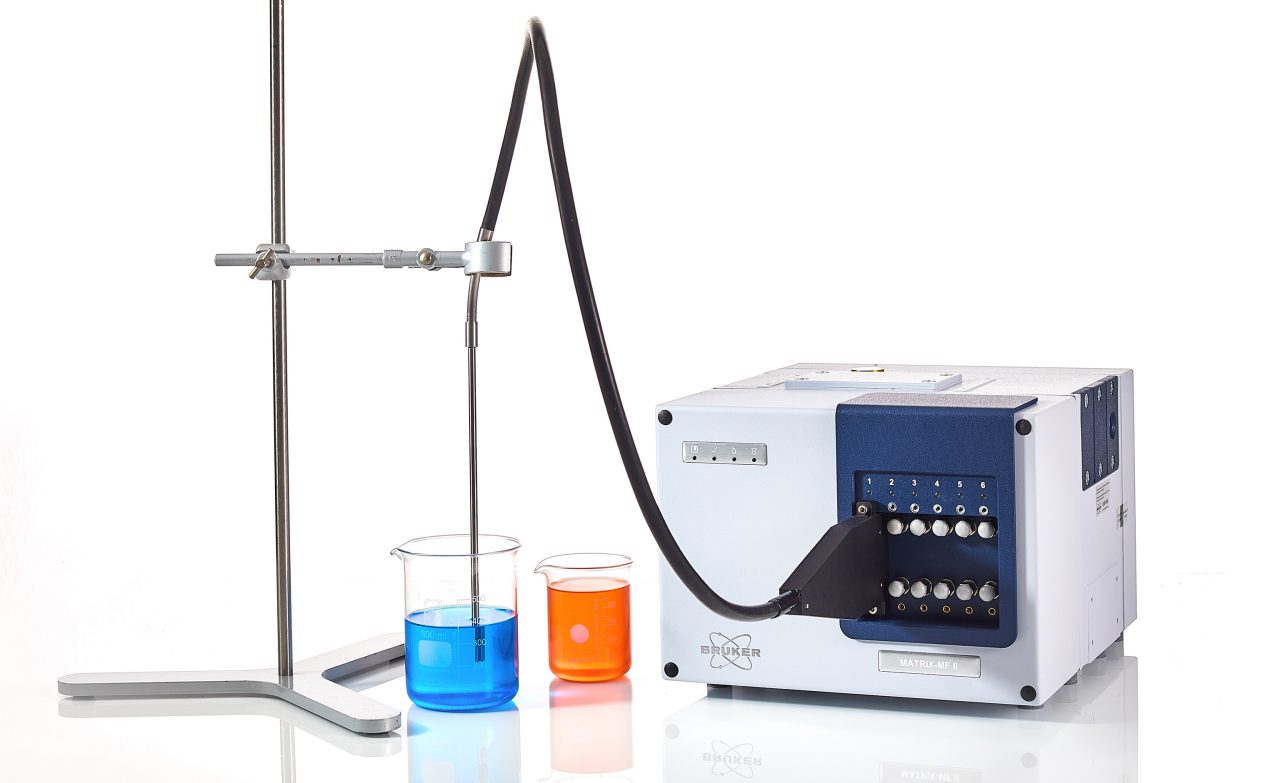

The MATRIX-MF offers Bruker's proprietary quick connector design (BQC) ensuring easy and reproducible fiber optic probe exchange, providing reproducible results. Utilizing the automated built-in multiplexer up to 6 reactions can be monitored by a single instrument.

Fiber Optic Probes

The combination of the ATR (attenuated total refection) sampling technique and the light guiding fiber optics enhances the use of infrared spectroscopy. Fiber optic probes enable in-situ measurements, which helps fully utilize the benefits of the information rich mid-IR spectroscopy. A wide range of probe adaptations, including the patented IN350T diamond ATR probe, can be attached to the unit for in-situ analysis.

The fiber probes combine a two reflection ATR probe head with the excellent performance of MIR-silver halide fibers.

  • IN350-T: Diamond ATR fiber probe
    (Ø 6 mm), also for use in ATEX areas
  • IN351: Diamond Micro ATR fiber probe (Ø 3.17 mm)
  • IN355: Diamond ATR fiber probe (Ø 6.3 mm)
  • IN356-EX: Diamond ATR fiber probe
    (Ø 12 mm), also for use in ATEX areas

Other ATR crystals like Silicone are also available.

Easy Process Integration

The MATRIX-MF can be used as a standalone system in your lab. Its small footprint allows it to fit into standard 19 inch racks in process enclosures. The system can be controlled by wide range of industry standard communication protocols and interfaces (such as 4-20 mA, OPC, Modbus, Profibus DP etc.) which makes integration into a process system simple.

Maintenance and Validation

The OPUS Validation Program (OVP) can execute a series of performance tests utilizing the built-in automated filter wheel. The hardware performance and the consumables are monitored to determine the operation within desired specifications. The MATRIX series is designed for reliability and easy maintenance; individual consumable components are on pre-aligned mounts and can be quickly exchanged by the user without any realignment of the optics.

MATRIX-MF ex-proof

The MATRIX-MF is also available as an ex-proof, ATEX rated version, complying to the following standards:

  • II 2G Ex px II T4 (T6)
  • II (1) G [Ex op is T6] IIC

Literature Room

Learn more about our products and solutions by downloading related literature.

Application Support

Bruker Optics is staffed by expert scientists and engineers who have an in-depth know-ledge of instrumentation and applications. Our product specialists are available to assist you with method development either remotely or in your lab.

Moreover, Bruker Optics offers an array of ready-to-use calibrations which facilitate your entry into the world of NIR spectroscopy.

Service & Training

Bruker Optics spectrometers are designed to provide years of dependable trouble-free operation, but should a problem occur a network of Bruker companies and representatives throughout the world are ready to promptly respond to your needs. Professional installations and a high standard of post-delivery service are commitments Bruker Optics makes to each of its customers. Remote diagnostics in addition to a variety of service contract packages are available for comprehensive support.
