Antimicrobial susceptibility testing

MICRONAUT VET System

Accurate and reliable antimicrobial susceptibility results in full compliance with latest CLSI VET standards

Highlights

MICRONAUT VET

Delivering accurate and reliable antimicrobial susceptibility results in full compliance with latest CLSI VET standards, helping you improve animal outcomes.

Current challenges in veterinary diagnostics

Veterinary medicine around the world is facing an unprecedented challenge with rapidly evolving antimicrobial resistance (AMR) which could translate into loss of production, reduced food quality and decreased revenue for farmers and producers. Moreover, pets´ health and their well-being are becoming more important for owners of companion animals.

In order to improve animal outcomes, veterinary diagnostic laboratories (VDL) are looking for microbiological solutions offering a combination of accuracy, comprehensiveness, flexibility, workflow, and cost efficiency.

MICRONAUT VET System is based on the broth microdilution (BMD) procedure, the reference for AST, and provides species-specific true MIC values for a broad spectrum of veterinary-specific antibiotics. It complies with latest CLSI VET standards (VET08). The MICRONAUT VET System offers a choice of five different panel configurations, to meet the requirement for bacteria isolated from companion animals, livestock animals, swine, horses as well as bovine mastitis. Standardized photometric reading of plates as well as up to date software-based interpretation of AST results are increasing the laboratory efficiency. The long shelf-life (24 months from date of manufacturing) as well as convenient storage at room temperature are simplifying logistics and keeping costs under control.

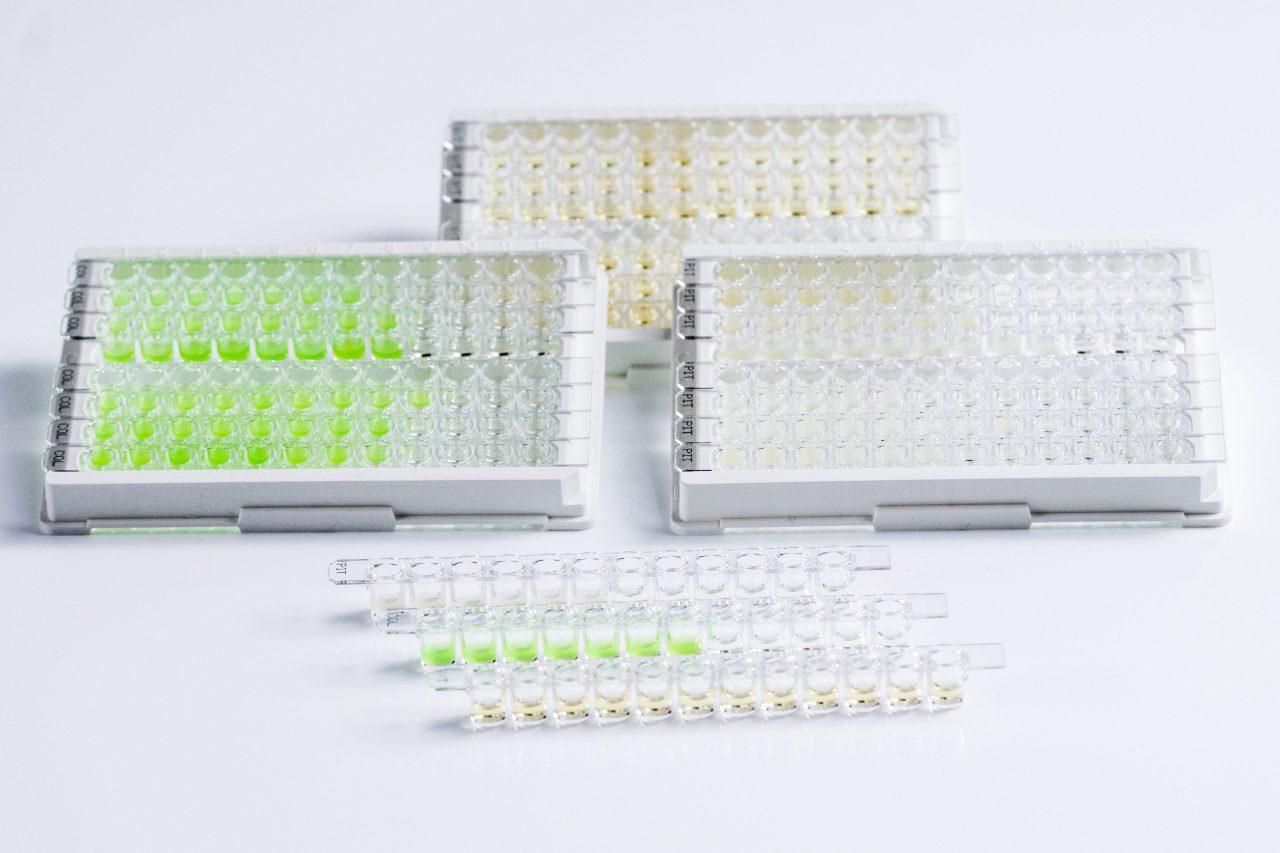

MICRONAUT-VET plates at a glance

MICRONAUT VET COM-GN (E1-248-040) for gram-negative bacteria isolated from companion animals

MICRONAUT VET COM-GP (E1-249-040)
for gram-positive bacteria isolated from companion animals

MICRONAUT VET EQUI (E1-250-040)
for gram-negative and gram-positive bacteria isolated from horses

MICRONAUT VET BOV-POR (E1-251-040) for gram-negative and gram-positive bacteria isolated from cattle and swine

MICRONAUT VET BOV-MAS (E1-252-080) for gram-negative and gram-positive bacteria isolated from bovine mastitis



Specifications

Procedure

  • Prepare a 0.5 McFarland standard bacterial suspension in sodium chloride solution
  • Transfer an aliquot into cation-adjusted Mueller Hinton broth
  • Inoculate the MICRONAUT VET MIC test plates
  • Incubate for 18-24 hours at 35-37°C
  • Read the results visually or measure photometrically

Shelf life and storage:

  • Shelf life: 24 months from date of production
  • Storage: at room temperature (15-25°C)



Order information:

MICRONAUT VET COM-GN
1 test per plate, 40 plates per box
Part No. E1-248-040
Mueller Hinton Broth, cation adjusted
100 x 11ml
Part No. E2-401-100
MICRONAUT6 software
Part No. U8-401-001


MICRONAUT VET COM-GP
1 test per plate, 40 plates per box
Part No. E1-249-040
Mueller Hinton Broth, cation adjusted
20 x 11ml
Part No. E2-401-020
1-Channel Reservoirs
50 reservoirs
Part No. R4-510-050

MICRONAUT VET EQUI
1 test per plate, 40 plates per box
Part No. E1-250-040
Photometer TECAN Sunrise
Part No. T-30050287
2-Channel Reservoirs
50 reservoirs
Part No. R4-506-050

MICRONAUT VET BOV-POR
1 test per plate, 40 plates per box
Part No. E1-251-040

MICRONAUT VET BOV-MAS
2 tests per plate, 40 plates per box
Part No. E1-252-080




Please contact your local representative for availability in your country.

For general veterinary use. Not for use with human clinical samples.

Manufactured by MERLIN Gesellschaft für mikrobiologische Diagnostika mbH – A Bruker Company
