Atomic Force Microscopy Applications

Cell Mechanics and Adhesion

Directly measure and quantify cell-substrate or cell-cell interactions at the single-cell level

Mechanical Manipulation

Cell Manipulation

Imaged with NanoTracker™ 2

Red Blood Cell and Bead Manipulation

In this video, a red blood cell is pinned down to the petri dish floor by two traps while a third one is used to stretch the cell membrane.

With the 'Multiplexing' feature of the NanoTracker optical tweezers platform, three time-shared traps are generated. While two of the time shared traps pin down the red blood cell onto the surface, a third trap with an amine-modified bead in it pulls at the cell membrane. In this way an external stress is applied onto the membrane. All of the deformation is done without destroying the cell.


Imaged with NanoTracker™ 2

Yeast Cell Manipulation

In this video, a yeast cell is directly trapped and with controlled speed and direction is brought in a contact with a glass wall. This is a model experiment of using NanoTracker optical tweezers in implant materials research, biofouling etc.


Elasticity & Adhesion

Elasticity and Adhesion Measurement

Imaged with Cellhesion® 200

CHO Cells Elasticity Map with 10 µm Bead

10 µm bead was used to perform a elasticity map on CHO cells. Imaged with the CellHesion 200 AFM.

  • Top: Optical phase contrast image
  • Bottom left: Height map image
  • Bottom right: Elasticity map image

Imaged with Cellhesion® 200

Cell Elasticity Measurement

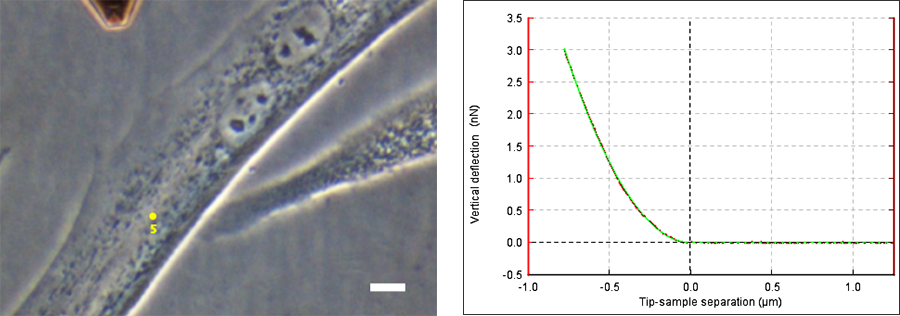

Cell elasticity measurements on fibroblast cells. Hertz fit was used to determine a Young´s Modulus of 2kPa. Imaged with the CellHesion 200 AFM.

  • Left: Optical phase image
  • Right: Force-distance curve


Imaged with Cellhesion® 200

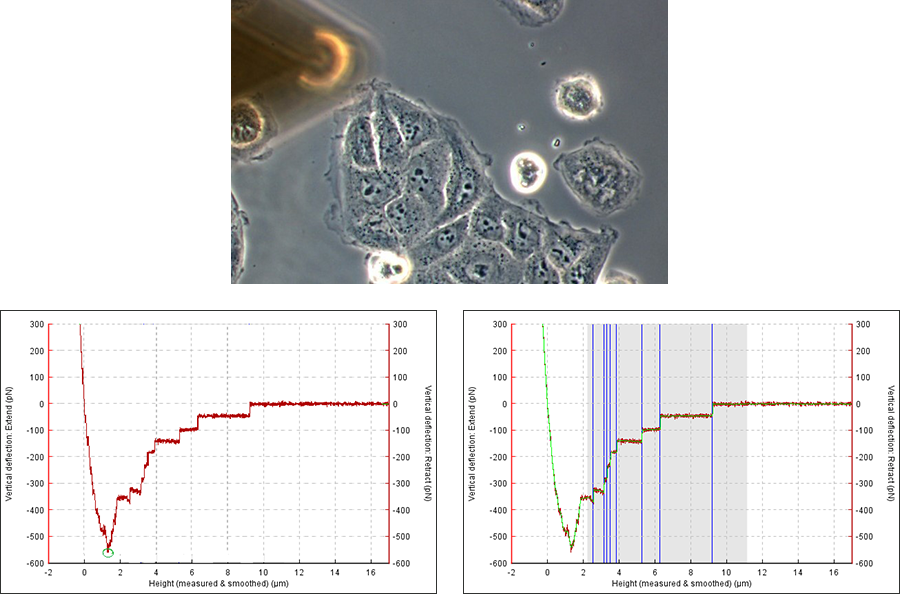

Adhesion measurement of cell-cell interaction between MDCK cells. Imaged with the CellHesion 200 AFM.

  • Top: Optical phase contrast image
  • Bottom left: Adhesion image
  • Bottom right: Step-fitting image


Imaged with Cellhesion® 200

CHO Cell - Collagen Binding

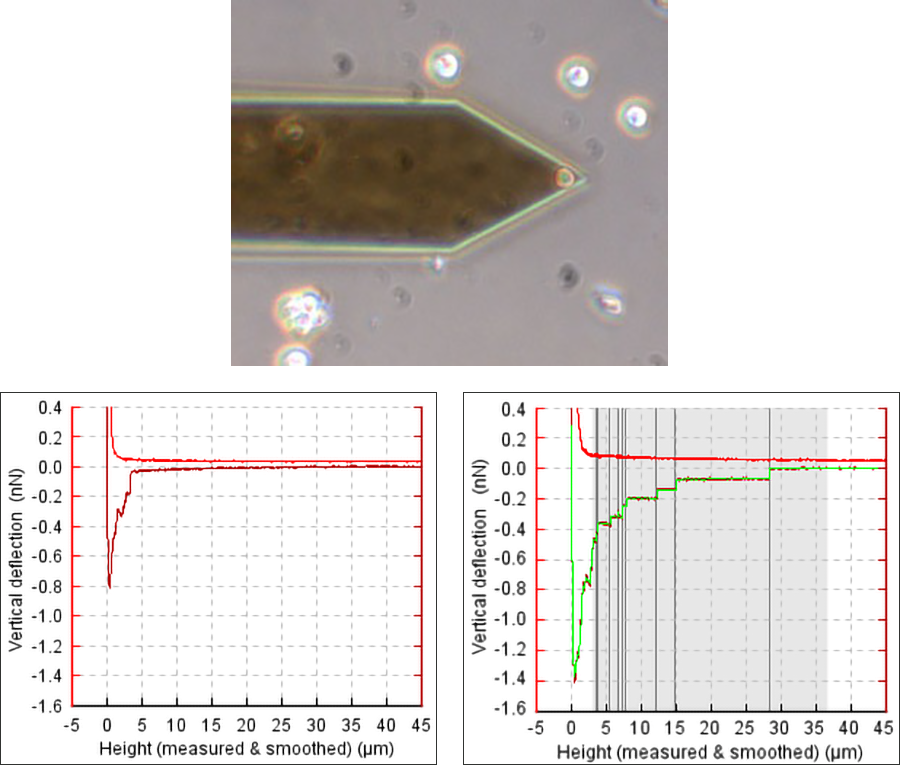

CHO cell bound to the cantilever with ConA, collagen-coated surface. Imaged with the CellHesion 200 AFM.

  • Top: Optical image of a CHO cell attached to a TL1 cantilever using ConA
  • Bottom Left: Adhesion curve for a contact time of 5s, axes on the same scale as the 60s binding curve
  • Bottom Right: Adhesion curve for a contact time of 60s, with step fitting results superimposed


Imaged with Cellhesion® 200

Melanoma Cell - Endothelial Cell

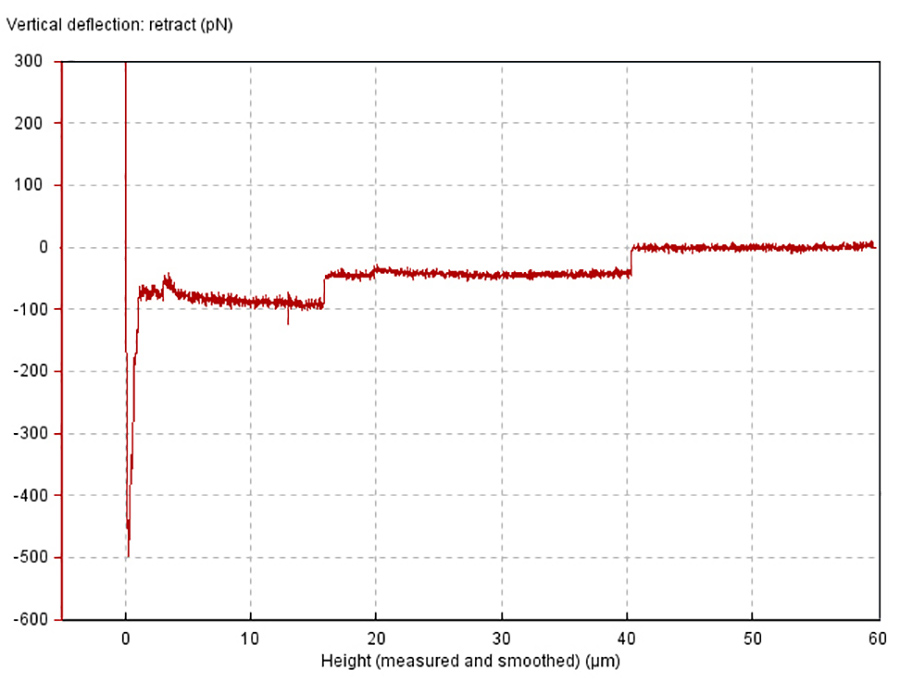

Force curve of a melanoma cell on the cantilever adhering to an endothelial cell on the surface. Imaged with the CellHesion 200 AFM.
