BioAFM Accessories and Add-Ons

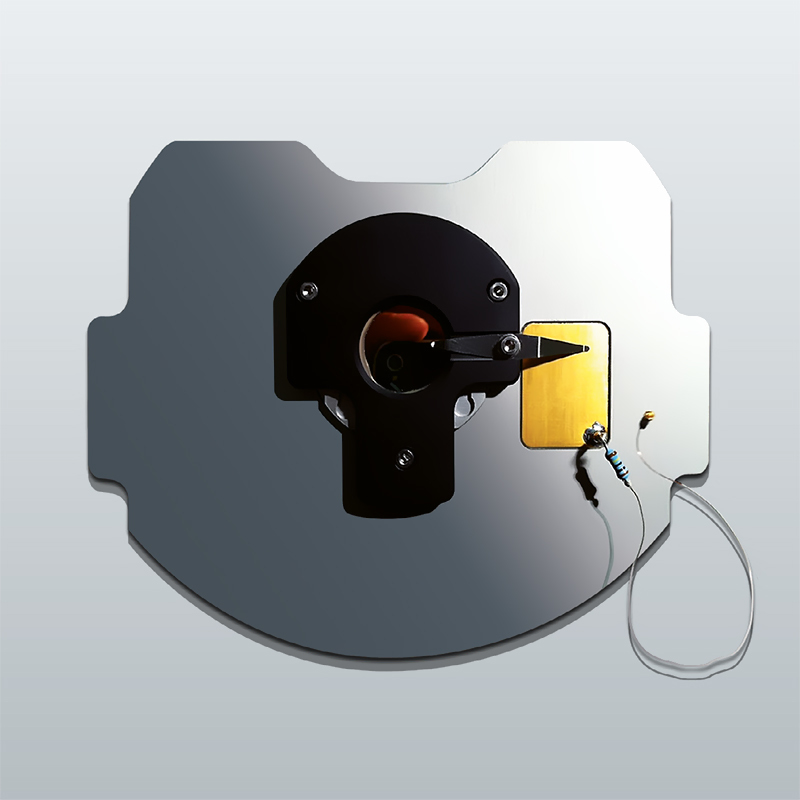

CoverslipHolder with Electral Sample Connection
For electrical measurements such as Conductive AFM or STM on a coverslip in combination with high NA optics.
For Life Science stage
Compatible with JPK modules like CAFM (also enclosed volume), STM, KPM, and PFM
Bottom access for high numerical aperture optical imaging
Sample size up to 25×25 mm and 0-1 mm thickess
Includes two sample mounting frames:
Bolt-down frame with silicone seal for dry operation or aqueous solutions
Low profile frame for dry operation with improved optical accessibility and three contact clamps
Electrical connection from sample topside
Compatible Imaging Systems
NanoWizard 4 XP BioScience
Extreme performance and ease of use for applications in Life Science and Soft Matter research ranging from single molecules to living cells and tissues.
NanoWizard 4 XP NanoScience
Extreme performance and highest flexibility for applications in materials and polymer science ranging from nanomechanics and electrochemistry to electrical and magnetic measurements.
NanoWizard ULTRA Speed 2
High-speed imaging and super-resolution AFM on inverted microscopes, paired with unparalleled flexibility.
Optimized for a broad range of applications ranging from nanoscale optical imaging by aperture and scattering-type SNOM to experiments involving interactions of light with the sample such as absorption, excitation, nonlinear effects and quenching.
The perfect start to AFM, for applications in material and life sciences.
NanoWizard V BioScience
Automated quantitative nano-mechanical imaging for long-term, self-regulating experiment series.
