BioAFM Accessories and Add-Ons

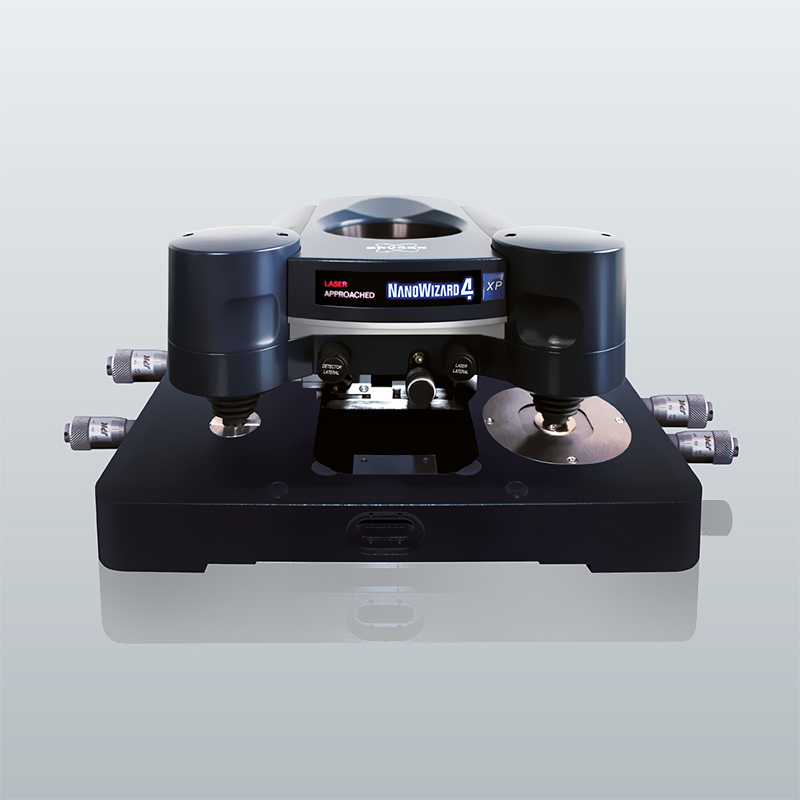

StretchingStage
For sample property changes under external mechanical load up to 200 N.
Stand-alone stage with integrated sample stretching and compression capabilities
Enables fine motion control for precise positioning of the AFM tip relative to the sample
Sample size / distance between jaws 10-20 mm or 25-35 mm (standard stage)
Maximum travel range: 10 mm
Velocity: 0.1 mm/min to 1.5 mm/min
Force range: exchangeable loadcells, range 2 N and 200 N, accuracy readout +/-1%
Encoder: resolution 300nm, linearity 0.1% of full travel
Flexible design for different samples
Comprehensive software control
Real-time display of force, extension and time, live graphical display of stress/strain curve
Not compatible with inverted microscopes
Download Product Note
Compatible Imaging Systems
NanoWizard 4 XP BioScience
Extreme performance and ease of use for applications in Life Science and Soft Matter research ranging from single molecules to living cells and tissues.
Read More
DOWNLOAD BROCHURE
NanoWizard 4 XP NanoScience
Extreme performance and highest flexibility for applications in materials and polymer science ranging from nanomechanics and electrochemistry to electrical and magnetic measurements.
Read More
DOWNLOAD BROCHURE
NanoWizard ULTRA Speed 2
High-speed imaging and super-resolution AFM on inverted microscopes, paired with unparalleled flexibility.
Read More
DOWNLOAD BROCHURE
NanoWizard NanoOptics
Optimized for a broad range of applications ranging from nanoscale optical imaging by aperture and scattering-type SNOM to experiments involving interactions of light with the sample such as absorption, excitation, nonlinear effects and quenching.
Read More
DOWNLOAD BROCHURE
NanoWizard Sense+
The perfect start to AFM, for applications in material and life sciences.
Read More
DOWNLOAD BROCHURE
NanoWizard V BioScience
Automated quantitative nano-mechanical imaging for long-term, self-regulating experiment series.
Read More
DOWNLOAD BROCHURE
Return to Accessories Page
