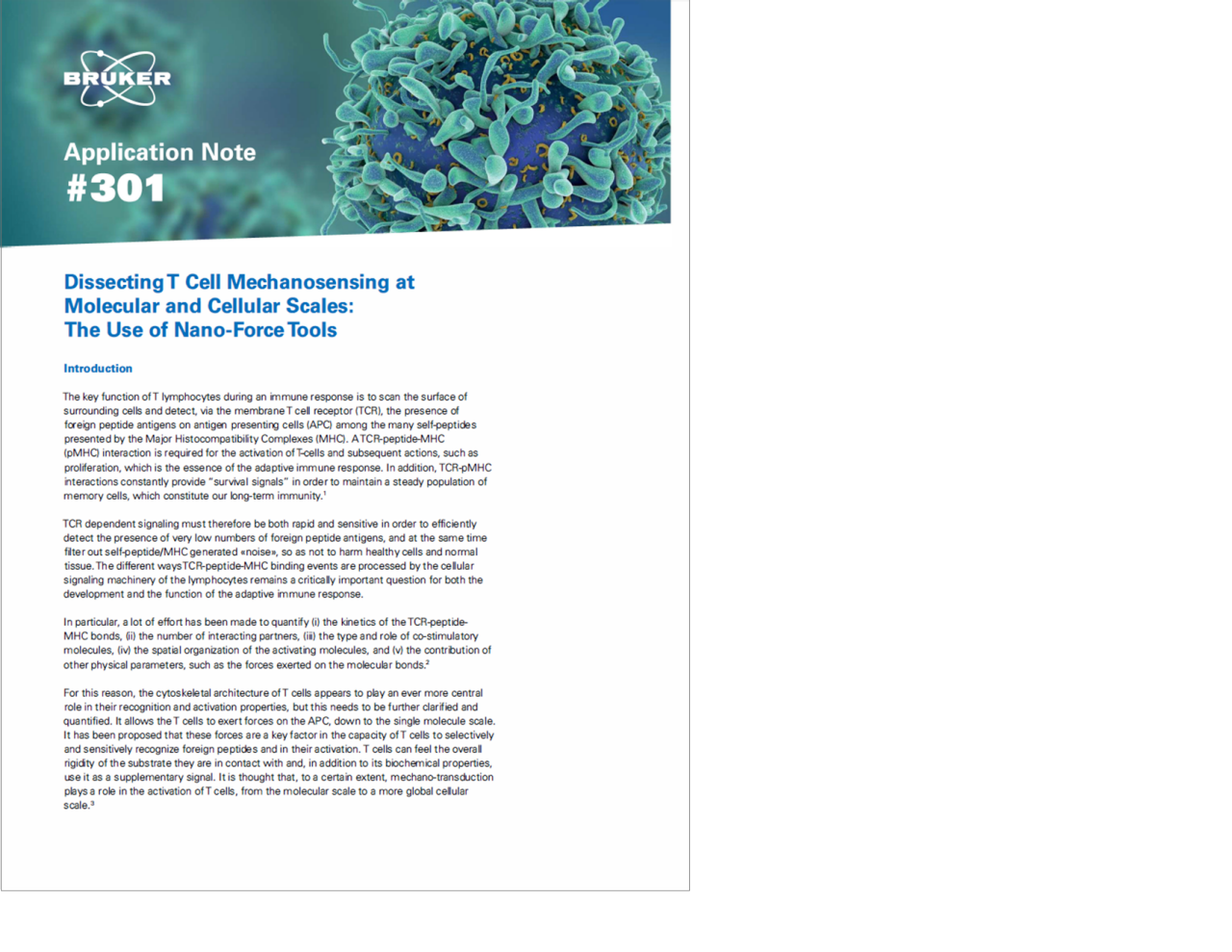

Application Note: Dissecting T Cell Mechanosensing at Molecular and Cellular Scales: The Use of Nano-Force Tools

The key function of T lymphocytes during an immune response is to scan the surface of surrounding cells and detect, via the membrane T cell receptor (TCR), the presence of foreign peptide antigens on antigen presenting cells (APC) among the many self-peptides presented by the Major Histocompatibility Complexes (MHC). A TCRpeptide-MHC (pMHC) interaction is required for the activation of T-cells and subsequent actions, such as proliferation, which is the essence of the adaptive immune response. In addition, TCR-pMHC interactions constantly provide "survival signals" in order to maintain a steady population of memory cells, which constitute our long-term immunity  ^[1].

TCR dependent signaling must therefore be both rapid and sensitive in order to efficiently detect the presence of very low numbers of foreign peptide antigens, and at the same time filter out self-peptide/MHC generated « noise », so as not to harm healthy cells and normal tissue. The different ways TCR-peptide-MHC binding events are processed by the cellular signaling machinery of the lymphocytes remains a critically important question for both the development and the function of the adaptive immune response.

In particular, a lot of effort has been made to quantify (i) the kinetics of the TCR-peptide-MHC bonds, (ii) the number of interacting partners, (iii) the type and role of co-stimulatory molecules, (iv) the spatial organization of the activating molecules, and (v) the contribution of other physical parameters, such as the forces exerted on the molecular bonds ^[2].

For this reason, the cytoskeletal architecture of T cells appears to play an ever more central role in their recognition and activation properties, but this needs to be further clarified and quantified. It allows the T cells to exert forces on the APC, down to the single molecule scale. It has been proposed that these forces are a key factor in the capacity of T cells to selectively and sensitively recognize foreign peptides and in their activation. T cells can feel the overall rigidity of the substrate they are in contact with and, in addition to its biochemical properties, use it as a supplementary signal. It is thought that, to a certain extent, mechano-transduction plays a role in the activation of T cells, from the molecular scale to a more global cellular scale ^[3].

As a result, the aim of our investigations is to examine how the micro- and nano-organization of activation-related surface molecules affect or are affected by the micromechanical properties of T cells (such as recognition, adhesion, elasticity, membrane tension) using advanced biophysical techniques based on force application/measurement such as Atomic Force Microscopy (AFM) or Optical Tweezers (OT). These techniques allow the measurement of cell elasticity, viscosity and adhesion during signaling.

OT and nano-indentation by AFM allow the investigator to gain quantitative information about the elasticity and viscoelasticity of cells. Membrane tension can be measured by using AFM or OT to pull tethers from the membrane.

In the following, we will go into detail on how both AFM and OT can be important tools in the field of immuno-mechanics.

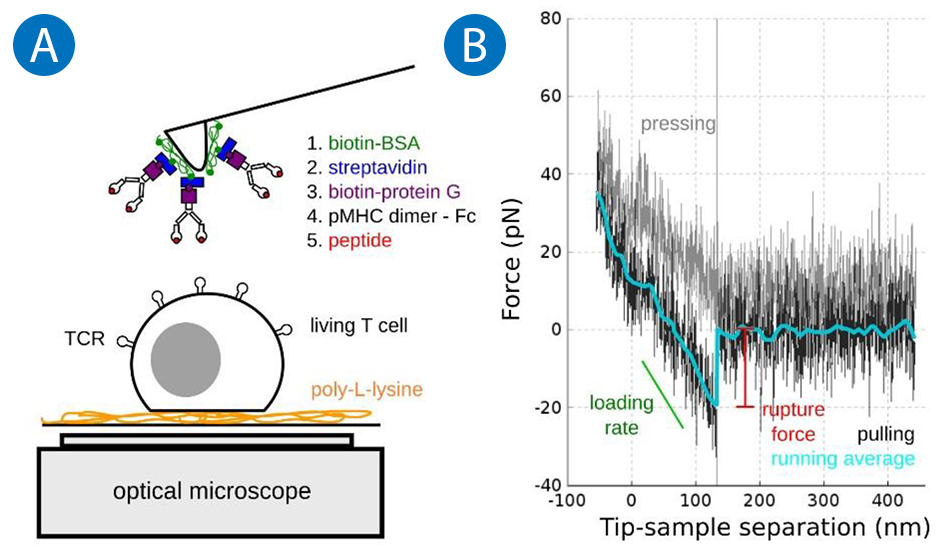

In a first attempt to understand which physical parameters are recognized by T cells when they come in contact with an antigen presenting cell, we designed a single molecule study to determine the probability of adhesion and the forces of detachment at the surface of living lymphocytes. We used SMFS (Single Molecule Force Spectroscopy) where the tips of soft AFM cantilevers were decorated with recombinant pMHC molecules (Fig. 1).

We used them to probe the mechanics of the T cell under very low forces and for very short periods of contact time 100 msec). This resulted in infrequent recognition events. By varying the peptide load in the pocket of the MHC, we showed that the recognition was indeed specific, but that the rupture forces we observed under our experimental conditions were not peptide-dependent ^[4].

It was later shown, via techniques using softer springs (a laser for OT; a Red Blood Cell for a biomembrane force probe) that indeed, the TCR can behave as a mechanosensory molecule. The forces that the T cell feel via the TCR are now thought to help recognition be highly specific and rapid ^[5].

We performed AFM indentation of T cells simultaneously with intracellular Ca²+ fluorescence imaging to gain quantitative information on the forces at play during the different activation phases ^[6] We used an original internal timer signal and AFM based mechanical stimulation to apply a mechanical stimulation that can, in addition, be made specific via, e.g., anti CD3 antibodies. We have developed micro-manipulation techniques to decorate AFM cantilevers with beads of diameters ranging from 1 to 50 pm in order to control the shape and size of the stimulating surface. Stimulation can be performed with either continuous contact or with a succession of timed, short stimulations in order to dissect how the "signaling black box" answers the same specific signal, but with a specified spatial or temporal distribution. This approach, in a way, is a typical physicist method for dissecting the "transfer function" of an unknown system. Here, biology allows us to interfere with the "black box" thanks to the use of mutants or molecules that can impact specific parts of the signaling cascades or functions. We also developed protocols to record the modification of the mechanical properties of T cells with optogenetic tools, for example, photoactivatable Rac, a small GTP-ase protein ^[6].

Two AFM modes can be used to characterize the topology or the mechanical properties of an artificial substrate which will interact with the T cells. Firstly, one can image the substrate at the nanoscale and observe its roughness ^[7] or its surface structure, e.g. using micro-contact printing or nano-scale patterns Secondly, when preparing soft polymeric substrates or soft gels, substrate indentation or force mapping can be used to precisely characterize the mechanical properties of the substrate the cell is exposed to at the subcellular scale using a thin tip/small scan range, or at the cellular scale using a bead for cellular contact/larger scan range. We observed that the mechanical properties of the substrate may lead to unconventional spreading behavior of the T cells depending on the molecular decoration present at the surface ^[3].

_{DISCOVER BRUKER'S SUITE OF AFM MODES:}

We shaped model APCs (COS-7 cells, ^[9]) on stamped fibronectin, while preventing the adhesion and activation of the T cells around them. Micropatterns were used to pull on the edge of the cell to create a large lamellipodium that was thin enough to observe the early contacts of T cells through it using advanced surface microscopies such as TIRF (with membrane labelled T cells) or RICM (without any labelling). This structure allows us to have a fully controlled, fluid, cellular environment, the composition of which is controllable by transfection and is closer to physiological conditions than textured substrates and supported lipid bilayer approaches ^[10]. The 3D topography of the lamellipodium was characterized using different pattern sizes and a combination of TIRF, confocal (membrane, cytoskeleton), multi-color RICM reconstruction in conjunction with AFM imaging and force mapping ^[11]. We also used classical AFM indentation to characterize the Young's modulus of different populations of COS cells expressing different receptors and molecules in regard to T cell mechanics (unpublished data, coherent with ^[12]).

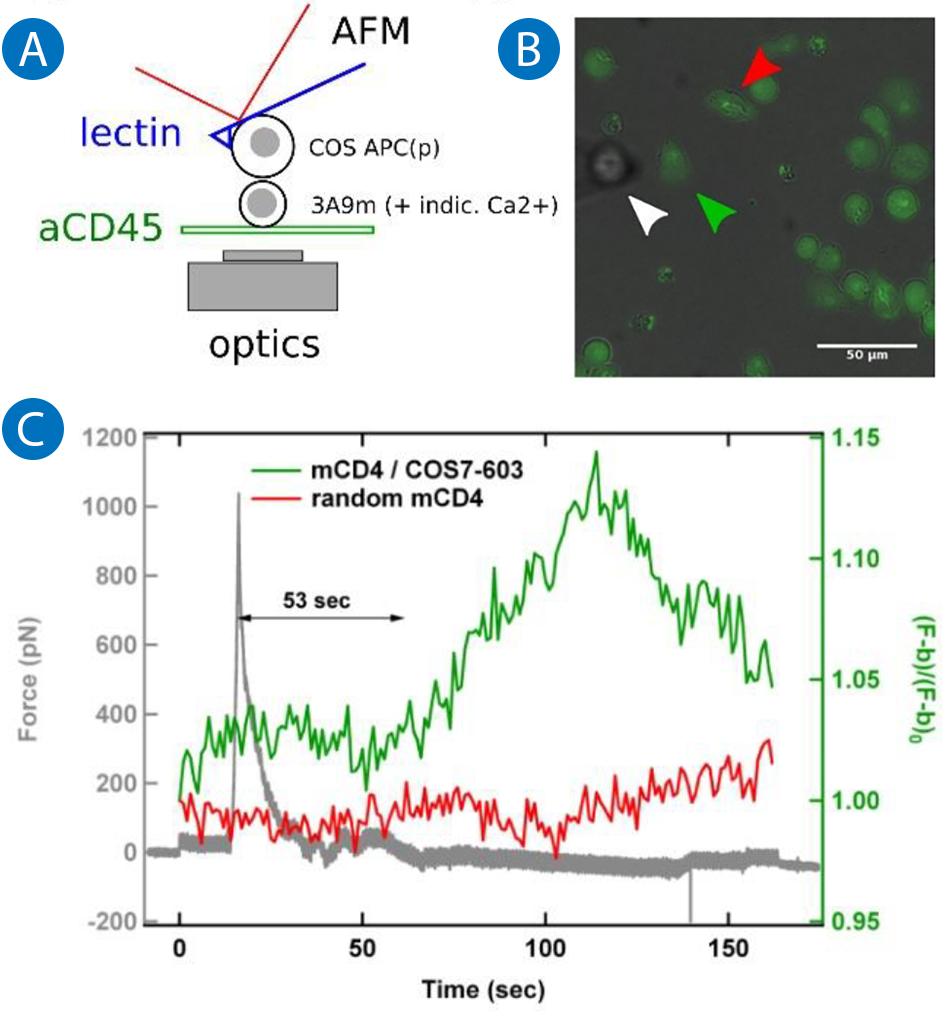

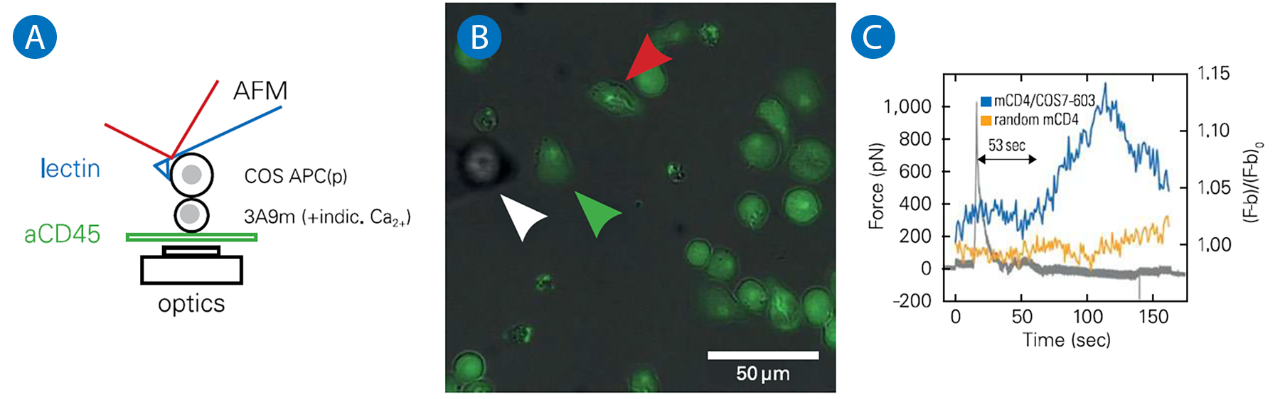

In order to simulate physiological situations more accurately, we approached the APC vs. T cell situation by attaching a model APC (a transfected COS-7 cell, to an AFM cantilever and brought it in contact with a (Ca ²+ reporter loaded) T cell of known shape ^[9]. This method, called Single Cell Force Spectroscopy (SCFS) ^[14], allows the evaluation of the contact mechanics between cells, the evolution of the contact and the forces needed for separation, from single molecules to entire cell scales. It has recently been applied to T cell/APC contact over long contact times and after formation of the immune synapse ^[13], but only adhesion at the cellular scale was recorded and simultaneous observation of the early activation of the cells was not made.

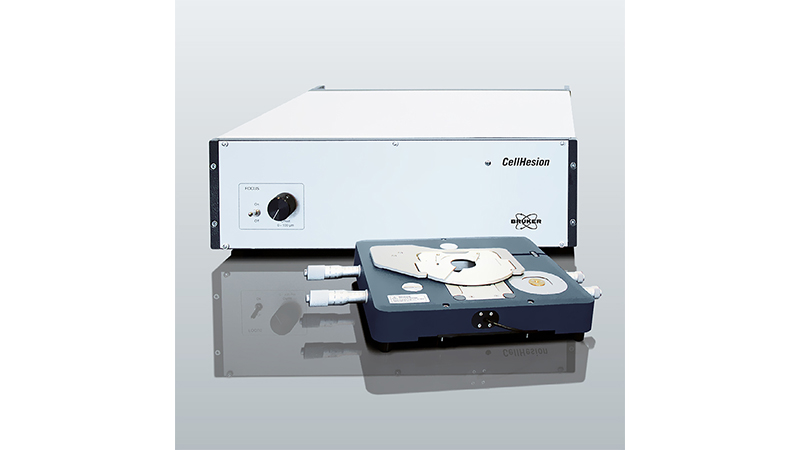

Combining SCFS with our technique of simultaneous AFM/fluorescence to record the activation pattern before, during and after contact, the early physical determinants of T cell activation can be analyzed, such as which forces are required or created by T cells to integrate a biochemical or biomechanical signal (Fig. 2). Depending on the contact times, the molecules involved and potential signaling required to reinforce the cell/cell adhesion, such approaches may need an extended piezo range (up to 100 pm or even more). It may also be necessary to coordinate the fluorescence-detecting lens with a supplementary piezo, all of which is possible with the JPK CellHesion module ^[14], an add-on of the JPK NanoWizard AFM. Cell/cell adhesion forces, numbers and separation distances are indeed larger compared to usual SCFS (cell vs. substrate) experiments, requiring adaption of the spring constant of the cantilever to be able to record the forces, and, importantly, the puling range, which is usually limited to 10-15 pm in conventional AFMs.

Using e.g. lectin decorated cantilevers, membrane tubes or tethers can be pulled using AFM. Cortical cell tension can be estimated based on the force needed to extract them from the cell, and, using drug-induced perturbation of the cell cytoskeleton in a parallel experiment, the cell's membrane tension and the interaction energy between the membrane and the cytoskeleton can be evaluated ^[15] [16].

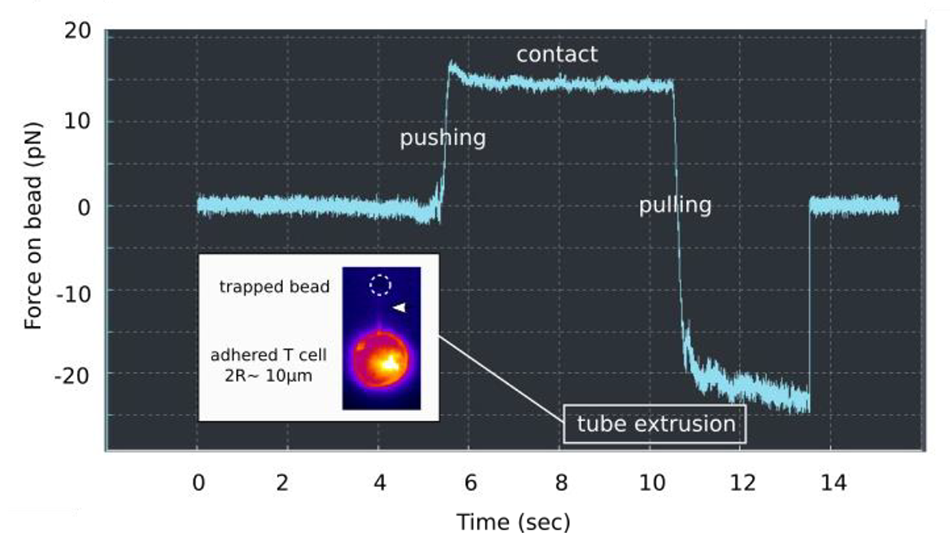

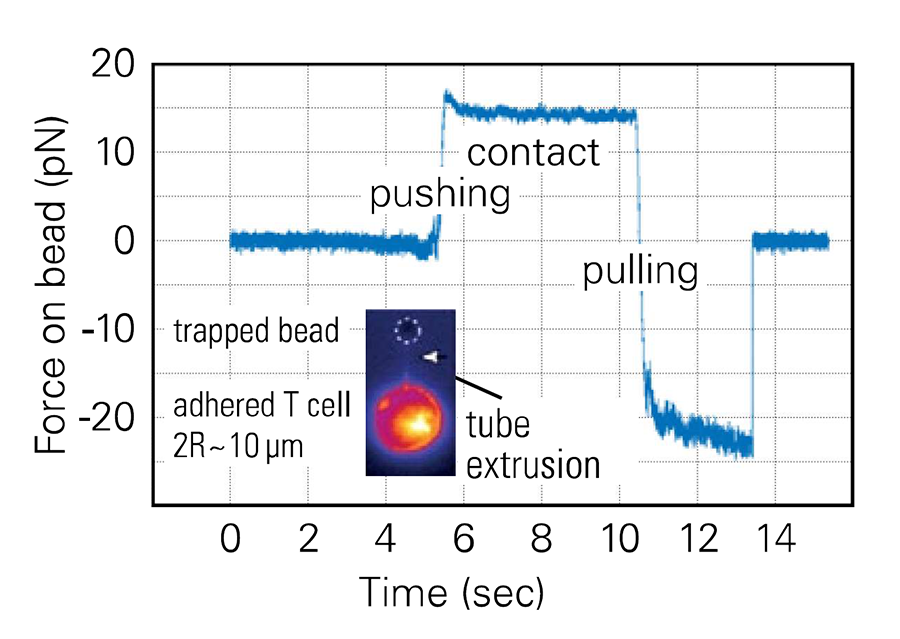

Using Optical Tweezers (for us, the JPK NanoTracker 2) the resolution in force can be increased compared to AFM, and such experiments can be performed in combination with fluorescence imaging of the membrane (Fig. 3). As a result of the very low noise level pN), detailed observation of the mechanics of tube pulling is possible. A long pulling distance can be mandatory: T cells are rather small (—10 pm in diameter) but tethers can be pulled that are up to 10 or even 20 um long, depending on the experimental condition.

T cells have mechanosensory properties that range from their characteristic TCR molecule to the whole cell scale ^[2]. We have presented here several examples which show how AFM, in imaging or force mode, is an highly interesting tool when used to characterize the surface which the T cells come in contact with, or the mechanics and forces of the T cells themselves.

AFM can also be combined with fluorescence microscopy to characterize, in real-time, some of the intracellular signals that are generated when the proteins present on the cell surface are stimulated. When used in combination with O T, a detailed characterization of cellular mechanics (Young's modulus, tension, and by using oscillating mechanical modes G' and G" - dynamic shear modulus) can be obtained. By varying the shape and size of the indentor over different scales, information on the sub-membrane organization of the cytoskeleton can also be obtained.

Very interesting possibilities arise when the systems are combined: (i) fluorescence and AFM or OT in real-time ^[6] could for example lead to the characterization of the transfer function of the membrane/surface protein system. When AFM imaging is used in combination with fluorescence microscopy, 3D functional structures on the cell surface can be revealed ^[14] (ii) Combining AFM with OT in a single system allows the reproduction of environments more similar to physiological ones, as one can assess the interaction between a T cell and an antigen presenting cell using SCFS, and when a helper, secondary T cell is brought into contact, the modulation of the recognition forces can be recorded ^[17]. All in all, the use of nano-force tools is full of promise for the emerging fields of immuno-biophysics and immuno-mechanics.
