Preclinical MRI

BioSpec 70/40

Studies with intricate set-ups or on larger preclinical species can be easily
conducted within the BioSpec 70/40 due to its extremely large 40 cm bore size



Full Flexibility
40 cm bore size combined with unrestricted software for boundary pushing research on smaller and larger species
Best Performance
No compromise on small rodents with gradient insert selection to perfectly match the full range of common preclinical studies
Smooth Workflows
Specially designed coils, cradles, and carts for optimal handling and preparation

BioSpec 70/40

Impactful preclinical neuroscience studies require the most relevant models and study design. Such studies often demand a larger degree of physical freedom, be it due to the size of the species under investigation or the necessity of extra room for extensive peripherals. With a field-strength of 7 Tesla combined with 40 cm of bore space, the BioSpec 70/40 provides increased sensitivity for highest resolutions with maximal space to enable studies that are perfectly designed for your research.

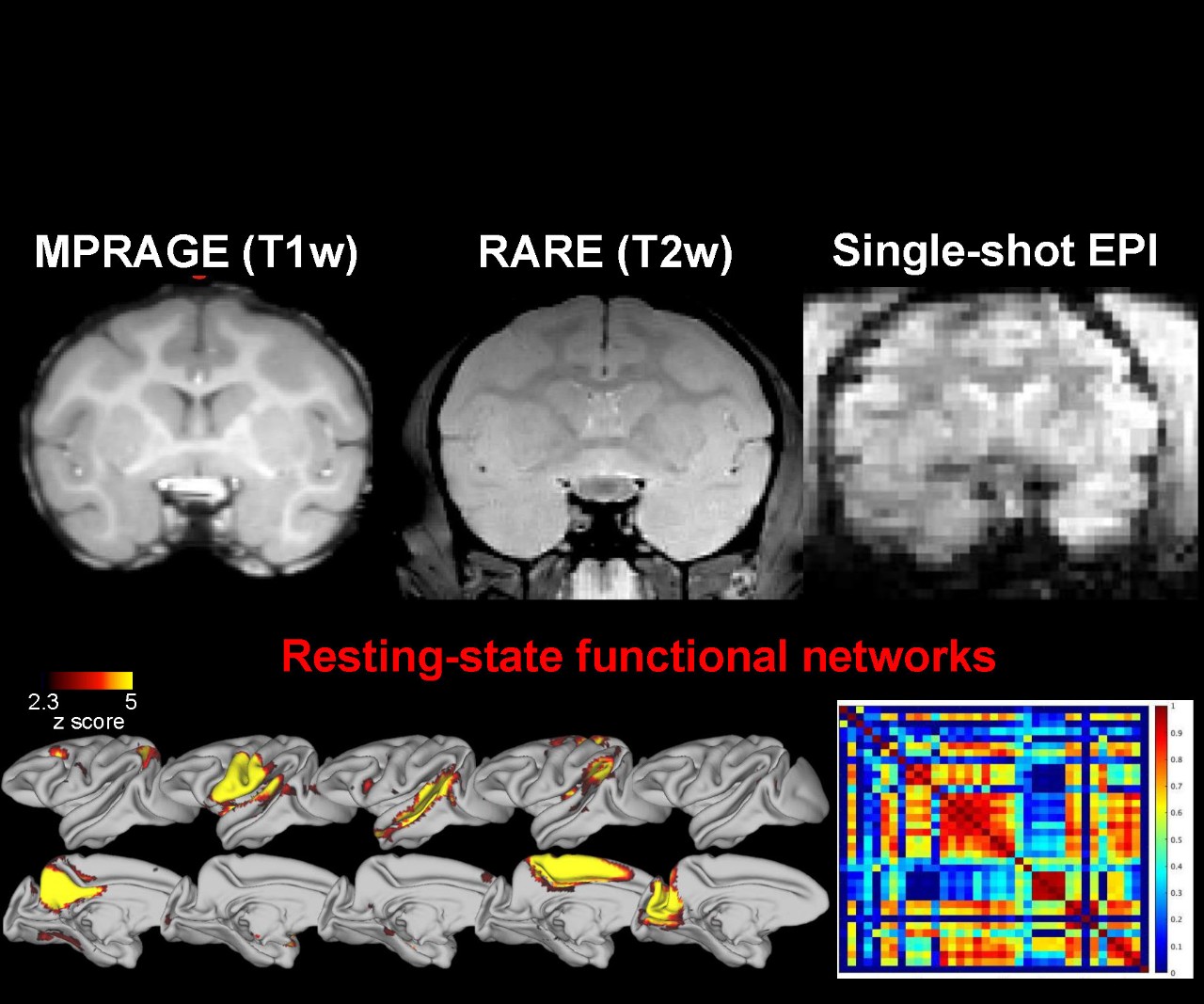

In addition to gradient inserts for optimal scanning of small rodents, the BioSpec 70/40 facilitates non-human primate studies with specially designed animal monitoring and handling provisions as well as accessories for awake studies.


  • Smooth workflows for animals with dedicated handling solutions
  • Dedicated non-human primate RF coils for body, head, and as surface arrays for marmosets and macaques
  • Easy animal handling of non-human primates with specially designed cart
  • Full range of labscape service and support maintenance agreements
  • Zero helium boil-off technology, nitrogen-free, Ultra Shielded and Refrigerated (USR) magnet technology for reduced maintenance costs and longer service intervals
  • Full second order and z3 high power shim channels guarantee optimal performance for spectroscopy and MRI
  • Scalable AVANCE NEO electronics enabling both MRI and MRS applications and incorporating up to 16 receiver channels
  • Real-time spectrometer control for optimization of acquisition parameters during scan
  • High performance BGA-S-HP gradients with highest amplitudes and slew rates, shim strengths and duty cycles
  • Fast and easily mountable gradient/shim inserts for optimum gradient/shim performance for small samples available
  • Cold shipping for most cost and time effective installation
  • MRI CryoProbes with delivering an exceptional increase in sensitivity
  • Complete RF coil portfolio for mice and rats available, including coils for head, brain, cardiac, body, and x-nuclei
  • ParaVision® 360:  intuitive software package, for multi-dimensional MRI/MRS data acquisition, visualization, reconstruction, and analysis
  • MRI sequence portfolio of more than 1,000 sequence variations, including wireless cardiac imaging using navigator based IntraGate methods with cartesian or radial readout, as well as short echo time imaging, such as UTE and ZTE
  • Open sequence architecture for full freedom of study design
  • In-house development and production of all key components (software, magnet, gradient, spectrometer, RF-coils) ensures the best performance and short repair times




Service & Life Cycle Support for Magnetic Resonance and Preclinical Imaging

Bruker’s commitment to provide customers with unparalleled help throughout the buying cycle, from initial inquiry to evaluation, installation, and the lifetime of the instrument is now characterized by the LabScape service concept.

LabScape Maintenance Agreements, On-Site On-Demand and Enhance Your Lab are designed to offer a new approach to maintenance and service for the modern laboratory
