BioSpec

BioSpec High-Field MRI

Offering the greatest versatility of any preclinical MRI instrument, the 4.7 T, 7 T, and 9.4 T BioSpec instruments with various bore sizes of 20 cm to 40 cm make even the most challenging applications possible.

Unlimited

possibilities

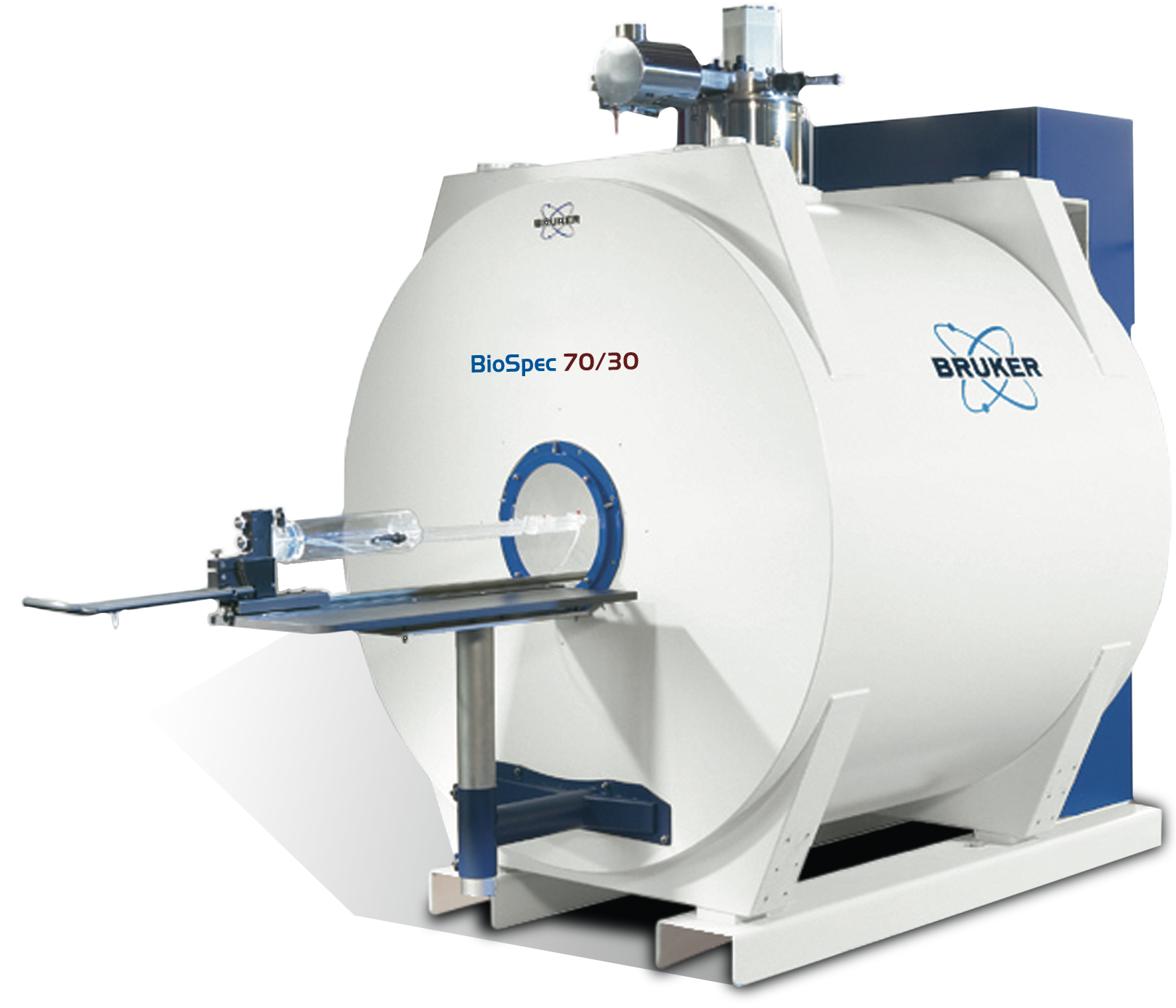

BioSpec 70/30

Highlights

Versatility
With the largest coil selection, a choice of gradient sizes and strengths, an open source software, and the ability to upgrade with an MRI CryoProbe or PET for simultaneous or sequential PET/MR studies, the greatest versatility enables challenging applications such as fMRI, DTI, perfusion, MR spectroscopy, MR histology, and stem cell tracking to be easily tackled.
USR Magnet Technology
Helium zero boil-off and Nitrogen free UltraShielded and Refrigerated magnet technology for reduced maintenance costs and longer service intervals.
Maximum Space
For animals ranging from mice to rabbits or for extra space for additional monitoring, stimulating, or similar peripherals.

BioSpec 94/20: The high field of the BioSpec 94/20 is particularly suited for molecular imaging. State-of-the-art MRI CryoProbe technology combined with USR magnet technology delivers high spatial resolution in vivo, enabling researchers to come closer to the molecular and cellular level they desire.

BioSpec 70/20: The BioSpec 70/20, with its full range of MRI CryoProbes, optogenetic and ASL coils, and multi-channel array coils with up to 16 channels, is a multi-purpose MRI instrument that allows conduction of a wide range of applications.

BioSpec 94/30: The innovative modular concept of the BioSpec 94/30 allows virtually any small animal MR imaging application in life science, biomedical and preclinical research to be conducted on animals ranging up to the size of rabbits.

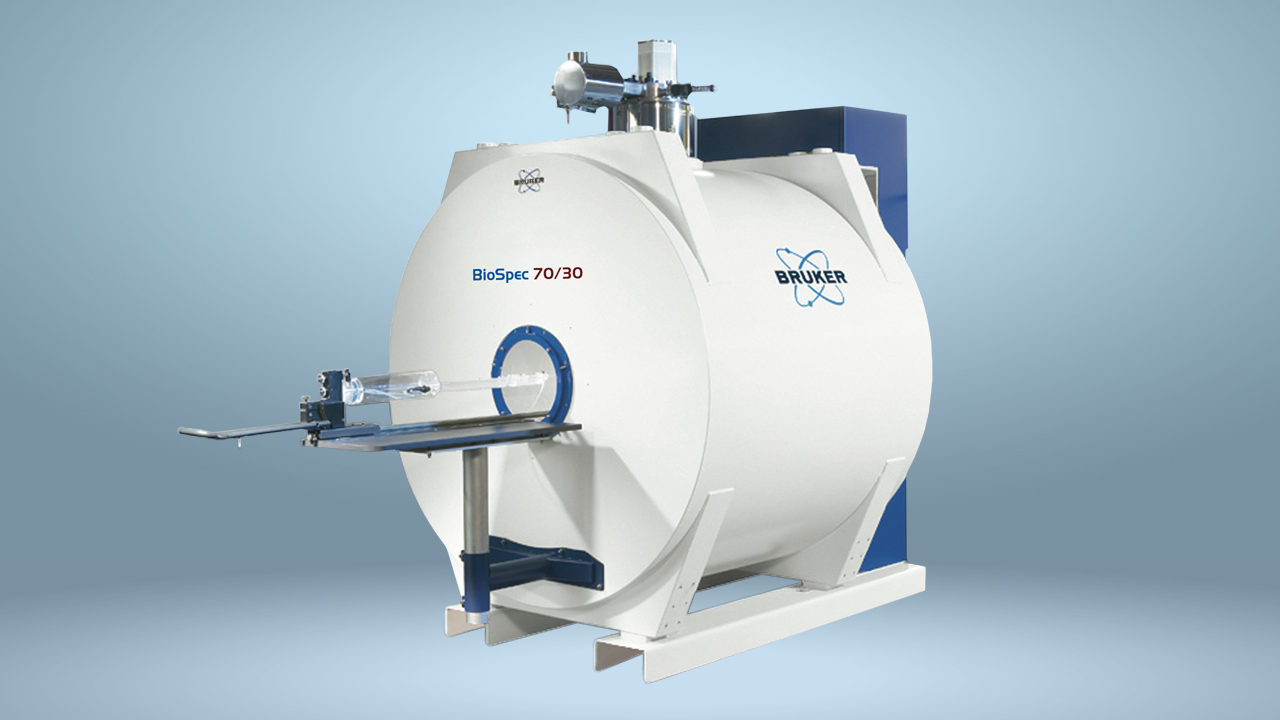

BioSpec 70/30:
The BioSpec 70/30 is among the most versatile members of the BioSpec high field MRI family. With an inner gradient diameter of 20 cm as well as gradient inserts, it is optimally suited for research on animals ranging from mice to rabbits.

BioSpec 47/40: The BioSpec 47/40 is  the most versatile member of the BioSpec high field MRI family. With an inner gradient diameter of 26 cm as well as gradient inserts, it is optimally suited for research on animals ranging from mice to non-human primates (NHP).


Features

Features

  • Zero helium boil-off technology, nitrogen-free, Ultra Shielded and Refrigerated (USR) magnet technology for reduced maintenance costs and longer service intervals
  • Accurate animal positioning with the motorized animal handling system for increased throughput
  • Full second order high power shim channels guarantee optimal performance for MR spectroscopy and MRI
  • Scalable AVANCE NEO electronics enabling both MRI and MRS applications and incorporating up to 16 receiver channels
  • Real-time spectrometer control for optimization of acquisition parameters during scan
  • High performance BGA-S HP gradients with highest amplitudes and slew rates, shim strengths and duty cycles
  • Fast and easily mountable gradient/shim inserts for optimum gradient/shim performance for small samples available
  • Complete RF coil portfolio for mice and rats available, including coils for head, brain, cardiac, body, optogenetics, Arterial Spin Labeling, multi-channel array coils with up to 16 channels, and x-nuclei
  • MRI CryoProbes with 2 element, 4 element, or as 13C for mice as well as 4 element for rat delivering an exceptional increase in sensitivity
  • In-house development and production of all key components (software, magnet, gradient, spectrometer, RF-coils) ensures the best performance and short repair times


Applications

Testimonials

Testimonials

Translation Research - From Preclinical to Clinical MRI

Support

Labscape

Service & Life Cycle Support for Magnetic Resonance and Preclinical Imaging

Bruker’s commitment to provide customers with unparalleled help throughout the buying cycle, from initial inquiry to evaluation, installation, and the lifetime of the instrument is now characterized by the LabScape service concept.

LabScape Maintenance Agreements, On-Site On-Demand and Enhance Your Lab are designed to offer a new approach to maintenance and service for the modern laboratory
