Elemental Range: Fluorine - Uranium
Wide Range of Available Calibrations

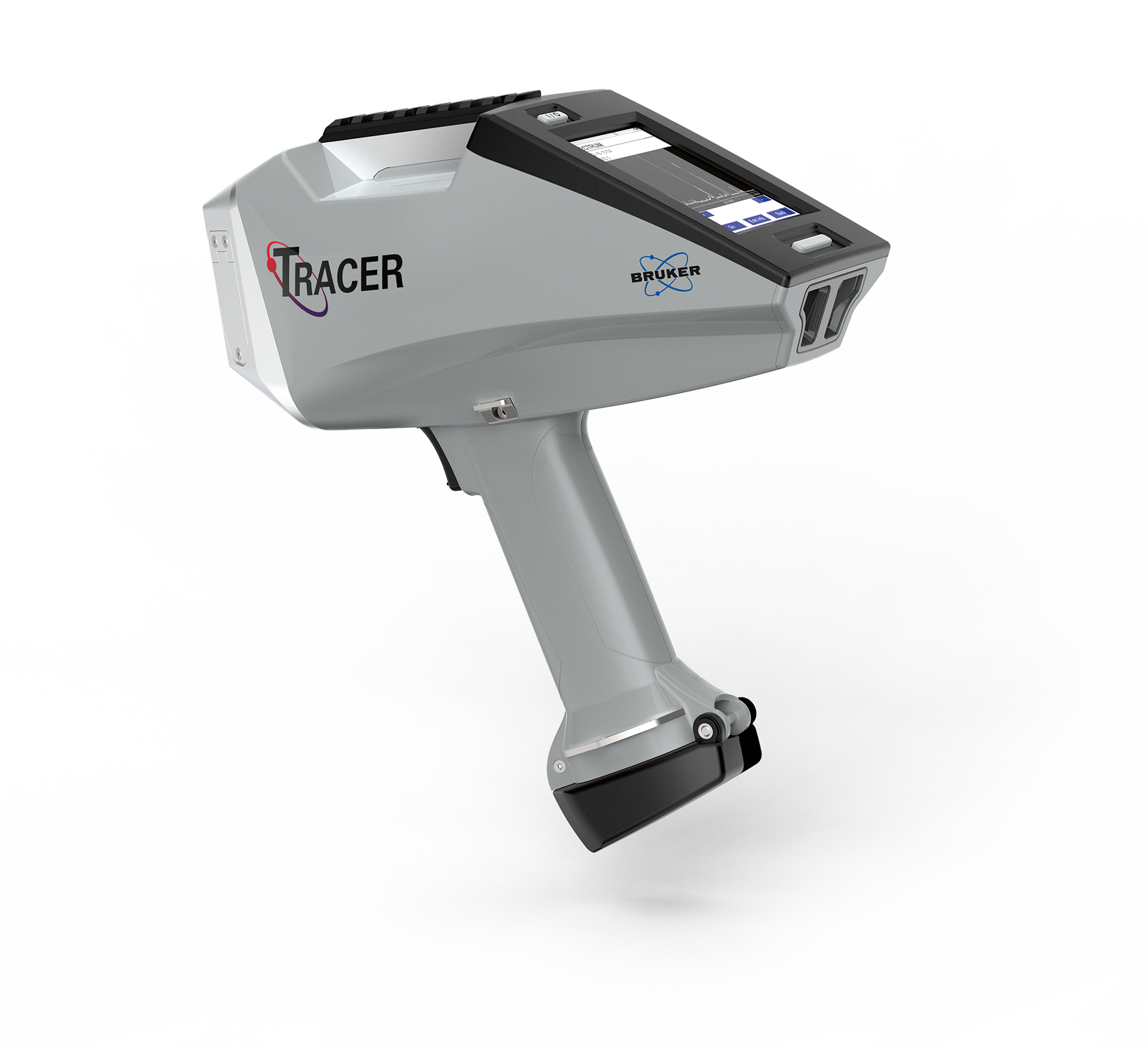

While the TRACER 5 has the ability to completely control the current and voltage, it also adds many new features which have been requested by our users. The user can select filters from the integrated filter wheel or insert user-designed filters. In addition, the measurements can be made in air, vacuum or helium atmosphere, which can be selected based on the needs of the user. The detector configuration and a small distance between the sample and detector make for a very sensitive system with some of the lowest detection limits available today. The TRACER 5 has approximately three times the sensitivity of the previous generation TRACERs, with helium purge TRACER 5 is the only handheld XRF that can elements as light as fluorine.
Features of the TRACER 5 family:
TRACER 5 Benefits at a Glance:
50 kV, 4 W, Rh target
Operator adjustable current and voltage for optimum excitation.

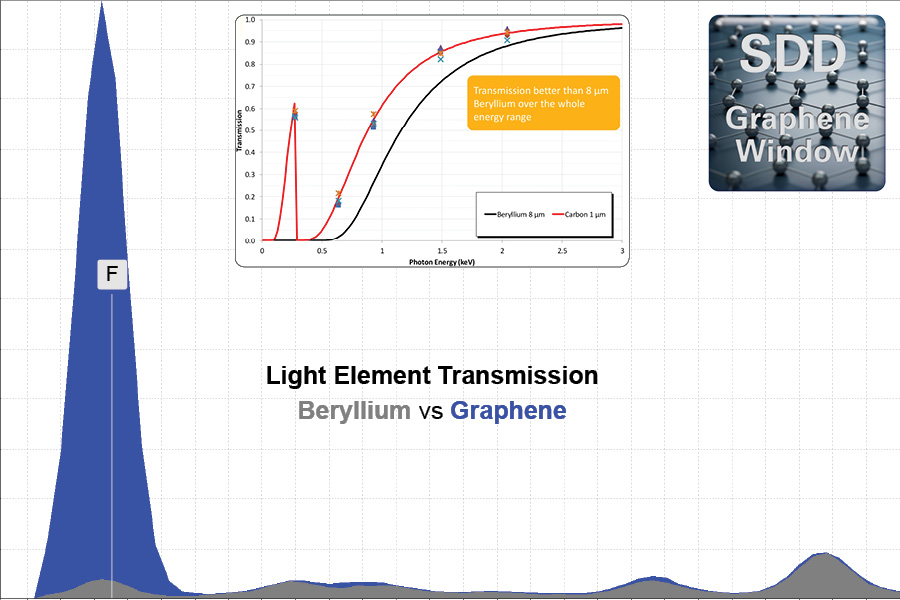

Large active area 20mm2 SDD detector with graphene window
<140eV @ 250,000 cps Mn Ka resulution.
User changeable collimator; 3 mm and 8 mm collimators supplied.
Internal sample camera to identify exact measurement position.
Operator controlled, 5 position primary beam filter wheel.
Manual filter/secondary target slot for factory or user made filters.
|Size and weight||
Weight: 1.9 kg with battery
Size (LxWxH): 27 cm x 9 cm x 30 cm
Sodium to Uranium (air and vacuum)
Fluorine to Uranium (with helium purge)
