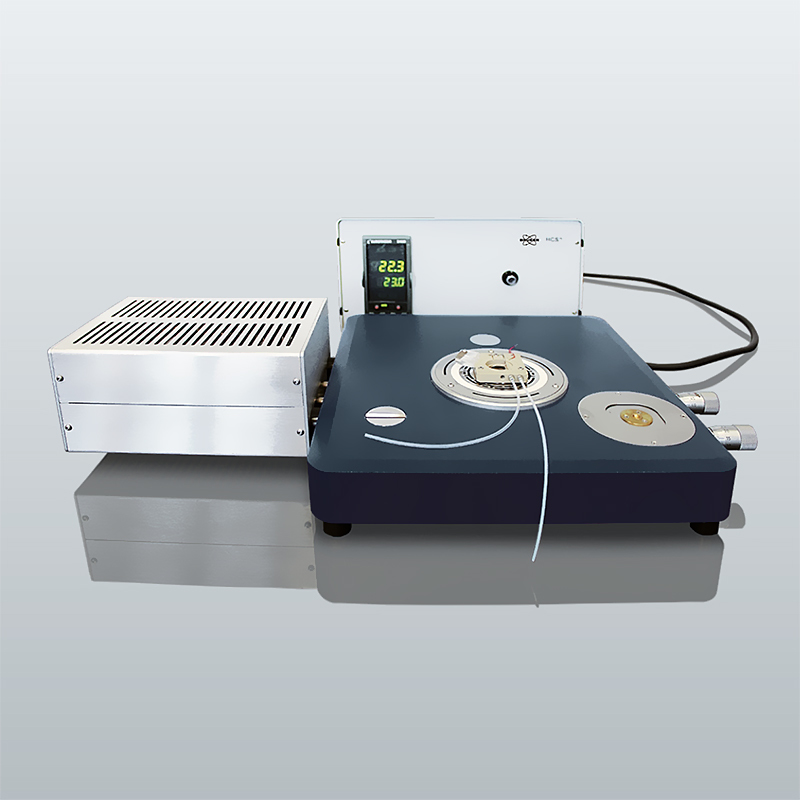

HCS with Electrochemistry Cell
Designed for electrochemistry AFM experiments with controlled heating and cooling
of the sample.
- For opaque samples
- Temperature range from 0°C to 100°C
- Temperature resolution 0.1°C
- Twin stage thermoelectric element
- Drift minimized in all directions for full temperature ramps simultaneous to AFM imaging
- Heatpipe design – no water cooling or fan required
- Top-view optical access for easy navigation
- max. 1350µL liquid volume with perfusion capability
- Sealed design for inert gas filling
- Wire electrodes and miniature reference electrode
Accessories to extend your BioAFM capabilities
Bruker offers an extensive range of BioAFM system add-ons, accessories, and modes to deliver maximum experimental and sample control, superior versatility, and enhanced useability. These options extend the range of applications and experiments supported by Bruker BioAFMs far beyond what is possible with any other BioAFM system on the market today.
Available options include optical systems/accessories, electrochemistry solutions, electrical sample characterization, environmental control options, software modules, temperature control, acoustic and vibration isolation solutions, and more.
Download our accessories handbook to learn more.
