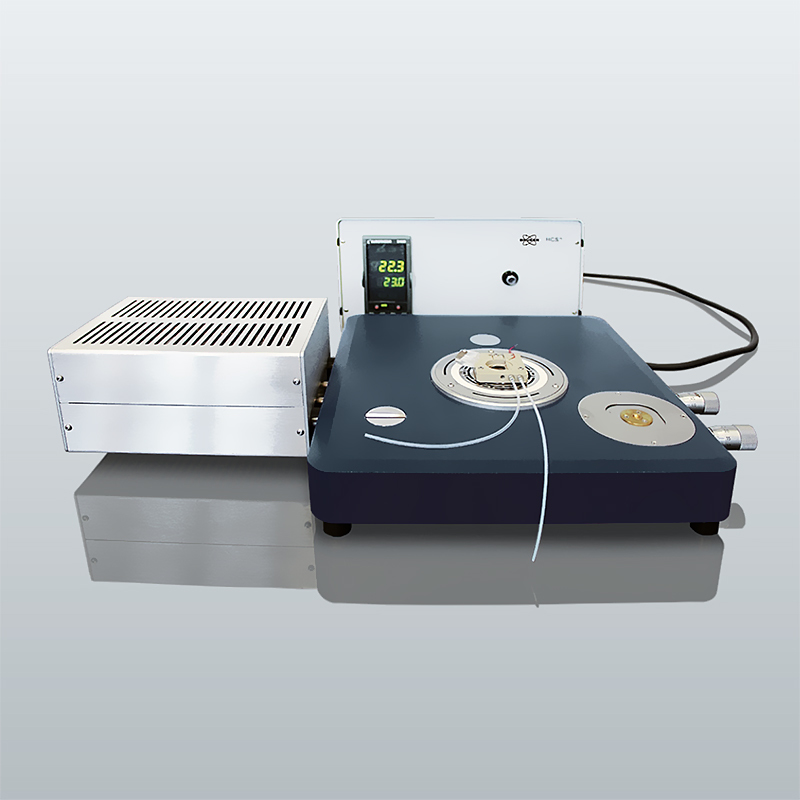

HCS with Electrochemistry Cell
Designed for electrochemistry AFM experiments with controlled heating and cooling
of the sample.
- For opaque samples
- Temperature range from 0°C to 100°C
- Temperature resolution 0.1°C
- Twin stage thermoelectric element
- Drift minimized in all directions for full temperature ramps simultaneous to AFM imaging
- Heatpipe design – no water cooling or fan required
- Top-view optical access for easy navigation
- max. 1350µL liquid volume with perfusion capability
- Sealed design for inert gas filling
- Wire electrodes and miniature reference electrode
