InsightMR for High-Field

Designed to monitor reactions, enhance understanding, and build confidence when transferring processes from the lab to the plant.
Unlock
critical information
Reaction yield, conversion and mechanistic insights
Harness NMR data
Improve efficiency and reduce costs
In-line and on-line studies under real reaction conditions
Accelerate process development
Enhancing Reaction Understanding with Online NMR Reaction Monitoring – Application to Chemical Route Development
Download

High-Field NMR for PAT: Real-Time Reaction Monitoring

High-field Nuclear Magnetic Resonance (NMR) serves as an effective Process Analytical Technology (PAT) tool for real-time monitoring, optimization, and control of chemical and bioprocesses. Ideal for both industrial and academic settings, InsightMR empowers scientists to study, optimize, and control reactions with real time, on-line and in-line NMR monitoring under true process conditions. Combining a robust flow unit with dedicated software, InsightMR enables seamless integration into PAT frameworks.

Gathering insights into the mechanism and kinetics of chemical reactions is now at your fingertips!

  • Provides answers to key chemical questions: reaction yield, mechanistic insights and reaction kinetics
  • Harness NMR data to make strategic process chemistry decisions, ultimately leading to cost savings.



Features

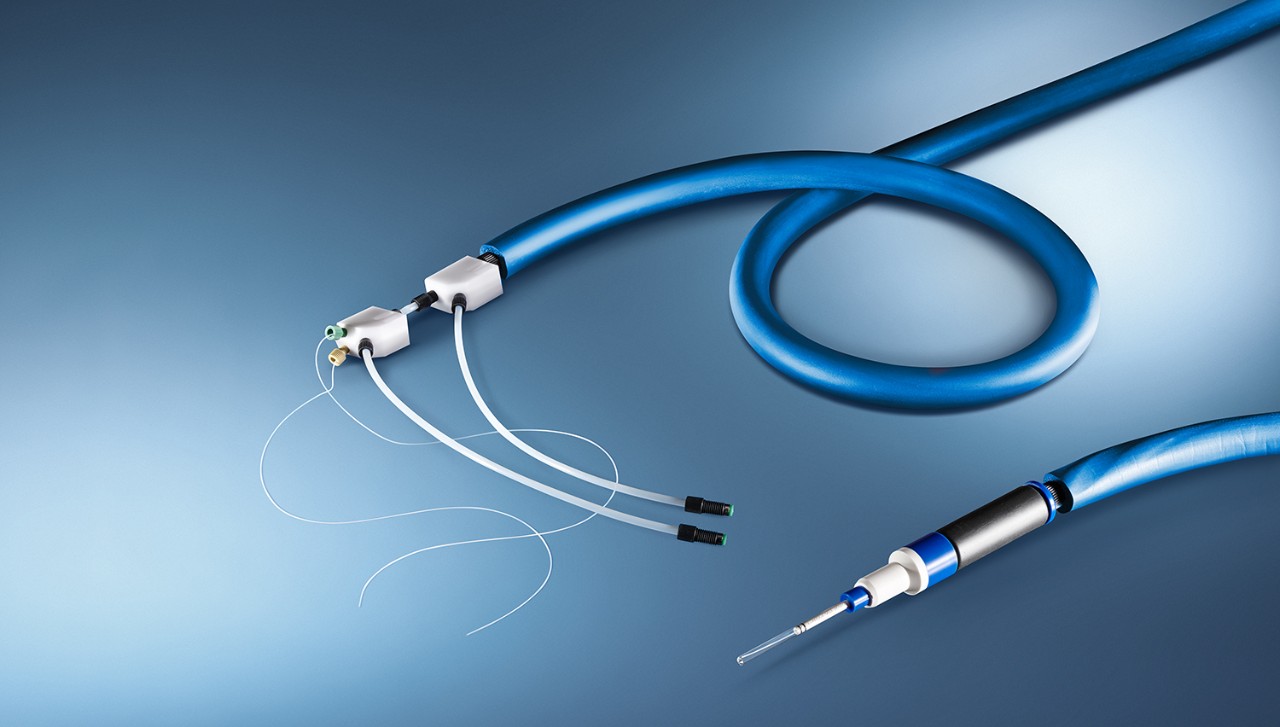

InsightMR Flow Unit

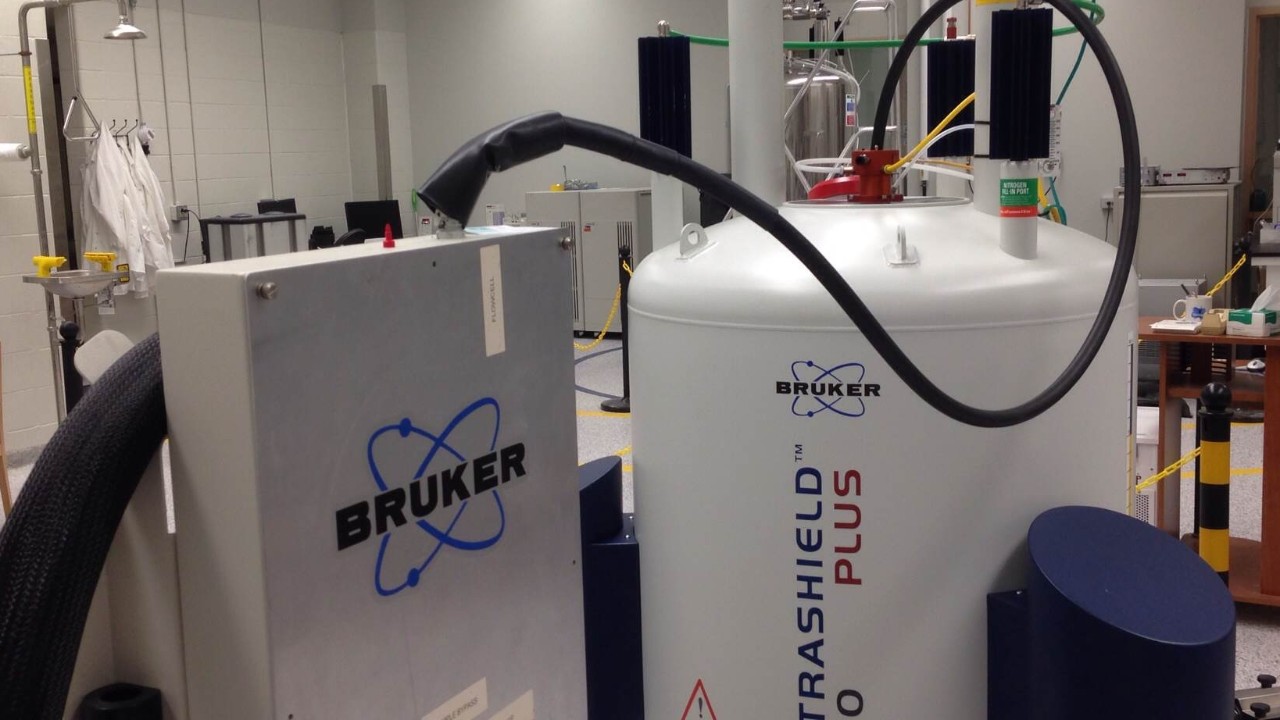

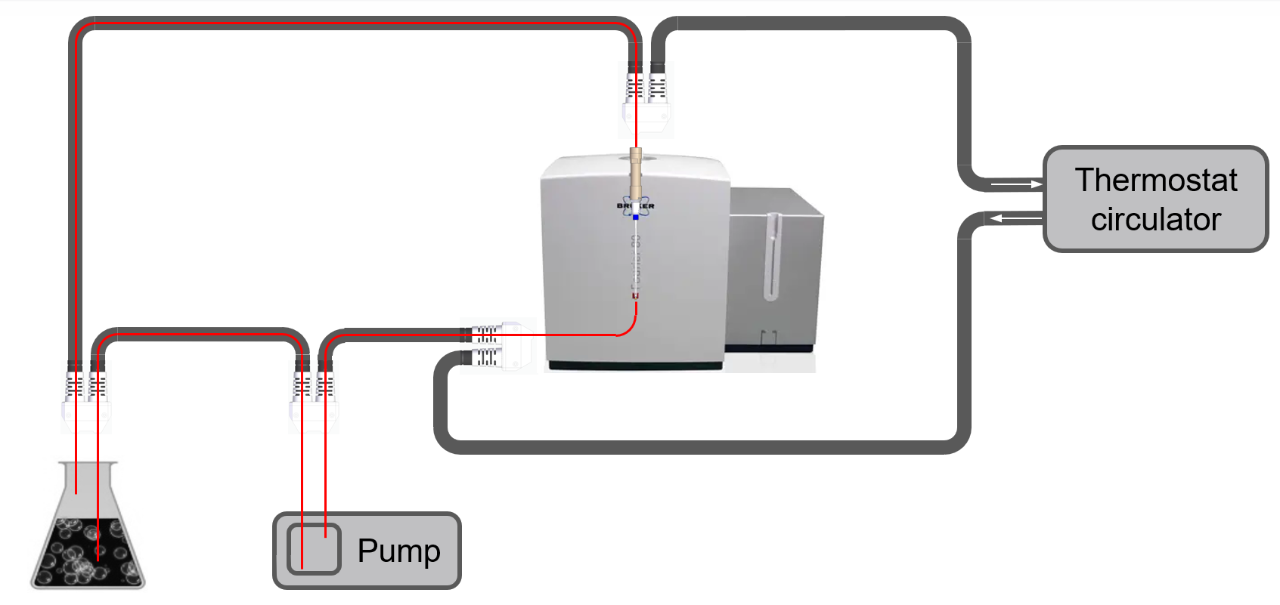

Design for on-line and in-line reaction monitoring, InsightMR flow unit is a PAT-ready solution that enables comprehensive analysis and confident decision-making directly under actual operating conditions and captures the start of the reaction.



InsightMR for High Field NMR

  • Temperature controlled transfer lines: -20 to 120 °C capability
  • Tested to withstand pressures over 10 bar
  • Interchangeable glass tube. Proven robustness - industry tested
  • Compatible with all Bruker sample changers
  • 3- or 5-mm (Room Temperature and Cryo) Probes
  • InsightMR 2.0 software.
InsightMR - Workflow video

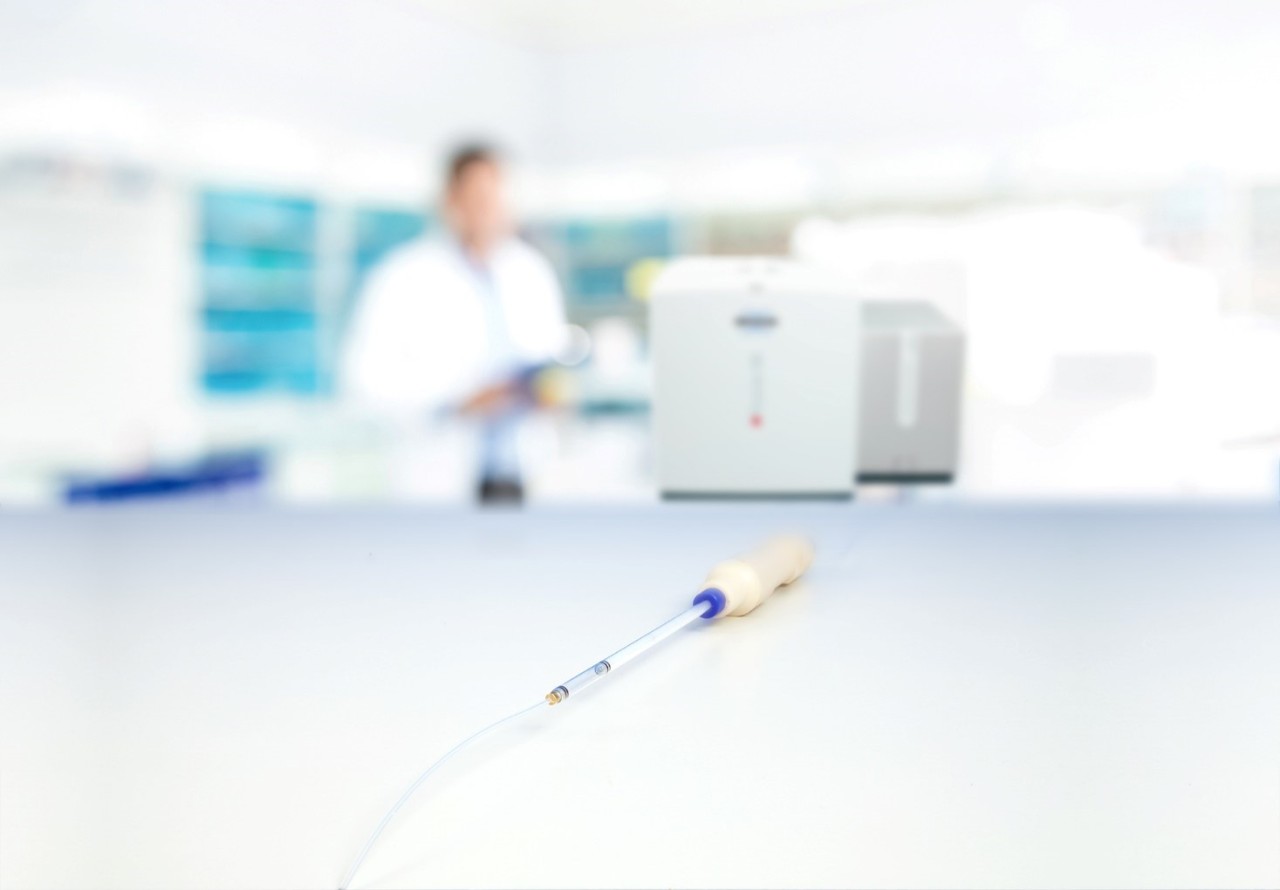

InsigthMR flow unit

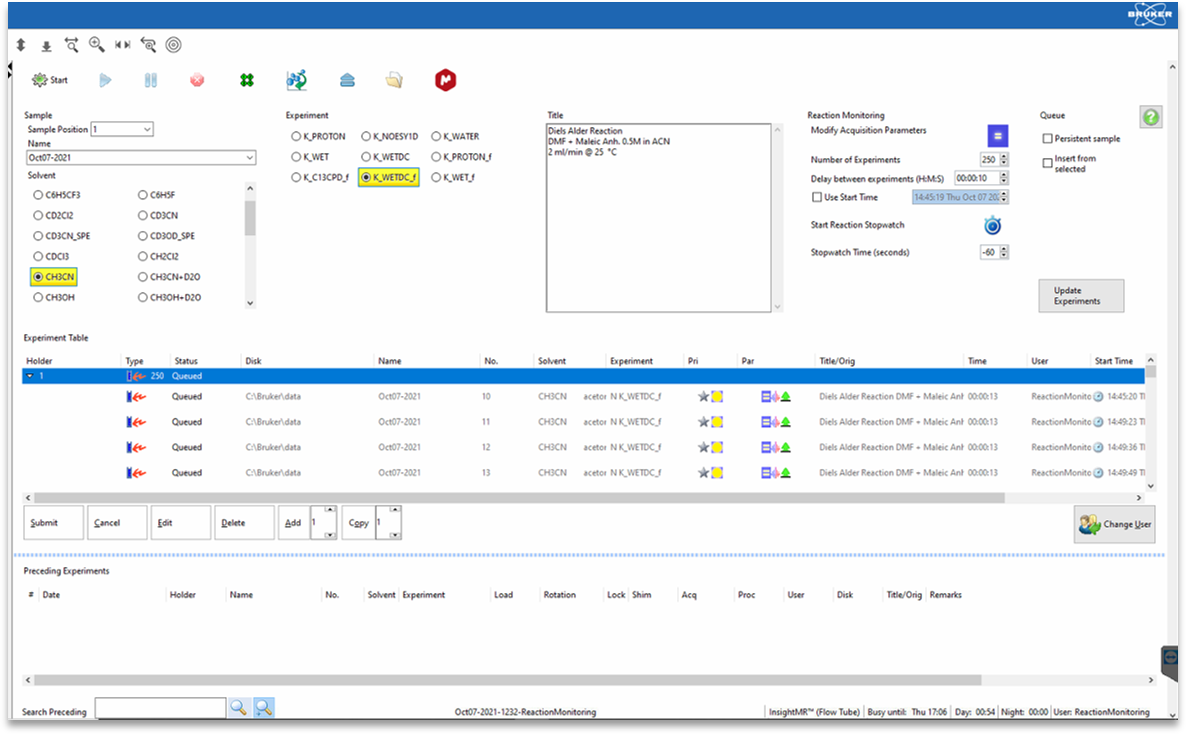

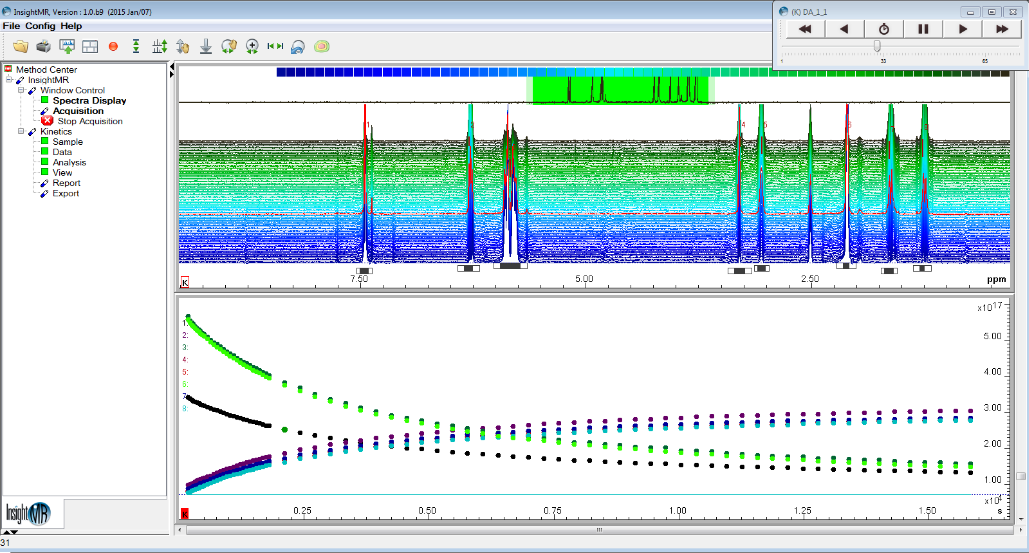

InsightMR 2.0 Software

InsightMR 2.0 is an advanced software platform for monitoring and analyzing chemical processes using on-line and in-line NMR. It combines integrated acquisition control with real-time data processing, allowing users to dynamically adjust acquisition parameters based on real-time kinetic data.

  • Intuitive data acquisition with on-the-fly visualization of build-up curves
  • Includes default experiments for both deuterated and non-deuterated solvents
  • Efficient handling of large spectral datasets, including hundreds of stacked spectra
  • Full support for 1D series (multiple nuclei), interleaved experiments, and parallel multi-sample analysis

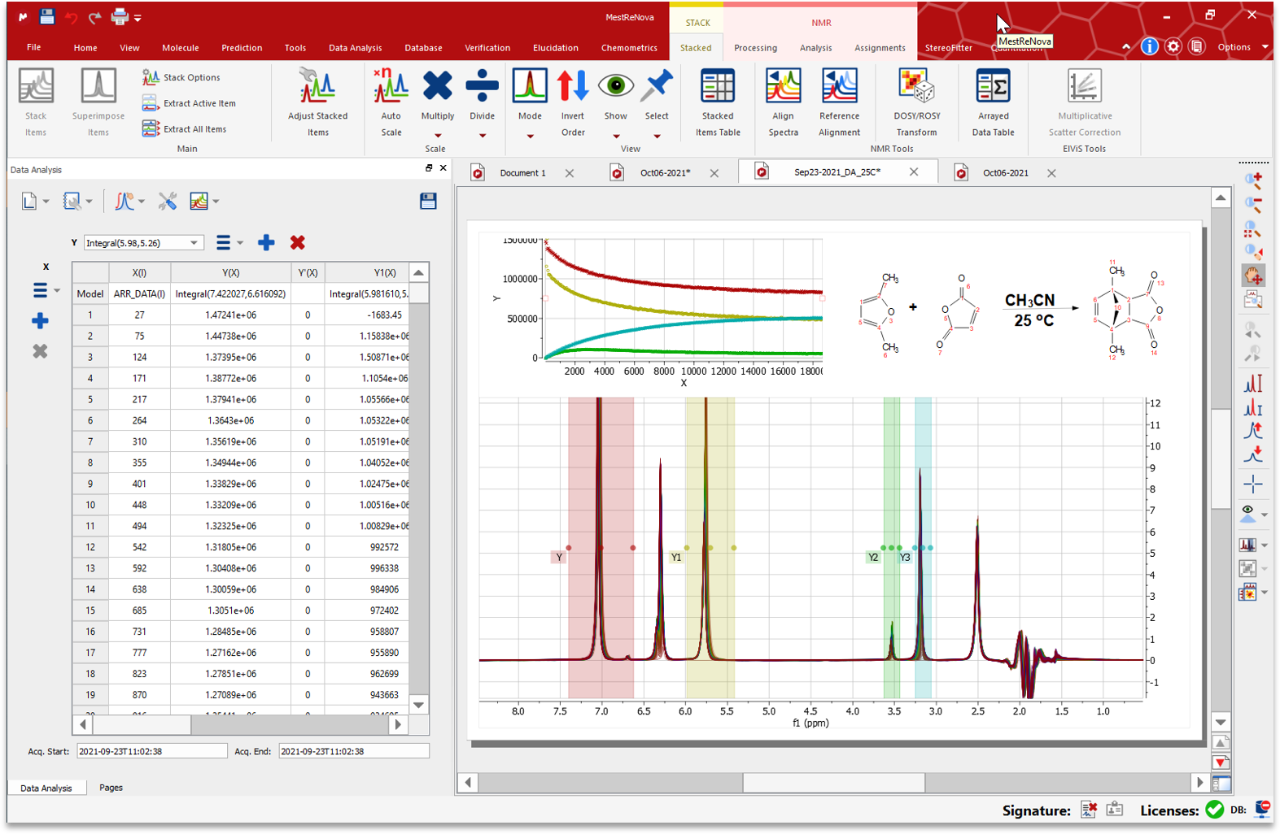

  • Automatic, seamless export to Mnova Reaction Monitoring Workstation, including phase correction, baseline correction, and GSD

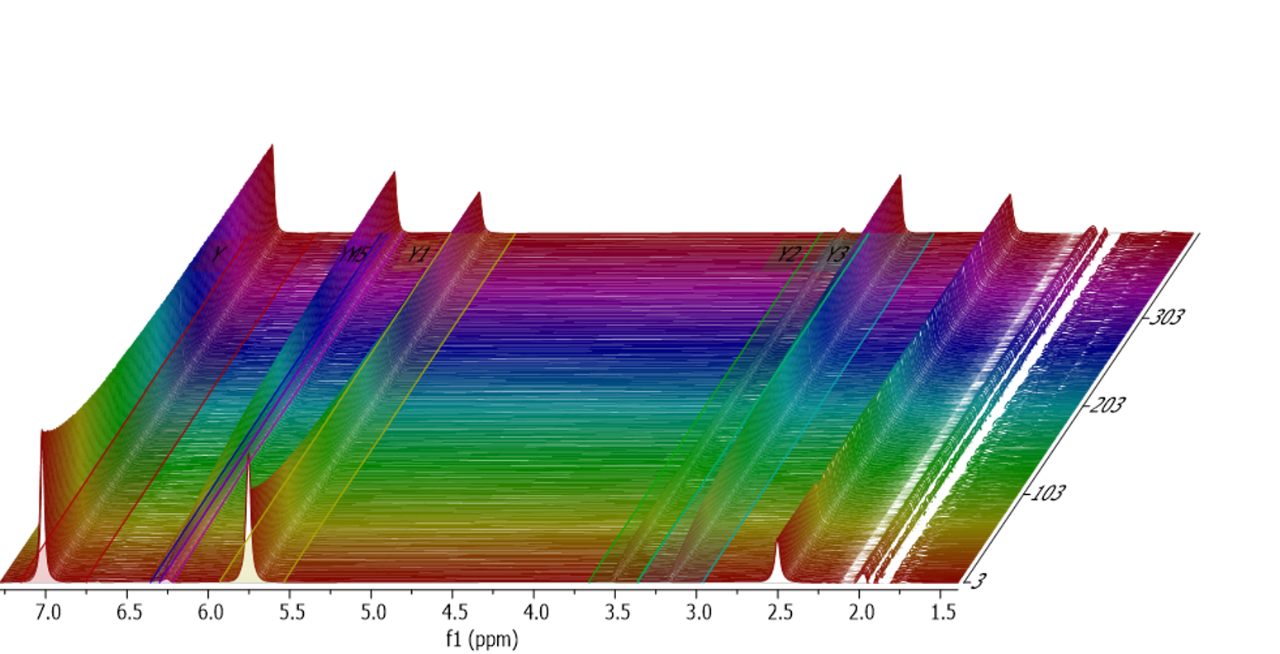

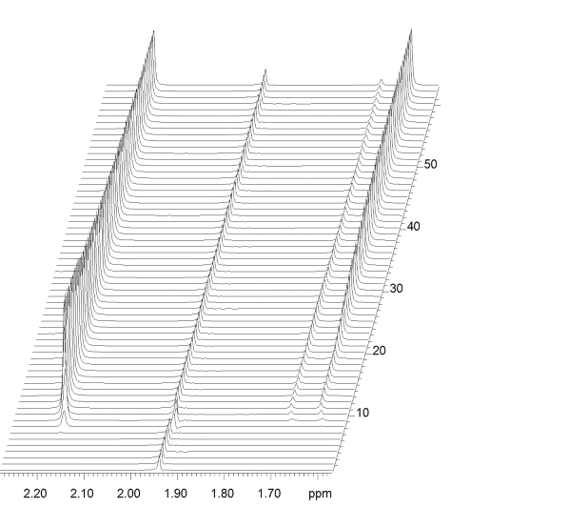

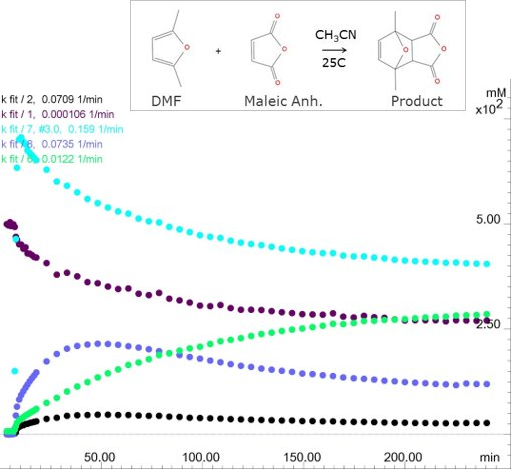

  • Results ready to report as kinetic plots and waterfall plots, with easy export options

Benefits

  • On-the-fly quantitative build-up curves without the need of tedious calibration steps
  • Structural information for reagents, (bi)products and intermediates
  • Increased selectivity, resolution and sensitivity compared to vibrational spectroscopy
  • Used also to calibrate other techniques
  • Straightforward installation and operation with minimal learning curve
