NMR & EPR Pharma Solutions

InsightMR

Designed to monitor reactions, enhances reaction understanding, hence confidence when transferring processes from lab to plant.

하이라이트

New NMR Methods for Reaction Monitoring

Designed for the analysis of chemical processes by NMR, InsightMR is the ideal solution for both industrial and academic scientists studying or optimizing reactions. InsightMR’s two components, a flow tube and dedicated software, enable online monitoring of chemical reactions in real-time under real process conditions.

Gathering insights into the mechanism and kinetics of chemical reactions is now at your fingertips!

  • Combined hardware and software solution for process understanding and optimization.

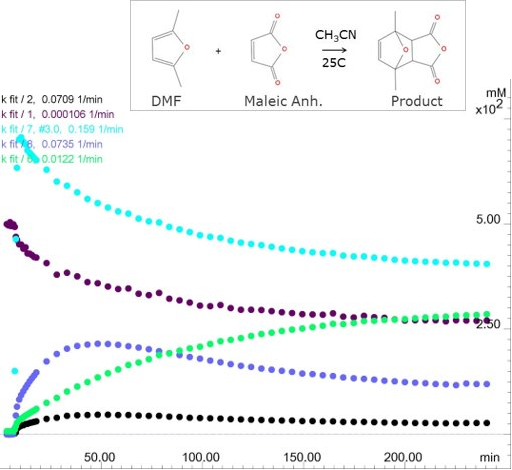

  • Provides answers to key chemical questions: reaction yield, mechanistic insights and reaction kinetics.
  • Harness NMR data to make strategic process chemistry decisions, ultimately leading to cost savings.

특징

Features

InsightMR Software

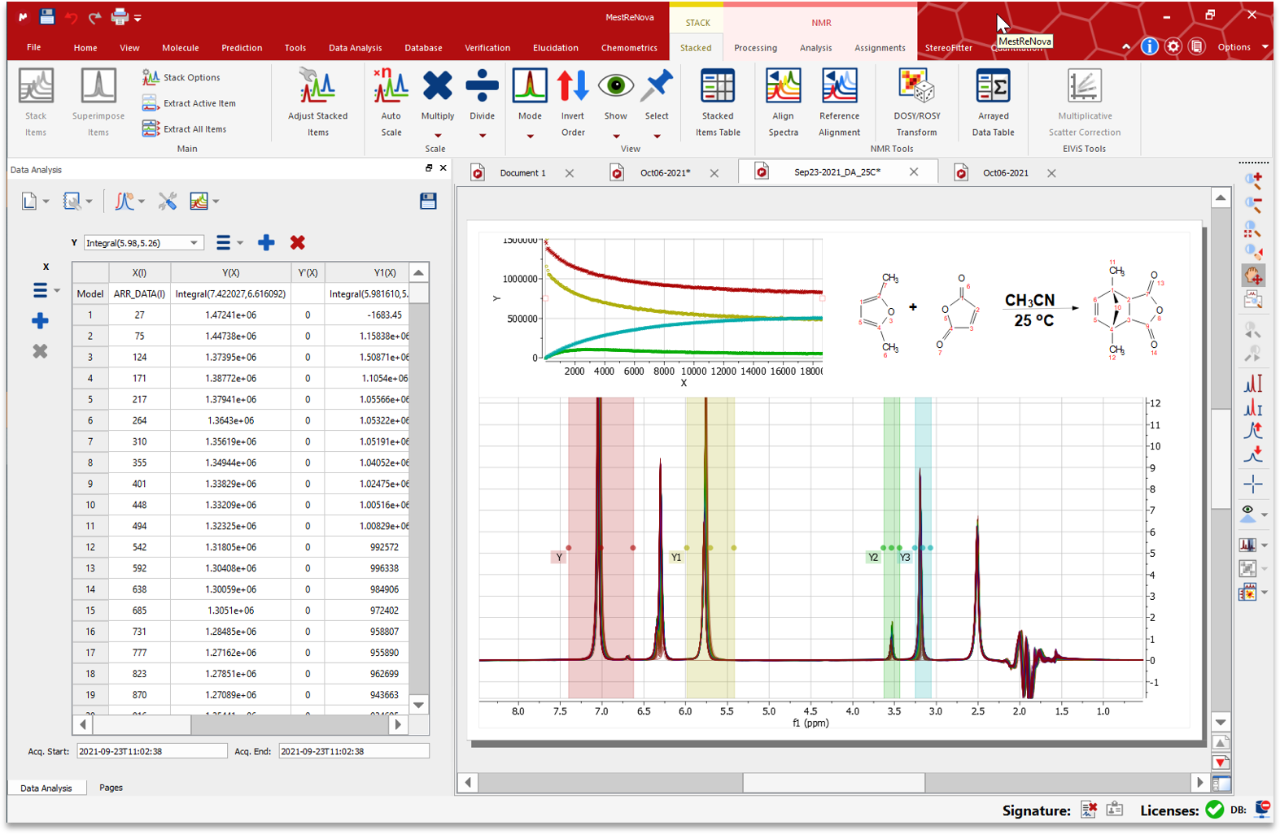

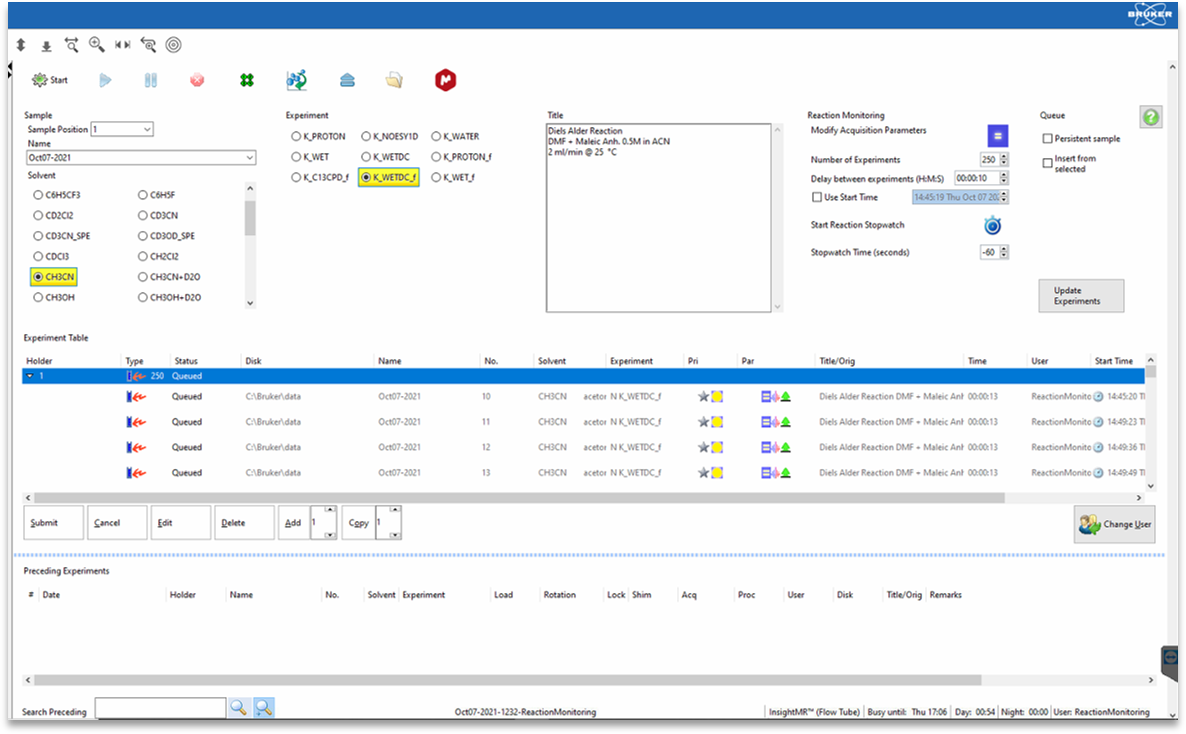

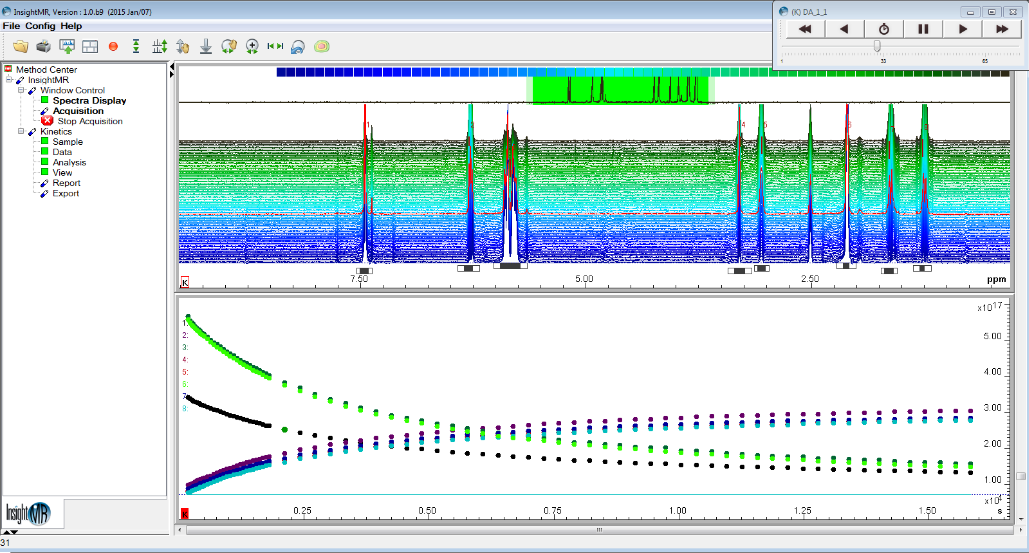

InsightMR software is a platform designed for the analysis of chemical processes by NMR. Integrated acquisition control and data processing features enable on-the-fly acquisition parameter adjustment based on real-time kinetic data.

  • A single interface for automated acquisition control and interactive data analysis.
  • On-the-fly acquisition parameters adjustment based on real-time kinetic data.
  • Straightforward experiment set up. Default kinetics parameters provided for both deuterated and non deuterated solvents.

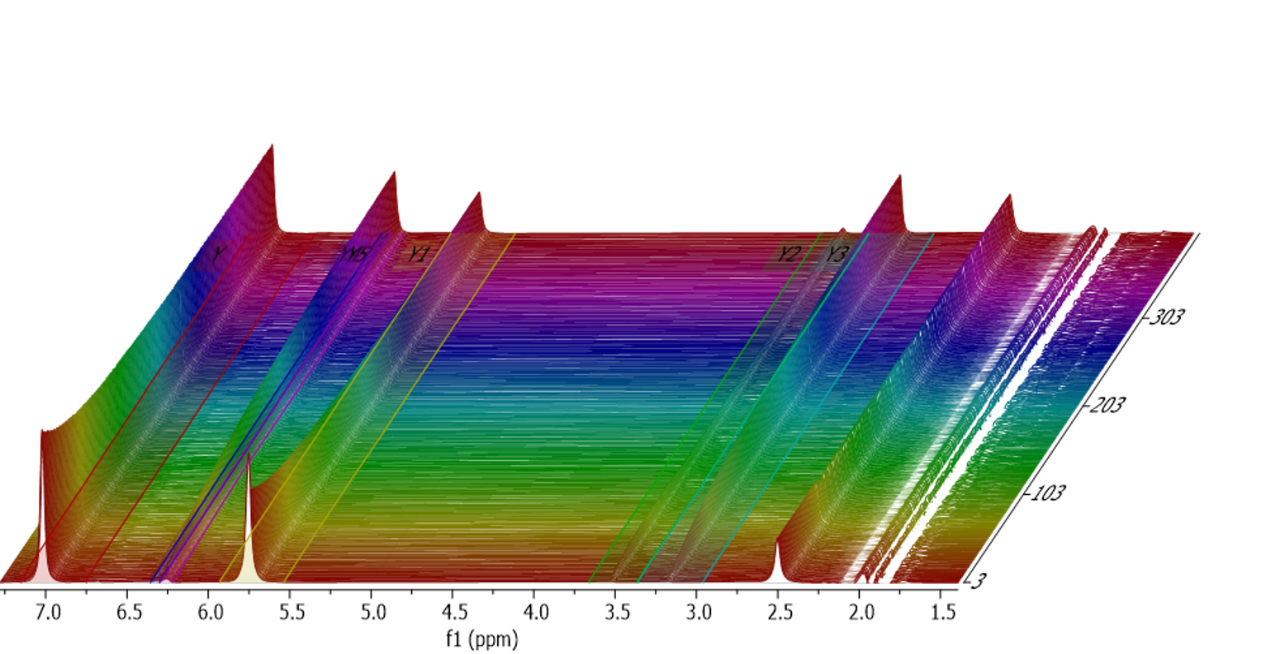

  • Rapid and effortless handling of hundreds of stacked spectra.
  • Supports acquisition, processing and analysis of series of 1Ds (different nuclei), interleaved experiments and multi samples in parallel.
  • Integrates Dynamics Center, TopSpin and IconNMR into one platform.

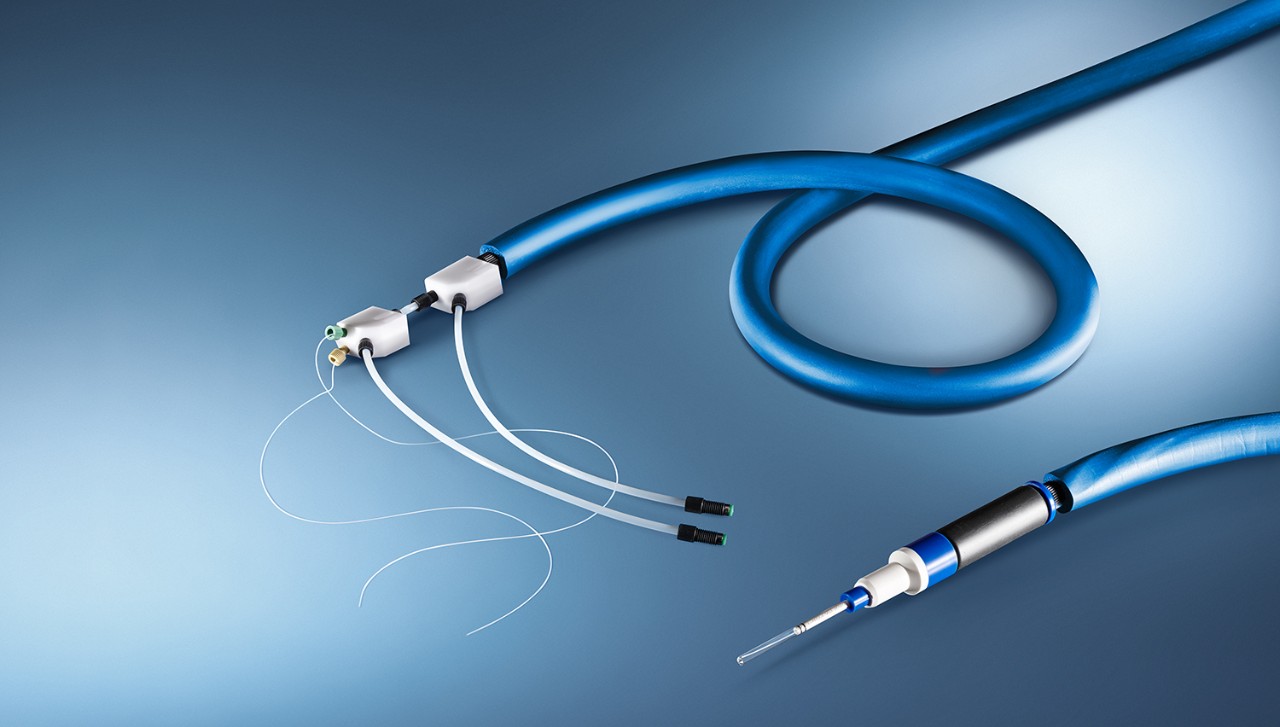

InsightMR Flow Unit

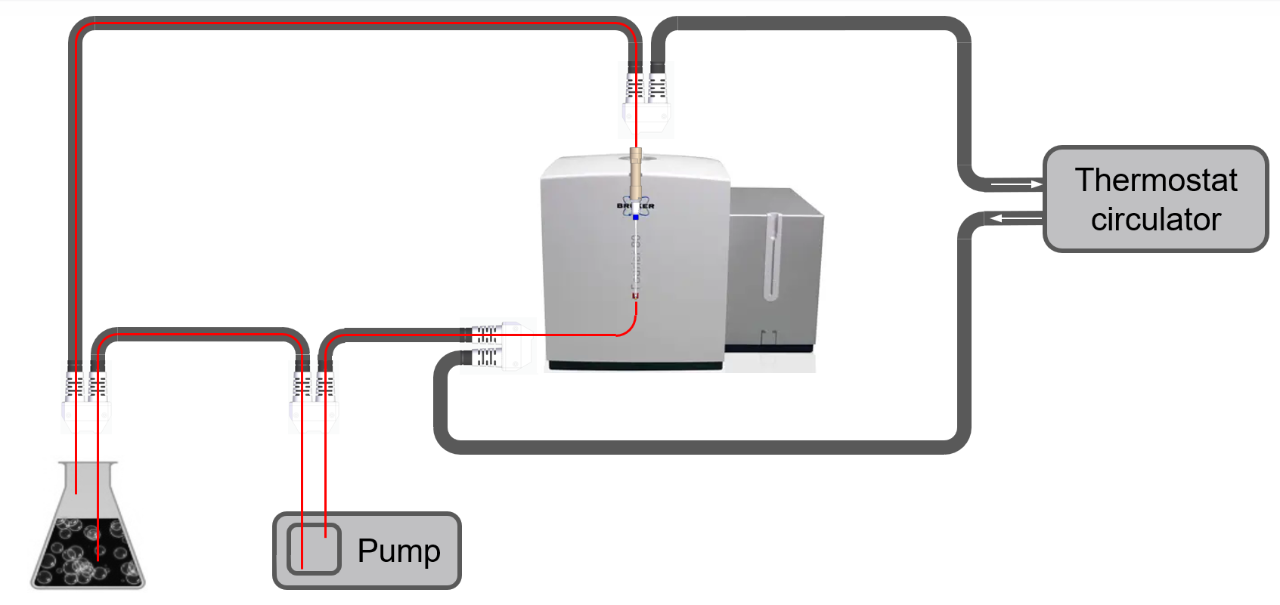

The new flow tube enables online monitoring of chemical reaction in real-time under real conditions. This is achieved by fast and continuous transfer of reaction mixtures from a reaction vessel into the flow tube, located in the NMR probe, with temperature control from the vessel to the probe. Designed to work with 5 mm probes, the flow tube is a versatile proposition to flow chemistry by NMR.

  • Custom designed flow tube enables online reaction monitoring by NMR, in real-time under real conditions.
  • Temperature controlled transfer lines.
  • Tested to withstand pressures over 10 bar.
  • Interchangeable glass tube. Proven robustness - industry tested.
  • Enables simultaneous acquisition of data using different analytical techniques: NMR, IR, pH, and MS.
  • Samples closer to the start of the reaction.
Software Workflow InsightMR for Process Monitoring - Pharmaceutical Analysis
InsightMR - Workflow video

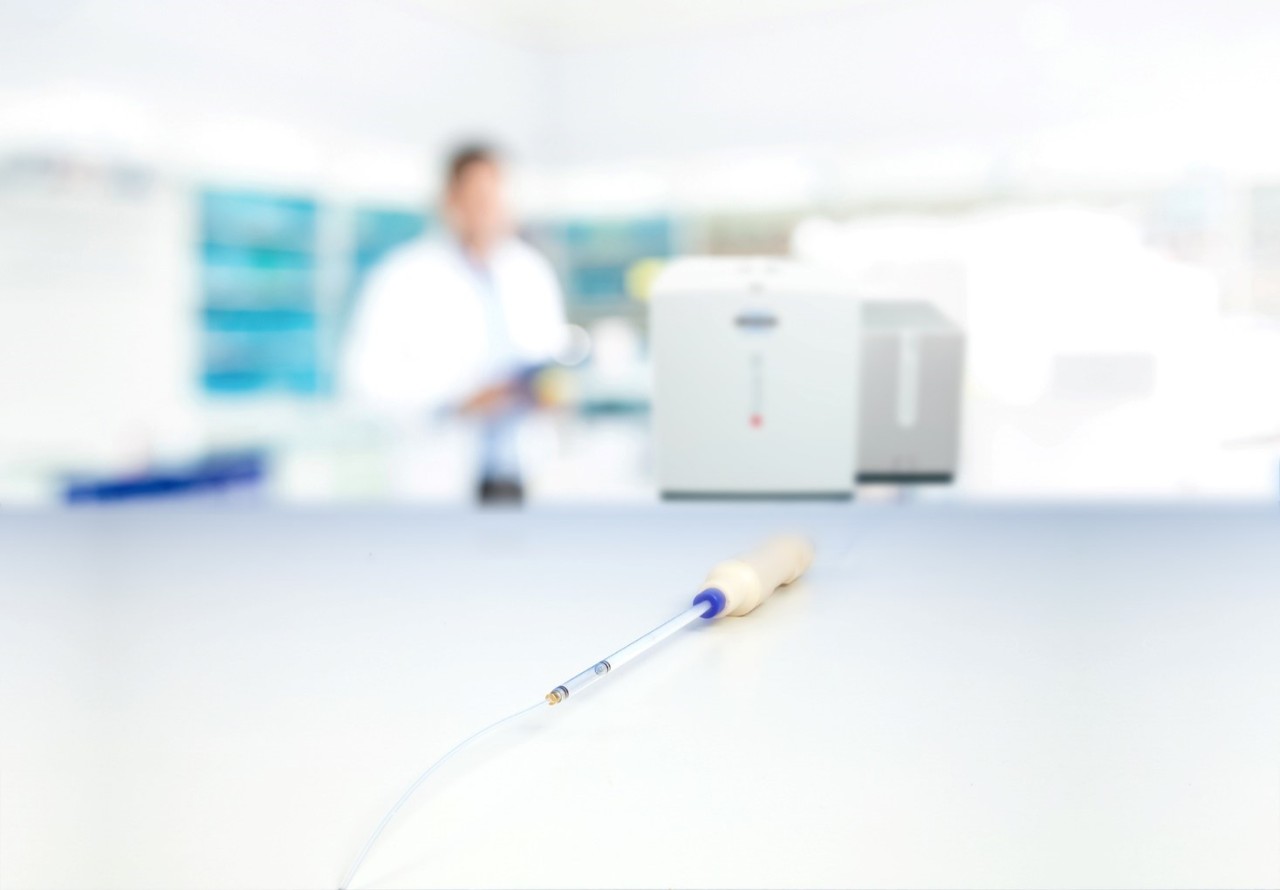

InsigthMR flow unit

혜택

Benefits

New NMR Methods for Reaction Monitoring

Designed for the analysis of chemical processes by NMR, InsightMR is the ideal solution for both industrial and academic scientists studying or optimizing reactions. InsightMR’s two components, a flow tube and dedicated software, enable online monitoring of chemical reactions in real-time under real process conditions.

  • Gathering insights into the mechanism and kinetics of chemical reactions is now at your fingertips!
  • Combined hardware and software solution for process understanding and optimization.
  • Provides answers to key chemical questions: reaction yield, mechanistic insights and reaction kinetics.
  • Harness NMR data to make strategic process chemistry decisions, ultimately leading to cost savings.

응용

사양

Specifications

NMR System requirements

  • Windows 10, 7 and Linux running TopSpin 3.5 and above
  • AVANCE III console and newer
  • 5 mm probe
