Magic Angle Spinning | MAS Technology

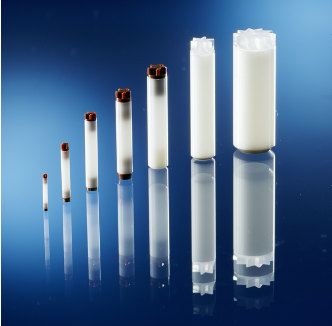

Fusing Magic Angle Spinning (MAS) technology with the MR Microscopy gradient technology enables to acquire images and localized spectra of semi-solid objects due to the combination of reduced signal linewidth with a high and very linear gradient field. Rotors with a 3.2 or 4 mm diameter are offered, further on request. Besides imaging applications very slow diffusion processes can be investigated applying the strong gradient fields.

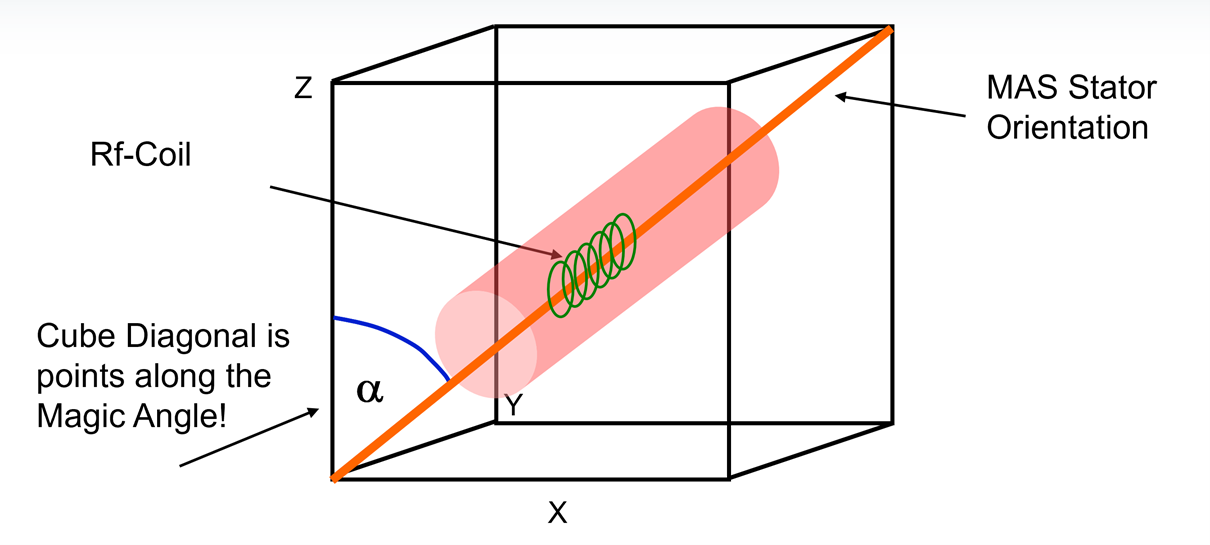

In combination with the Micro2.5 WB gradient system from Bruker, this probe offers new possibilities for sample analysis. The maximum gradient strength of 2.5 T/m along the magic angle is reached if the x, y, z gradients are switched simultaneously.

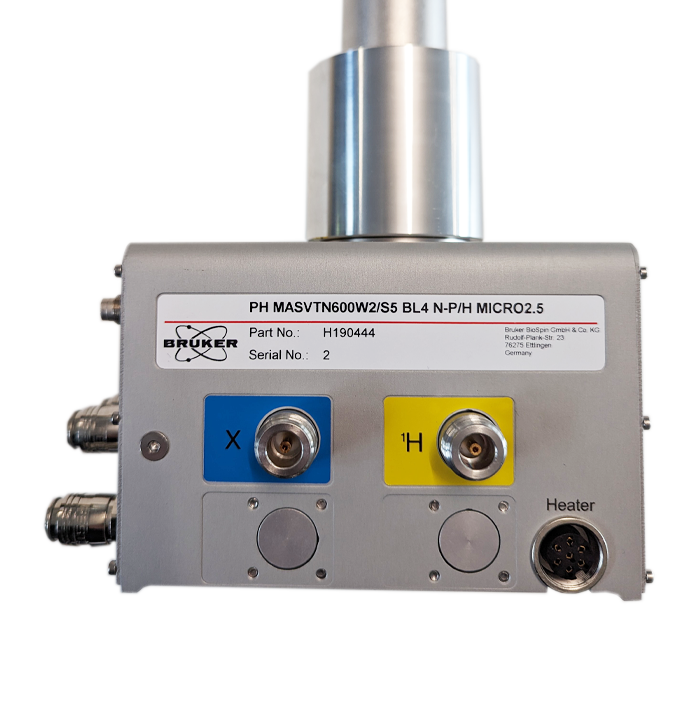

The MR Microscopy MAS Probe is a customized device which can be configured to special requirements. Please contact the MR Microscopy Product Management before placing an order.

Applications

The MR Microcopy Micro2.5 Magic Angle Spinning probe offers unique capabilties for imaging and diffusion experiments of semi-solid objects.

Pulsed-field-gradient NMR with magic-angle spinning

Diffusion studies and NMR microscopy of heterogeneous materials.

Metabolite localization in living drosophila using High Resolution Magic Angle Spinning NMR

We have developed new methods enabling in vivo localization and identification of metabolites through their 1H NMR signatures, in a drosophila.

Stress Dependence of 1H Diffusion in Silicon Rubber using MAS

Silicon rubber shows a stress dependent diffusion coefficient.

詳細はこちら

Specifications

Micro2.5 Magic Angle Spinning
Bore	WB / SWB
1H frequency range	300 – 800 MHz
rf channels	Two independent
Requirements	Microscopy Accessory

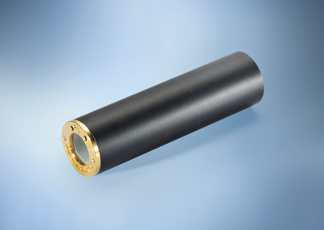

Gradient	Micro2.5
Directions	xyz
Gradient strength per direction	1.5 T/m
ID/OD	40/72 mm
Rise Time (5-95%), 0-60A,120V	< 100 µs
Cooling	Water
Maximum current tested	60 A
Removable	Yes

Accessories

MAS-3 Unit
