CS/ONH

CS/ONH Analyzers

Elemental analysis of CS and ONH in inorganic materials | Based on the know-how of many decades Bruker offers innovative solutions for rapid and precise elemental analysis of carbon, sulfur, oxygen, nitrogen and hydrogen.

Carbon and Sulfur Analyzers

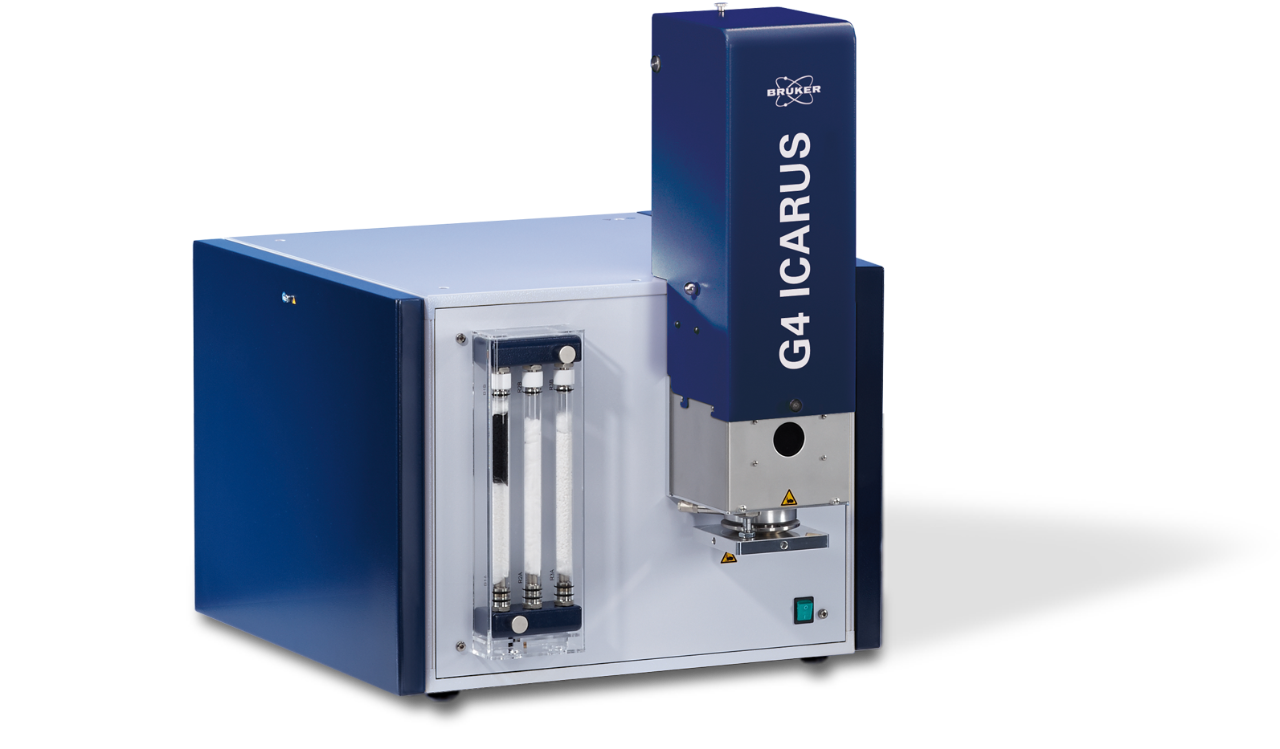

The G4 ICARUS Series 2 combustion analyzers are ideal for rapid and precise, simultaneous determination of carbon and sulfur in a large variety of solid materials. The G4 ICARUS Series 2 analyzer with high frequency (HF) induction furnace combines an innovative combustion zone design - ZoneProtectTM - with a unique, fully automatic cleaning system with vacuum-free dust removal. In combination with HighSenseTM detector systems, this results in outstanding applicability and analytical performance with minimum maintenance.

 ONH Analyzers

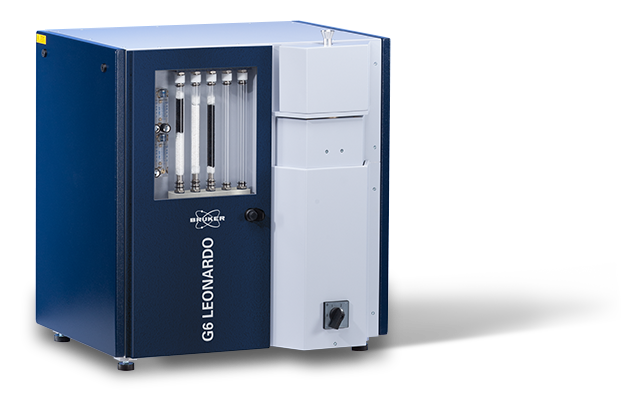

The concentration of Oxygen, Nitrogen and Hydrogen in metals and other inorganic materials, is determined based on the inert gas fusion method (IGF). The solid sample is fused in a graphite crucible at high temperatures in a carrier gas flow and the evolved gases are transported through the detectors. The G6 LEONARDO addresses industrial needs for robust, precise and economical elemental analysis by SampleCareTM and pre-calibrated standard methods. The G8 GALILEO is a high-end analyzer with utmost flexibility, high-throughput and even mass spectrometric detection capabilities.

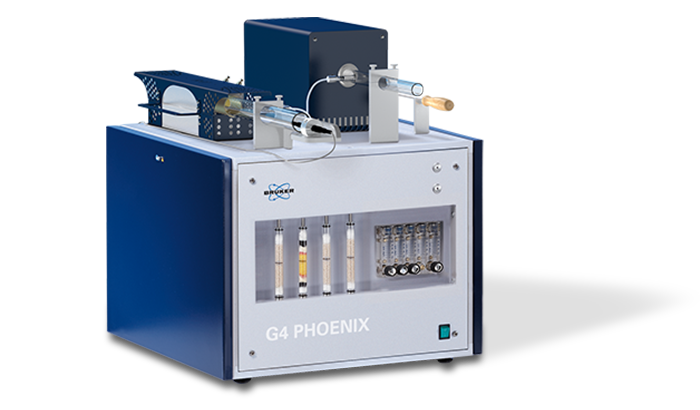

Diffusible hydrogen, e.g. in welds according to ISO 3690 and AWS4 4.3 as well as in high strength steels, either are measured combining an infrared heated furnace to the G8 GALILEO ONH or with the specialized diffusible hydrogen analyzer G4 PHOENIX DH.



BAXS Headquarters and our Virtual Showroom

Visit the demo facilities in our headquarters in Karlsruhe (Germany) or just take a virtual tour on our showroom to see and learn more about our analytical solutions. If you have any questions, please do not hesitate to contact our team of experts from sales or customer support.
