QTOF

compact

The compact QTOF provides unrivalled dynamic range in combination with mass accuracy, sensitivity, MS/MS performance and robustness

Small and Strong

Uncompromised resolution & sensitivity

QTOF

compact QTOF

Robustness
Great robustness to sample variation allows reduced sample pre-treatment.
Sensitivity
Low picogram sensitivity while delivering, highly precise and reproducible MS and MS/MS data.
Simplicity
All specified performance parameters simultaneously delivered in a single run with no need for tuning or optimization.
compact

Instant expertise in accurate mass LC-MS/MS

Research-grade technology applied to every routine analytical task. The Bruker compact QTOF features:

  • Low picogram sensitivity while delivering, highly precise MS and MS/MS data
  • Definitive trace analysis from complex, high-background matrices, by increased dynamic range
  • True Isotopic Pattern for unambiguous spectra
  • Superior 1 ppm mass accuracy ensured by automated calibration
  • 50 GBit/sec sampling technology maintaining full specification resolution even during ultrafast chromatography

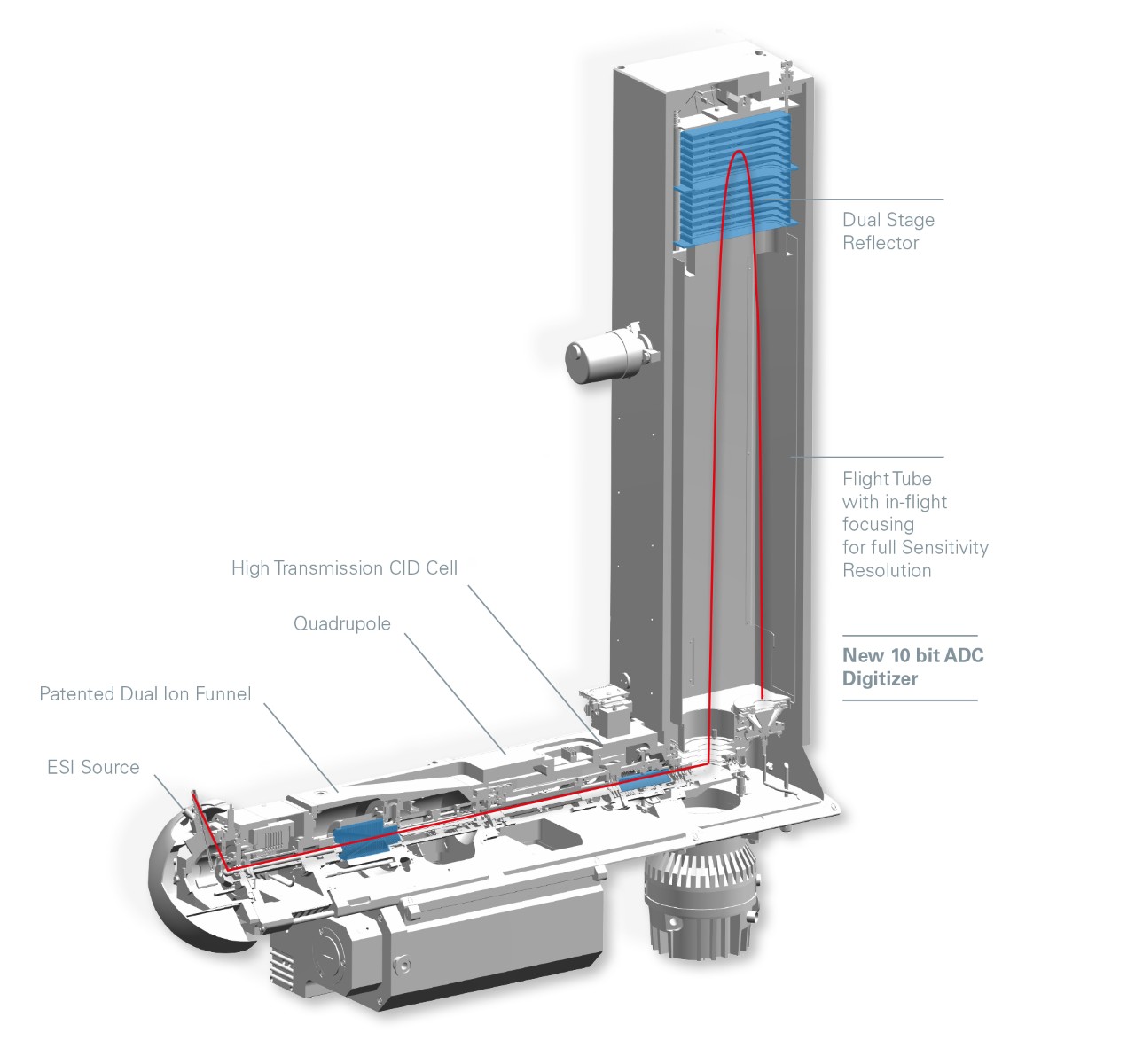

The compact combines the robustness of Bruker orthogonal Time-of-Flight (TOF) instruments with 10-bit digitizer technology that allows for compound detection and identification across an unrivaled dynamic range.

High Dynamic Range
compact offers five orders of magnitude intrascan dynamic range at ultra high performance liquid chromatography (UHPLC) speed . Fast detection and digitizing technology is key to maintaining full resolution at all acquisition speeds and providing high dynamic range to detect the smallest peaks in the presence of a high-abundance background matrix.

compact

High Productivity enabled through Research

The power of technology demanded for challenging applications is available in a compact, robust and economic bench-top system.

compact delivers the highest quality of results without compromise. All specified performance parameters are delivered simultaneously in a single run, with no need for tuning or optimization.

Full Sensitivity Resolution
Having to choose between resolution and sensitivity restricts the depth to which you can understand your sample. compact offers both parameters without sacrificing the quality of results.

Enhanced dynamic range during ultra high performance liquid chromatography (UHPLC) timescales
Greatly increased robustness to sample variation allowing reduced sample pre-treatment, which is especially desirable in high throughput quantitative applications.

One shot plug & play acquisition with outstanding standard sensitivity
Compact ensures qualitative and quantitative results in one chromatographic run with rapid time-to-success.

compact

Key applications

compact optimizes outcomes in a wide range of applications

  • Screening and quantification in food and environmental routine
  • Forensics and doping control
  • Drug metabolite, degradant and impurity identification and quantitation
  • Biomarker discovery and validation in metabolomics
  • Synthetic chemistry support

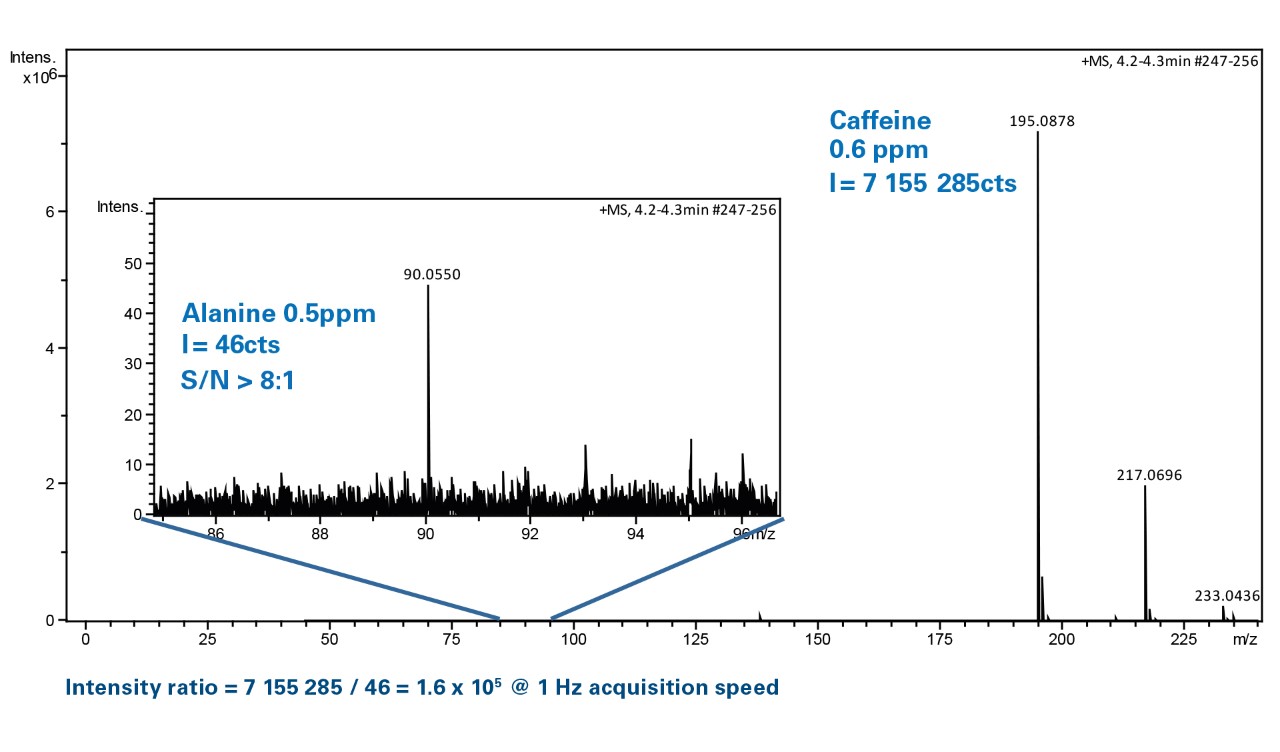

High Dynamic Range
5 orders of magnitude intrascan dynamic range at UHPLC speed. Very fast detection and digitizing technology is key to maintaining full resolution at all acquisition speeds and provide high dynamic range to detect the smallest peaks in the presence of high-abundance background matrix.

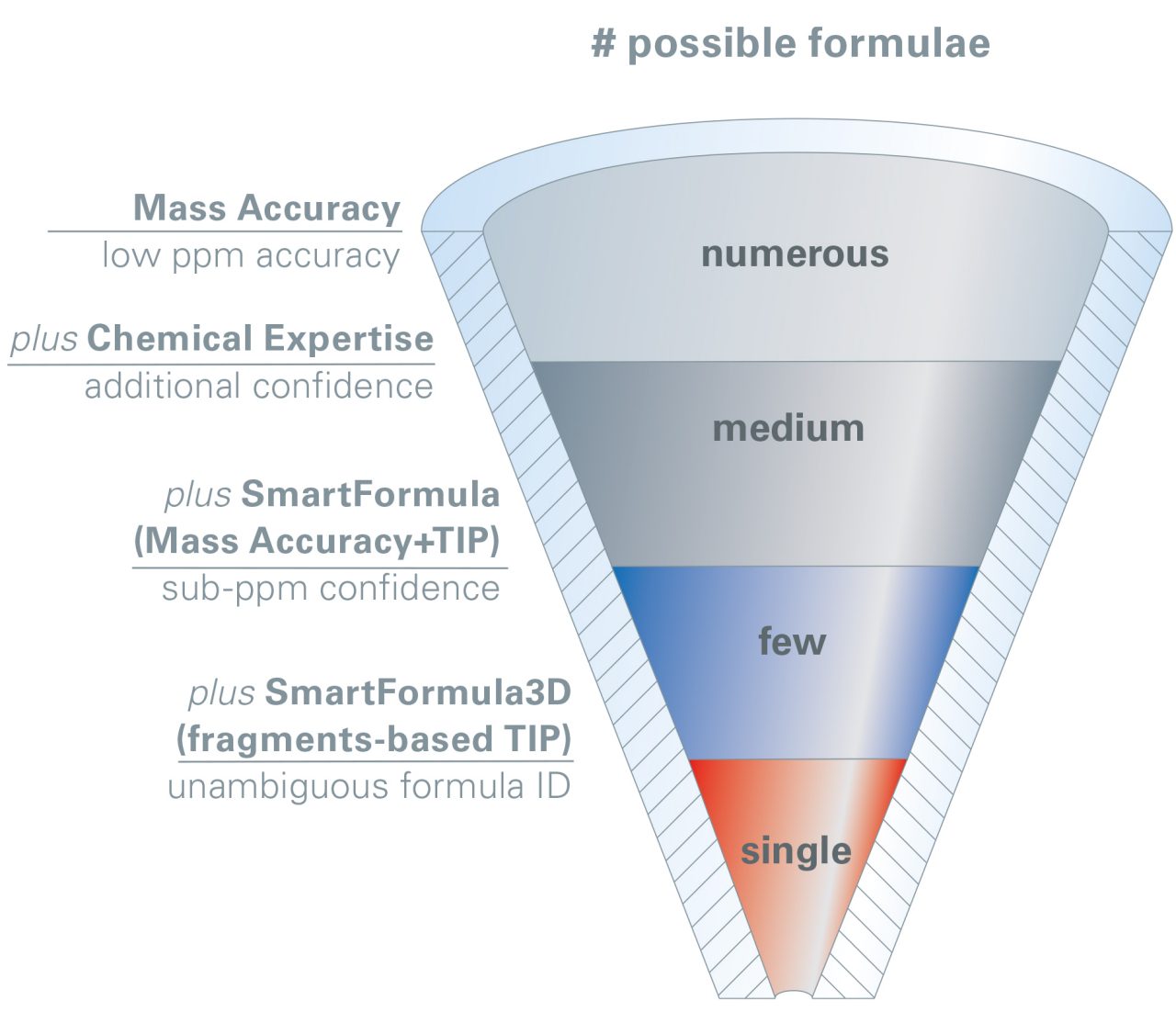

SmartFormula Determination

Three dimensions of information simultaneously raise your analytical tasks to unrivaled confidence levels. The system allows superior accurate mass measurement, True Isotopic Pattern analysis validation and high resolution MS and MS/MS measurements.





5 orders of magnitude intrascan dynamic range at LC speed. Very fast detection and digitizing technology is key to maintaining full resolution at all acquisition speeds and provide high dynamic range to detect the smallest peaks in the presence of high-abundance background matrix.
