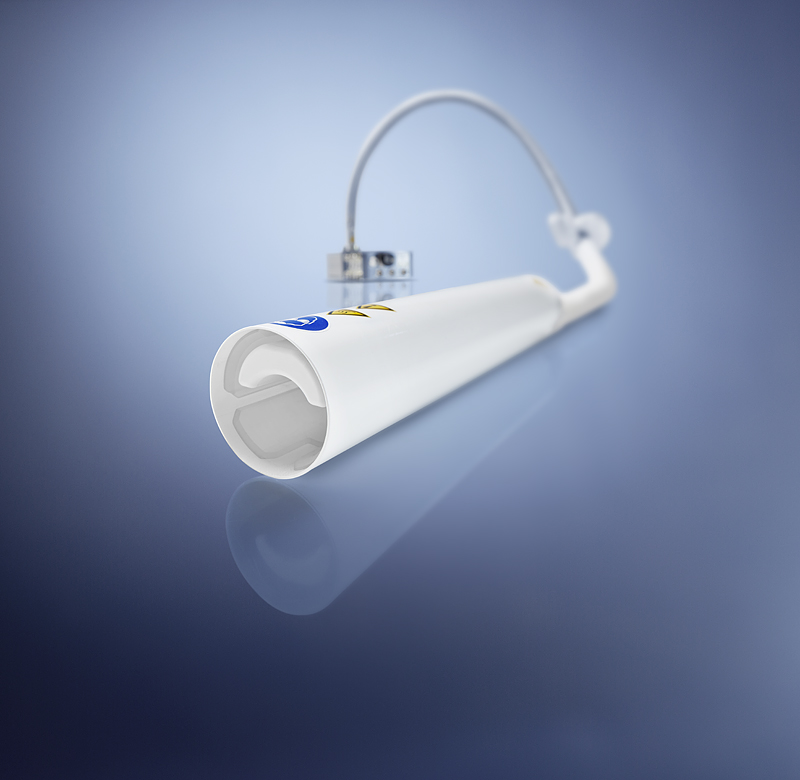

The rat array MRI CryoProbe™ for in vivo neuroimaging delivers unparalleled access to rat brain microstructure and biochemistry, previously unresolvable in in vivo imaging of the rat. Thanks to very low temperature, closed-cycle cooled RF coils and preamplifiers, this unique MRI CryoProbe delivers an increase in signal-to-noise ratio (SNR) of up to a factor of 2.4 over equivalent room-teperature RF-coils. The sensitivity increase allows researchers to reduce imaging times by a factor of 5, or to increase spatial resolution.
Based on a 2 x 2 array cryogenically-cooled RF coil that combines the
high sensitivity of Bruker‘s CryoProbe technology with parallel
acquisition capabilities, the MRI CryoProbe delivers maximum imaging
speed and highest spatial resolution at 9.4 Tesla.
The probe seamlessly integrates with Bruker’s powerful ParaVision software, opening up a vast world of imaging protocols and experiment parameters to any researcher. With hardware recognition, and automatic tuning and matching for optimum performance and productivity, the rat MRI CryoProbe is also very suited to routine imaging environments.
The corresponding CryoPlatform supplies cold Helium gas via a closed loop circuit, eliminating any need for handling of cryogens. The patented temperature shielding technology guarantees safe operation and optimal performance.
Bruker is the pioneer and world leader in the development of cryogenically-cooled probes for high-resolution NMR, with over 1,300 units sold in the last decade. That expertise and foresight has been transferred successfully to the MRI CryoProbeTM, and already over the last few years, around 60 of these peerless probes have been installed worldwide.
Bruker’s commitment to provide customers with unparalleled help throughout the buying cycle, from initial inquiry to evaluation, installation, and the lifetime of the instrument is now characterized by the LabScape service concept.
LabScape Maintenance Agreements, On-Site On-Demand and Enhance Your Lab are designed to offer a new approach to maintenance and service for the modern laboratory
