BioSpec

BGA Gradients

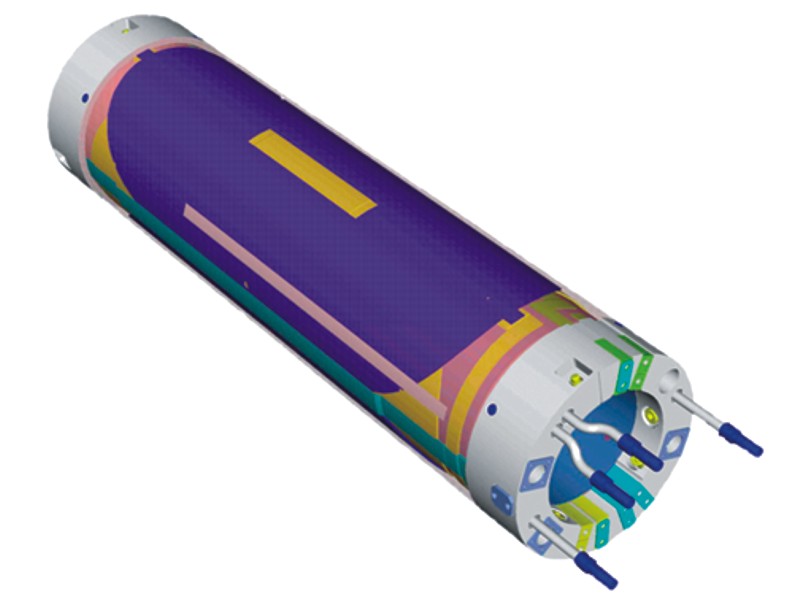

High Performance Integrated Gradient and Shim Systems

High Performance Integrated Gradient and Shim Systems

An increasing number of preclinical MR imaging applications demand ultra-high magnetic fields with increased requirements to gradient and shimming technology. Bruker BioSpin MRI therefore is introducing the BGA-S series, a complete new series of high performance actively shielded gradient systems with integrated shim coils.

Superior performance on the following major characteristics can thus be achieved:

  • Ultra high gradient strength
  • Very short gradient slew rates
  • Excellent gradient duty cycle (independent of shims and gradients)
  • Optimal gradient linearity
  • Very high gradient shielding quality
  • Maximal shim strength

The new BGA-S series is available for BioSpec® and PharmaScan® systems.

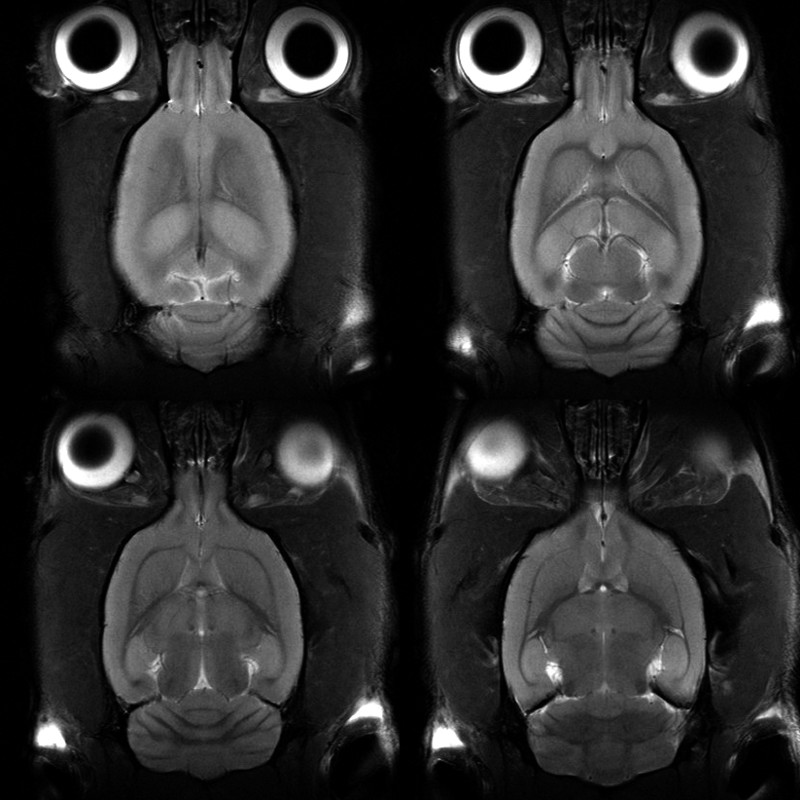

High resolution morphology using the BGA20S gradient system

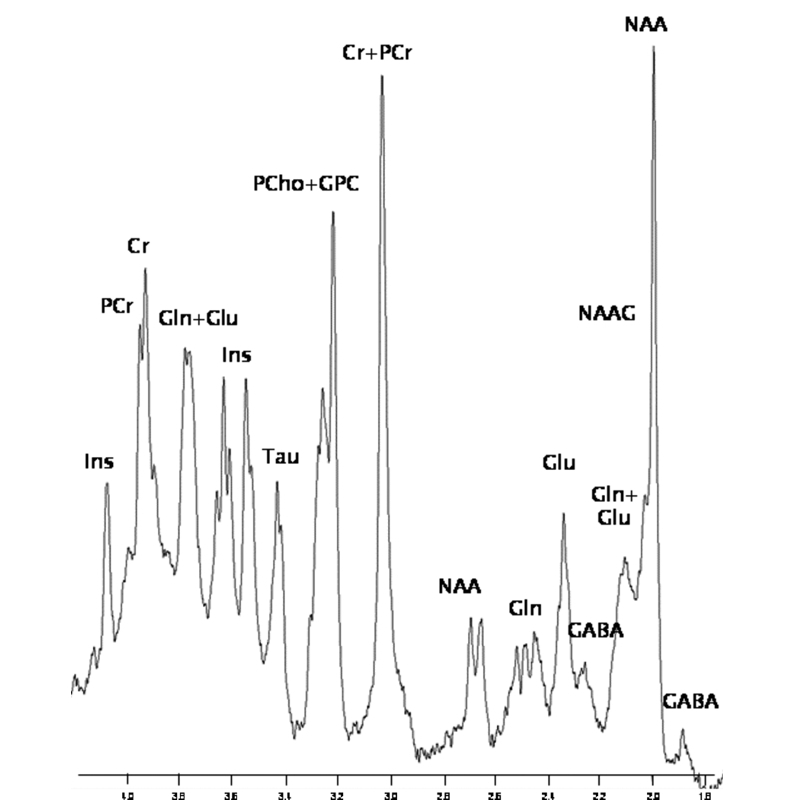

Rat brain (in vivo) TR: 3500 ms, TE: 8 ms, voxel size: 3.5 x 3.5 x 3.5 mm³, Shim: Fastmap: 1H-line: 10.5 Hz, Cr/PCr: 12 Hz, Coil: Transmit: 72 mm, receive: Quad. rat brain

Labscape

Service & Life Cycle Support for Magnetic Resonance and Preclinical Imaging

Bruker’s commitment to provide customers with unparalleled help throughout the buying cycle, from initial inquiry to evaluation, installation, and the lifetime of the instrument is now characterized by the LabScape service concept.

LabScape Maintenance Agreements, On-Site On-Demand and Enhance Your Lab are designed to offer a new approach to maintenance and service for the modern laboratory
