PetriDishHeater for BioMAT

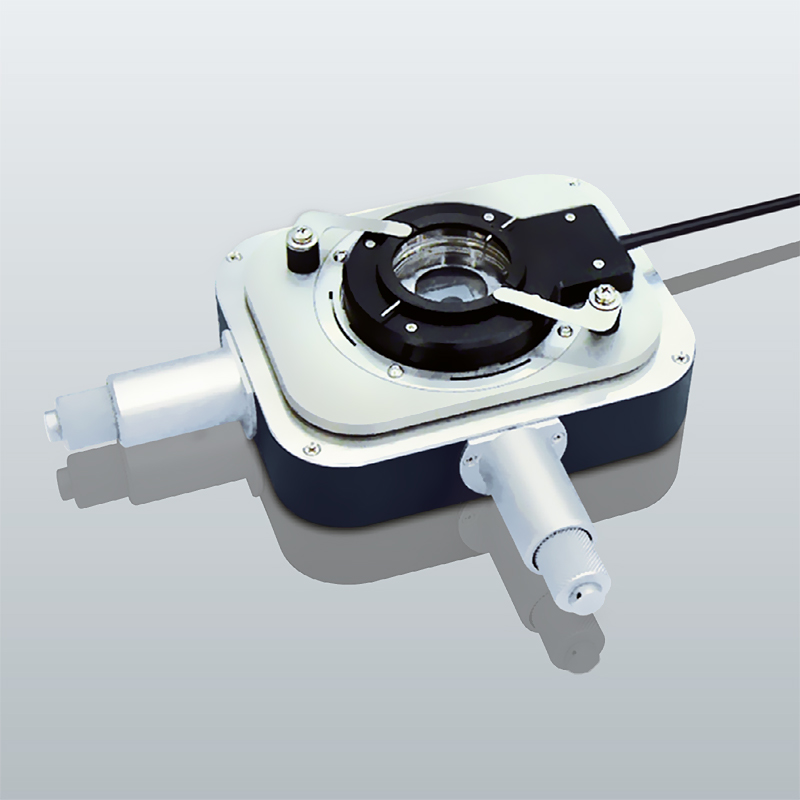

Shuttle stage with integrated Petri dish heater.

The heater system is fully compatible with JPK‘s range of NanoWizard AFM and CellHesion systems. This means all the standard imaging and measurement techniques may be applied at temperatures up to 60˚C with 0.1˚C precision. These include fluorescence, brightfield, phase contrast and DIC, AFM imaging and cell mechanics study. The system also offers perfusion control employing standard syringe pumps and gas flow of carbon dioxide possible for long term cell studies. Glass bottomed dishes are important for high numerical aperture fluorescence experiments such as confocal laser scanning used in combination with AFM.


  • Insert for Life Science stage
  • Temperature range: room temperature up to 60°C
  • Compatible with 35×10mm Petri dishes from WPI and TPP - plastic or plastic with glass bottom
  • Adaptors for other suppliers such as Matek, Willco, IWAKI, Ibidi, and BD upon request
  • Ports for perfusion tubes and gas supply (only available for certain types of Petri dishes)
  • Software control
  • Temperature stability 0.1K
  • Fully compatible with JPK‘s range of NanoWizard AFM and CellHesion systems
  • Fits to all inverted microscope brands in combination with a JPK sample stage
