Vision64 Map Software
Enhanced Metrology Analysis and Reporting
Vision64 Map™ data analysis and reporting software, based on Digital Surf’s industry-leading Mountains® Technology, is a comprehensive extension to Bruker’s Vision64® instrument control and analysis software. Vision64 Map enables more comprehensive 3D surface visualization and analytical data with Bruker 3D optical microscope systems. Now, a complete metrology workflow is available for users, from automated data acquisition and advanced data analysis to powerful data visualization and reporting.
Maximized Value for Bruker 3D Optical Microscopes
- Present data with stunning 3D visualization
- Characterize surfaces in accordance with the latest metrology standards around the world
- Automate data reporting in 11 different languages
- Meet specific application needs with customized, feature-rich modules
Vision64 Map gives power users access to advanced, very customizable functions, yet it is also intuitive and easy enough to use for production monitoring on manufacturing floors. The software also allows users to characterize surfaces in accordance with the latest metrology standards, including ISO, ASME B46.1, DIN, JIS, and their equivalents in other geographic regions of the world. Vision64 Map opens up streamlined access to automated reporting of advanced surface measurements in 11 languages, while ensuring compatibility across a wide range of industry norms.

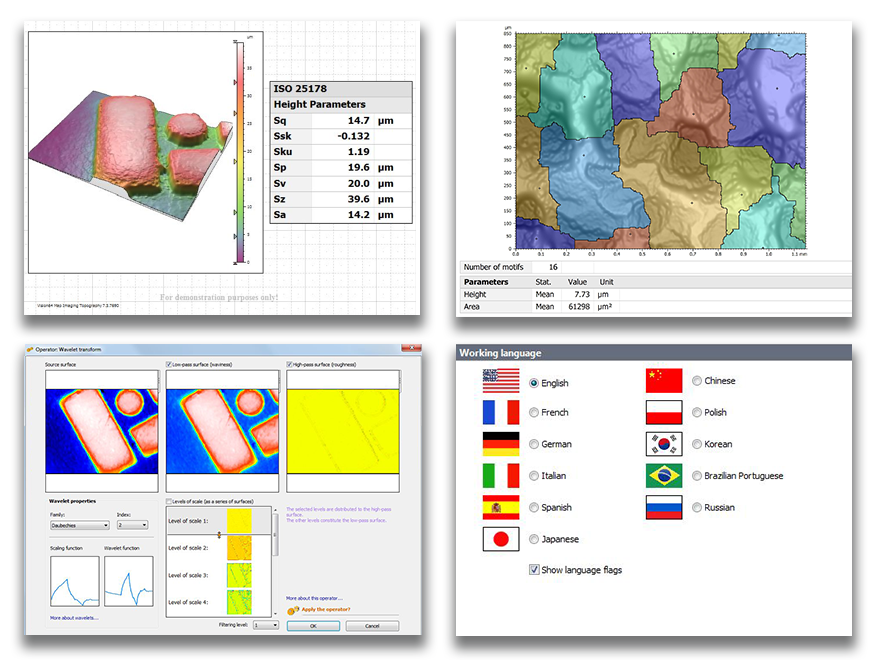

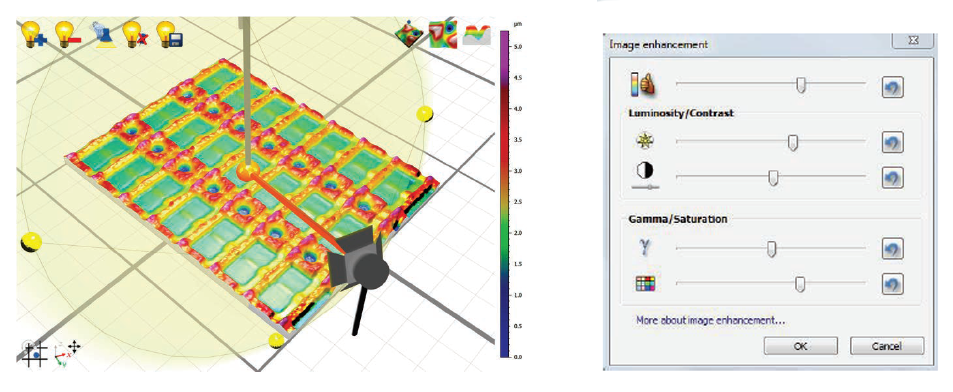

Multiple image enhancement tools with control panel

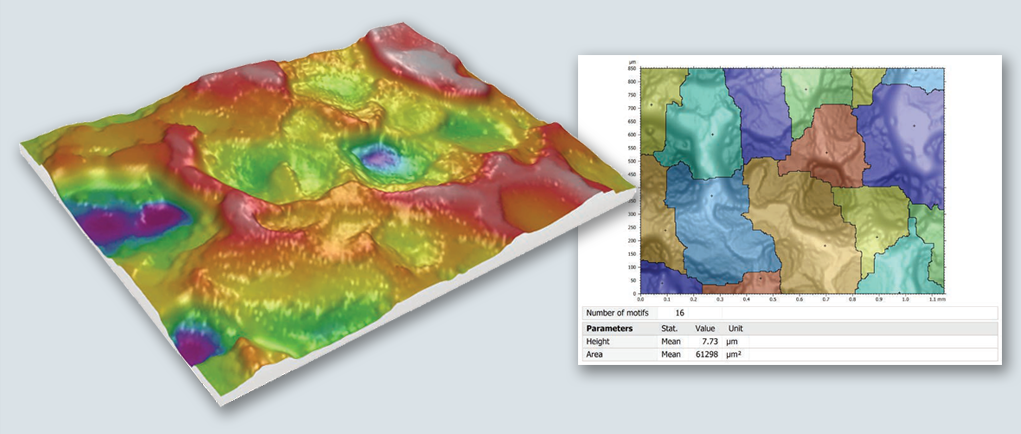

ISO 25178 Watershed segmentation with motifs analysis

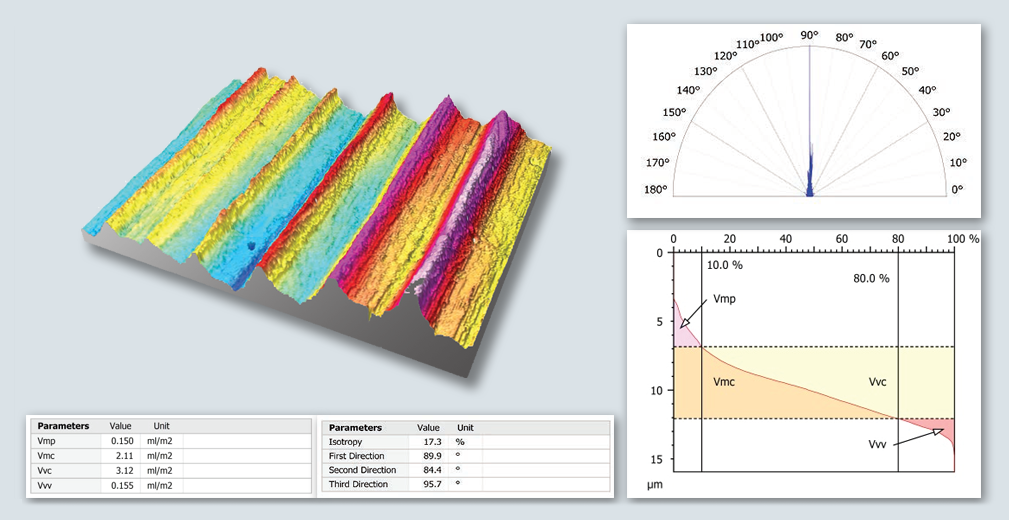

Example report of volume parameters and surface texture
Frequently Asked Questions About Vision64 Software
The standard Vision64 included with Bruker white light interferometers and stylus profilers is an all-in-one data collection, analysis, and visualization software. It features:
- Off-line analysis
- Recipe portability with import/export
- Production mode
- Stitching workflows
- Batch analysis
- Automation
- Control and analysis of PSI, VSI, and USI modes
Vision64 Map is an optional add-on for Vision64 that enables more comprehensive 3D surface visualization and analysis. Vision64 Map is available with a number of optional modules that make it even easier to customize your analyses and reports to your specific applications. Modules include, but are not limited to:
- Advanced 2D Surface Texture
- Advanced 3D Surface Texture
- Advanced Contour
- 2D Automotive
- Statistics (2D/3D)
- 3D Fourier and Wavelets
Based on Digital Surf’s industry-leading Mountains® Technology, the Vision64 Map software provides a variety of palettes, user-definable views, and lighting to enable more flexible representation of sample surface texture and topography. The software also expands reporting capabilities with automated data reporting in 11 languages and analysis modules that enhance or enable:
- Data segmentation
- 2D/3D advanced filtering options
- Standards-compliant analyses
- Statistical analysis
- MATLAB compatibility
- Plotting options
- Overlay analysis
- Sub-surface extraction
- …and more
If you have a complex workflow, analysis, or visualization problem, contact us about Vision64 Map modules that can meet your needs!
