BioAFM Accessories and Add-Ons

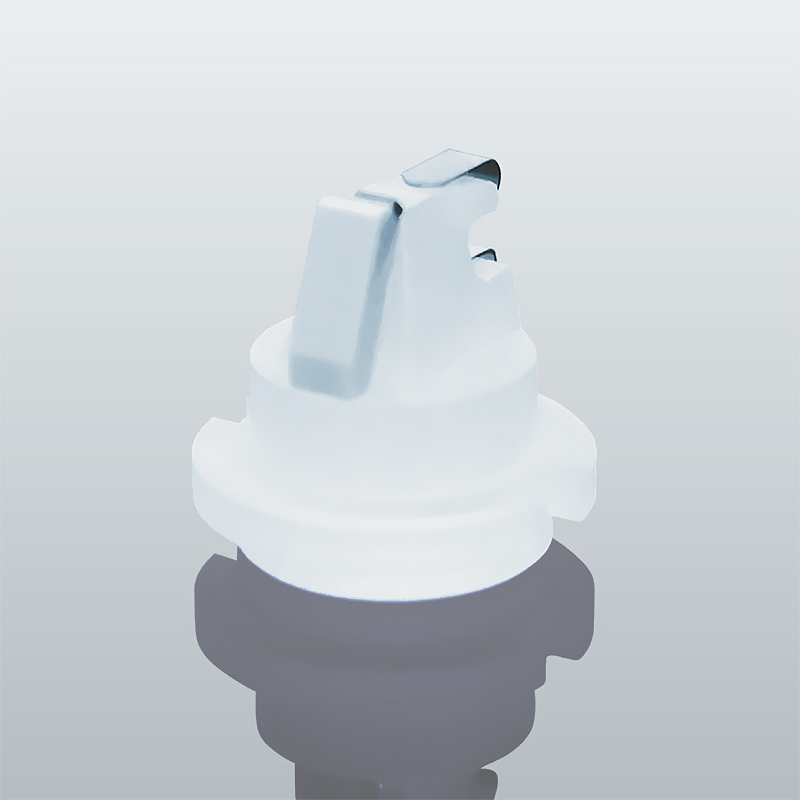

SideView Cantilever Holder

For use in combination with inverted optical microscopes to observe the cantilever region from the side.
  • Super cut, fixed spring, length: 15.5 mm
  • Cantilever holder with precise mounted mirror
  • Allows both view from below and front of cantilever
  • Visual observation of tip-sample region, e.g., for cell pick-up
  • Compatible with aqueous solutions and epi-illumination
  • Available numerical aperture: 0.3
  • Objectives with minimum 4 mm working distance required (20× recommended)
