Alanine-EPR Dosimetry System | Reference Dosimetry System

Highlights

45 kg

The spectrometer has a weight of only 45 kg and a 39.7 x 26.2 x 19.2 cm3 footprint

6500 G

Sweep width of 6500 G at X-band operating frequency

Versatile Options

Temperature controller, autosampler, goniometer, and more

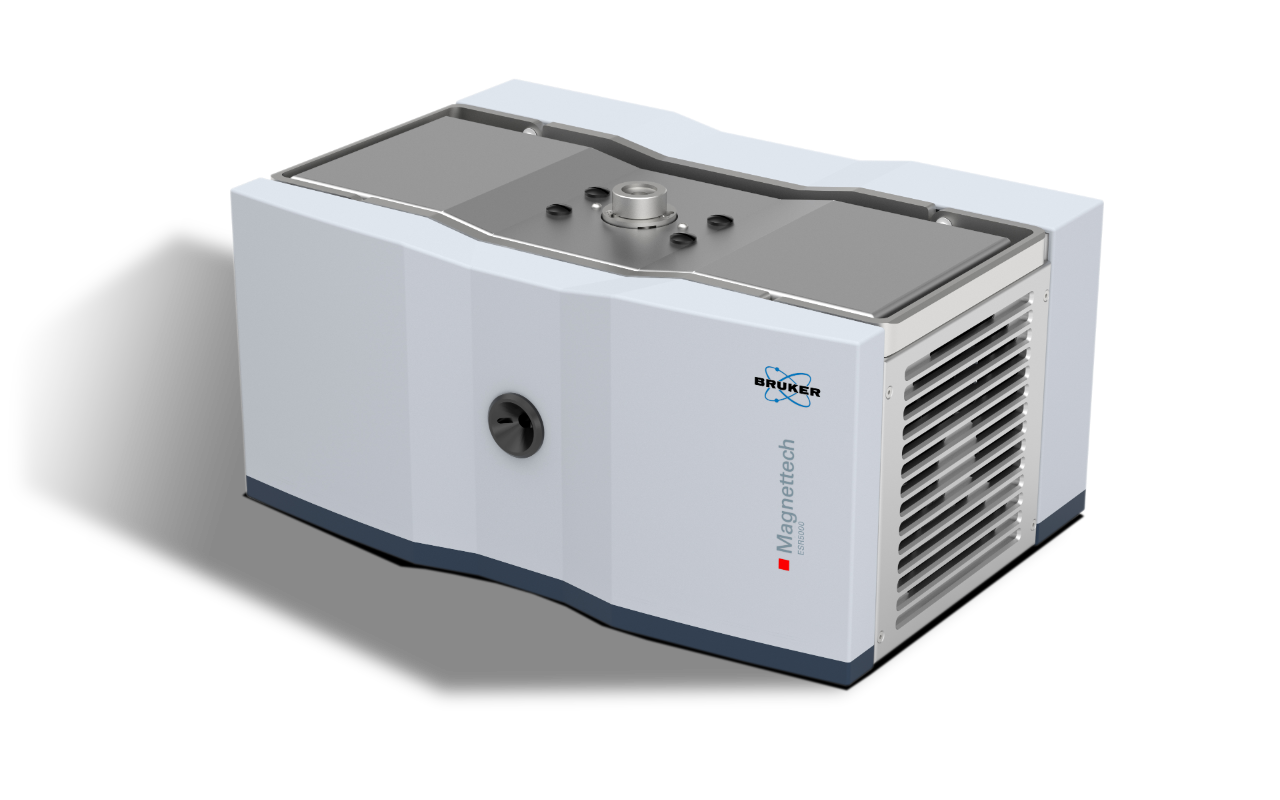

Magnettech ESR5000 Bench-top EPR Spectrometer

Magnettech ESR5000 Training Videos:

Magnettech ESR5000 Bench-top EPR spectrometer - Overview

Quick Start Guide for Magnettech ESR5000 Software

Automated Goniometer for Magnettech ESR5000

Optical Stimulation Unit (Integrated) for Magnettech ESR5000

External Irradiation Unit (Hamamatsu) for Magnettech ESR5000

Autosampler for Solids and Powders for Magnettech ESR5000

Continuous Flow System for Magnettech ESR5000

Variable Temperature with the ESR5000

Benefits

Unique and Far-reaching
Versatile and Nondestructive
Routine ease of use with unmatched performance
Superior sensitivity and stability
Low cost of ownership
Minimal infrastructure requirement
Suitable for comprehensive range of applications
User friendly ESRStudio software

Applications

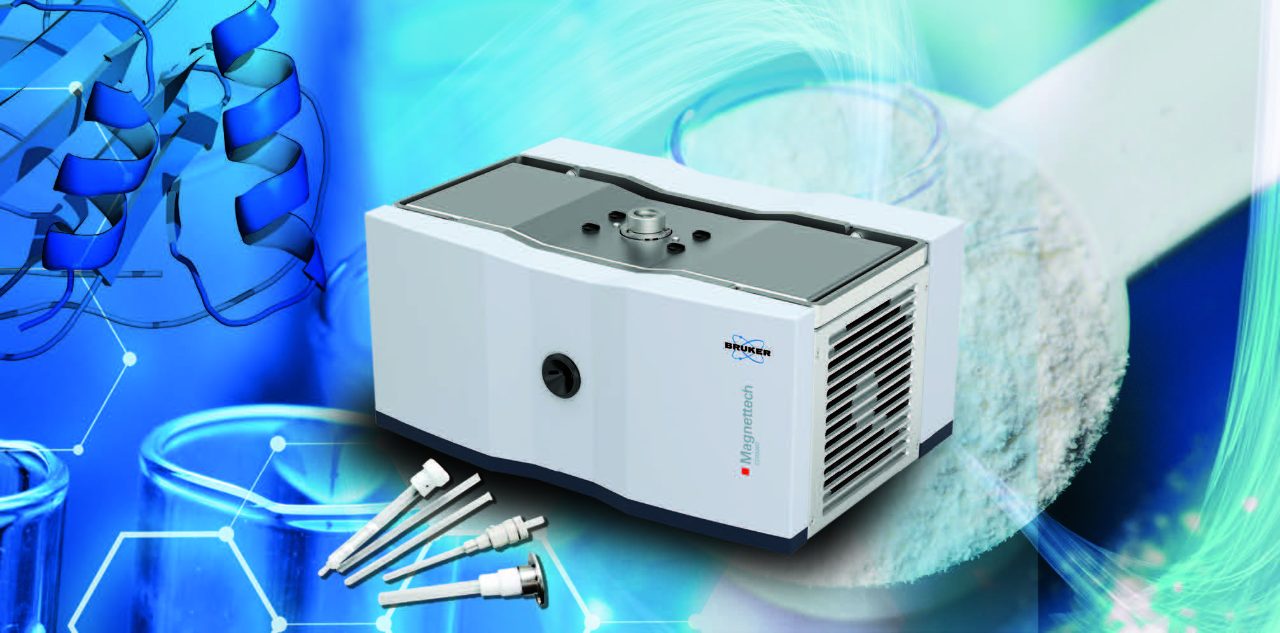

Alanine Dosimetry System

Magnettech ESR5000 is a complete alanine-EPR dosimetry system for routine dosimetry in industrial irradiation facilities, or for use as an in-house alanine reference dosimetry system.

Highest quality measurements:
The Magnettech ESR5000 instrument provides a
stronger measurement response signal than any other
bench-top EPR spectrometer on the market today, with
higher measurement sensitivity.

Cuts measurement time in half:
The Magnettech ESR5000 EPR system reduces measurement
times in half, from 40 seconds down to 10
seconds or less.

Reliability:
the new EPR spectrometer uses a solid-state technology,
to provide a more rugged industrial instrument for
higher reliability and uptime > 99 %.

Flexibility:
Accommodates a wide variety of commercially available
alanine dosimeters with specialized holders.
Remote accessibility:
IP based system allows remote operation and technical
support from anywhere in the world.

Specifications

Operating frequency	X-band
Sensitivity	5x10¹⁰ spins/mT (5x10⁹ spins/G)
Weak pitch signal-to-noise ratio	600 : 1
Microwave power	1 μW – 100 mW
Concentration sensitivity	20 pM
Field homogeneity	± 5 μT (50 mG) within sample region
Field stability	1.0 μT/h (10 mG/h)
Magnetic field range	-10 to 650 mT (-100 to 6500 G)
Modulation frequency	10 kHz and 100 kHz
Option	analog signal output

Accessories

Flat Cell

Optimize sensitivity for samples that are in water or other polar solvents. A special holder is provided to achieve consistent sample positioning and to prevent breakage

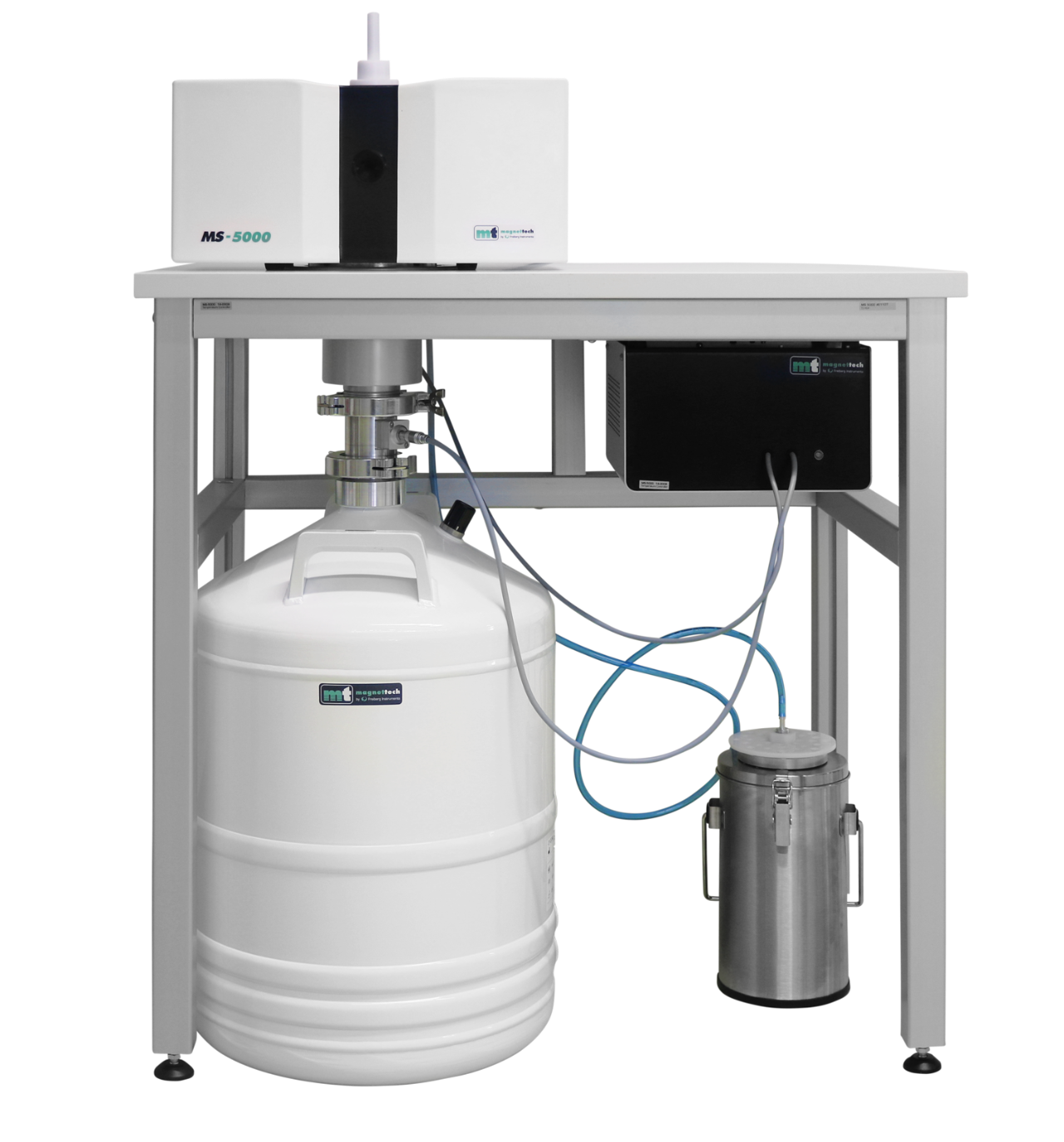

Variable Temperature Unit

The nitrogen variable temperature unit uses liquid or gaseous nitrogen to cool and heat the sample in the range of 93 – 473 K. The compact, digital temperature control system makes use of nitrogen for safe and stable temperature control

Autosampler

Automated handling of up to 26 samples in quartz tubes 3 – 6 mm diameter, precise height positioning within resonator for highest reproducibility

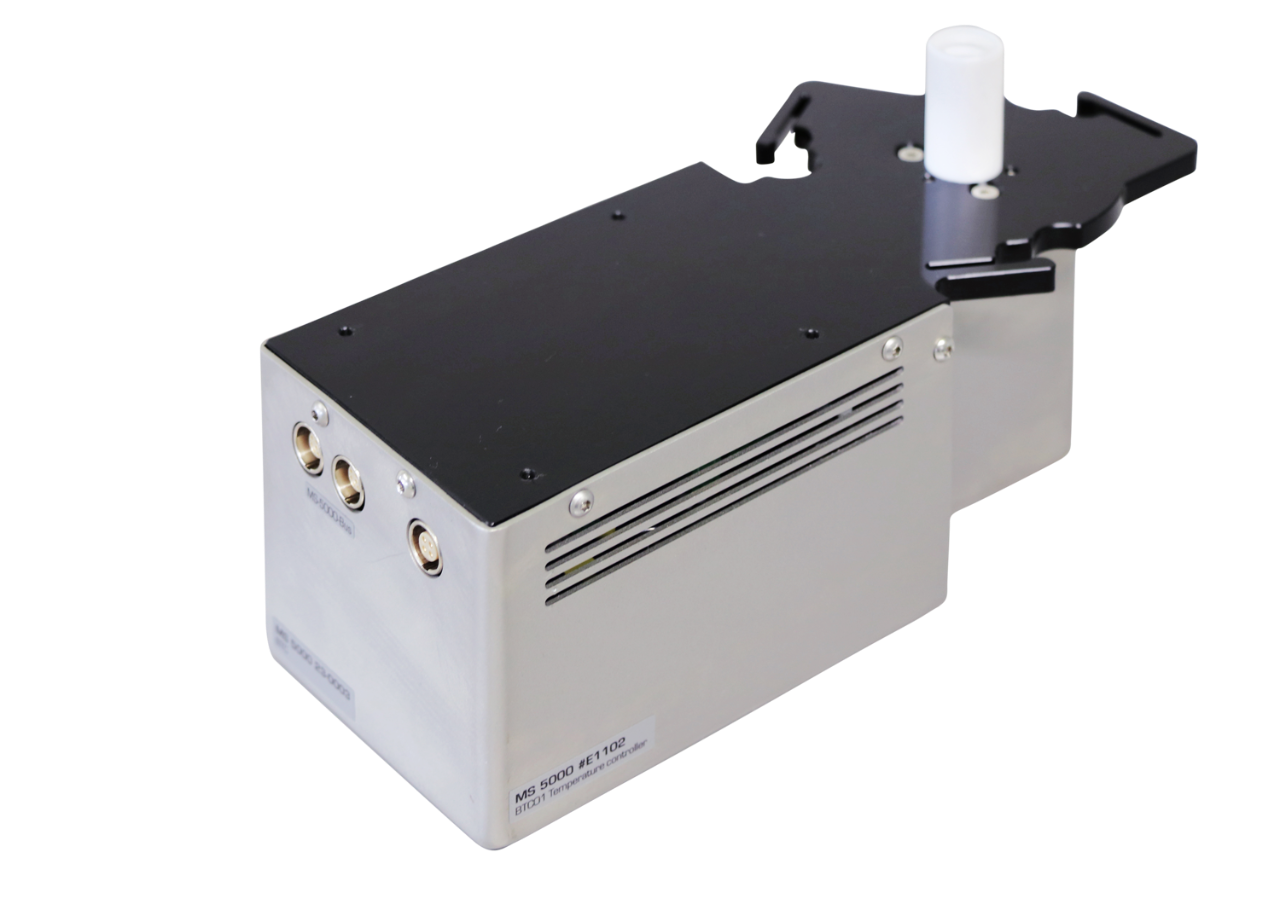

Bio Temperature Controller

Used to keep biological and biochemical samples constantly under conditions of elevated metabolic activity. Temperature range: 295 - 333 K

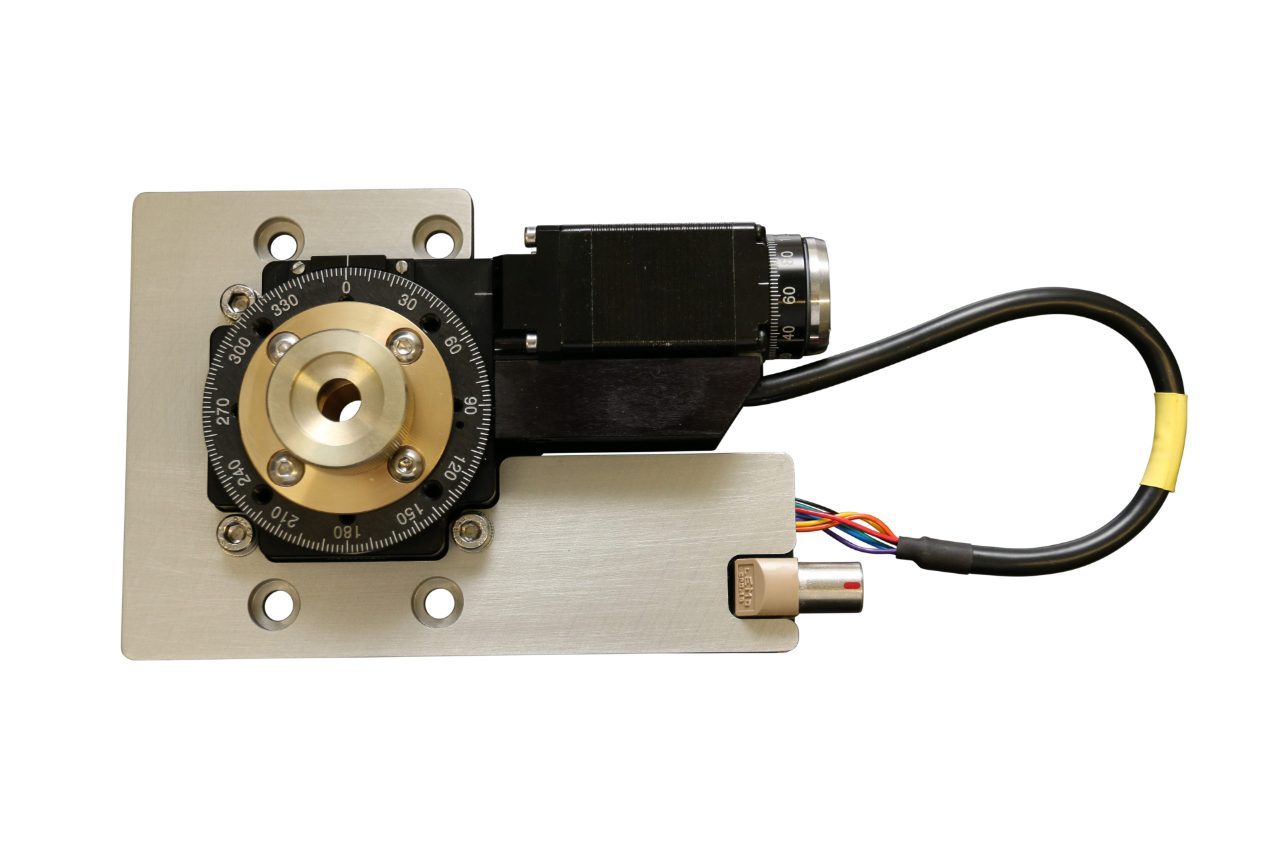

Automated Goniometer

Fully automated angular rotation of sample, step size 0.1° to 180°. Automatic readjustment of the spectrometer before every measurement.

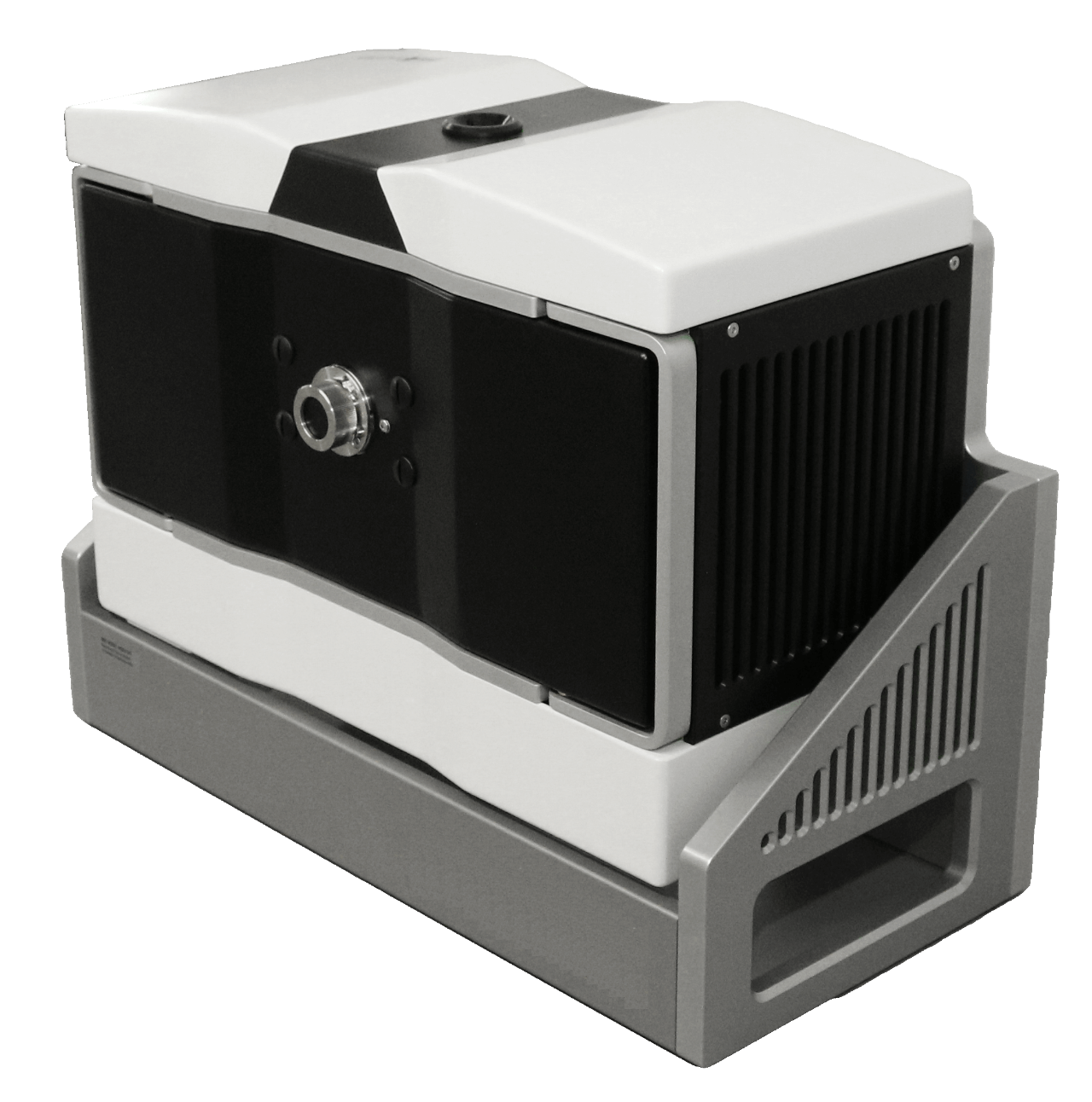

Rack for Horizontal Orientation

Specialized mounting for horizontal orientation for use with viscous media, tissues and cell suspensions

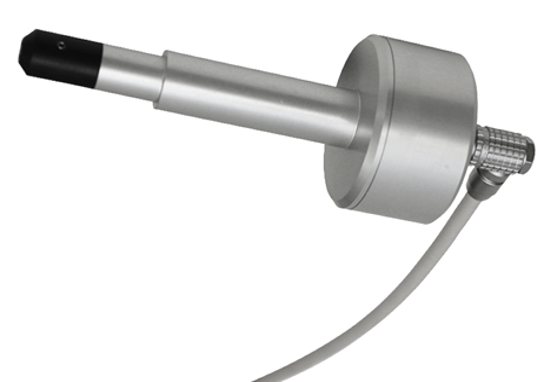

UV-Vis Irradiation System

For studies of photochemical radical reactions, photophysical production of excited paramagnetic states, suitable to trigger kinetic experiments. Features an integrated light source for sample irradiation, holder for precise positioning, high power LED, and exchangeable light intensity from 100% to 0%

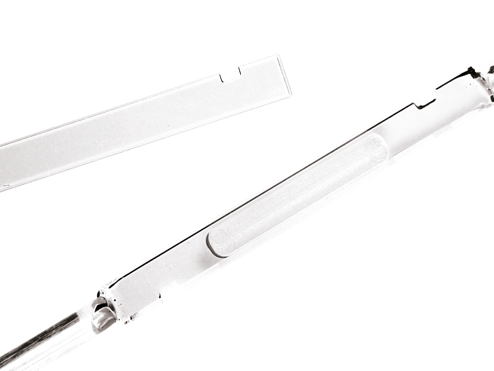

Tissue Cell

Used to analyze skin sections, organ slices, pastes and emulsions as well as plant tissues and conducting foils

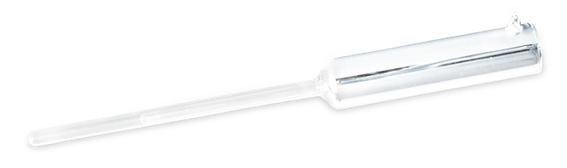

Finger Dewar

For sample cooling at fixed temperature of 77 K. Maximum volume of liquid N2 – 50 mL with a storage time up to 2 hours

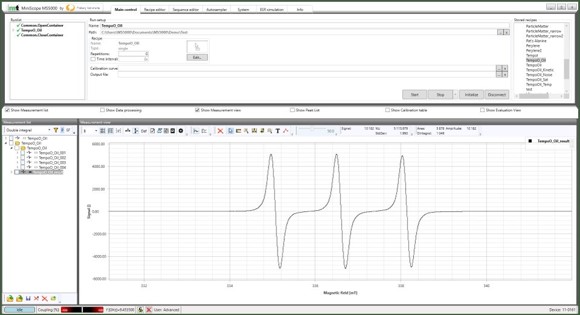

ESR Studio Software

Software ESRStudio

ESRStudio is a powerful and user-friendly software for data acquisition and processing with some of the most modern and fluent workflow-based user interfaces.

Key Features

User/application based customization
Workflow for automated spectrum evaluation
Automated lab report generation
Remote access - access your EPR spectrometer from anywhere in the world via the internet
