Routine ease of use with unmatched performance
Superior sensitivity and stability
Low cost of ownership
Suitable for comprehensive range of applications

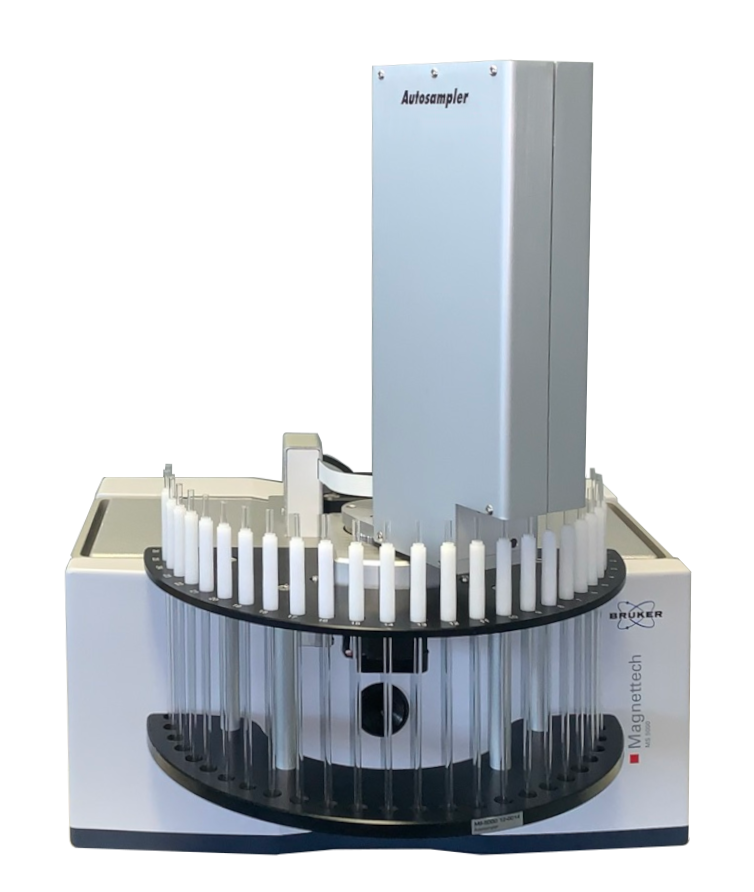

Magnettech ESR5000 is a complete alanine-EPR dosimetry system for routine dosimetry in industrial irradiation facilities, or for use as an in-house alanine reference dosimetry system.
Highest quality measurements:
The Magnettech ESR5000 instrument provides a
stronger measurement response signal than any other
bench-top EPR spectrometer on the market today, with
higher measurement sensitivity.
Cuts measurement time in half:
The Magnettech ESR5000 EPR system reduces measurement
times in half, from 40 seconds down to 10
seconds or less.
the new EPR spectrometer uses a solid-state technology,
to provide a more rugged industrial instrument for
higher reliability and uptime > 99 %.
Accommodates a wide variety of commercially available
alanine dosimeters with specialized holders.
IP based system allows remote operation and technical
support from anywhere in the world.
|Sensitivity||5x1010 spins/mT (5x109 spins/G)|
|Microwave power||1 μW – 100 mW|
|Concentration sensitivity||50 pM|
|Field homogeneity||± 5 μT (50 mG) within sample region|
|Field stability||1.0 μT/h (10 mG/h)|
|Magnetic field range||0 to 650 mT (0 to 6500 G)|
|Modulation frequency||10 kHz and 100 kHz|
Variable Temperature Unit
UV-Vis Irradiation System
ESRStudio is a powerful and user-friendly software for data acquisition and processing with some of the most modern and fluent workflow-based user interfaces.
Bruker’s commitment to provide customers with unparalleled help throughout the buying cycle, from initial inquiry to evaluation, installation, and the lifetime of the instrument is now characterized by the LabScape service concept.
LabScape Maintenance Agreements, On-Site On-Demand and Enhance Your Lab are designed to offer a new approach to maintenance and service for the modern laboratory
